SsangYong Stavic / SsangYong Rodius (2005 year). Service manual - part 392

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

11

WHEELS & TIRE

STAVIC - 2004.09

4H

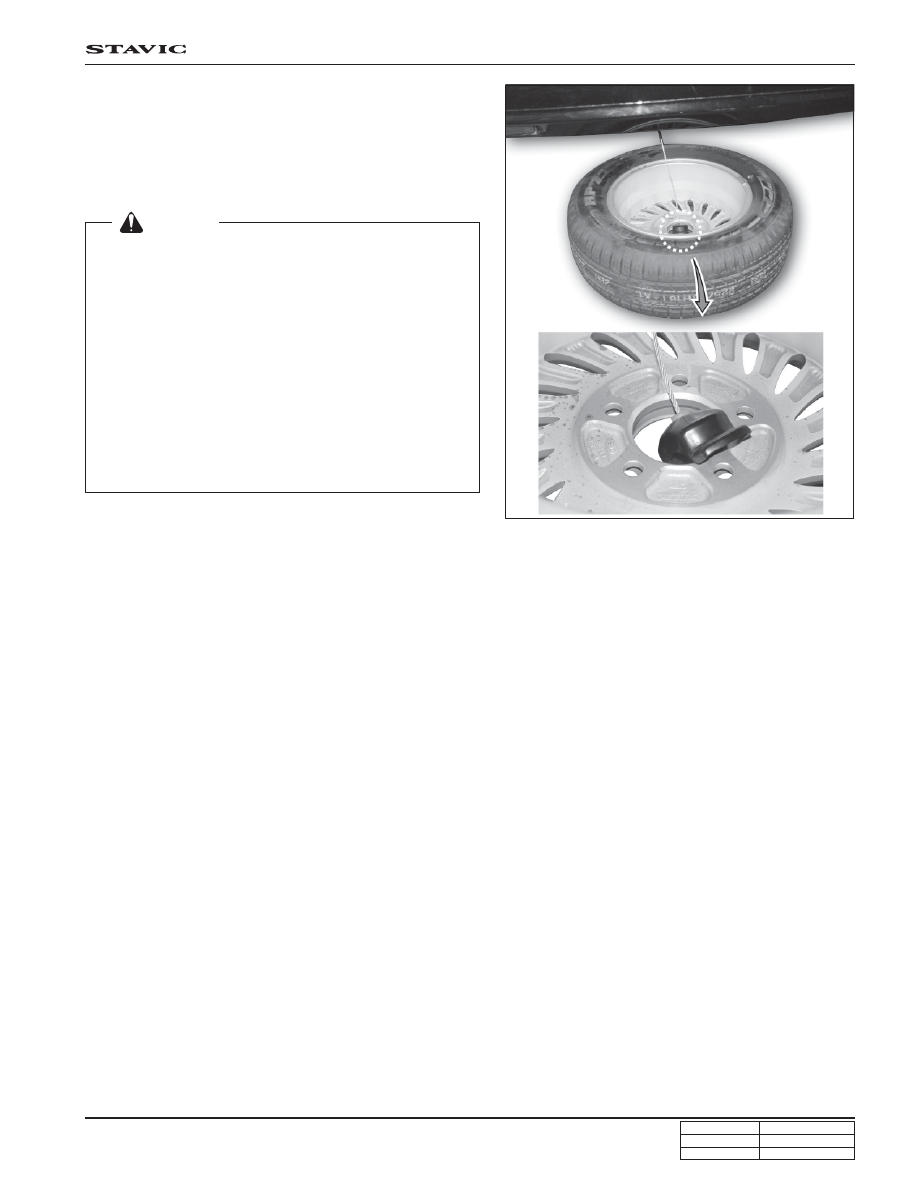

5. Pull out the lift plate from spare tire.

6. Put the lift plate into the center of the wheel when

installing.

7. Turn the handle clockwise until it sounds “click”.

8. Remove the handle and the wheel nut wrench.

 [Notice]

•

Always keep the spare tire available.

•

When reinstalling the spare tire, securely fasten it.

•

If the lift plate is not in the center position or the spare tire
is not securely fastened, the spare tire may be out of position
during driving.

•

If a movement of spare tire is found, check the system and
reinstall in needed.

•

The wheel nut tightening surface of the spare tire should
be faced toward ground.

•

This device is desined only for manual operation. Never
use the impact type tool to remove the spare tire.

•

Store the flat and damaged tire in the trunk.

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

12

WHEELS & TIRE

STAVIC - 2004.09

4H

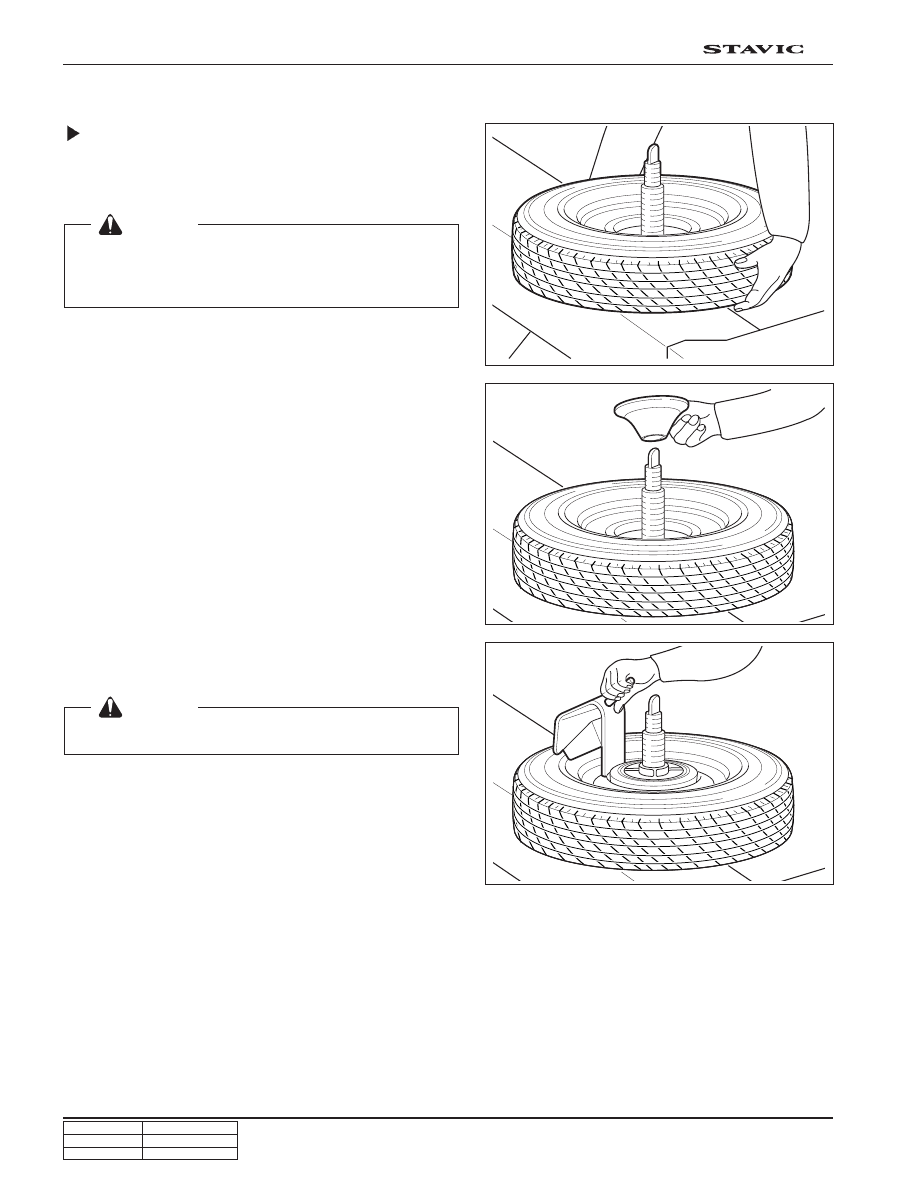

6. MAINTENANCE AND REPLACEMENT

Separation

1. Fix the tire into the equipment and pull out the valve core

from the tire. Discharge the air inside the tire completely.

2. Tighten the locker in the center of the equipment to

assemble the rim to the equipment.

3. Remove the balance weight on the rim.

4. Separate the tire’s bead from the rim flange using the

approved lubricant.

 [Notice]

Do not use silicone, synthetic detergent and gasoline, etc.

 [Notice]

The assembly and disassembly of the tire is dangerous
working job. So, only the skillful worker must work this job
following the approved procedures.

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

13

WHEELS & TIRE

STAVIC - 2004.09

4H

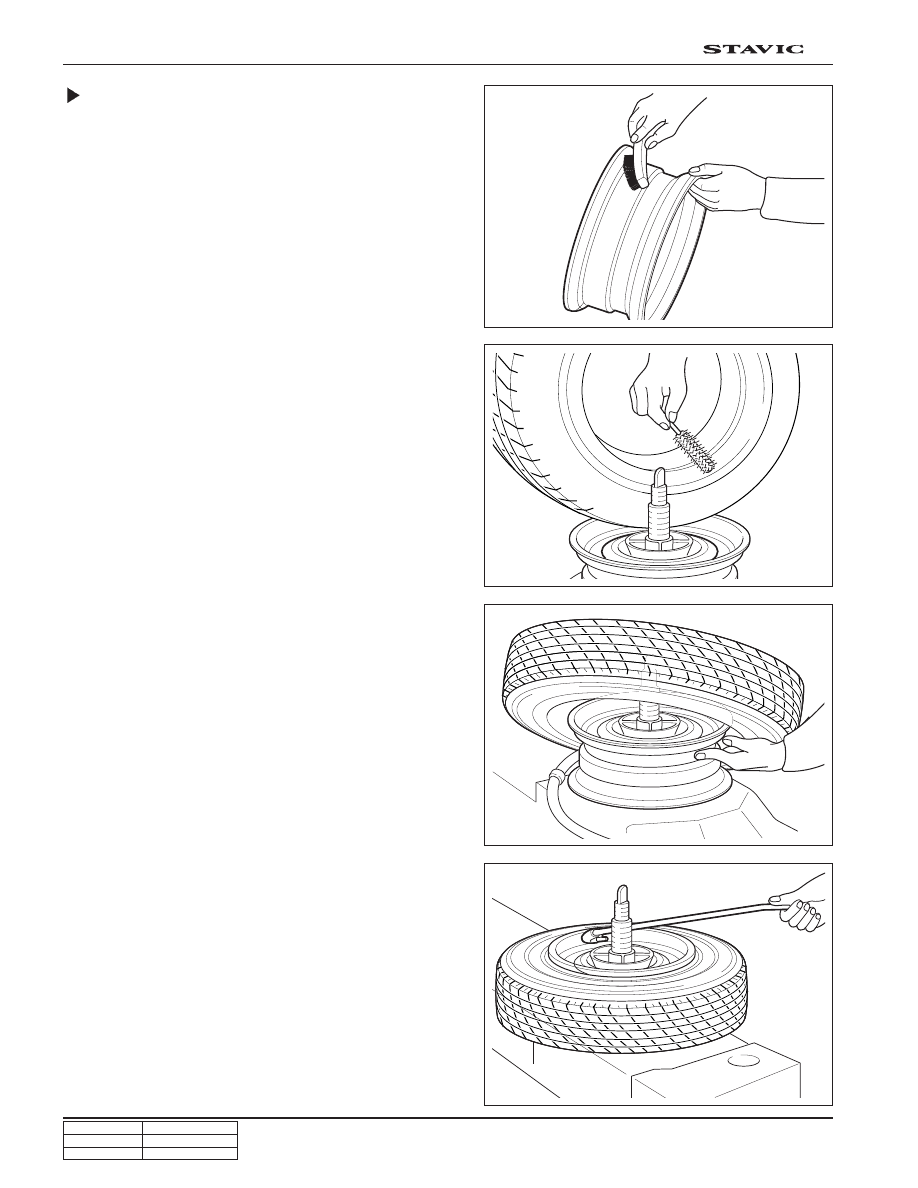

Maintenance

1. Check any damage the rim and replace as needed.

5. Apply the lubricant between the rim and the bead.

7. Pull out the opposite bead upward using the lever and

then separate the bead from the rim.

6. Insert the removal lever between the tire’s bead and the

rim and separate the rim from the tire.

 [Notice]

Do not use the tool that may cause any damage such as pipe,
damaged bar.

 [Notice]

•

Do not repair the rim as welding or soldering.

•

Replace the new valve as replaces new tire.

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

14

WHEELS & TIRE

STAVIC - 2004.09

4H

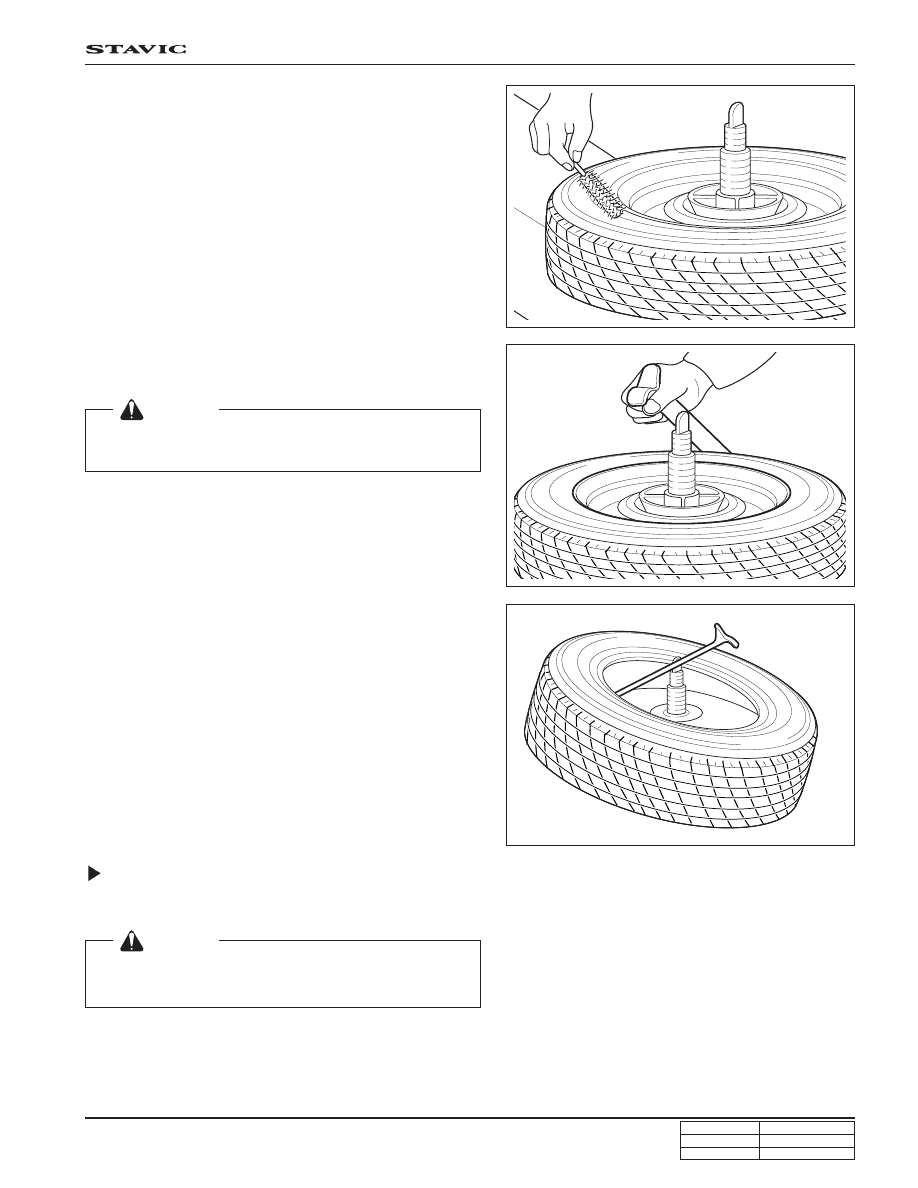

Installation

1. Clean the rust, damaged rubber and dust, etc on the

rim’s surface with the brush.

5. Check any foreign material or liquid for the tire inside

and then install to push down the tire.

2. Install the rim to the equipment with the valve upward.

3. Tighten the locker in the center of the equipment to

assemble the rim to the equipment.

4. Apply the lubricant at the both bead portions and both

rim’s flange of the tire.
