SsangYong Stavic / SsangYong Rodius (2005 year). Service manual - part 372

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

FRONT SUSP & AXLE

STAVIC - 2004.09

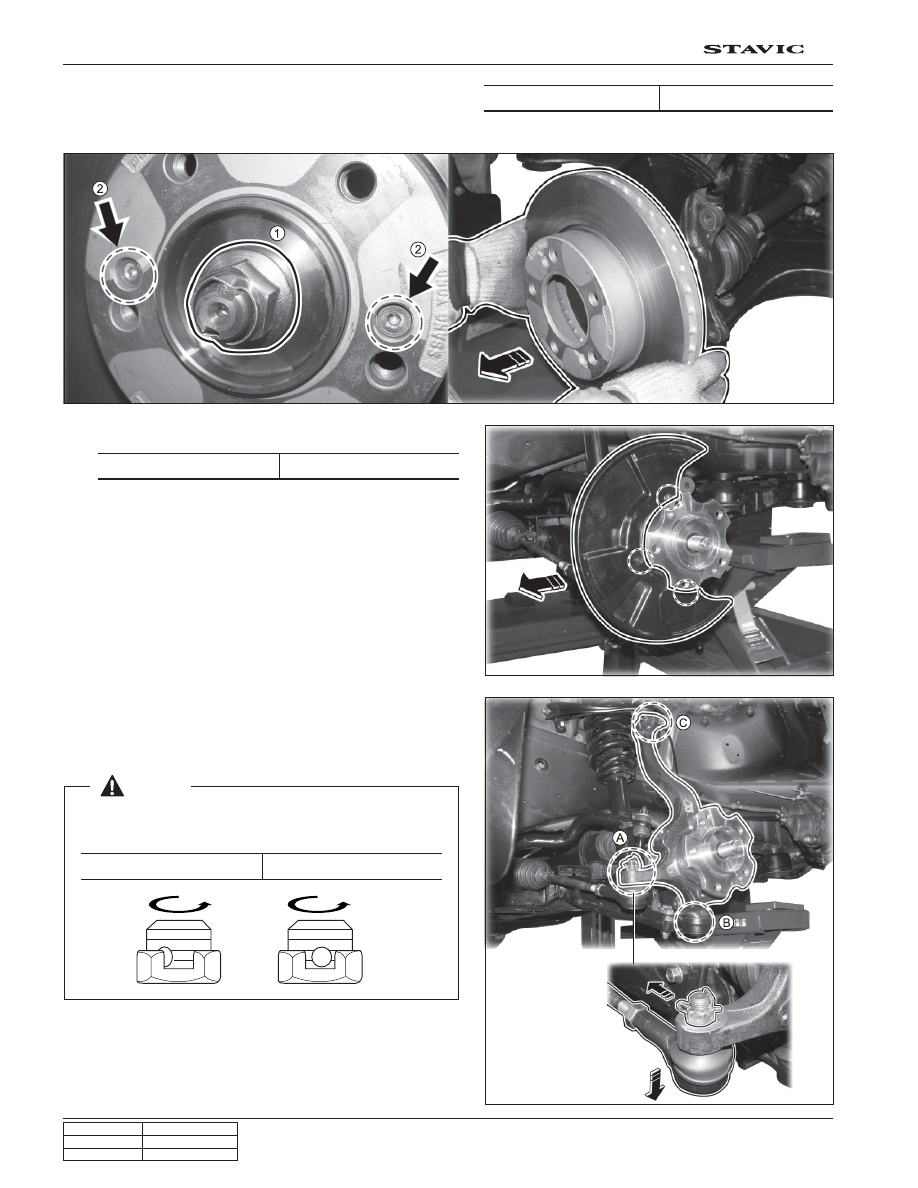

1. Unscrew the lock nut (1) and brake disk mounting bolts

(2: 5 mm - 2EA) and then, remove the disk from knuckle
assembly.

2. Unscrew the brake dust shield mounting bolts (3EA).

[Notice]

Keep the tightening torque and if the position of pin hole is
improper, rotate the nut to the tightening direction.

3. Remove the knuckle mounting bolts in the following order

A. Tie rod end nut (19mm - 1EA)

: Remove the pin first (A)

Tightening torque

8 ~ 12 Nm

Tightening torque

8 ~ 12 Nm

Tightening torque

35 ~ 45 Nm

B. Lower arm bolt nut (19mm - 1EA)

: Release the bolt first. Remove after upper arm bolt

C. Upper arm bolt/nut (19mm -1EA)

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

FRONT SUSP & AXLE

STAVIC - 2004.09

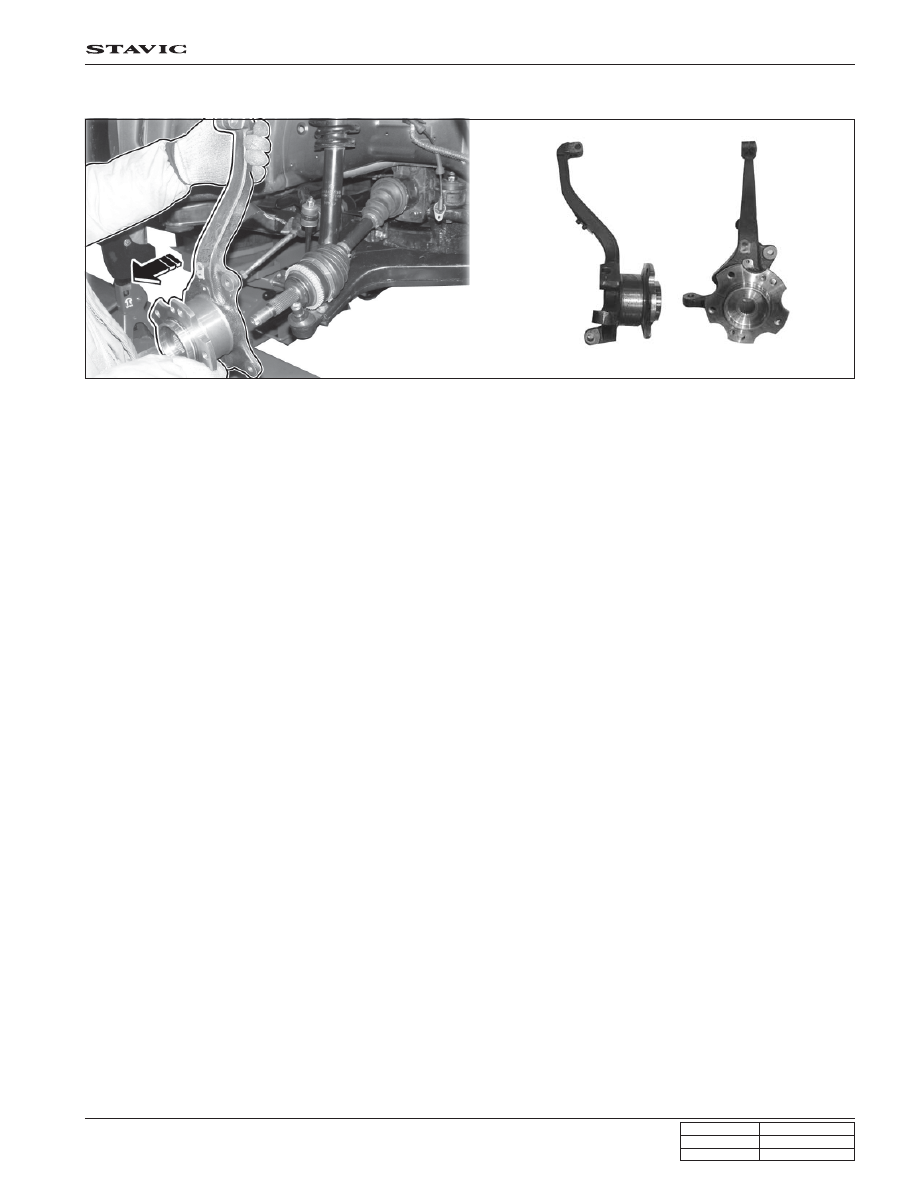

4. Remove the front wheel nuckle from the drive shaft.

5. Install in the reverse order of removal.

(Replace the brake disk lock nut with new one for every disassembly and do the cocking job for the nut)

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

FRONT SUSP & AXLE

STAVIC - 2004.09

Broken stabilizer bar

Faulty shock absorber

Loosening mountings

Damaged or worn wheel bearing

Damaged shock absorber

Damaged tire

Over inflated tire

Faulty shock absorber

Loosened wheel bolt

Bent or broken coil spring

Damaged tire

Worn bushing

Deformed arm assembly

Worn bushing

Bent or broken coil spring

Incorrect front wheel alignment

Excessive resistance of lower arm ball joint

Insufficient tire pressure

Faulty power steering

Incorrect front wheel alignment

Worn or loosened lower arm bushing

Worn or broken coil spring

Vehicle rolling

Abnormal noises

Poor riding

Vehicle pulls to right or left

Hard steering

Steering instability

Vehicle bottoming

Cause

Action

Symptom

TROUBLE DIAGNOSIS

Replace

Re-tighten

Replace

Pressure adjust

Replace

Tighten as specified torque

Replace

Repair

Replace

Adjust

Repair or replace

Repair

Re-tighten or replace

Replace

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

REAR SUSP & AXLE

STAVIC - 2004.09

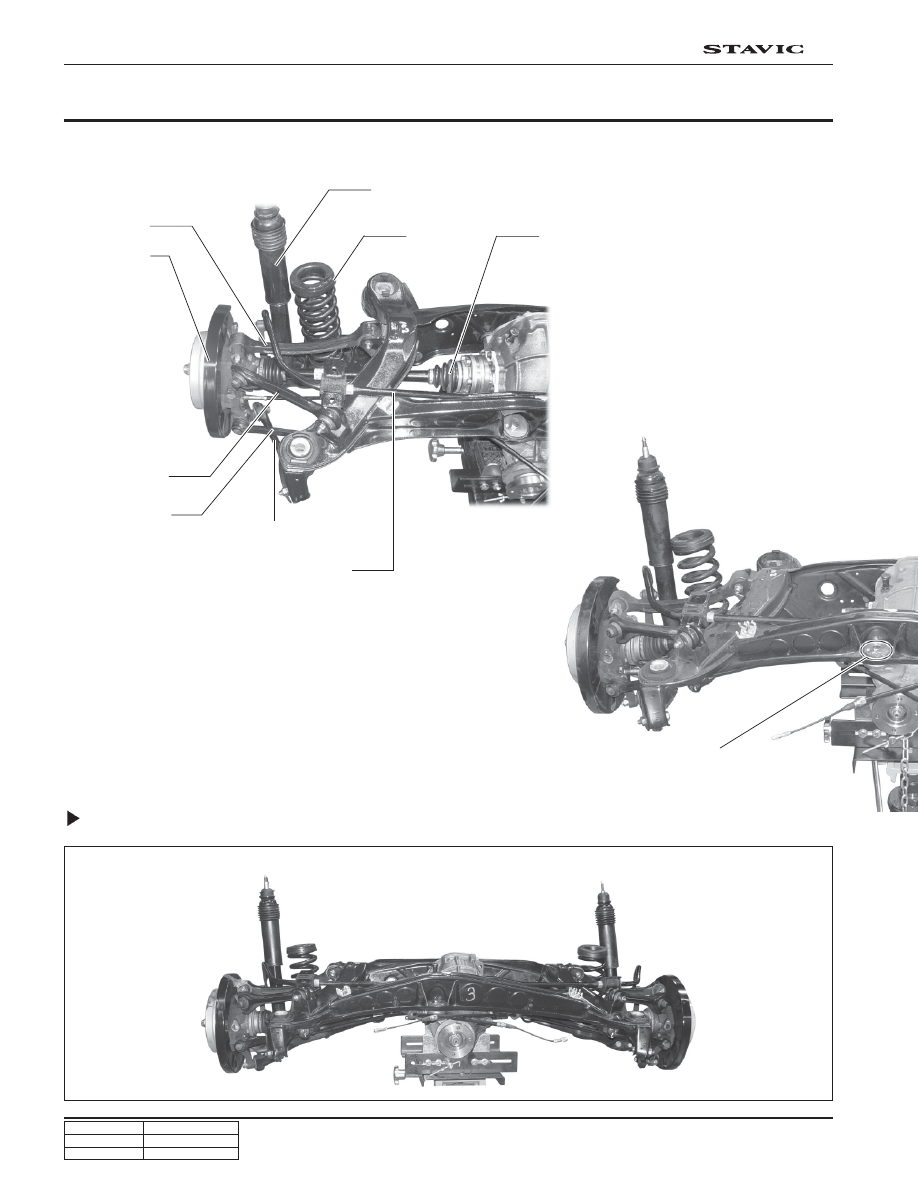

REAR AXLE CARRIER (MODULE)

1. SYSTEM OVERVIEW

Shock absorber

Coil spring

Axle shaft

Stabilizer

Thrust link

Track rod

Tension link

Wheel carrier

Camber link

Axle mounting

Front View
