CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

35

TOD

STAVIC - 2004.09

4D

Tightening torque

20 ~ 25 Nm

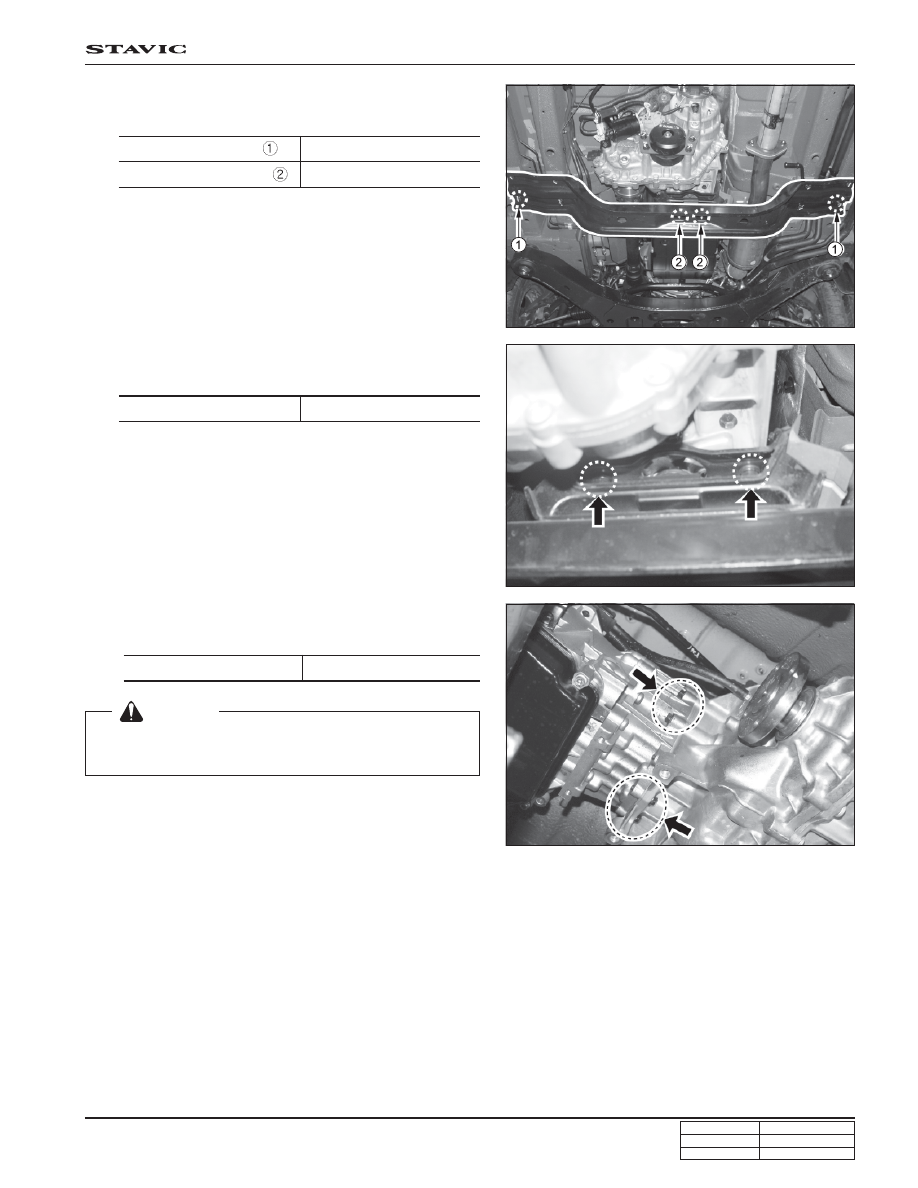

10. Unscrew the bolts and remove the crossmember from

the transmission.

11. Remove the insulator mounting bolts.

Installation Notice

12. Unscrew the bolts and remove the transfer case.

Installation Notice

Tightening torque

62 ~ 93 Nm

L/R Mounting Bolt

Center Mounting Bolt

21 ~ 35 Nm

62 ~ 93 Nm

 [Notice]

Apply long-life grease to the inner spline of transfer case
input shaft.

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

36

TOD

STAVIC - 2004.09

4D

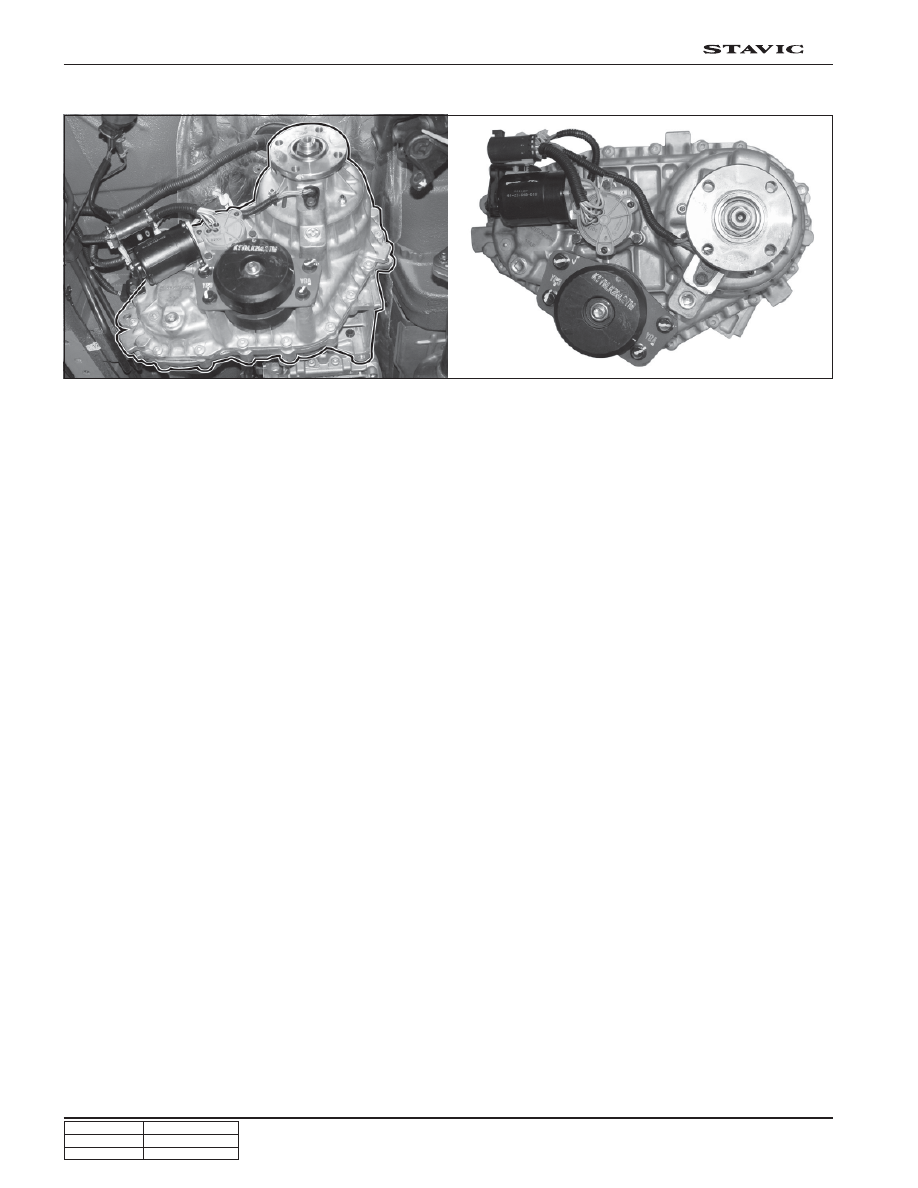

13. Install in the reverse order of removal.

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

37

TOD

STAVIC - 2004.09

4D

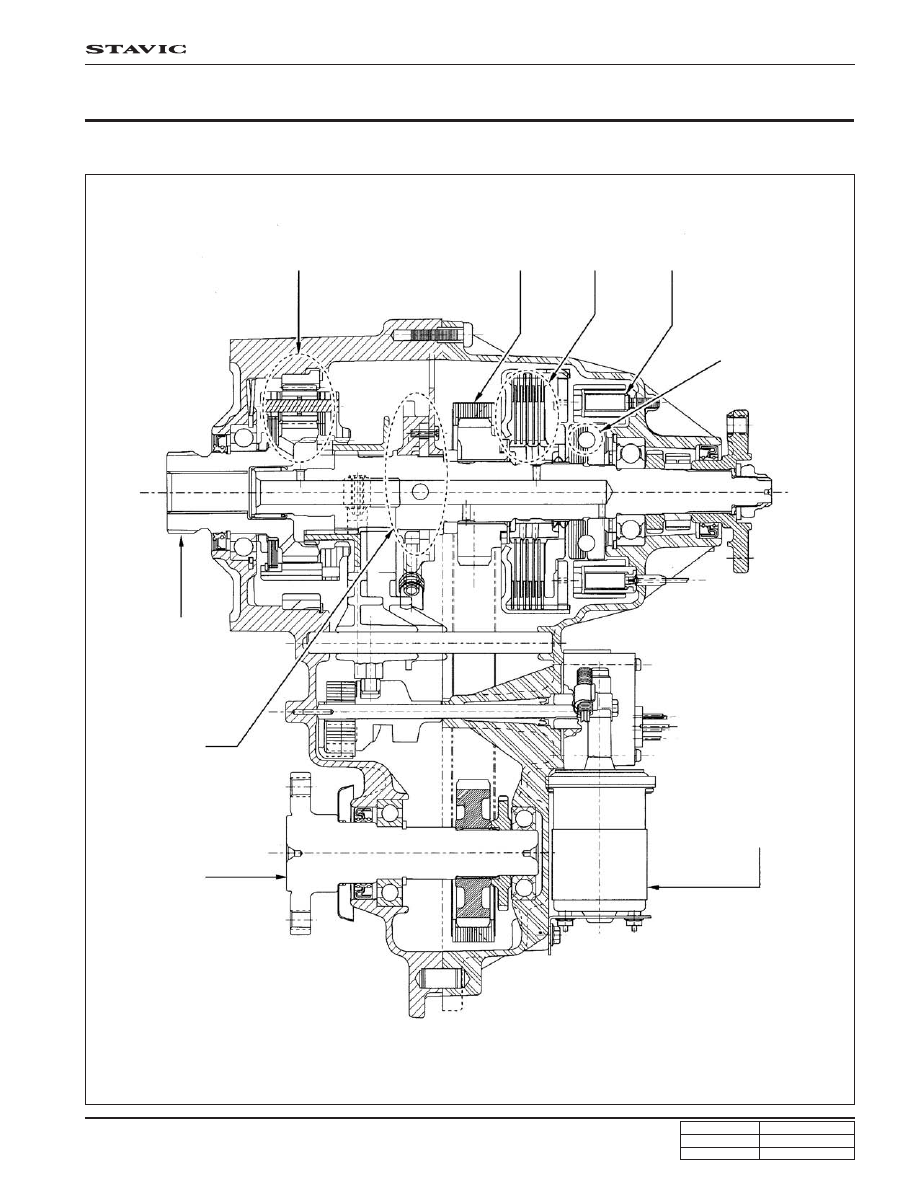

TOD ASSEMBLY

1. CROSSE SECTIONAL DIAGRAM

4H-4L planetary gear set

Chain

Clutch pack

EMC

Ball lamp

4H-4L shift motor

Front wheel

output shaft

Oil pump

Input shaft

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

38

TOD

STAVIC - 2004.09

4D

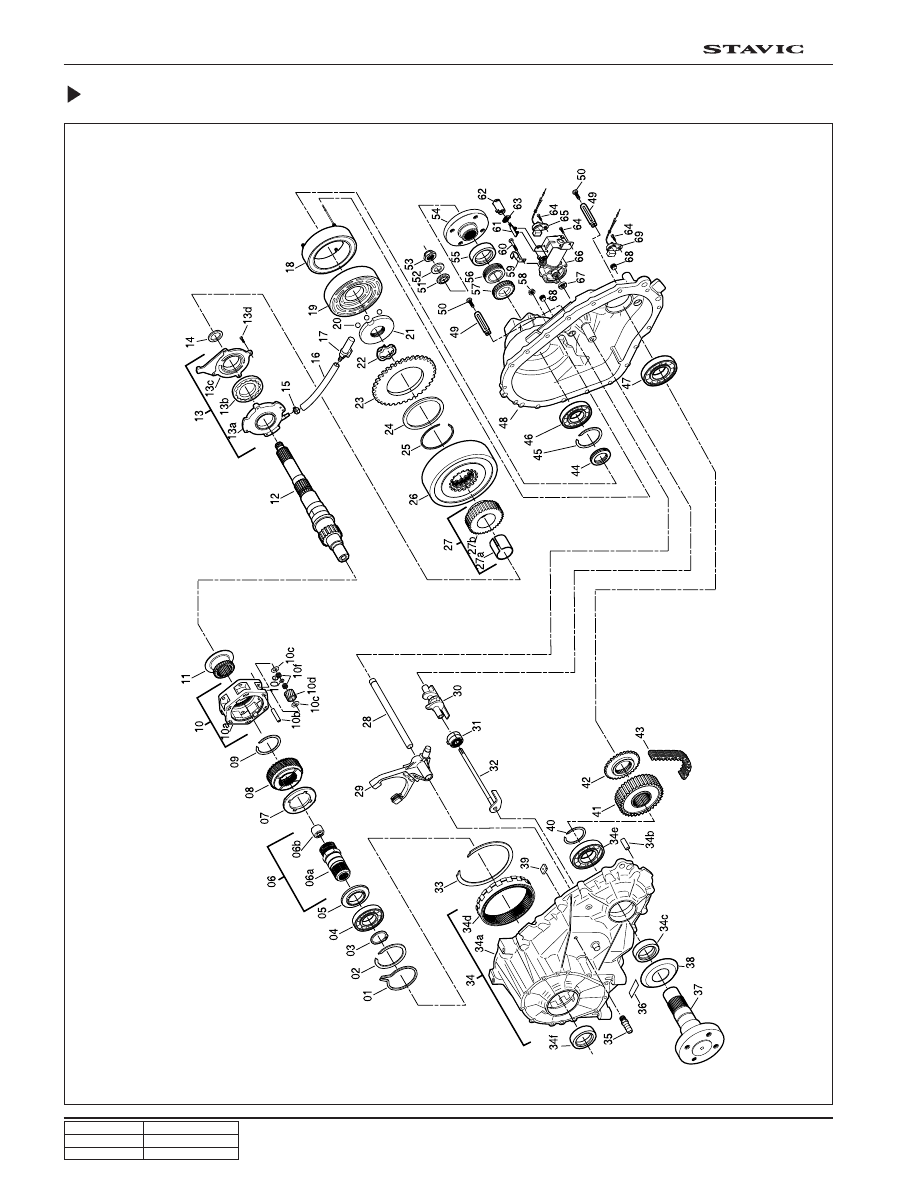

Exploded View
