SsangYong Stavic / SsangYong Rodius (2005 year). Service manual - part 309

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

50

DC 5-SPEED AUTOMATIC TRANSMISSION

STAVIC - 2004.09

4A

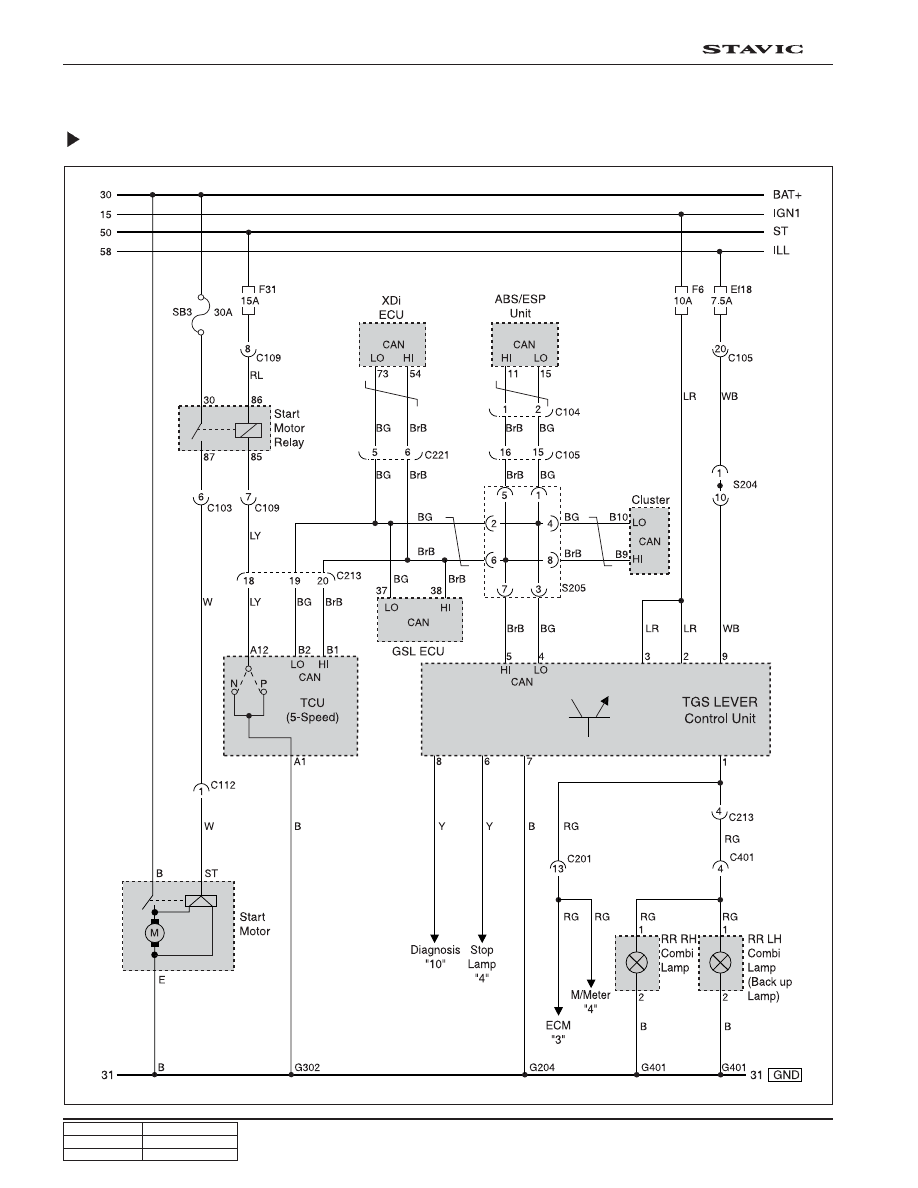

CIRCUIT DIAGRAM

Starter, Selector Lever, CAN Communication

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

51

DC 5-SPEED AUTOMATIC TRANSMISSION

STAVIC - 2004.09

4A

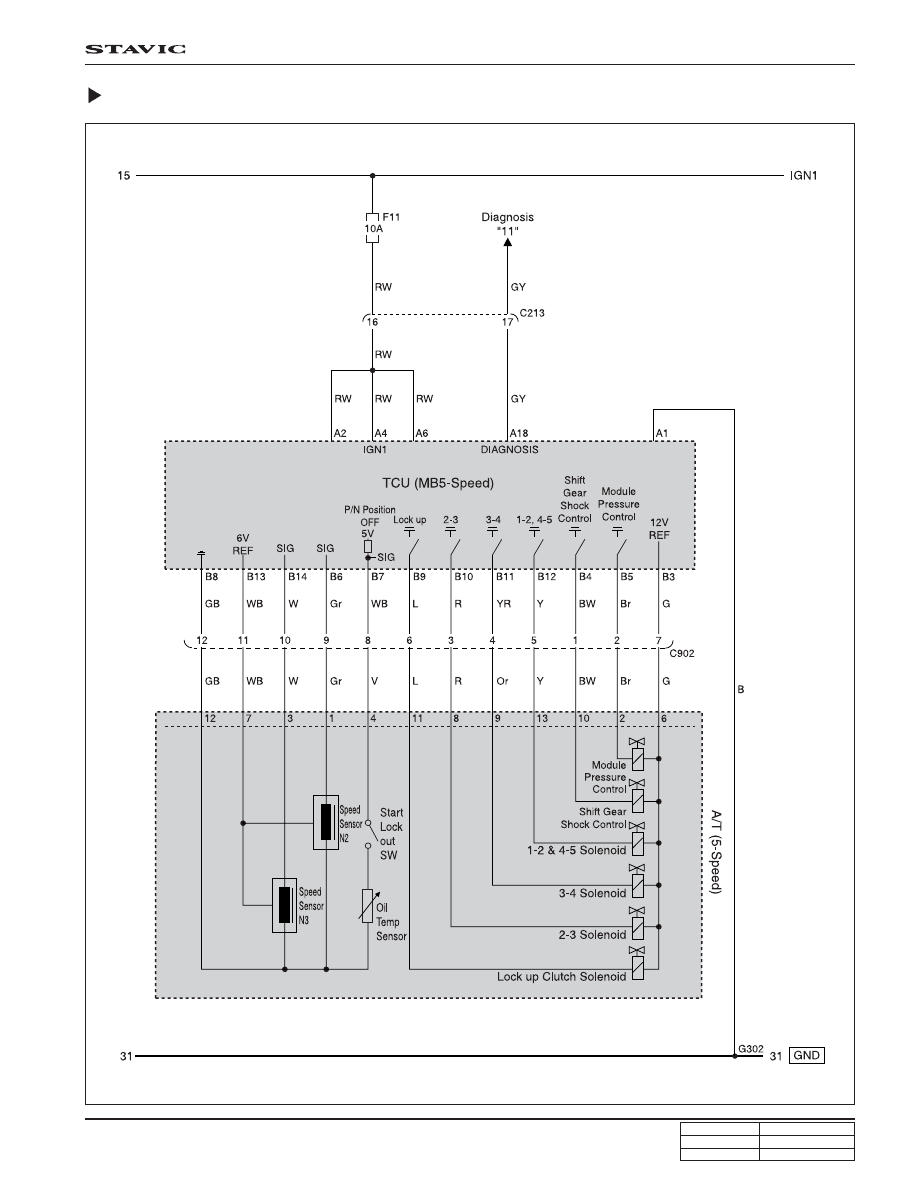

Solenoid, Oil Temperature Sensor, RPM Sensor (N2, N3)

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

52

DC 5-SPEED AUTOMATIC TRANSMISSION

STAVIC - 2004.09

4A

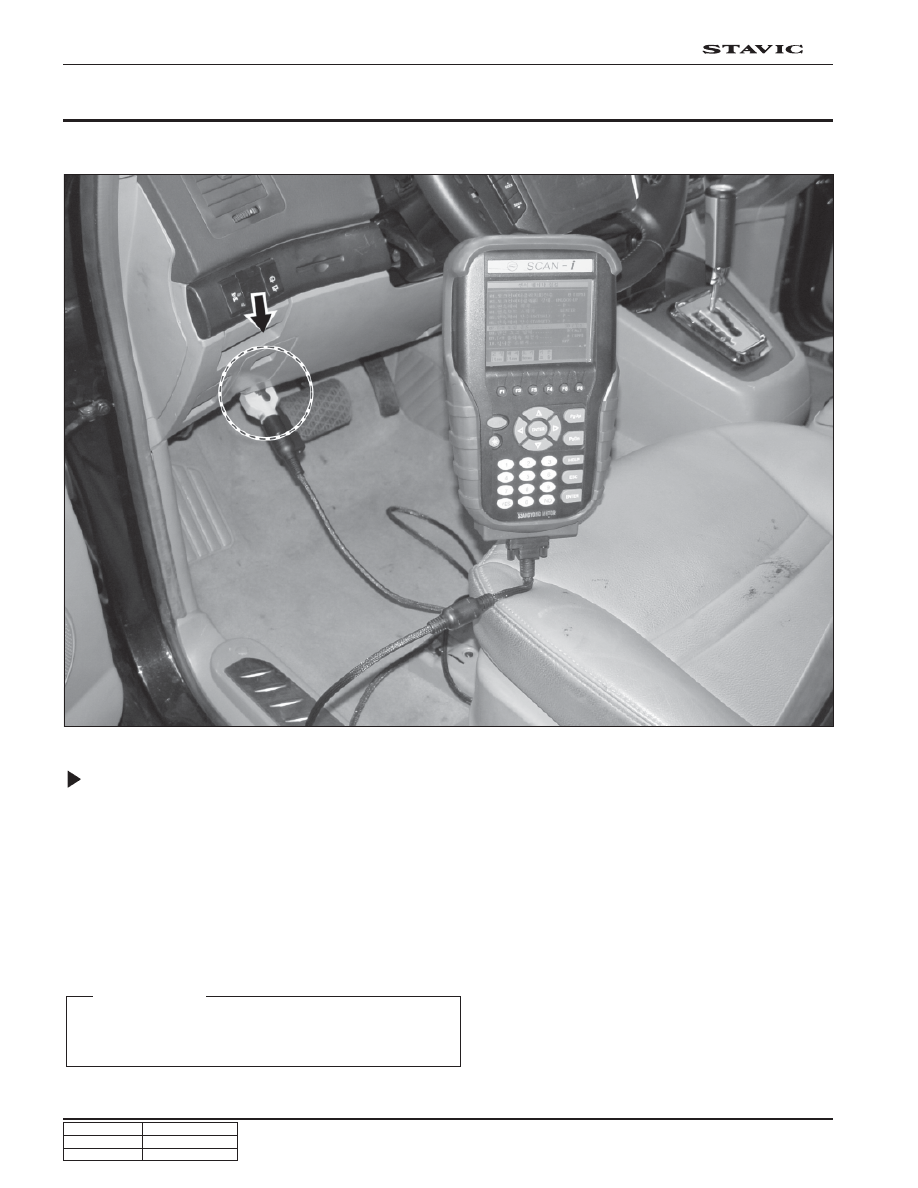

Scanner Diagnosis Procedure

1. Connect the scanner connector to the diagnostic socket.

2. Turn the ignition switch to “ON” position.

3. Select [DIAGNOSTICS] in [MAIN MENU] screen and press [ENTER].

4. Select [STAVIC] in [VEHICLE SELECTION] screen and press and press [ENTER].

5. Select [TCU] in [CONTROL UNIT SELECTION] screen and press [ENTER].

6. Select [TROUBLE CODE] in [FUNCTION SELECTION] screen and press [ENTER].

7. Determine the DTC and locate the trouble cause.

TROUBLE CODE AND DIAGNOSIS

TROUBLE DIAGNOSIS WITH SCANNER

 [Reference]

Choose “data list” item to check sensors and other
informative data.

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

53

DC 5-SPEED AUTOMATIC TRANSMISSION

STAVIC - 2004.09

4A

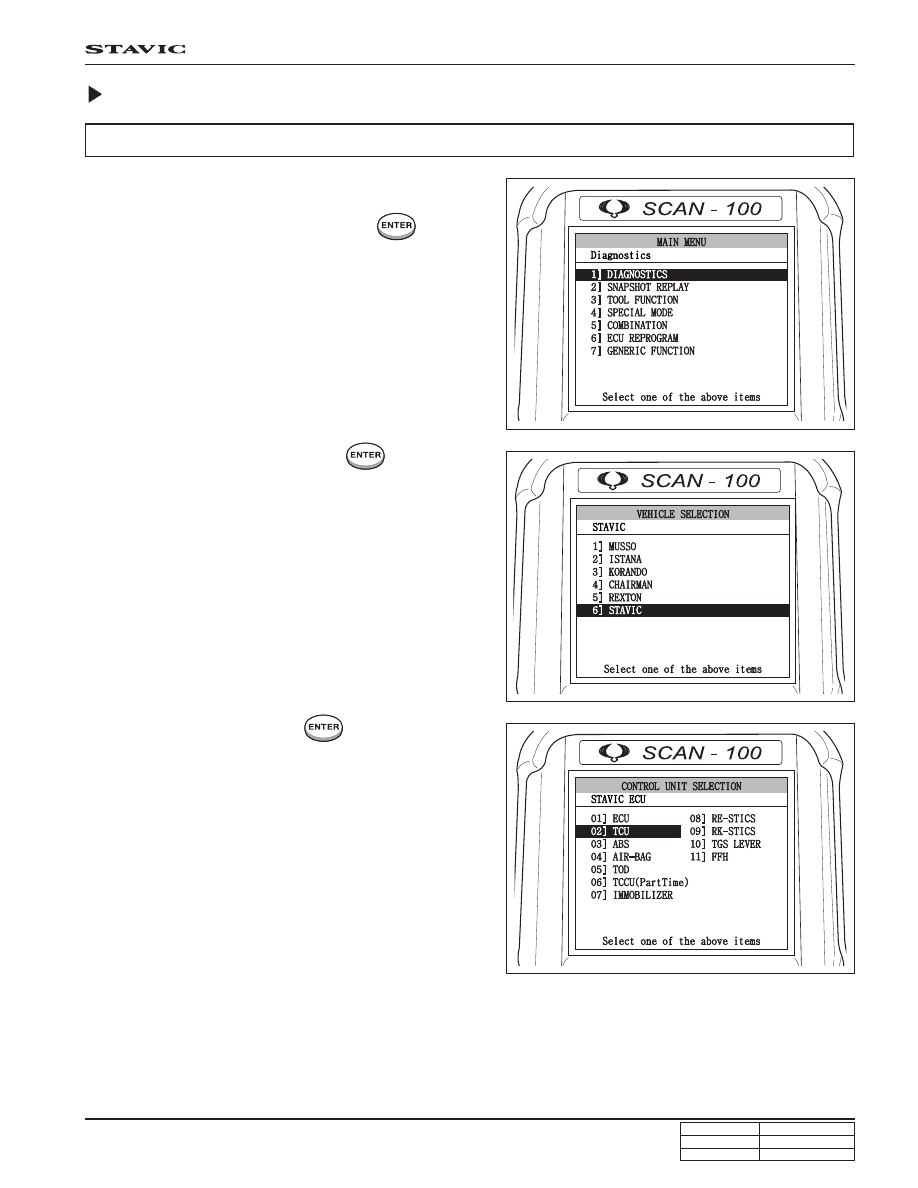

TCU Coding for DC 5-Speed Automatic Transmission

If the TCU or automatic transmission has been replaced, the TCU should be coded with SCAN 100.

1. Select “1] DIAGNSTICS” and press

 in MAIN

MENU.

2. Select “6] STAVIC” and press

 in VEHICLE

SELECTION screen.

3. Select “2] TCU” and press

 in CONTROL UNIT

SELECTION screen.

Entering the diagnosis procedures
