SsangYong Stavic / SsangYong Rodius (2005 year). Service manual - part 241

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

SWITCH

STAVIC - 2004.09

20

2E

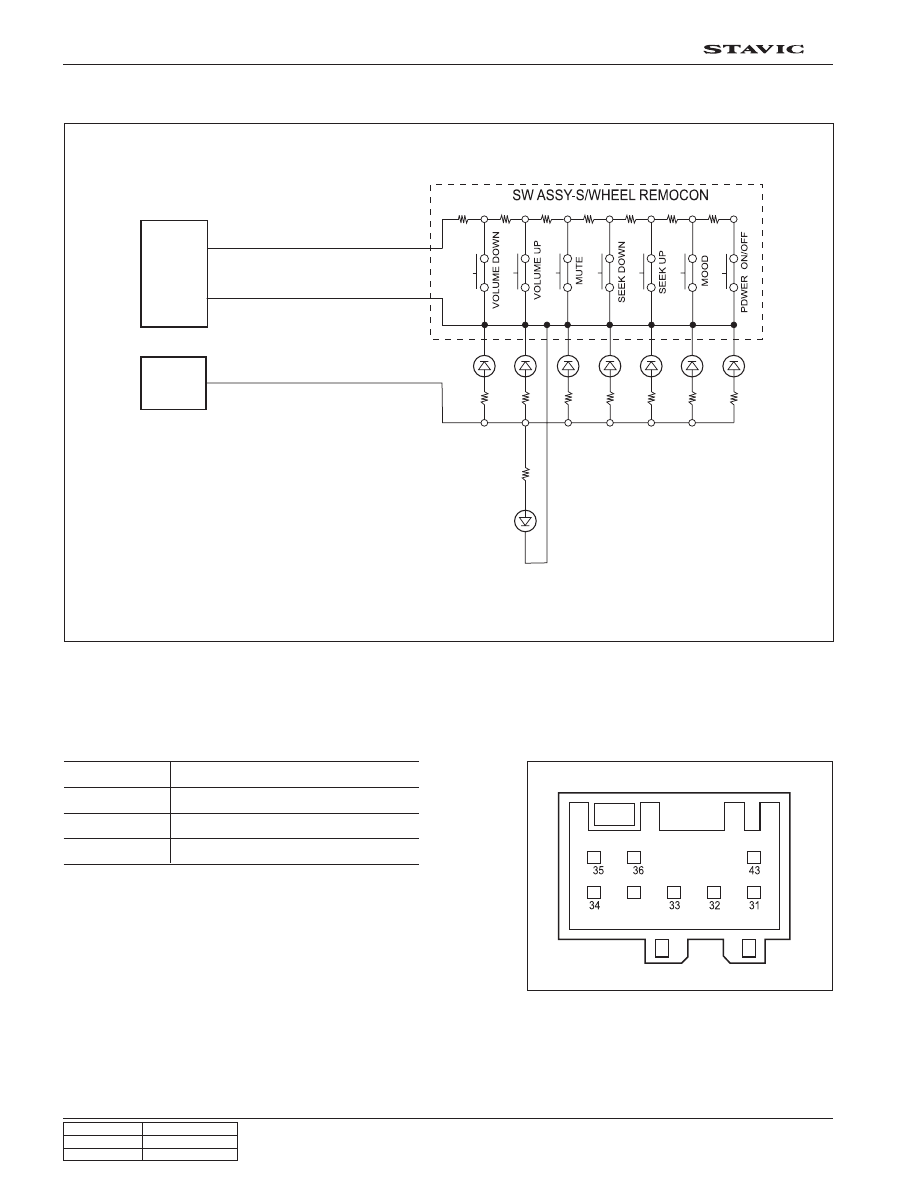

2. CIRCUIT DIAGRAM OF AUDIO REMOTE CONTROL SWITCH

Audio

switches

Tail

lamp
relay

Pin number

31

32

33

Descriptions

Audio signal

Audio ground

Tail lamp relay

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

SWITCH

STAVIC - 2004.09

21

2E

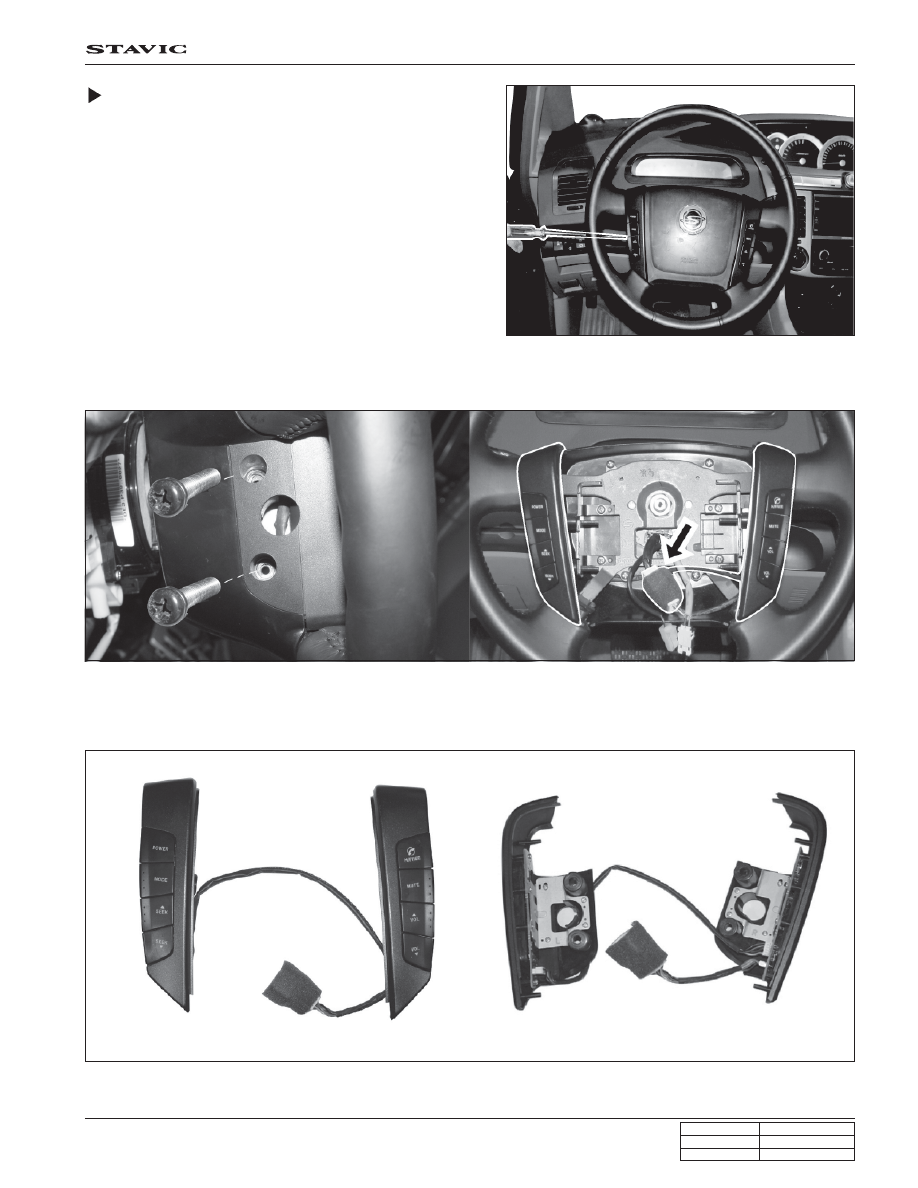

Remote control switch on steering
wheel

1. Remove the screws at both sides.

2. Remove the air bag module (horn) from the steering

wheel.

4. Remove the remote control switch from the steering wheel.

3. Unscrew the bolts and disconnect the remote control switch connector.

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

SWITCH

STAVIC - 2004.09

22

2E

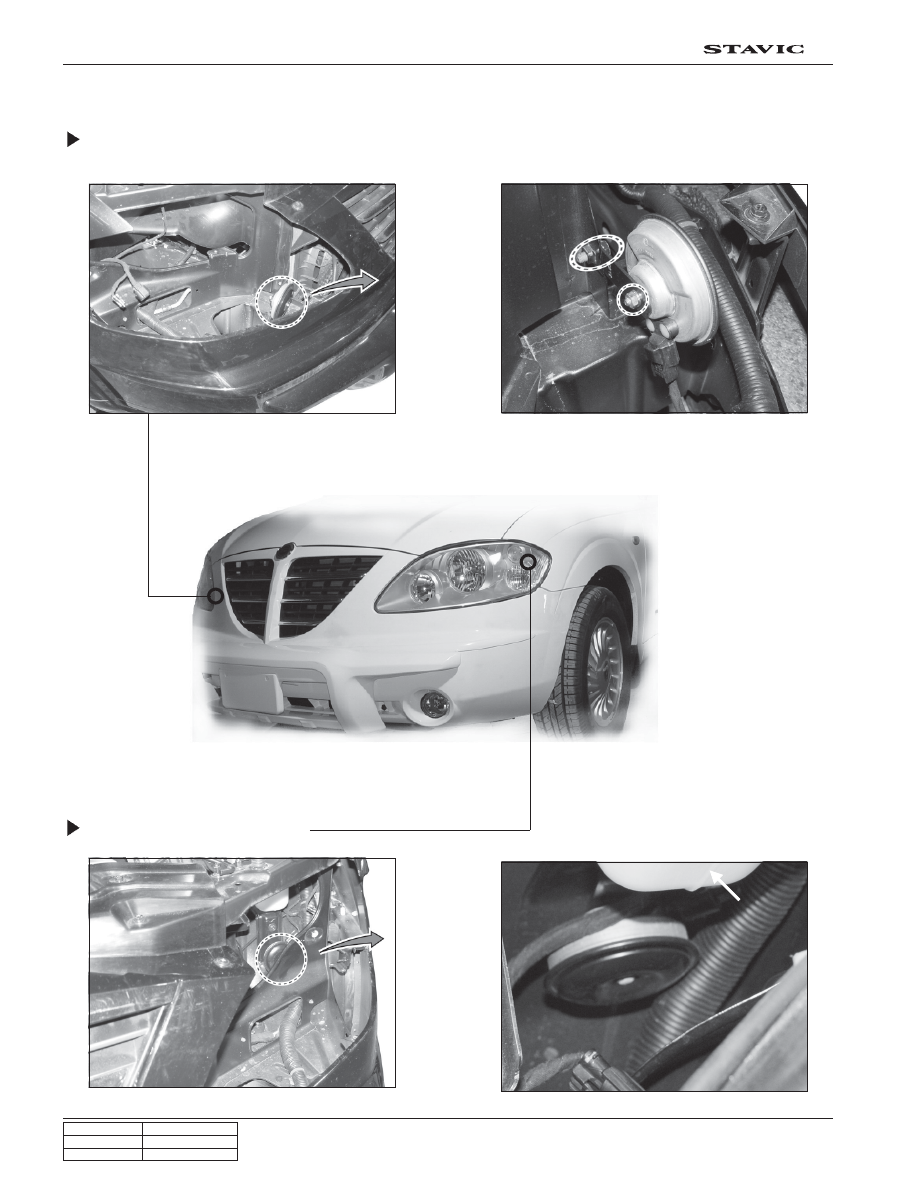

3. HORN AND THEFT DETERRENT HORN

Horn

Theft Deterrent Horn

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

SWITCH

STAVIC - 2004.09

23

2E

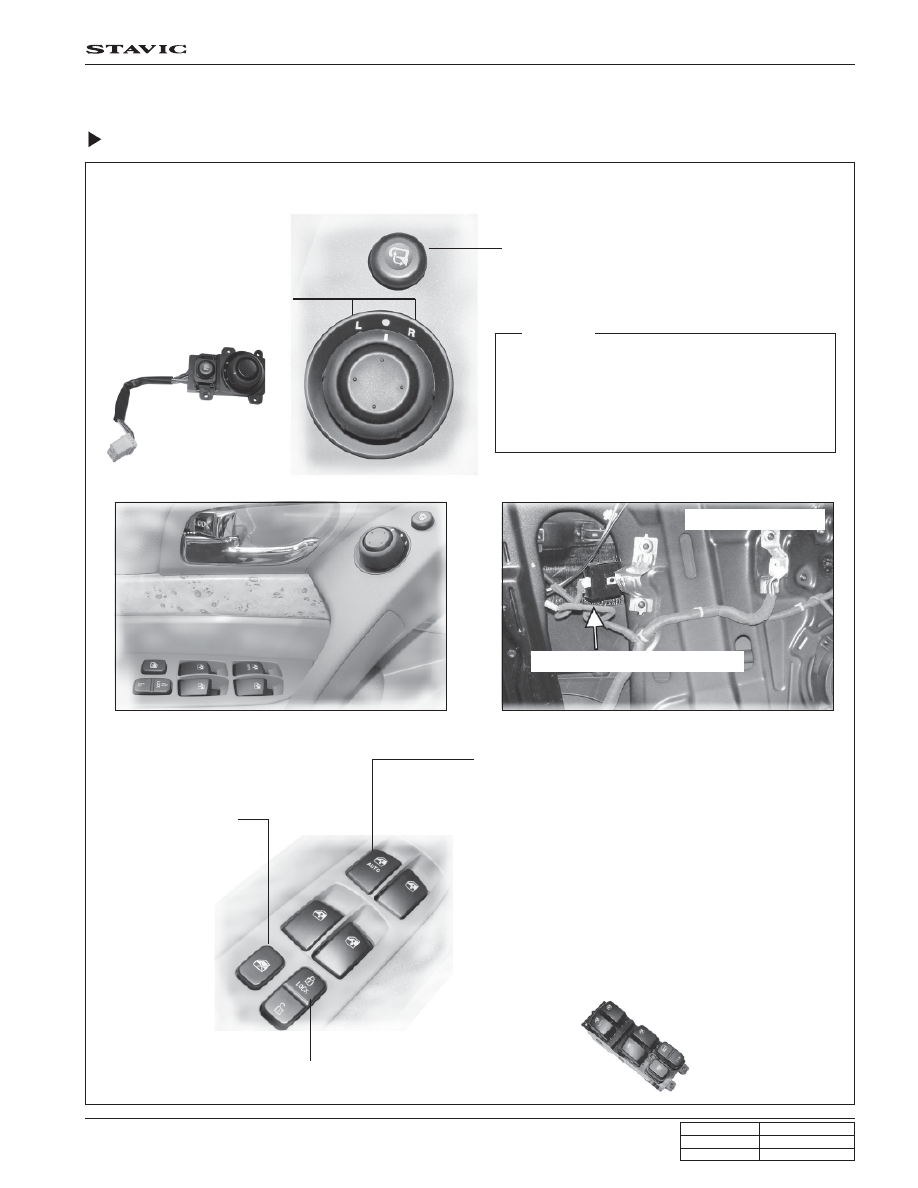

4. SWITCHES ON DOOR TRIM

System Components

Outside rearview mirror folding switch

The mirrors are folded/unfolded when pressing the
switch more than 1 second.

Outside rearview mirror switch

Switches on driver’s door trim

Driver’s door window switch

• When the front of the switch is lightly pressed (stage 1), the

window will be lowered while the switch is pressed. When
pressed to its end (stage 2), the window will open automati-
cally until it is fully opened. The window stops during its
operation when pressing the switch (stage 1) again or pulling
up the switch.

• The other window can be operated only while the appropriate

switch is activated.

Window lock
switch

If this switch is pressed,
all door windows are
operated only by driver’s
door window switches.

Central door locking switch

Time lag of window operation

The operation of power window can be continued for
90 seconds after turning the ignition switch to “OFF”
position.

Mirror selection switch

Outside rearview mirror folding unit

Driver’s door trim panel

 [Note]

The mirrors can be folded/unfolded for 30 seconds
after turning the ignition key to “OFF” position.

Manual folding or unfolding the outside rearview
mirrors may cause a malfunction of the mirror
folding system.
