SsangYong Stavic / SsangYong Rodius (2005 year). Service manual - part 229

21

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

RK STICS

STAVIC - 2004.09

2C

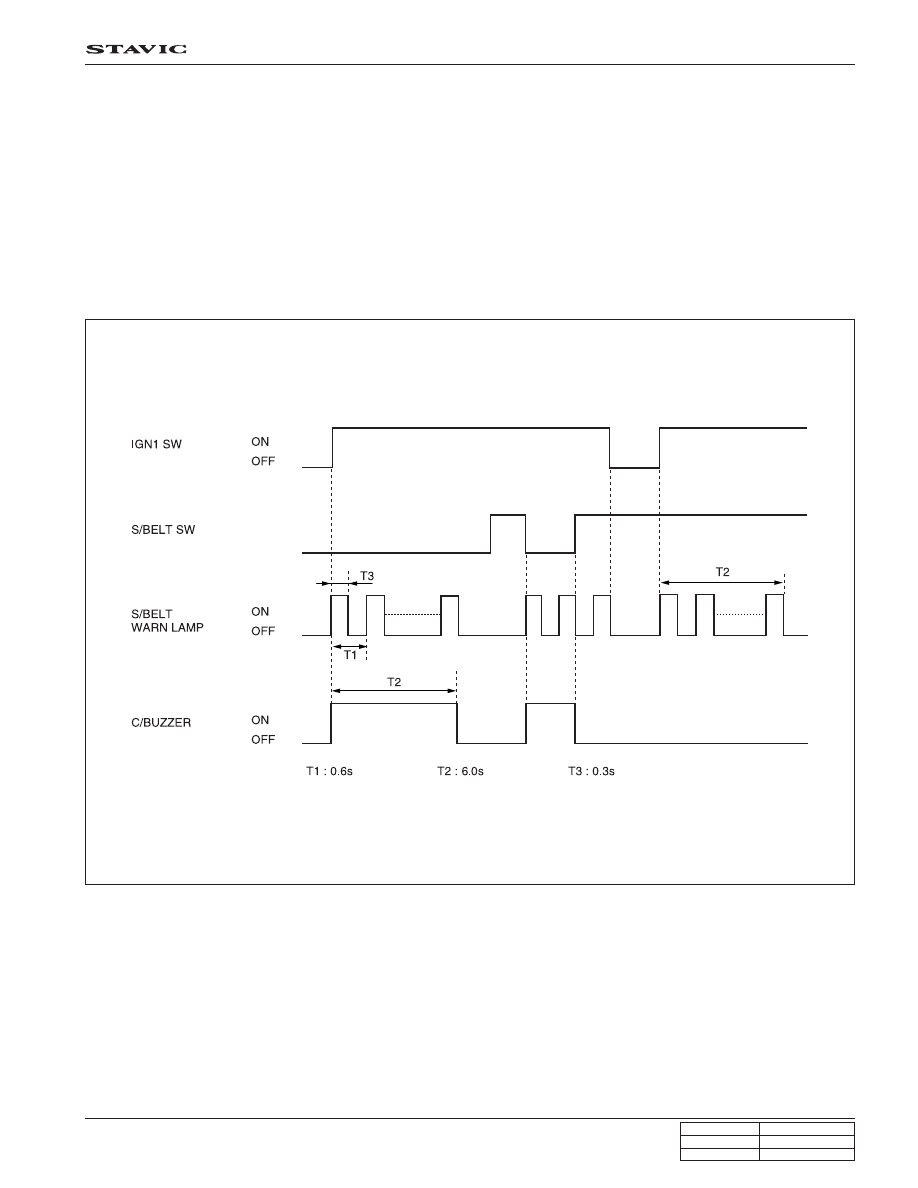

5) Seat Belt Warning

1. The seat belt warning light comes on and the chime buzzer in the ICM box sounds for 6 seconds when turning the

ignition key to “ON” from “OFF”. If the seat belt is fastened before turning the ignition key to “ON” position, the
warning light in the indicator display blinks for 6 seconds, however, the chime buzzer does not sound.

2. The seat belt warning light goes off and the chime buzzer in the ICM box stops when turning the ignition switch to

“OFF” position.

3. The chime buzzer stops and the seat belt warning light stays on for the specified duration (6 seconds) when

fastening the seat belt during the warning operation.

4. The seat belt warning light comes on and the chime buzzer sounds for 6 seconds again when unfastening the seat

belt during fastening operation.

FASTEN

UNFASTEN

22

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

RK STICS

STAVIC - 2004.09

2C

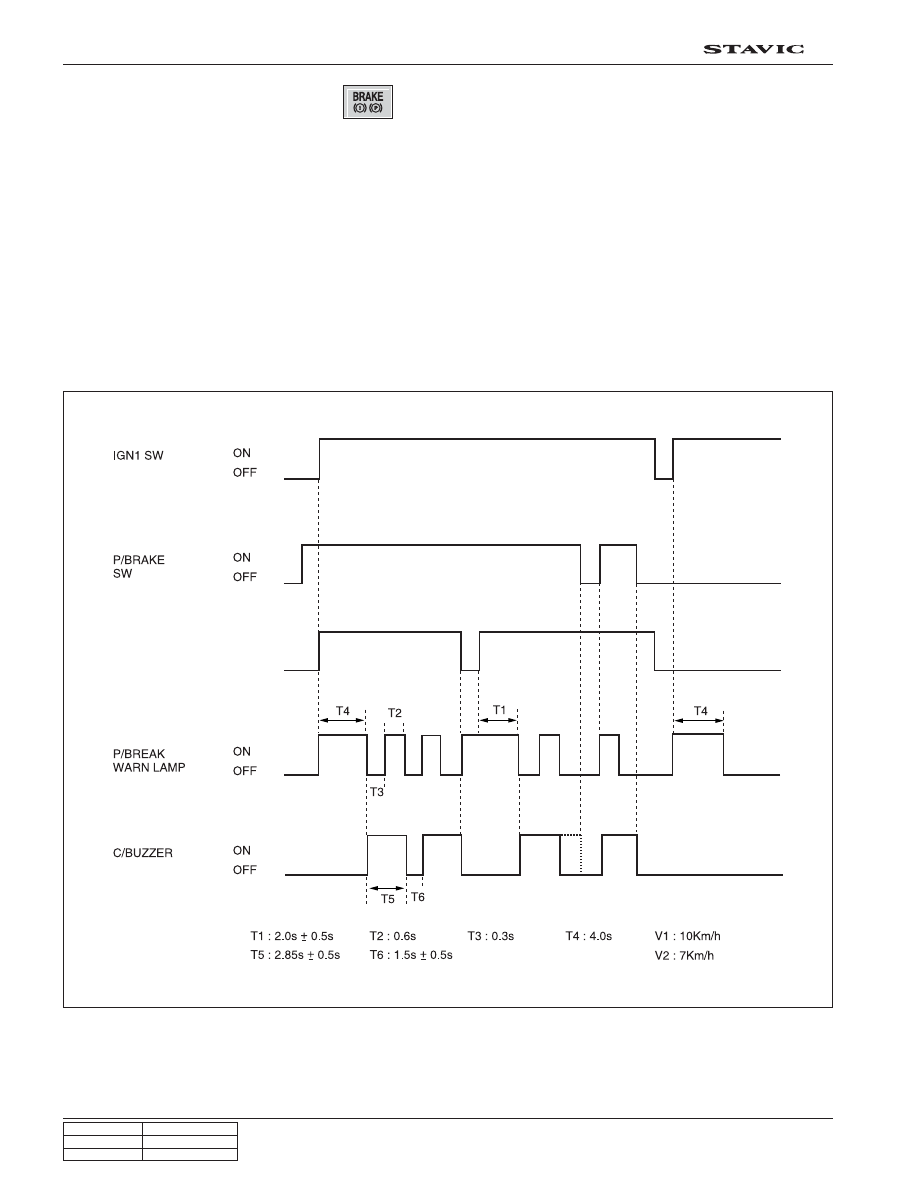

6) Parking Brake Warning

1. The parking brake warning light comes on for approx. 4 seconds (T4) when turning the ignition key from “OFF” to

“ON” position regardless of the vehicle speed and parking brake switch position.

2. The warning light comes on when the parking brake switch is turned on while the vehicle speed is below 10 km/h

(V1).

3. The warning light goes off when turning off the parking brake switch under step 2.

4. The warning light blinks and the chime buzzer in the ICM box sounds for 2.85 seconds and stops for 1.5 seconds

when the vehicle speed is over 10 km/h (V1) for more than 2 seconds while the parking brake switch is turned on.

5. The warning light goes off and the chime buzzer stops when turning off the parking brake switch under step 4.

6. The warning light comes on and the chime buzzer stops when the vehicle speed goes down below 7 km/h (V2)

under step 4.

7. This function is not available when the ignition key is turned to “OFF” position.

VEHICLE SPEED

OVER V1

BELOW V2

23

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

RK STICS

STAVIC - 2004.09

2C

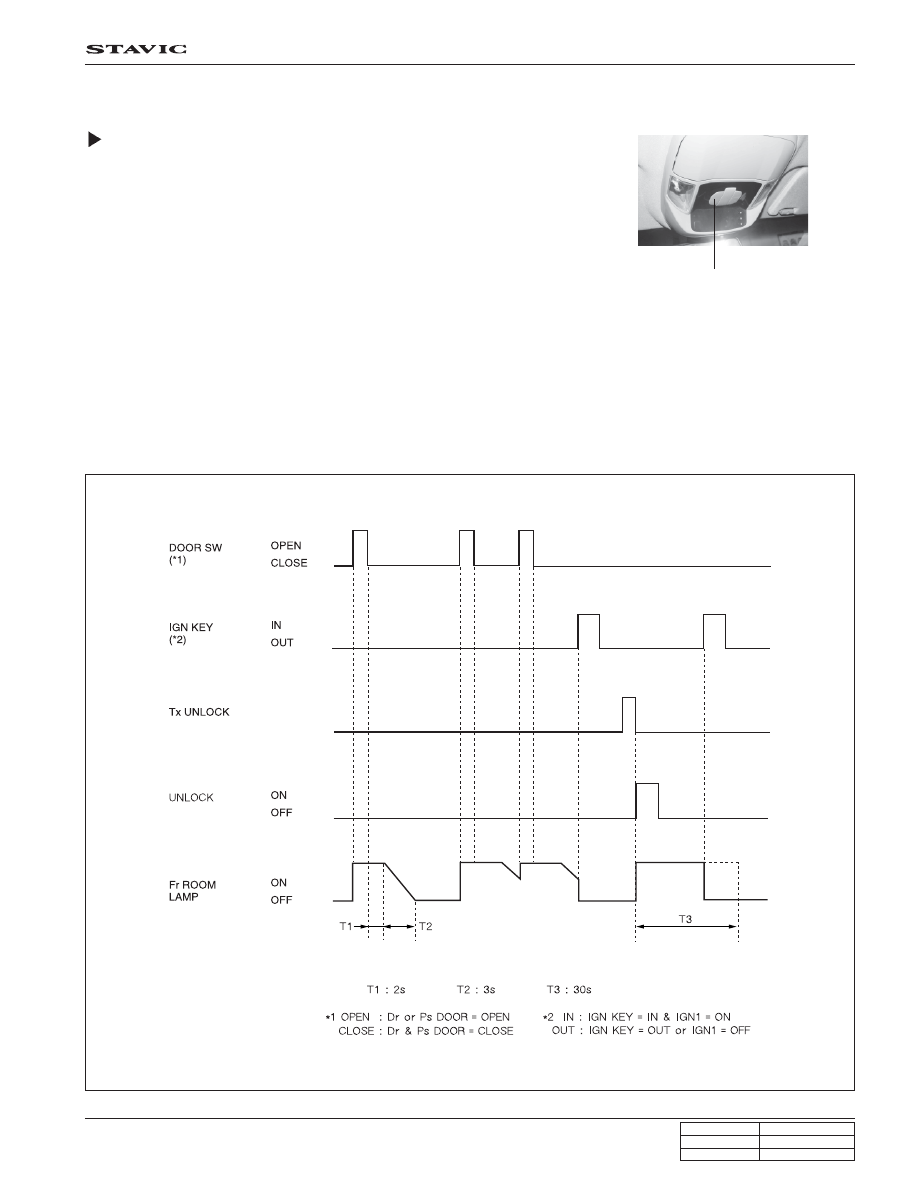

7) Room Lamp Control

Front Room Lamp

1. The front room lamp comes on when opening the driver’s door or passenger’s

door while the front room lamp switch is at door coupled position and the
key reminder switch is turned off.

2. The room lamp stays on for 2 seconds (T1) and then decays through 3

seconds (T2) when closing the driver’s door or passenger’s door.

3. The room lamp output should stop immediately after turning on the ignition

key during decaying operation.

4. The front room lamp comes on for 30 seconds (T3) when receiving the

unlock signal from the remote control key while the door is closed.

5. The front room lamp output period is extended by 30 seconds (T3) when receiving the unlock signal from the remote

control key again during output.

6. When a door is opened during its extended period, the lamp stays on. If closed, operates as in step 2.

7. The room lamp output stops immediately after receiving the lock signal from driver’s door and passenger’s door

lock switch while the driver’s door and passenger’s door are closed.

Door coupled front
room lamp switch

RECEIVE

NO SIGNAL

OUTPUT

24

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

RK STICS

STAVIC - 2004.09

2C

Door coupled rear
room lamp switch

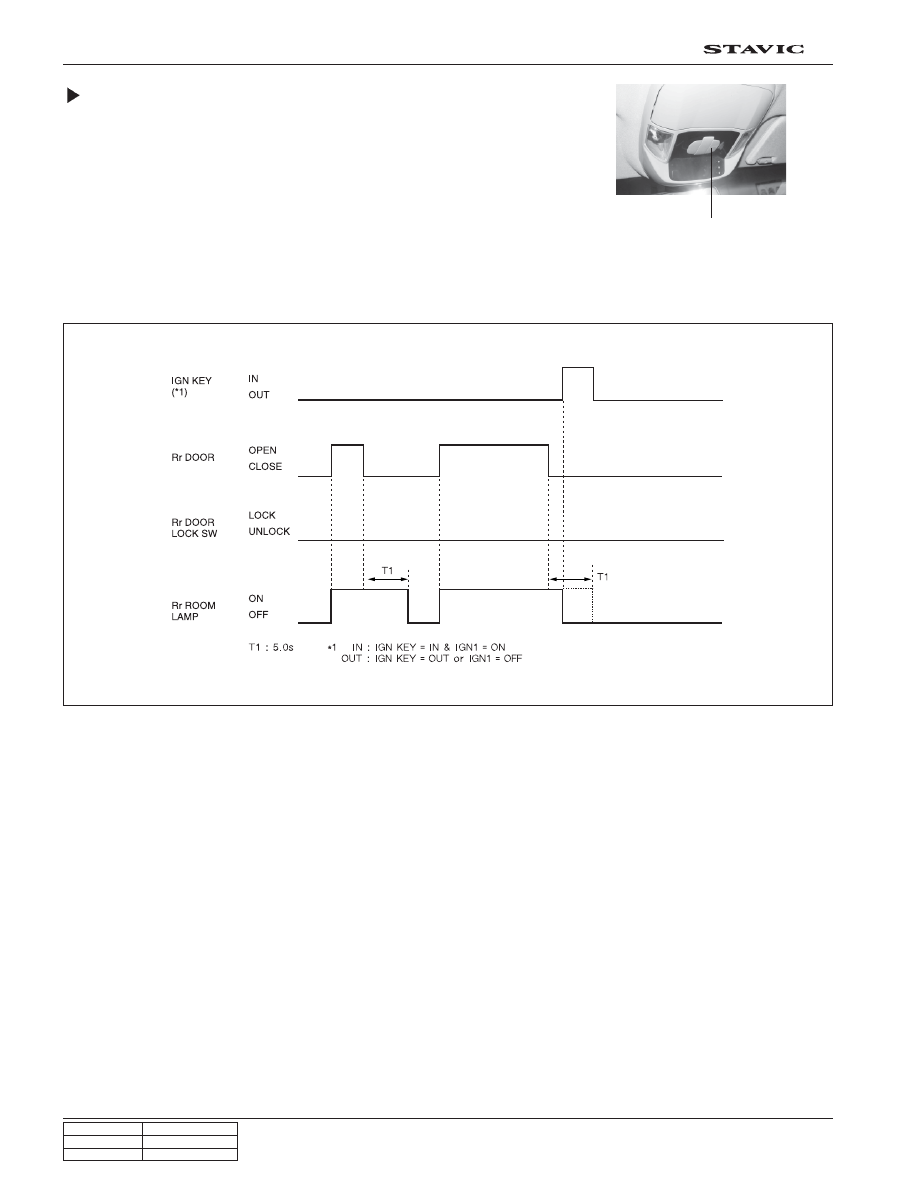

Rear Room Lamp

1. The rear room lamp comes on when opening the rear door while the door

coupled rear room lamp switch is pressed (except for luggage room lamp).

2. The rear room lamp extends its lighting period by 5 seconds when closing

the rear door.

3. The room lamp output stops immediately after turning the ignition key to

“ON” position during the extended period.

4. The room lamp output stops immediately after receiving the lock signal

from the rear door lock switch or the remote control key while the rear door
is closed.
