SCAN-100 OPERATING PROCE-

DURES - XDi270 ENGINE

ENTERING DIAGNOSIS PROCEDURES .................... DI10-4

FUNCTION SELECTION ............................................. DI10-6

Check the trouble code .......................................... DI10-6

Sensor data check .................................................. DI10-7

Actuator check ........................................................ DI10-8

Trouble code clear ................................................ DI10-10

ECU identification .................................................. DI10-12

Injector (C2I) corrections ...................................... DI10-13

Leak detection ...................................................... DI10-15

Variant coding ....................................................... DI10-16

ECU replace .......................................................... DI10-18

Rail pressure reset ............................................... DI10-23

DI10-4

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

DIAGNOSIS

DI ENG SM - 2004.9

SCAN-100 OPERATING PROCEDURES - D27DT ENGINE

ENTERING DIAGNOSIS PROCEDURES

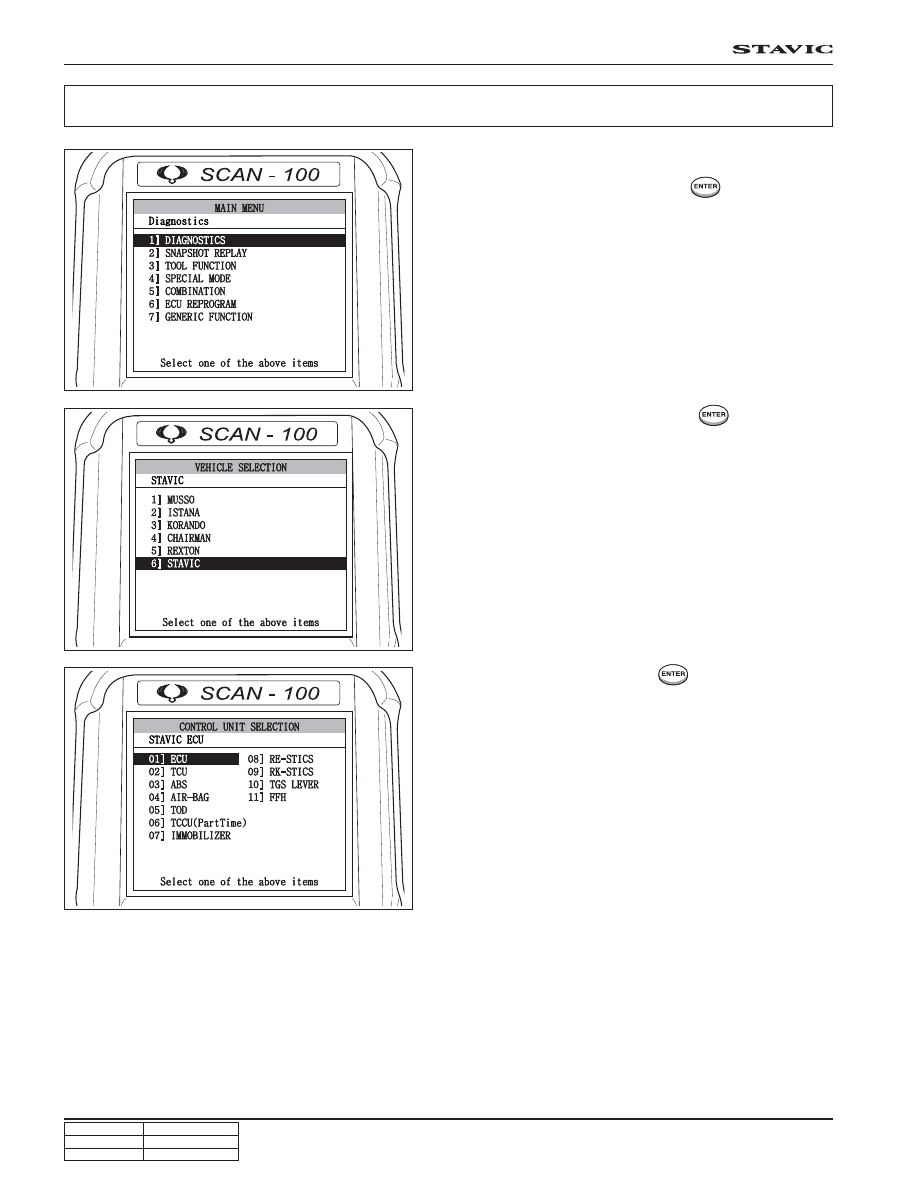

1. Select “1] DIAGNOSIS” and press “

” in “MAIN MENU”

screen.

2. Select “6] STAVIC” and press “

” in “VEHICLE

SELECTION” screen.

3. Select “1] ECU” and press “

” in “CONTROL UNIT

SELECTION” screen.

DI10-5

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

DIAGNOSIS

DI ENG SM - 2004.9

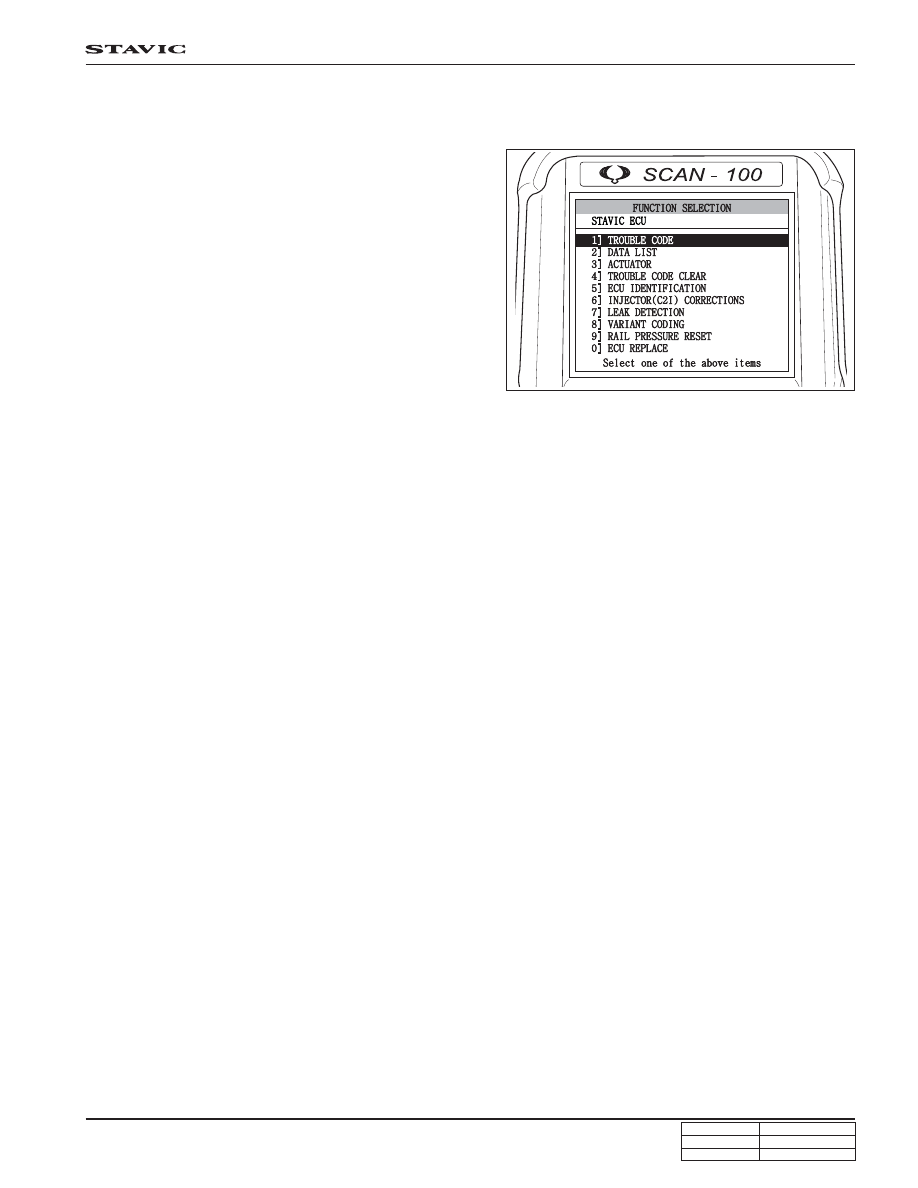

4. The “FUNCTION SELECTION” screen is displayed.

DI10-6

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

DIAGNOSIS

DI ENG SM - 2004.9

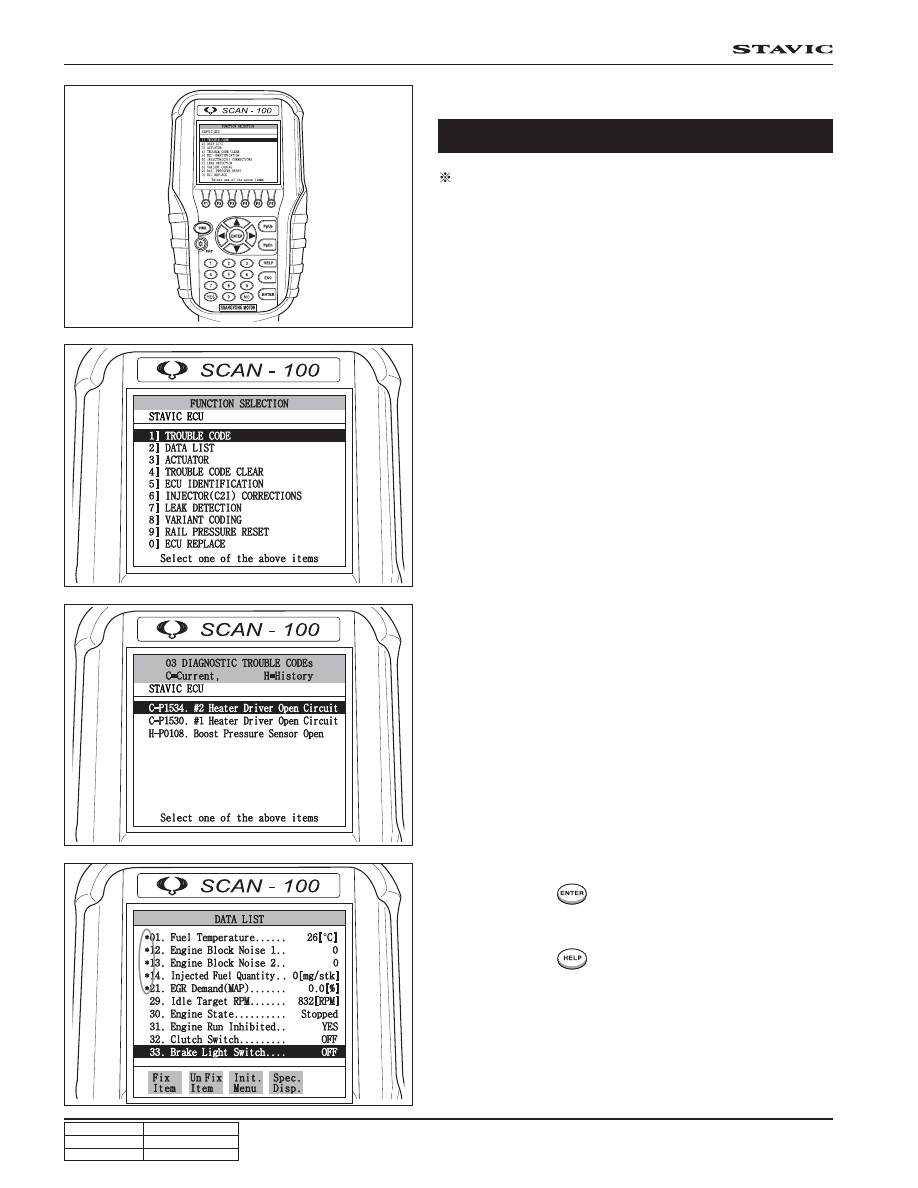

FUNCTION SELECTION

Check the Trouble Code

Preceding work: Perform the “Entering Diagnosis Pro-
cedures”

1. Select “1] TROUBLE CODE” and press “ENTER” in

“FUNCTION SELECTION” screen.

2. The “DIAGNOSTIC TROUBLE CODEs” screen is

displayed and it shows the trouble.

Note

If there is not any fault, “NO TROUBLE DETECTED”
message appears.

3. When selecting a trouble code, then

if you press “

”: Displays the sensor data for the

detected trouble (Freeze Frame
Mode).

if you press “

”: Displays the help tips for the

detected trouble.
