SsangYong Stavic / SsangYong Rodius (2005 year). Service manual - part 140

DI07-51

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

FUEL SYSTEM

DI ENG SM - 2004.9

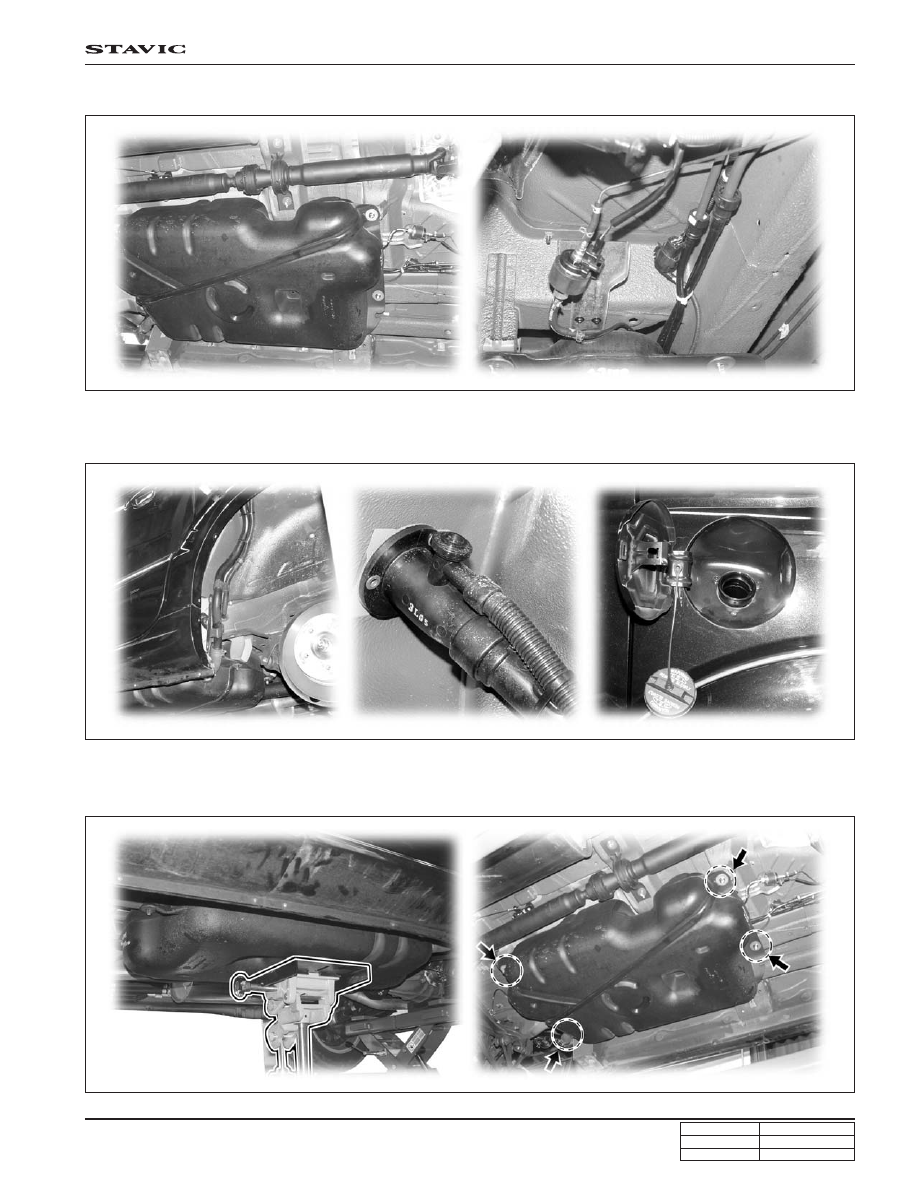

1. Disconnect the fuel supply hose, fuel return hose, FFH supply pipe and connector.

2. Unscrew the bolts and remove the fuel filler pipe from the fuel filler opening.

3. Install the safety jack under the fuel tank and remove the bolts (12mm x 4) from the fuel tank.

DI07-52

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

FUEL SYSTEM

DI ENG SM - 2004.9

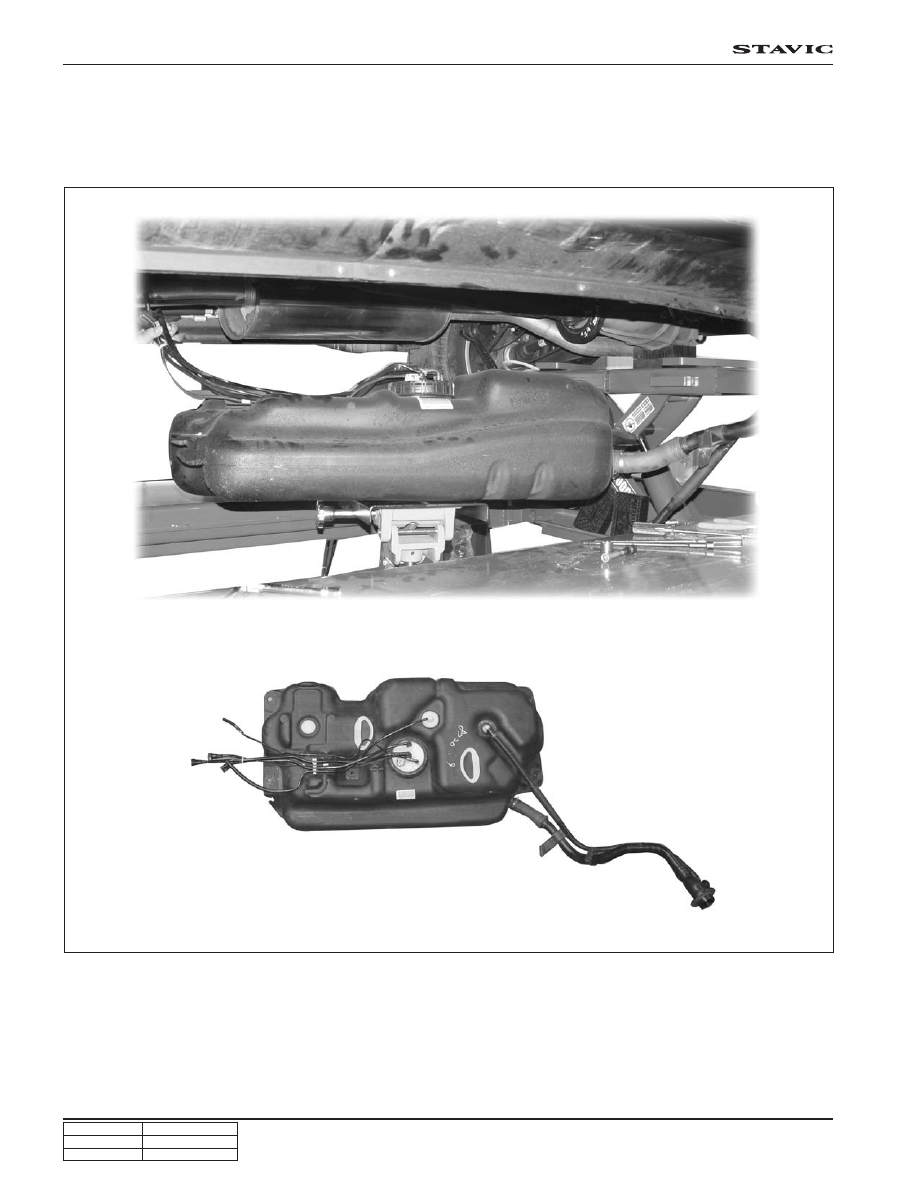

4. Carefully lower the safety jack with the fuel tank.

Caution

• Be careful not to drop the fuel tank while removing it.

DI07-53

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

FUEL SYSTEM

DI ENG SM - 2004.9

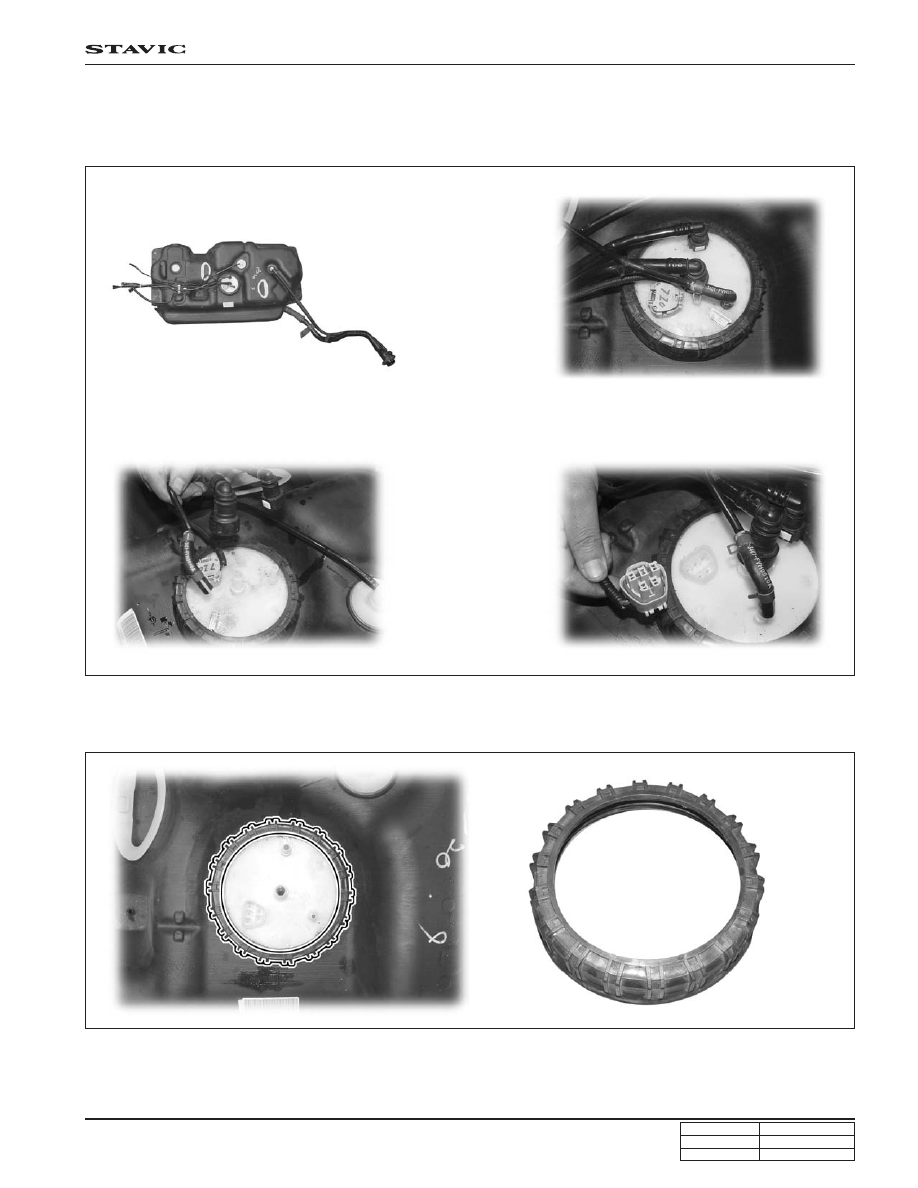

5. Remove the sender gauge assembly from the removed fuel tank.

(1) Disconnect the connector from the fuel tank cap.

(2) Remove the fuel hose (FFH fuel pump, Fuel supply)

(3) Remove the fuel sender gauge cap screw.

DI07-54

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

FUEL SYSTEM

DI ENG SM - 2004.9

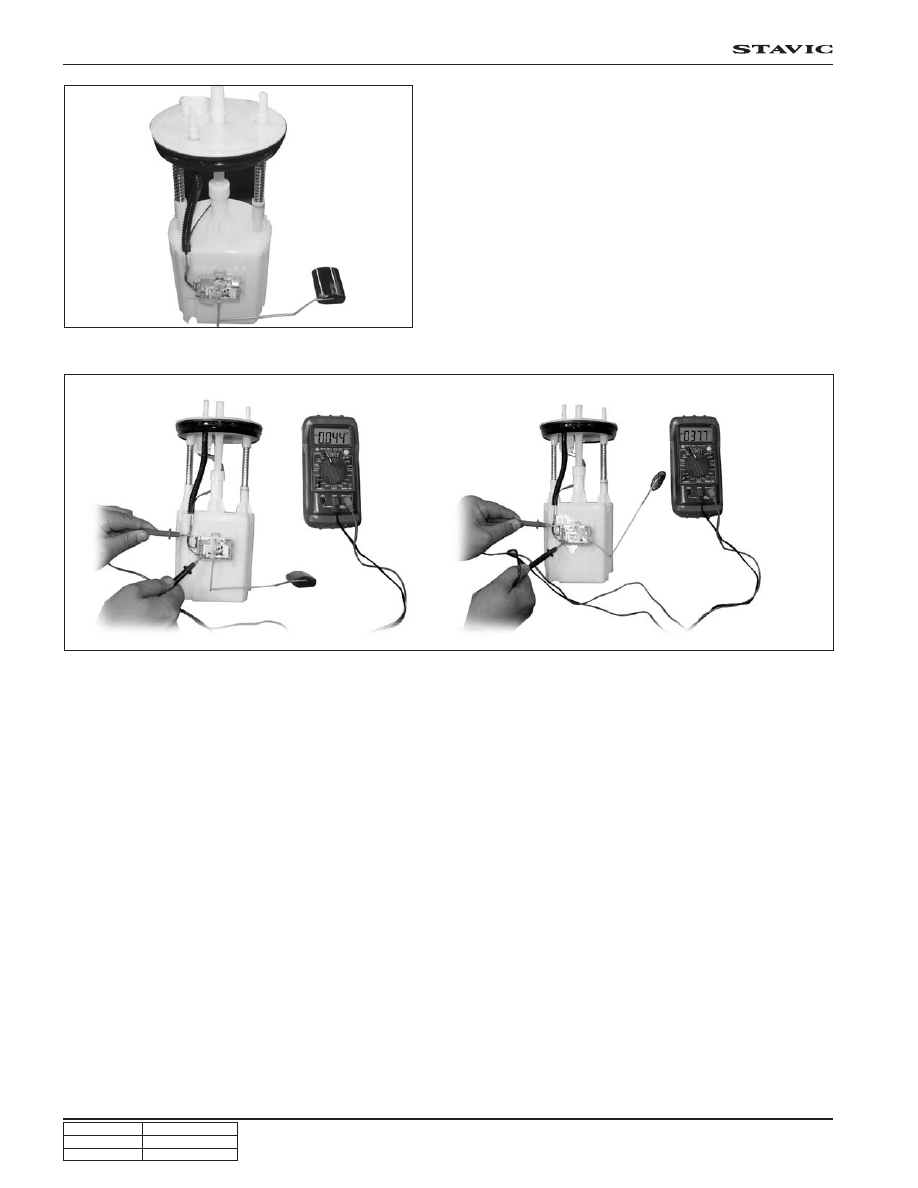

(4) Remove the fuel sender gauge assembly from the fuel

tank.

6. Always check the gauge operating conditions when replacing the components or repairing the system.

7. Install in the reverse order of removal.

Caution

The fuel system (fuel tank) related operation may cause a fire. Always prepare the fire-fighting equipment
before starting the fuel system related operation.
