SsangYong Rodius (2013 year). Service manual - part 185

02-11

8810-03

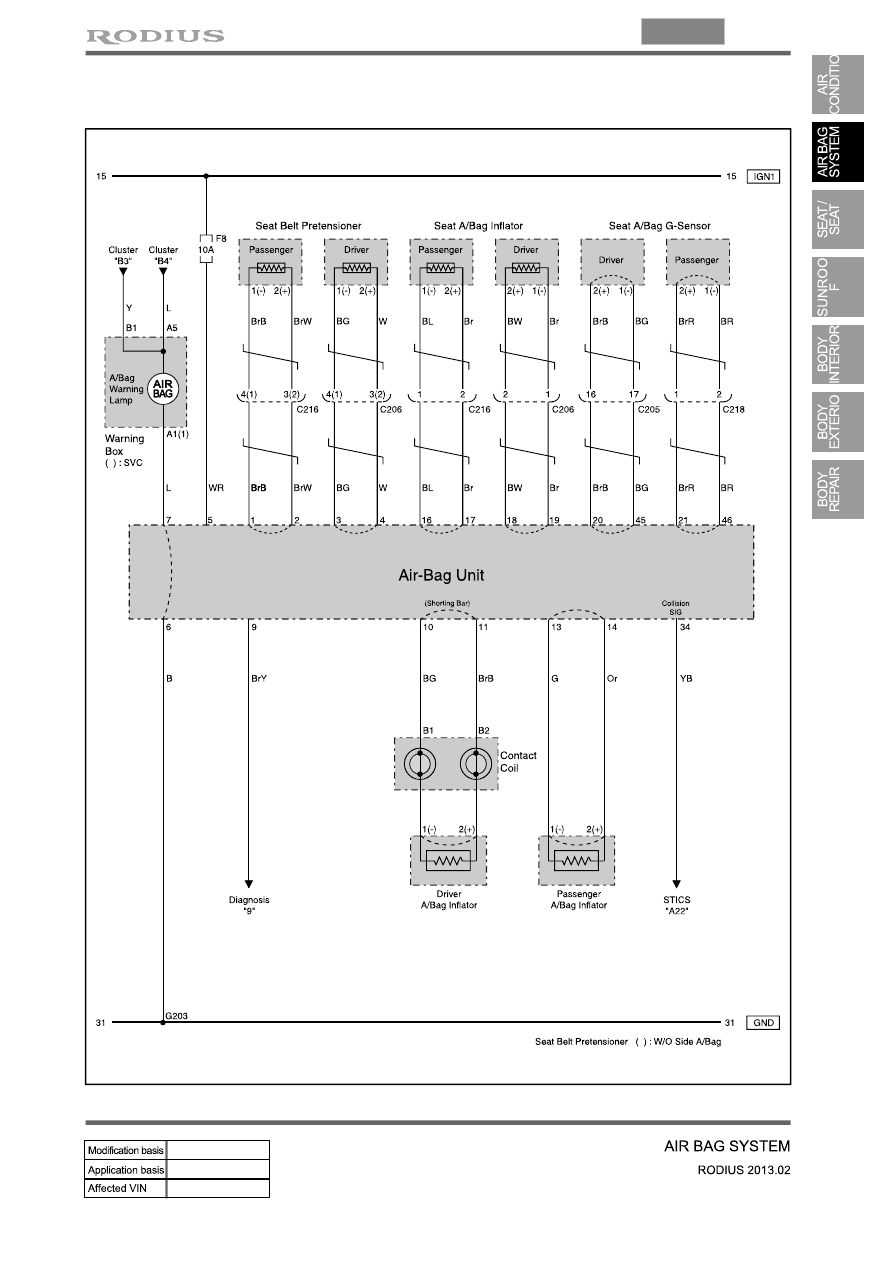

3. CIRCUIT DIAGRAM

02-12

4. OPERATION PROCESS

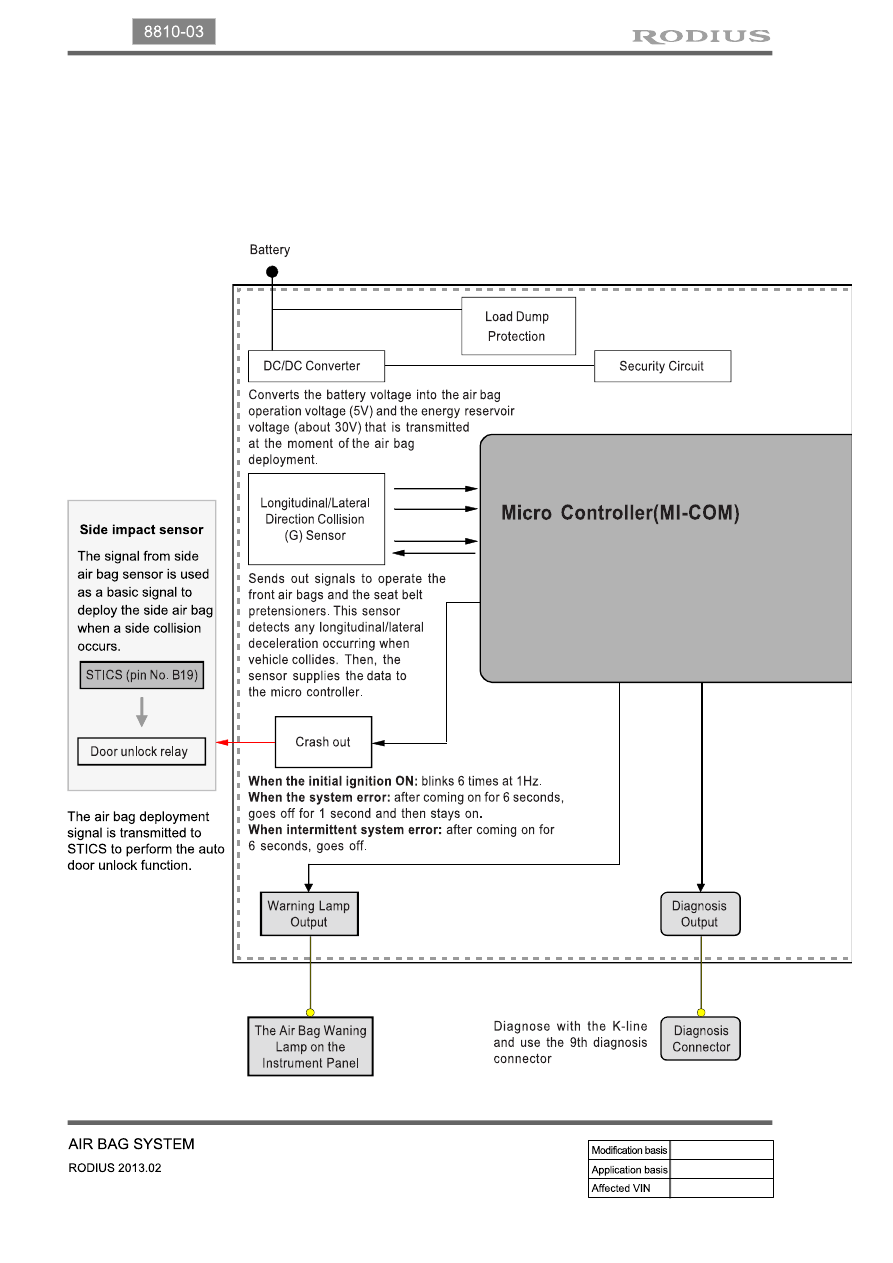

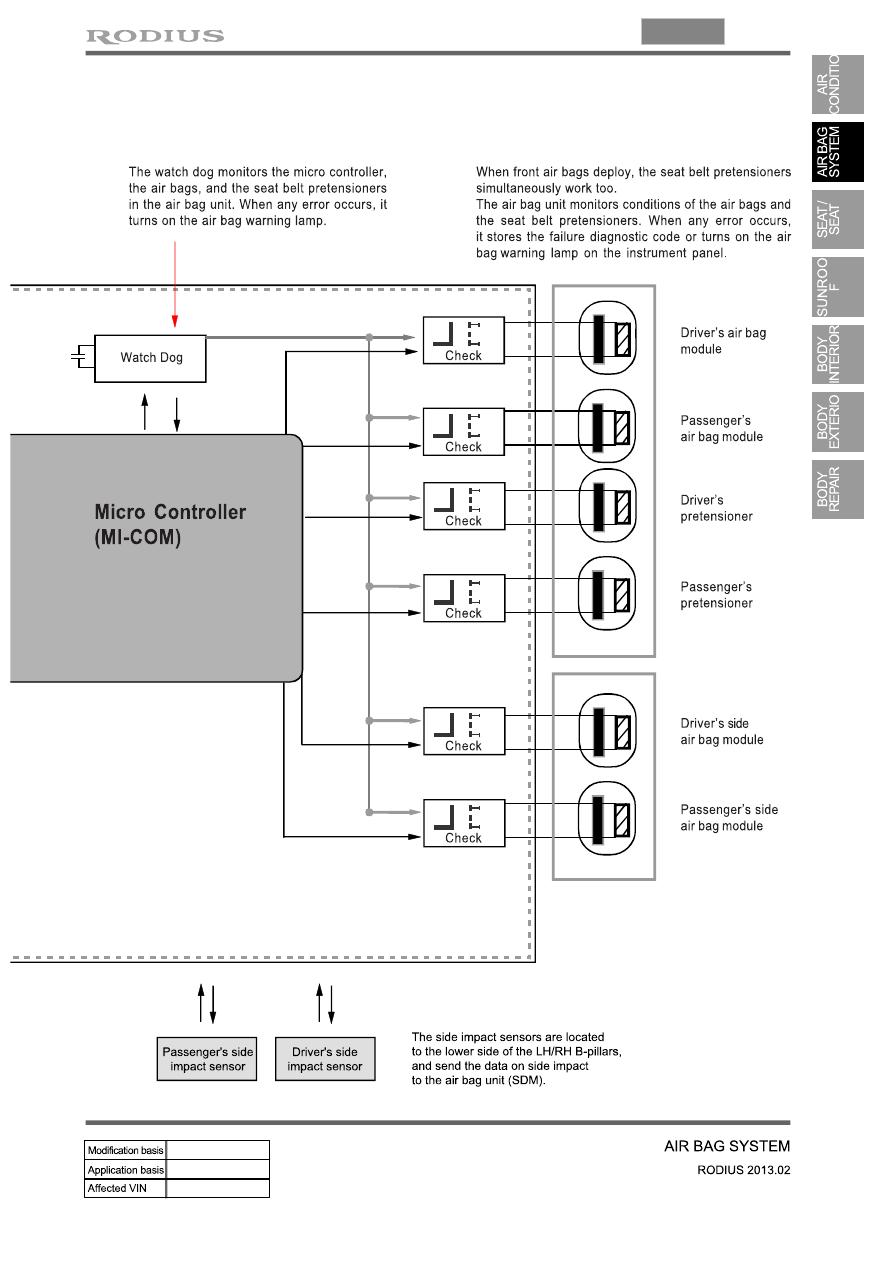

1) Air Bag System Block Diagram

The overall air bag operation process and its functions and roles are broadly explained in this block

diagram. This diagram summarizes and highlights the functions adopted by Ssangyong Motors.

-

02-13

8810-03

03-3

7410-01

1. SPECIFICATION

Item

Front Seat

Rear 1st

Row Seat

Rear 2nd

Row Seat

Rear 3rd

Row Seat

Headrest

Tilt

25°

-

-

-

Up/down

60 mm

(20 mmx3)

100 mm

(20 mmx5)

120 mm

(20 mmx6)

120 mm

(20 mmx6)

Seat

Reclining

80°

(2°x40)

76°

(2°x38)

76°

(2°x38)

-

Folding

-

105°

105°

103°

Sliding

228 mm

(192+36 mm)

380 mm

(140+240 mm)

340 mm

(100+240 mm)

-

Seat warmer

-

-

-

2. WARNINGS FOR POWER SEAT

Adjust the driver's seat before driving.

Make sure that the seat is firmly secured after adjusting.

Never drive the vehicle with the head restraint removed or lowered excessively. Otherwise, your

neck, spine or other parts of the body can be severely injured in the event of an accident.

If you recline the seatback excessively, you could slide under the seat belt and be injured severely

in a collision.

Do not put any object that could damage the seat on the seat.

The front and rear seats are equipped with the heated wire (seat warmer) system. Using the seat

warmer system excessively may cause minor burns. The following occupants should exercise

special care when using the heated wire seat.

1.

2.

3.

4.

5.

6.

Infant, child, old or handicapped person

Person with sensitive skin

Exhausted person

Persons who is drunk or took medicine which causes drowsiness such as sleeping pills, cold

tablets, etc.

-

-

-

-

Do not place anything on the seat that insulates against the heat, such as a blanket or cushion.

Make sure that the head restraints are in place and secured properly. Never drive the vehicle with the

head restraint removed.

To minimize the injuries in a collision or an abrupt stop, make sure the seatback is in the upright

position before driving. If the seatback is reclined too much, the occupant could slide under the seat

belt in a collision or an abrupt stop and cannot be protected properly by the airbag system.

7.

8.

9.
