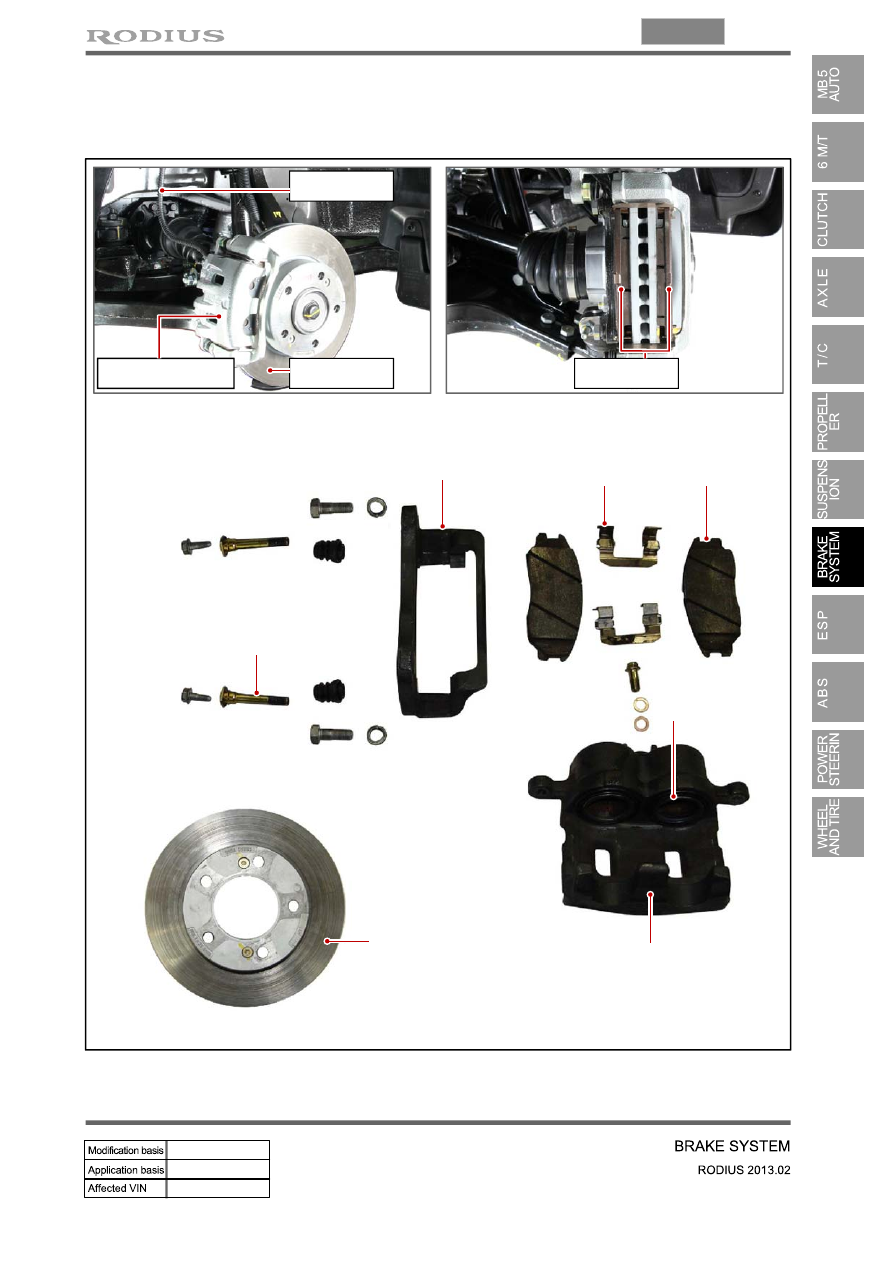

1) Front Brake

The front brake system uses the ventilated disc and double piston caliper.

Caliper carrier

Pad spring

Brake pad

Bolt-caliper

Brake disc

Caliper

Piston

Brake hose

Caliper assembly

Brake disc

Brake pad

08-18

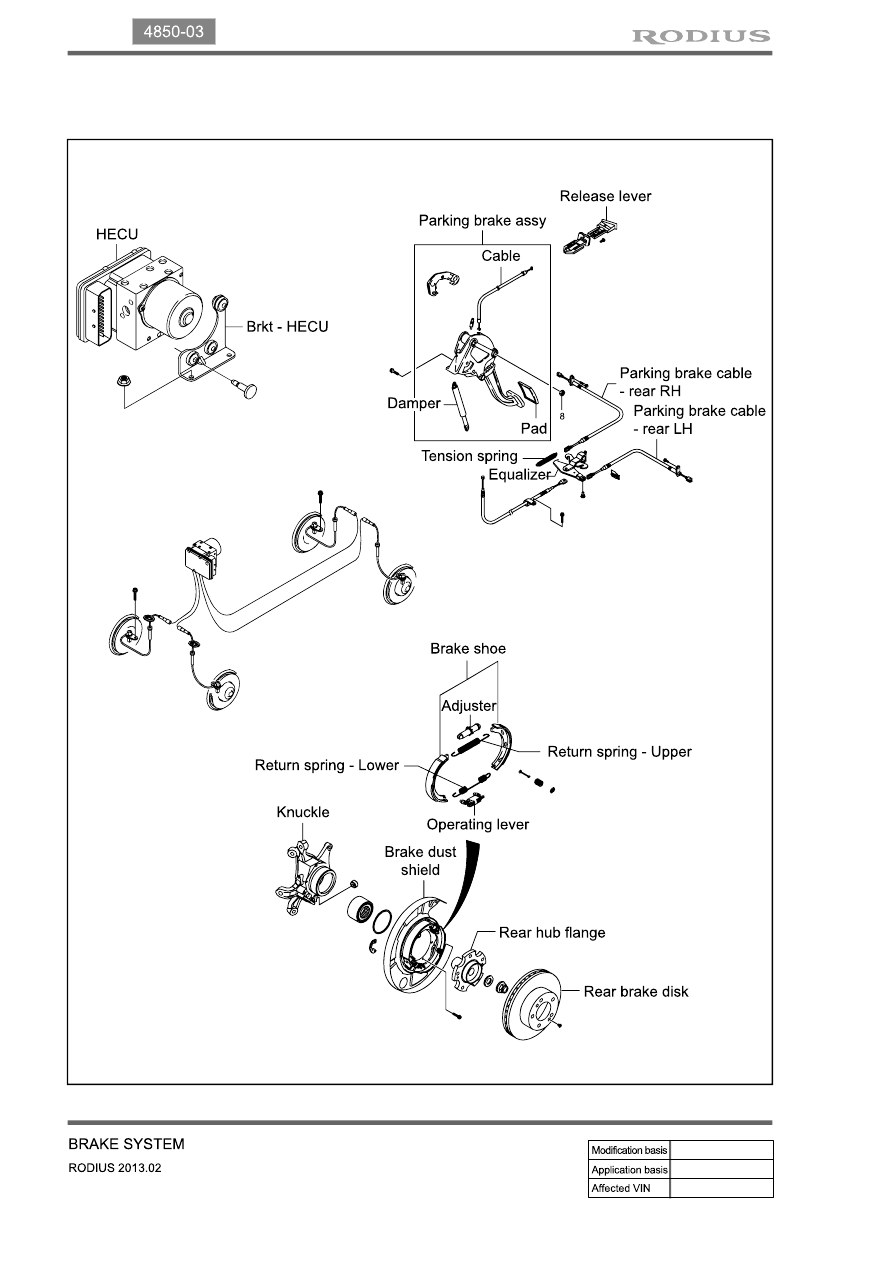

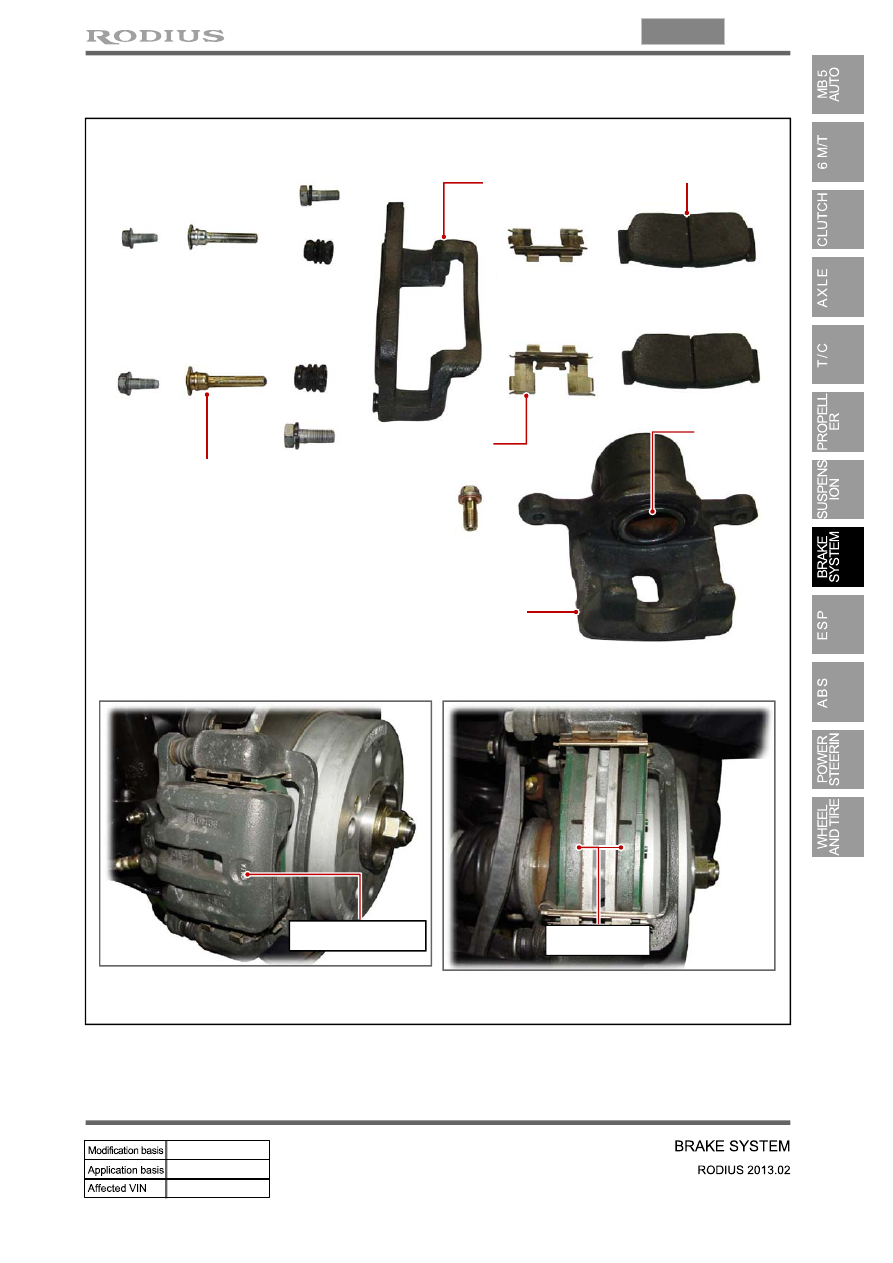

2) Rear Brake

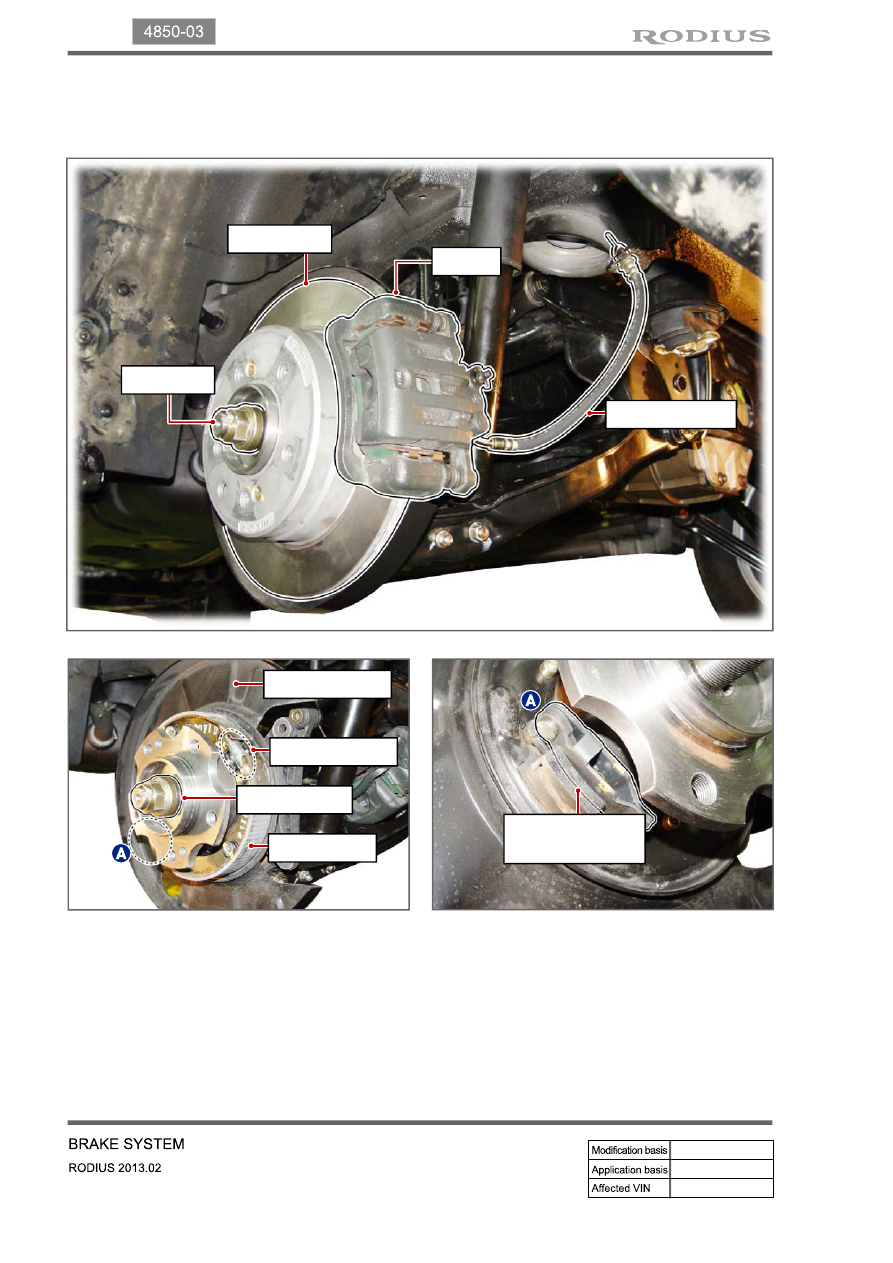

▶ Brake Disc

Brake disc

Lock nut

Caliper

Brake hose

Backing plate

Adjusting bolt

Brake shoe

Lock nut

Parking brake

operating lever

08-19

4850-03

▶Caliper Assembly

Bolt-caliper

Caliper

Piston

Pad spring

Caliper carrier

Brake pad

Caliper assembly

Brake pad
