SsangYong Rodius (2013 year). Service manual - part 124

07-9

8310-01

2. CONFIGURATION FOR INTERIOR LAMP

Front room lamp

Glove box lamp

Side (rear 1st row

and 2nd row)

room lamp

Door courtesy

lamp

Rear room lamp

Center console

rear lamp

07-10

3. CIRCUIT DIAGRAM

1) Interior Lamp

07-11

8310-01

2) External Lamp

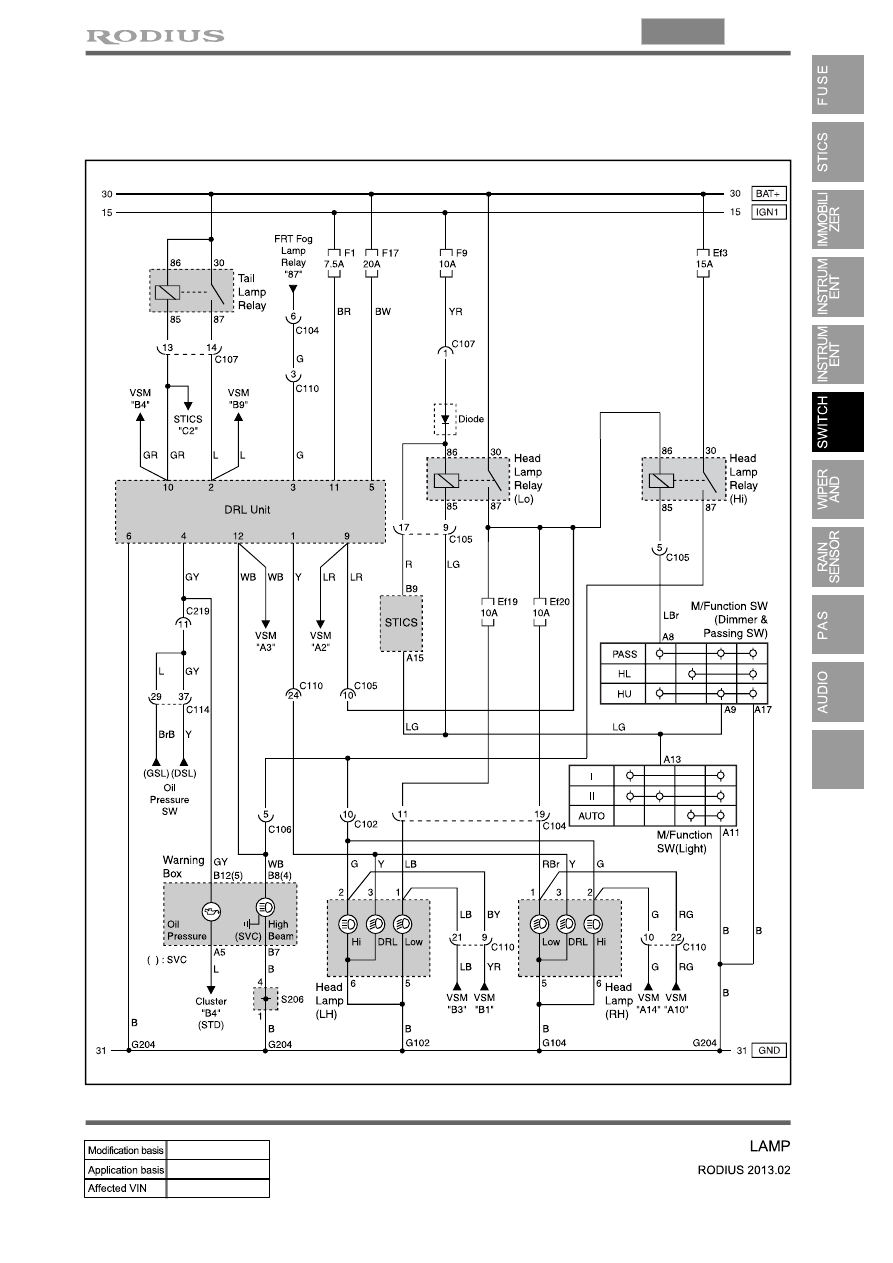

(1) Head lamp/DRL (day time running light) unit

07-12

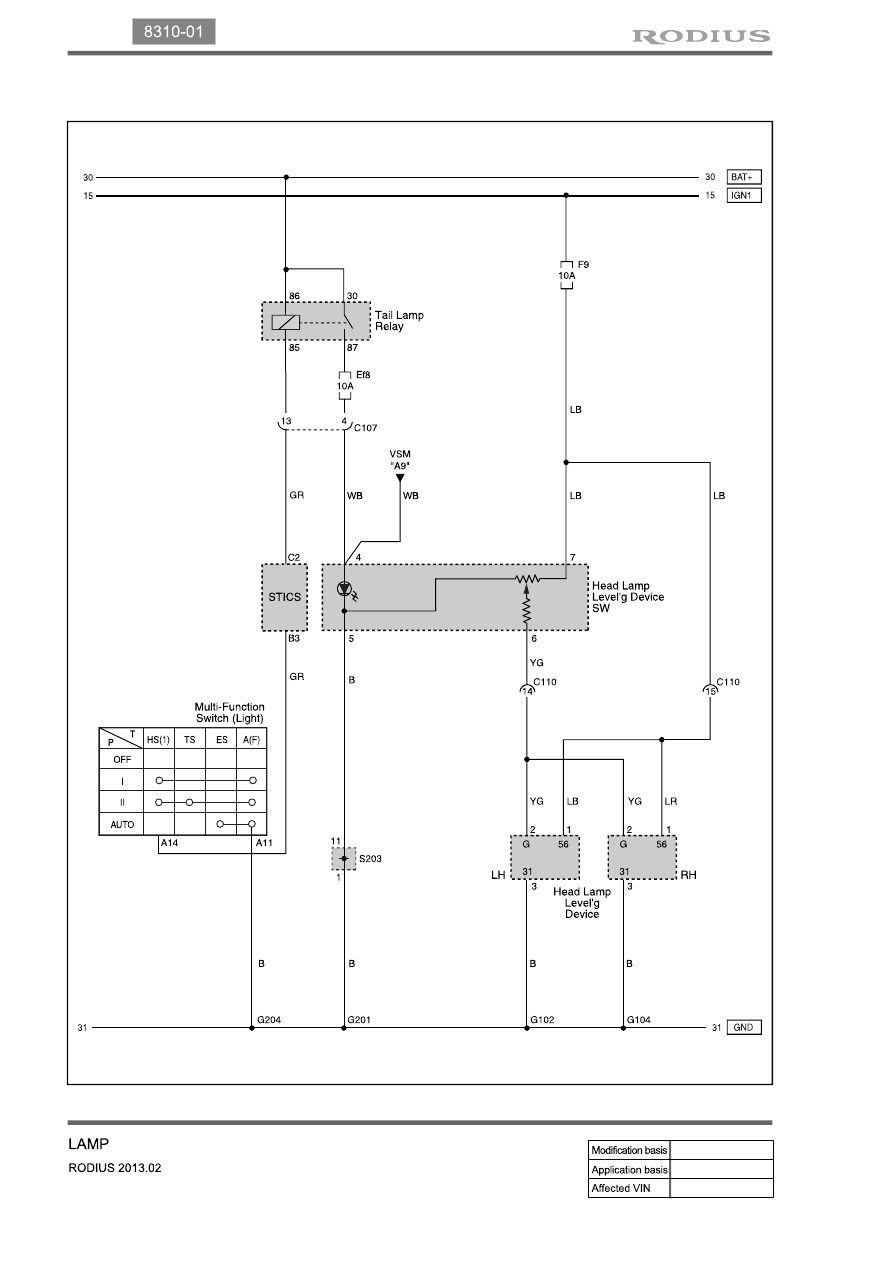

(2) Head lamp leveling device
