01-18

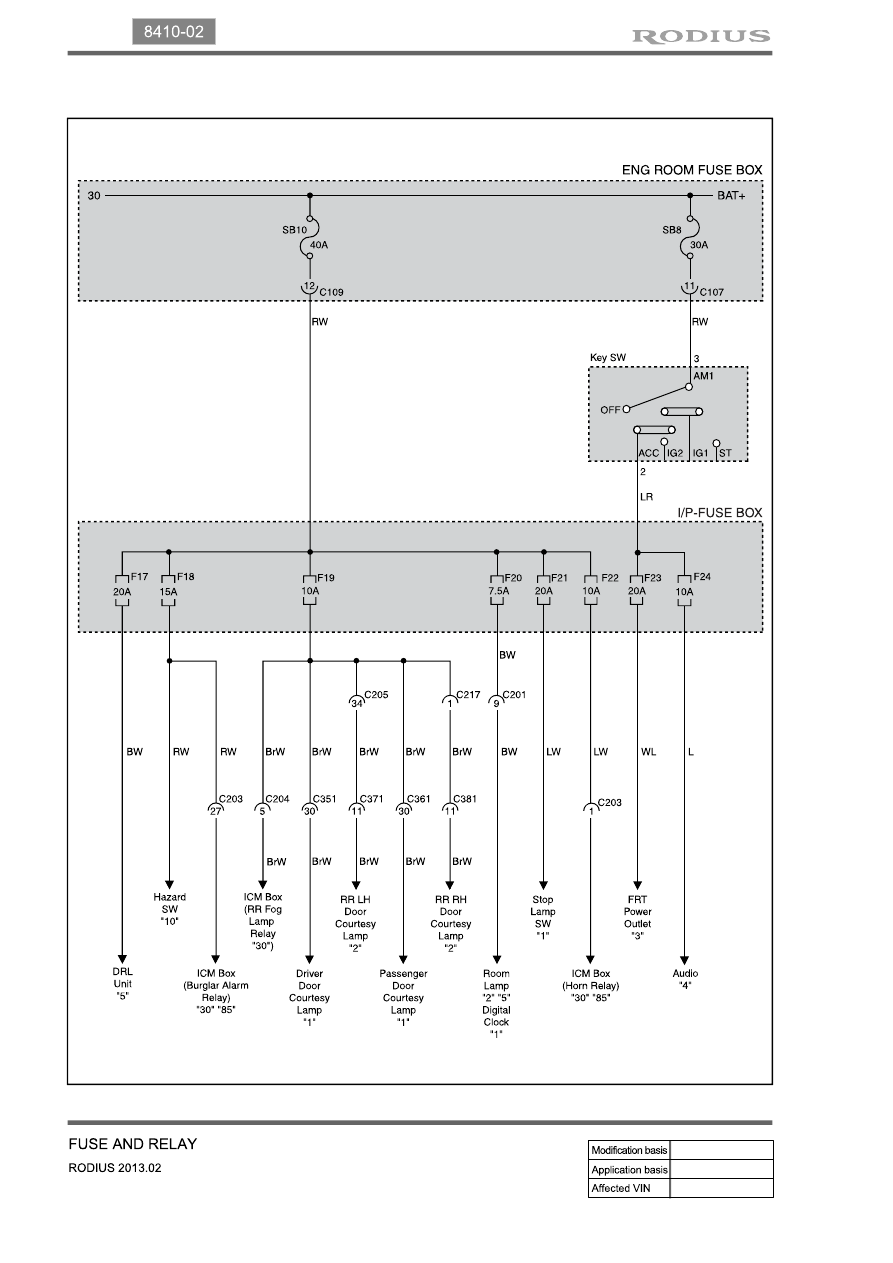

▶F17 ~ F24

01-19

8410-02

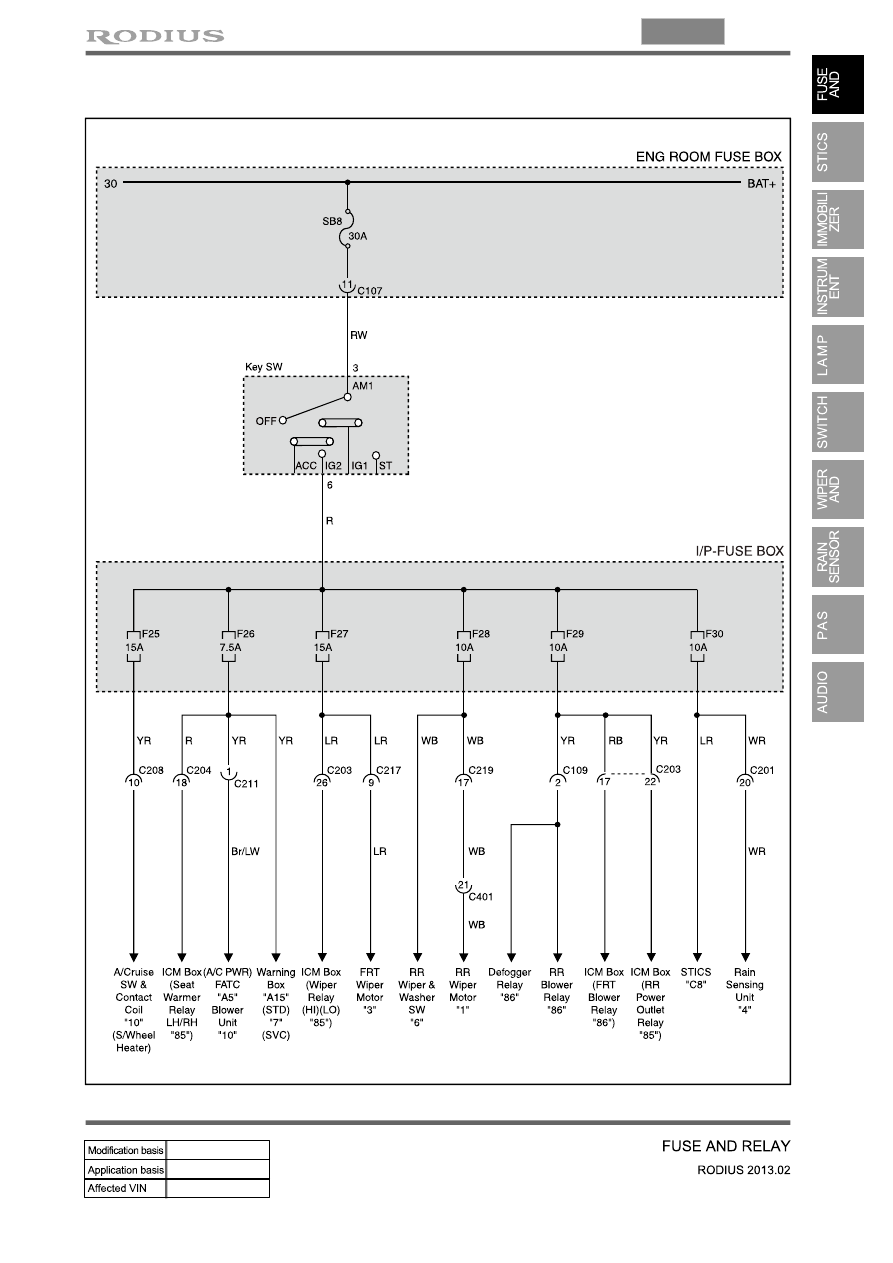

▶F25 ~ F30

01-20

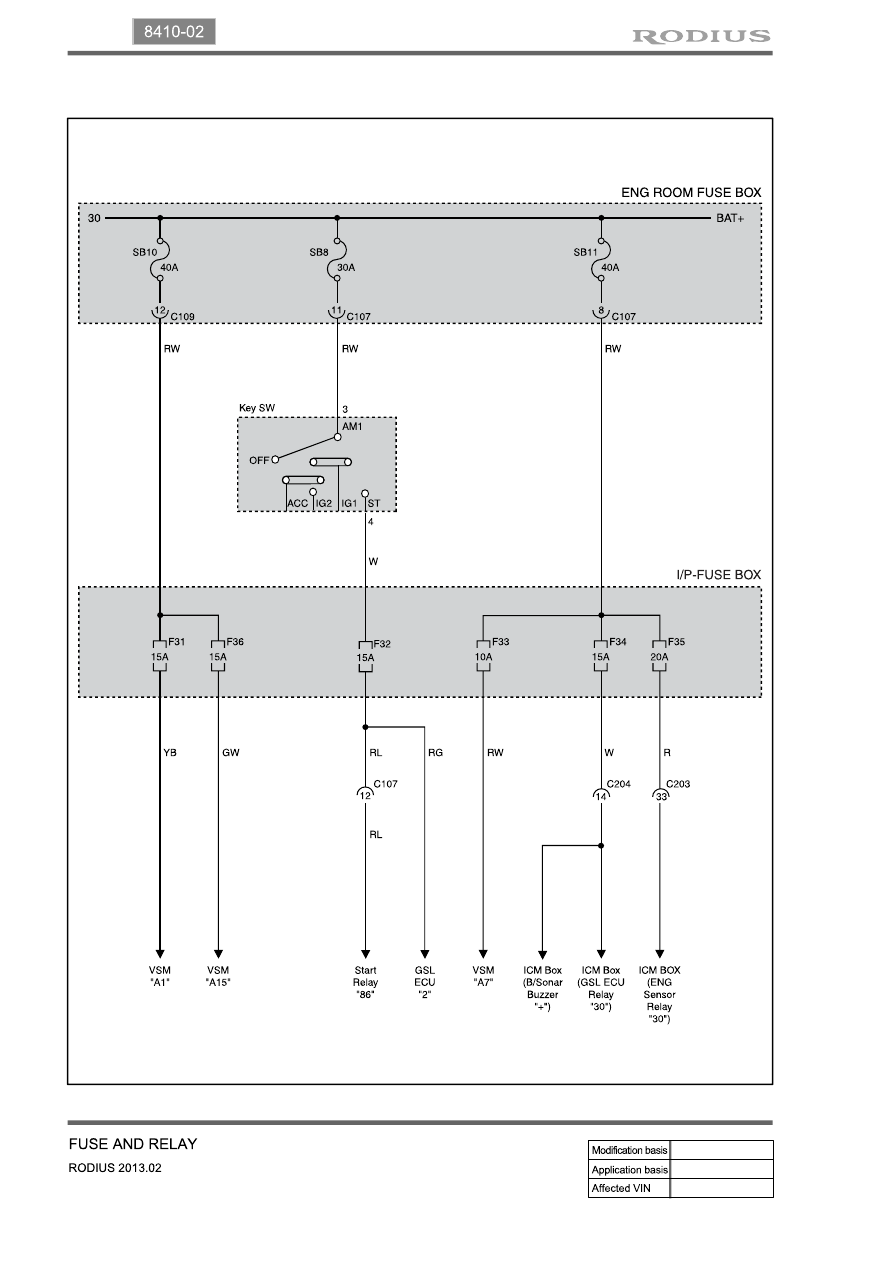

▶F31 ~ F36

02-3

8710-01

1. SPECIFICATIONS OF RK - STICS

1) Electrical Performance

2) Chattering of Input Signals

Vehicle speed input:

The vehicle speed calculating time is 1.0 seconds. The elapsed time of 1.5 seconds after IGN
1 switch :ON” is not included.

20 ms target input:

Wiper motor A/S (parking) terminal

100 ms target input switch

All switches except wiper motor A/S (parking) terminal

1.

2.

3.

3) Time Tolerance

If not indicated, time tolerance will be ± 10%.
However, if less than 500 ms, time tolerance will be ± 50 ms.

The time indicated in each function does not include chattering processing time from switch

input changing point.

1.

2.

Item

Requirement

Remark

Rated voltage

DC 12 V

Operating voltage

DC 9 to 16 V

Should operate normally within this range.

Operating temperature

-30℃ ~ +80℃

Reserved temperature

-40℃ ~ +85℃

Max. operating humidity

95%

Resistible voltage

24 V

Insulating resistance

No heat and fire due to
the current leaks.

Confined with PCB, waterproof and coating that
requires the insulation.

Parasitic current

below 4.0 mA
(below 6.0 mA)

IGN = OFF, Full output load = OFF, 90
seconds (after received the signals), No input
changes for 2 seconds

Voltage drop

below 1.2 V

below 2.0 V

Pin no. 8 and 2, 3, 5, 7, 10, 12, 13, 15, 19, 20,
23, 40, 47, 51, 53, 54
Pin no. 8 and 1, 14
