SsangYong Rodius (2013 year). Service manual - part 102

09-4

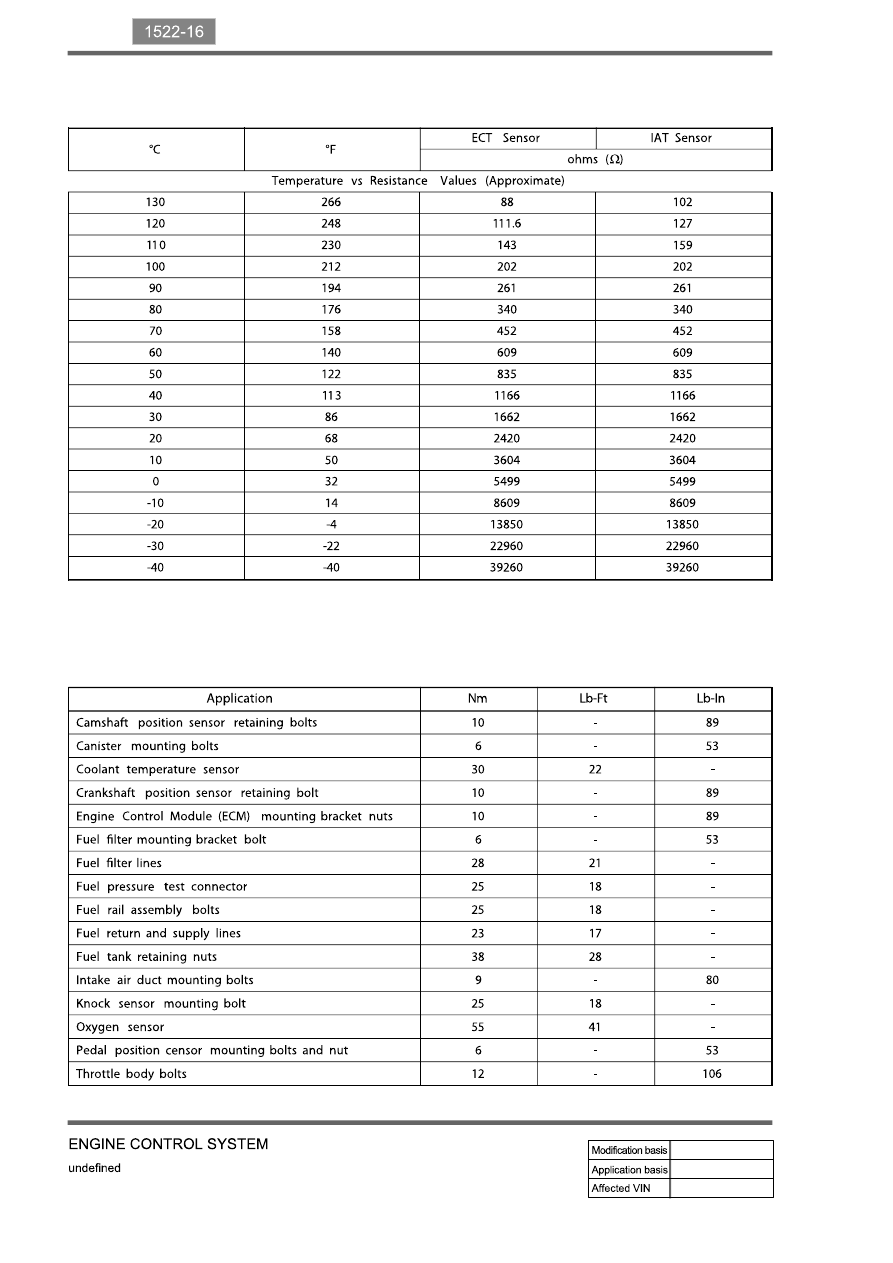

2. FASTENER TIGHTENING SPECIFICATIONS

1) Temperature vs Resistance

10-3

8510-23

1. CRUISE CONTROL SWITCH

The cruise control is an automatic speed control system that maintains a desired driving speed without

using the accelerator pedal.

The vehicle speed must be greater than 36 km/h to engage the cruise control. This feature is

especially useful for motorway driving.

The cruise control system is a supplementary system, which helps the driver to drive the vehicle at

a desired speed without using the accelerator pedal under the traffic condition where the vehicle-to-

vehicle distance meets the legal requirement.

10-4

1) Traffic Conditions for Using Cruise Control

Use the cruise control system only when the traffic is not jammed, driving on motorways or highways

where there is no sudden change in the driving condition due to traffic lights, pedestrian, etc.

Improper use of the cruise control could be dangerous.

- Do not use on winding roads.

- Do not use in heavy traffic.

- Do not use on slippery, wet roads.

This could result in a loss of control, collision, and/or personal injuries.

The described speed value may vary slightly depending on the road conditions.

10-5

8510-23

2. HOW TO OPERATE CRUISE CONTROL SWITCH

1) Setting a Desired Speed

To operate the cruise control, accelerate to the desired speed, which must be more than 36 km/h

(23 MPH) and less than 150 km/h (90 MPH).

When the desired speed is reached, push up the ACCEL switch of the cruise control lever or push

down the DECEL switch for 1 second per one switching and then release the accelerator pedal

slowly.

Now, the vehicle is cruised by this system with the set speed.

And you can set to other vehicle speeds again with above steps after an accelerator pedal

intervention during the cruise control running.

1.

2.

3.

4.

Never use the cruise control system until you get used to it.

Improper use or not fully aware of this function could result in collision and/or personal injuries.

(1) Manual transmission equipped vehicle

The cruise control is only available when the 3rd or higher speed gear is engaged.
