01-16

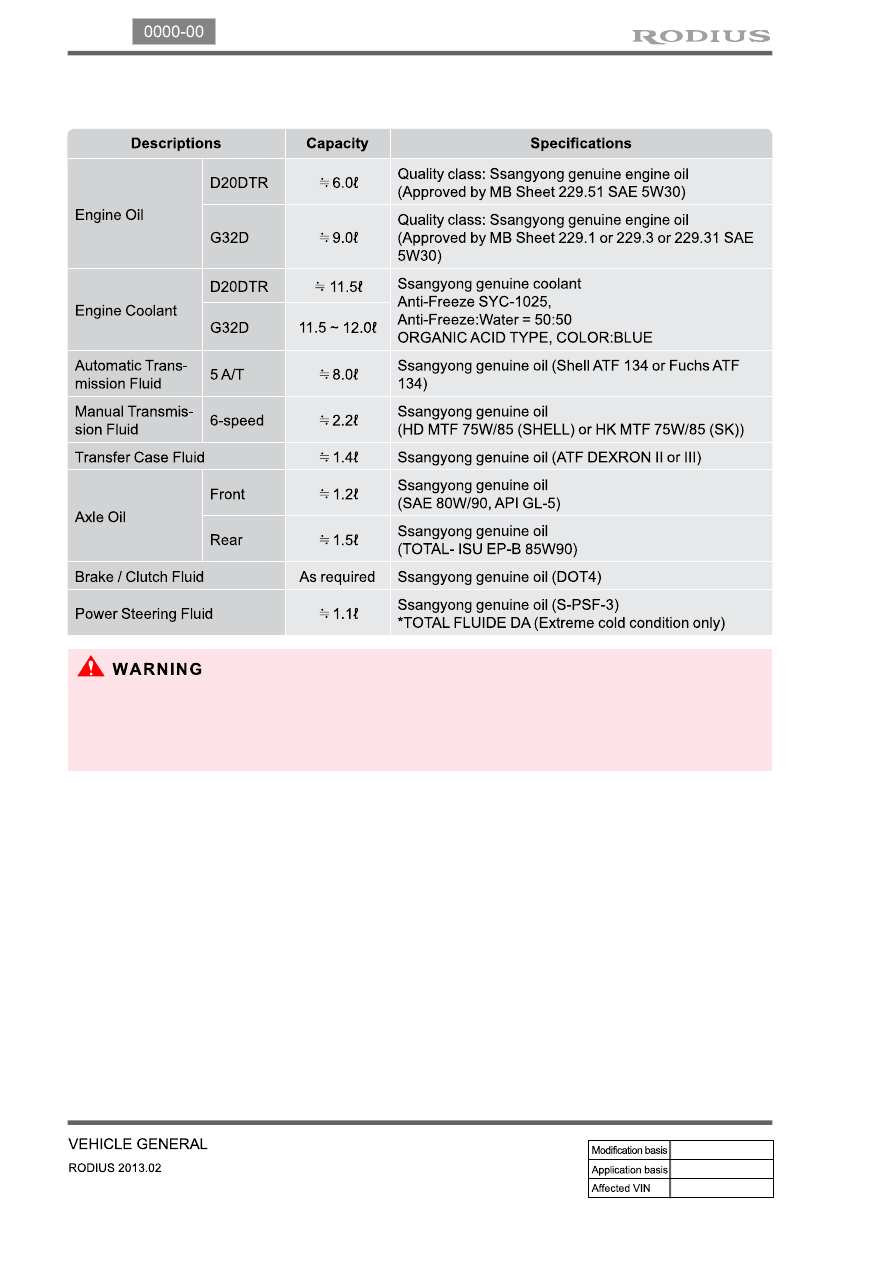

5. RECOMMENDED FLUIDS AND LUBRICANTS

- Use only Ssangyong recommended fluids and lubricants.

- Keep the specified levels when adding or replacing the fluids.

- Do not mix any different types or brands of oils or fluids. This may cause damages.

01-17

0000-00

Front: Double wishbone  Rear: Multi Link

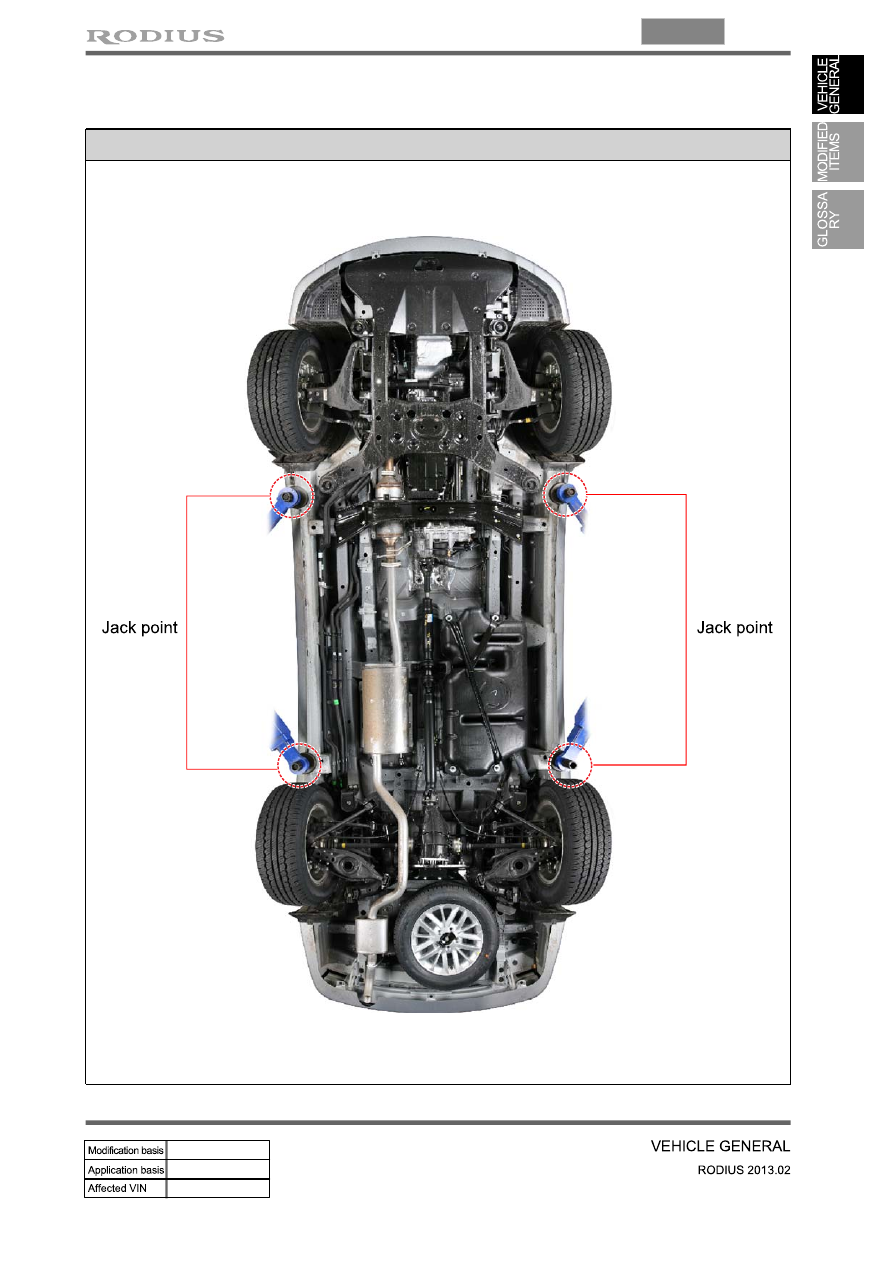

6. JACK POINTS

01-18

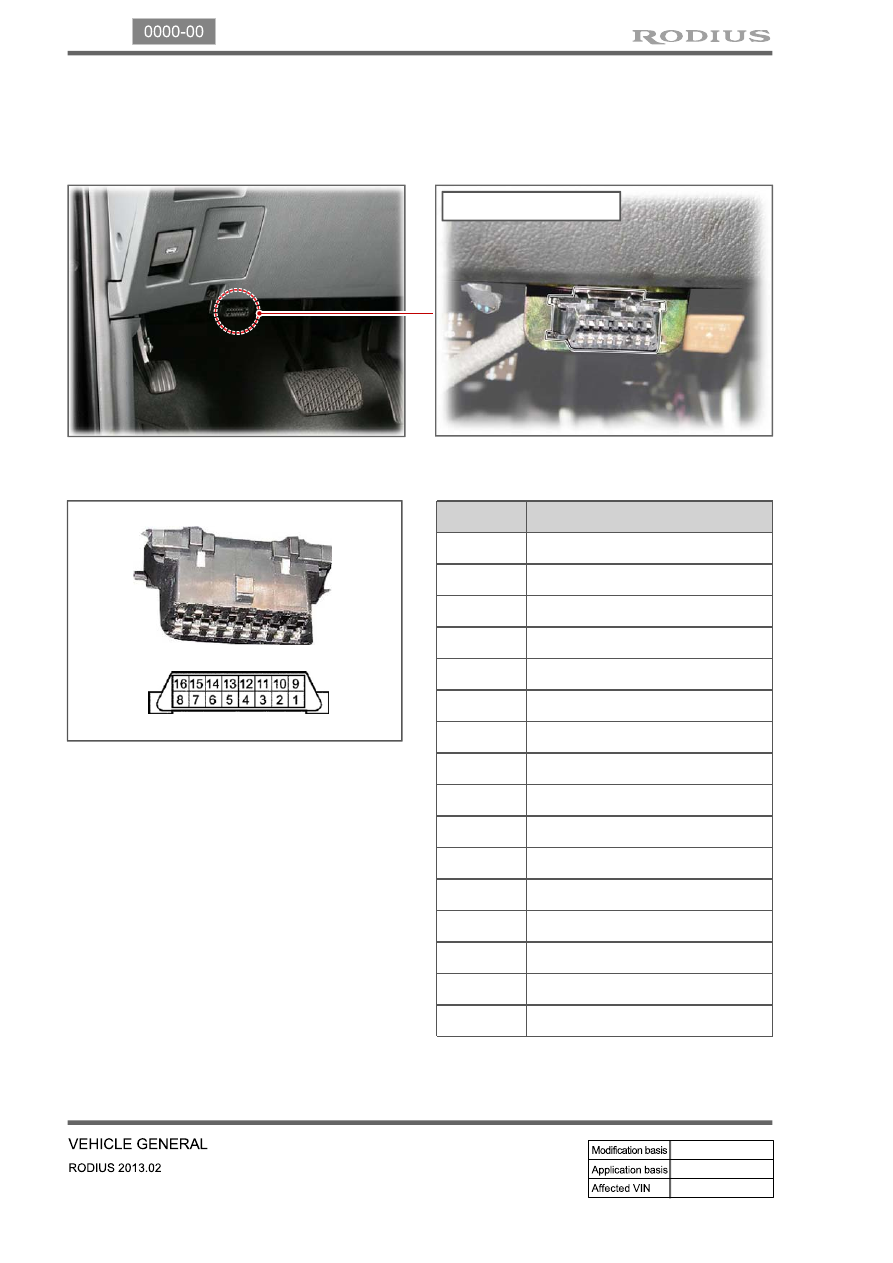

The diagnostic connector is located at bottom of instrument panel. It consists of 16 pins.

The REKES key should be coded by the scan tool.

Connector Pin

▶

Diagnostic connector

Pin No.

Function

1 -

2 -

3 STICS

"A2"(Coding)

4 Ground

5 Ground

6

CAN HI S205 "12"

7

GSL ECU "58"

8

ABS/ESP unit “2”

9

Air bag unit “9”

10 -

11 TCU

"A18"

12 -

13 TCCU

"21"

14

CAN LO S205 "5"

15

STICS "B16" (Diagnosis)

16 B+

7. PIN ARRANGEMENT OF DIAGNOSTIC CONNECTOR

01-19

0000-00

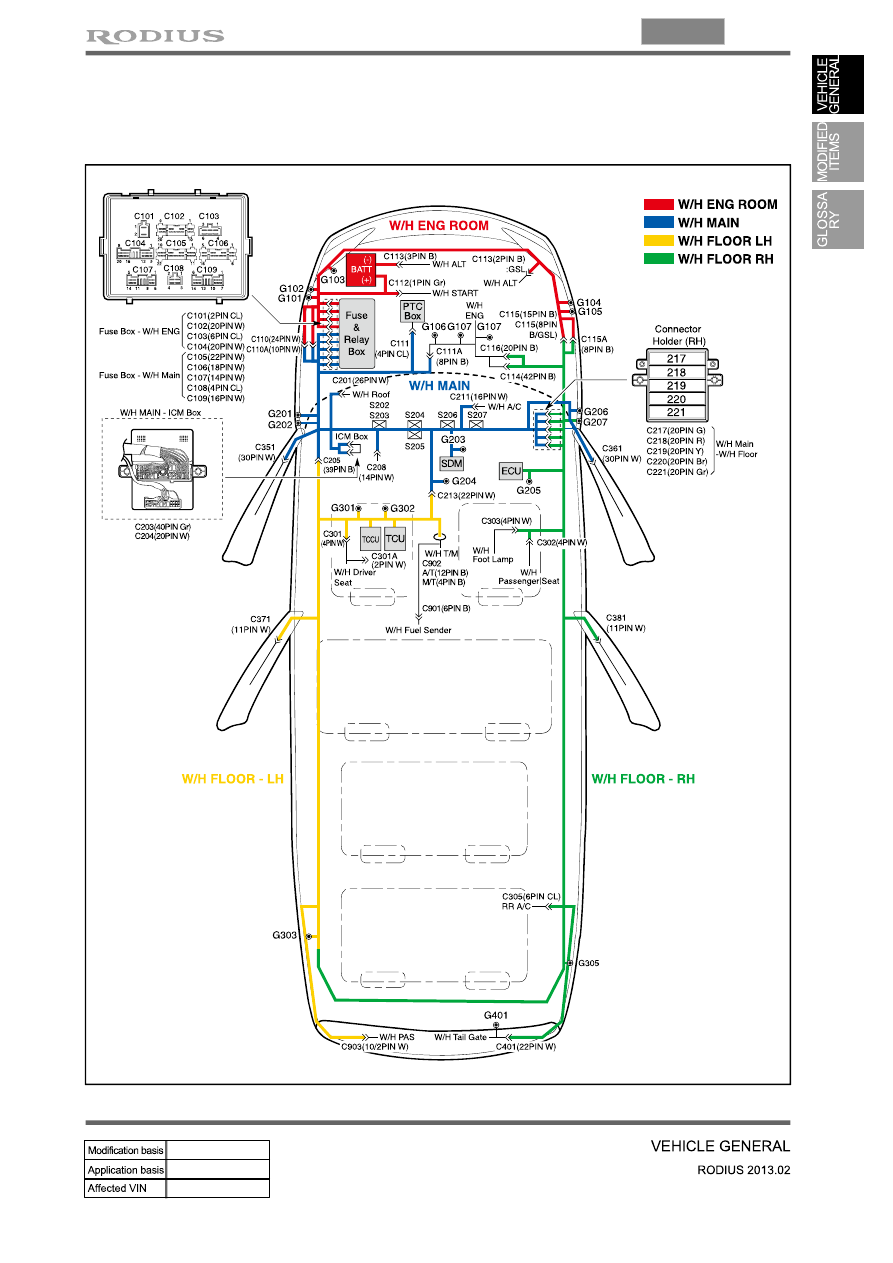

8. ELECTRIC COMPONENTS AND LAYOUT

1) Wiring Harness Arrangement
