SsangYong Rexton. Service manual - part 469

REAR SUSPENSION  2D-5

SSANGYONG  Y200

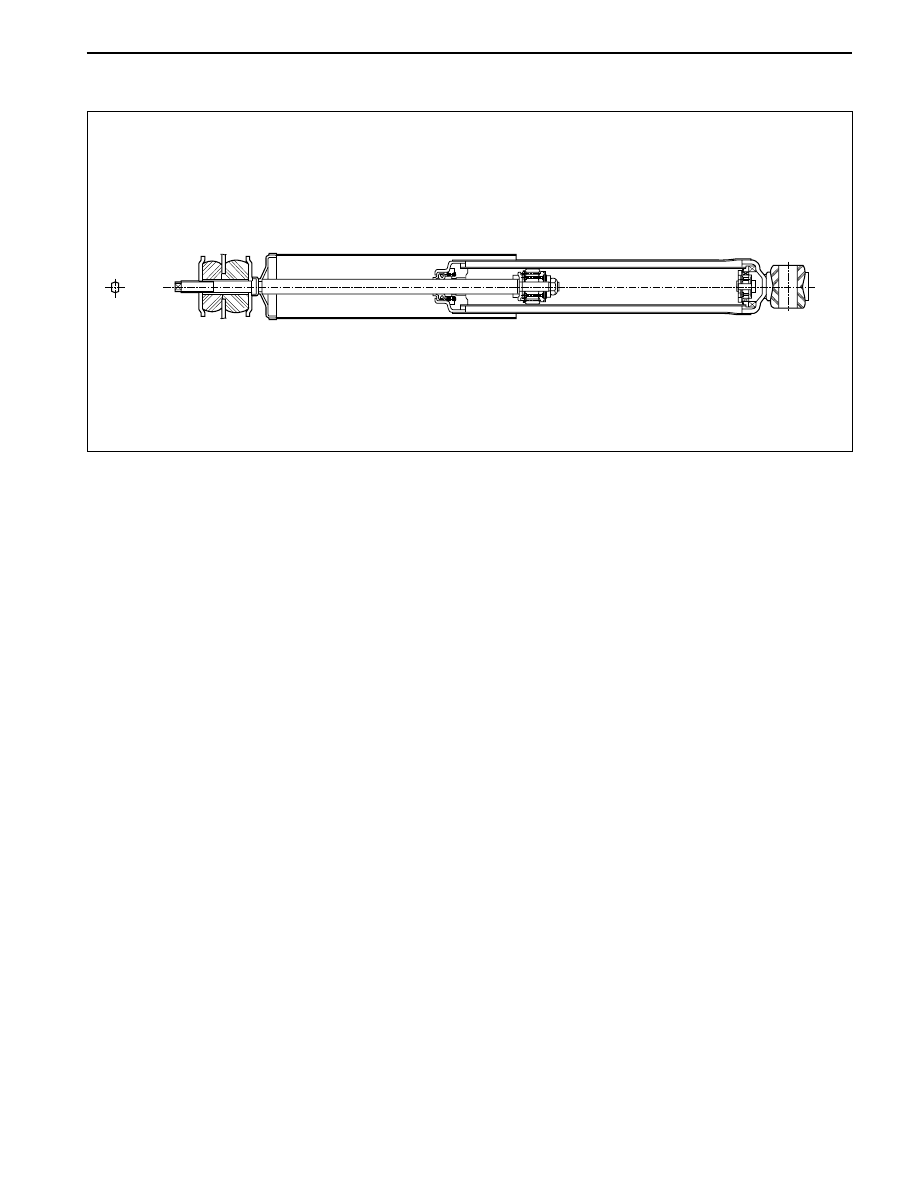

SHOCK ABSORBER

YAD2D040

SSANGYONG  Y200

2D-6  REAR SUSPENSION

Action

Replace

Replace

Re-Tighten

Replace

Replace

Replace

Pressure Adjust

Replace

Tighten as specified torque

Replace

Replace

Replace

Replace

Replace

Replace

Replace

Replace

Adjust

Re-Tighten or Replace

Replace

DIAGNOSTIC INFORMATION AND PROCEDURES

REAR SUSPENSION

Symptom

Vehicle Rolling.

Possible Cause

Broken Stabilizer Bar

Faulty Shock Absorber

Loosening Mountings

Damaged or Worn Wheel Bearing

Damaged Shock Absorber

Damaged Tire

Over Inflated Tire

Faulty Shock Absorber

Loosened Wheel Nut

Bent or Broken Coil Spring

Damaged Tire

Worn Bushing

Deformed Arm Assembly

Worn Bushing

Bent or Broken Coil Spring

Excessive Resistance of Lower

Arm Ball Joint

Insufficient Tire Pressure

Faulty Power Steering

Worn or Loosened Lower Arm

Bushing

Worn or Broken Coil Spring

Vehicle Bottoming

Abnormal Noises

Poor Riding

Vehicle Pulls to Right or Left

Hard Steering

Steering Instability

REAR SUSPENSION  2D-7

SSANGYONG  Y200

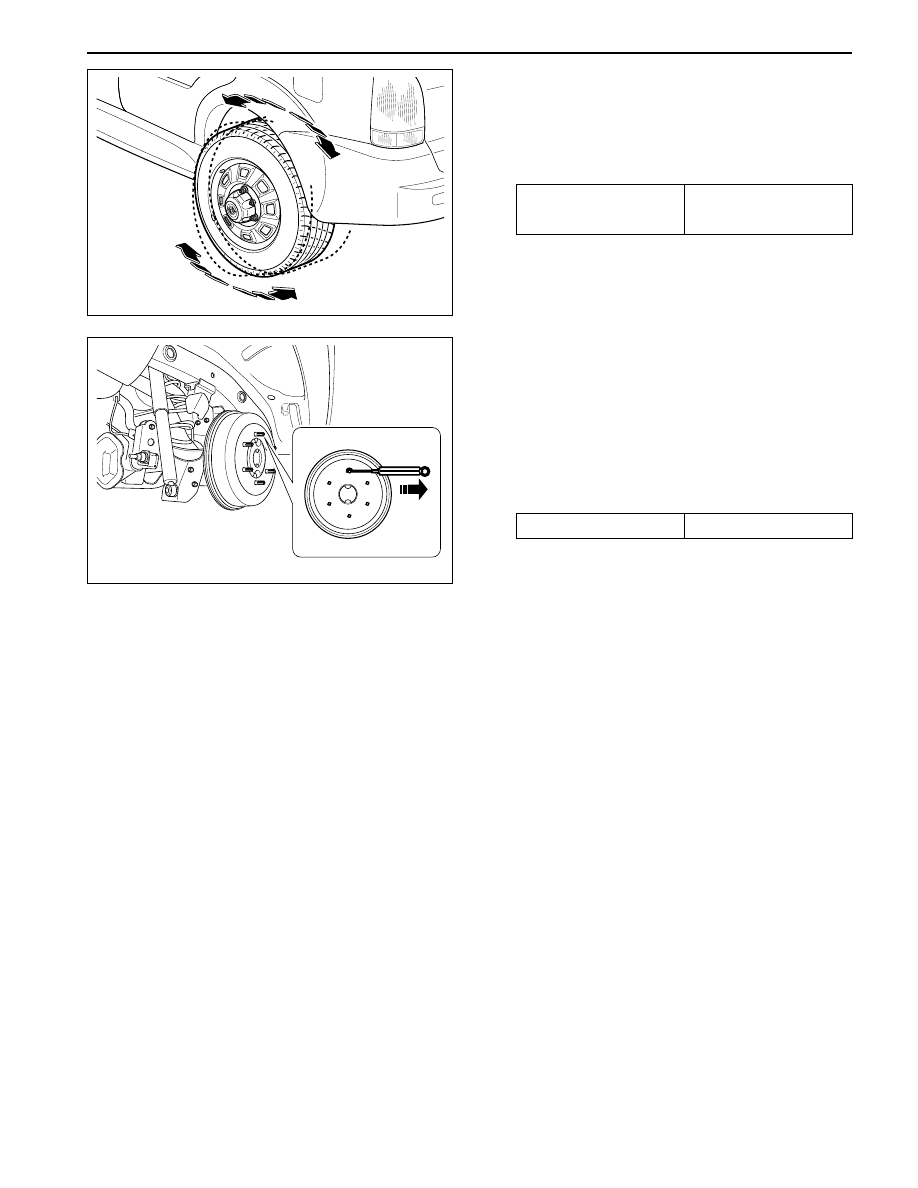

WHEEL BEARING END PLAY

1. Release the parking brake.

2. Raise rear tires.

3. Inspect the wheel bearing end play by shaking

the tire up & down.

YAD2D050

YAD2D060

WHEEL BEARING FREE LOAD

1. Release the parking brake.

2. Raise rear tires and rotate the tire repeatedly.

3. Remove the tire.

4. Hang the measuring tool to the hub bolt and

measure the free load at the drum starts to rotate.

5. Check the free load of the rear wheel bearing within

the specified value.

Rear wheel bearing

end play

0 mm

4. If the wheel bearing end play is excessive,

retighten the castle nut.

5. If the wheel bearing end play continues to be

excessive, replace the wheel bearing.

Specified free load

1.4 ~ 4.3 kg.cm

6. Retighten the castle nut as specified torque when

the measured value is not within the specified
value.

7. Replace the wheel bearing as needed.

SSANGYONG  Y200

2D-8  REAR SUSPENSION

REPAIR INSTRUCTIONS

ON-VEHICLE SERVICE

YAD2D070

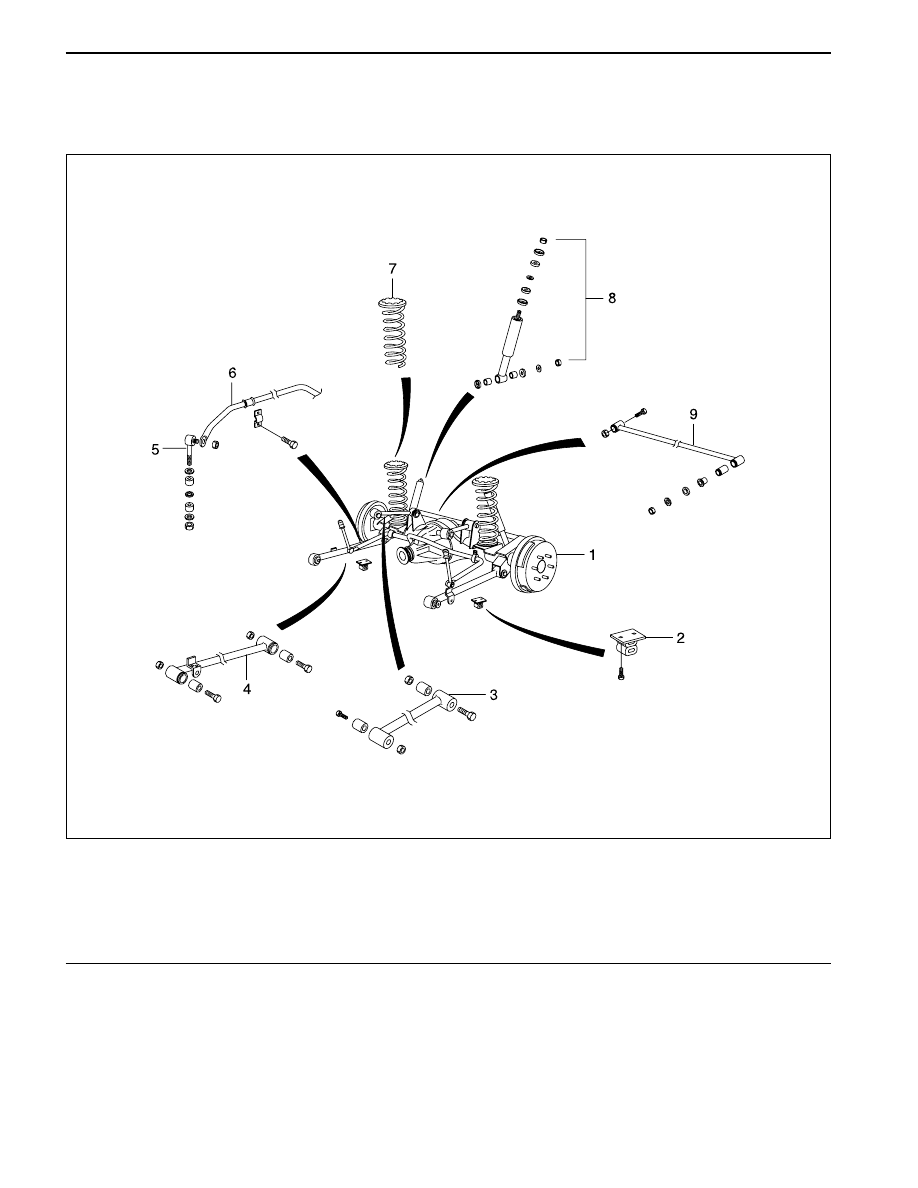

1 Rear Suspension Assembly
2 Rubber
3 Upper Arm
4 Lower Arm
5 Stabilizer Link

6 Stabilizer
7 Coil Spring
8 Shock Absorber
9 Lateral Rod
