SsangYong Rexton. Service manual - part 420

SSANGYONG  Y200

1F1-98  M162 ENGINE CONTROLS

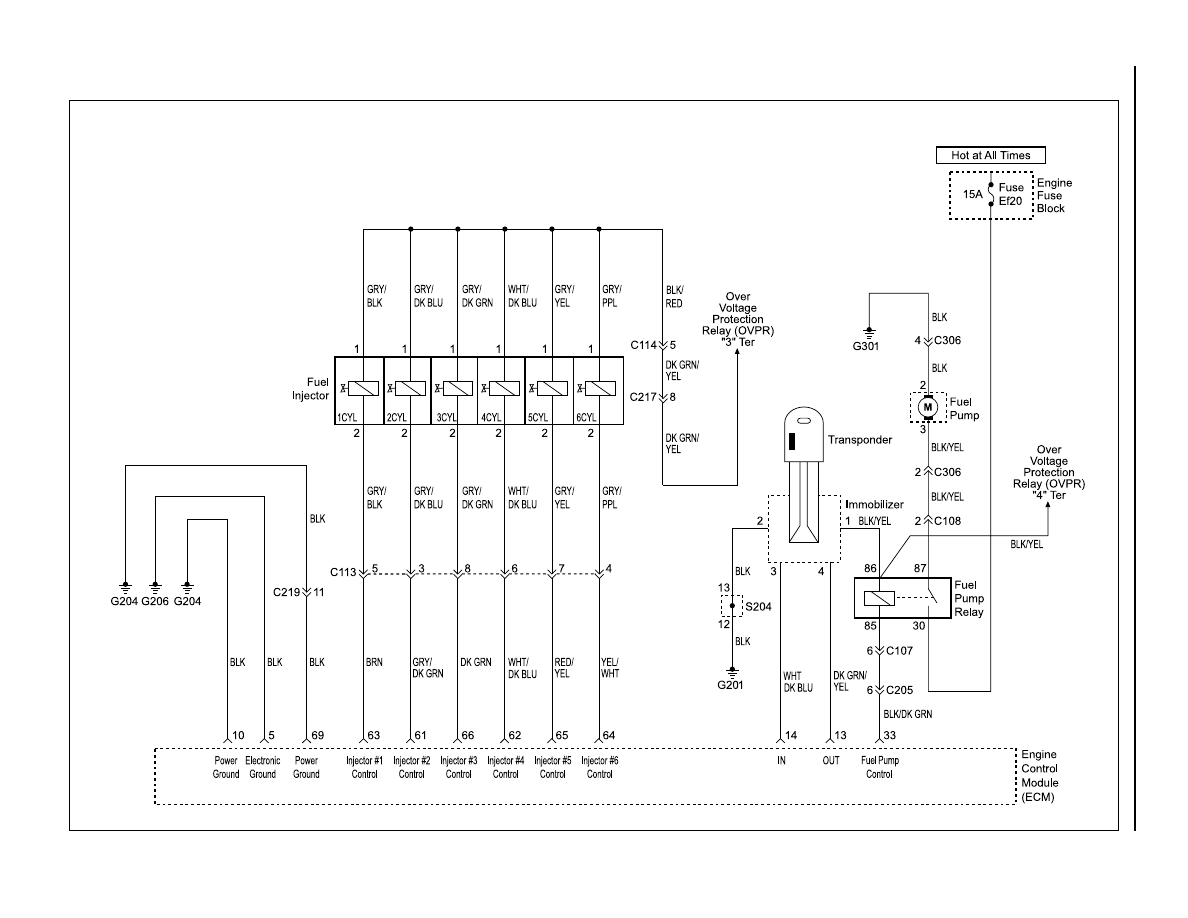

ECM WIRING DIAGRAM (3.2L DOHC - 5 OF 7) (MSE 3.63D)

Y

A

D1F050

M162 ENGINE CONTROLS  1F1-99

SSANGYONG  Y200

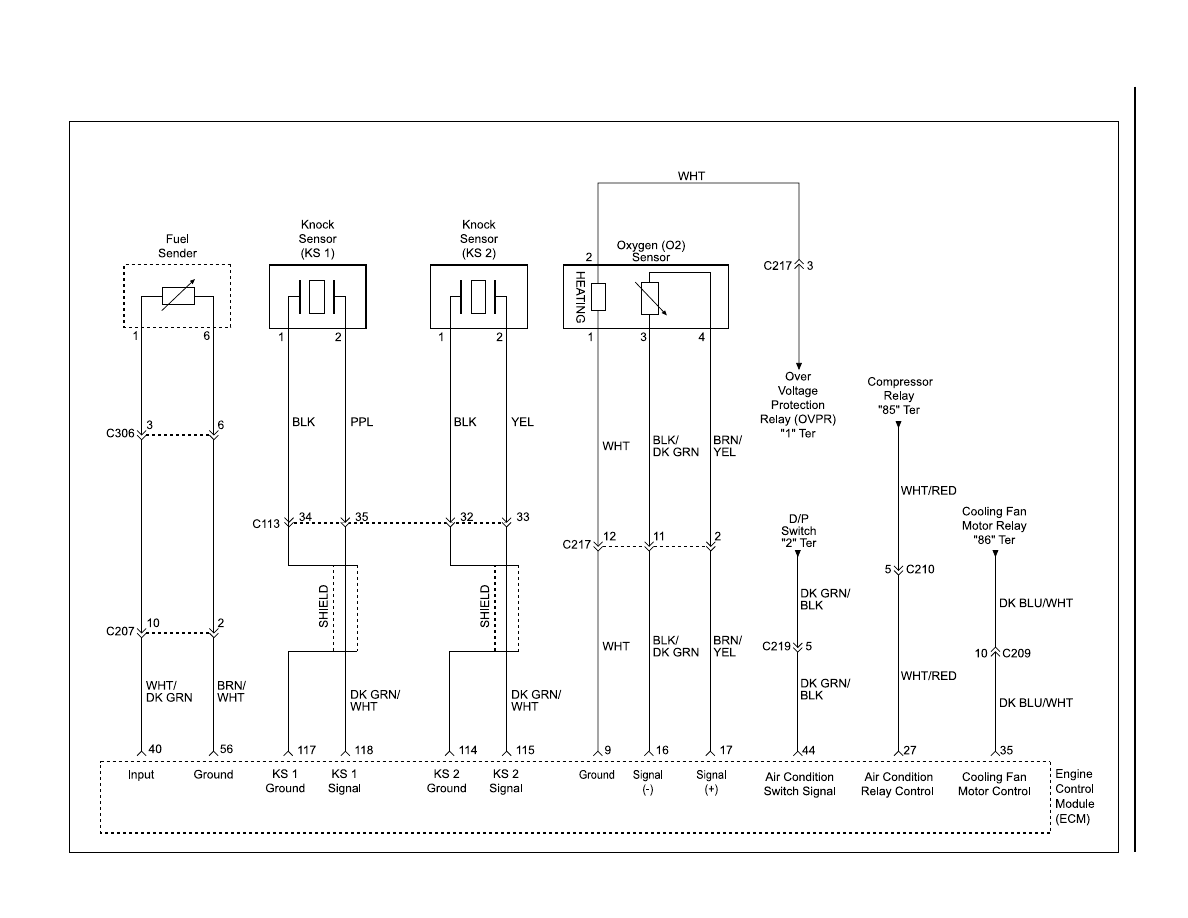

ECM WIRING DIAGRAM (3.2L DOHC - 6 OF 7) (MSE 3.63D)

Y

AD1F060

SSANGYONG  Y200

1F1-100  M162 ENGINE CONTROLS

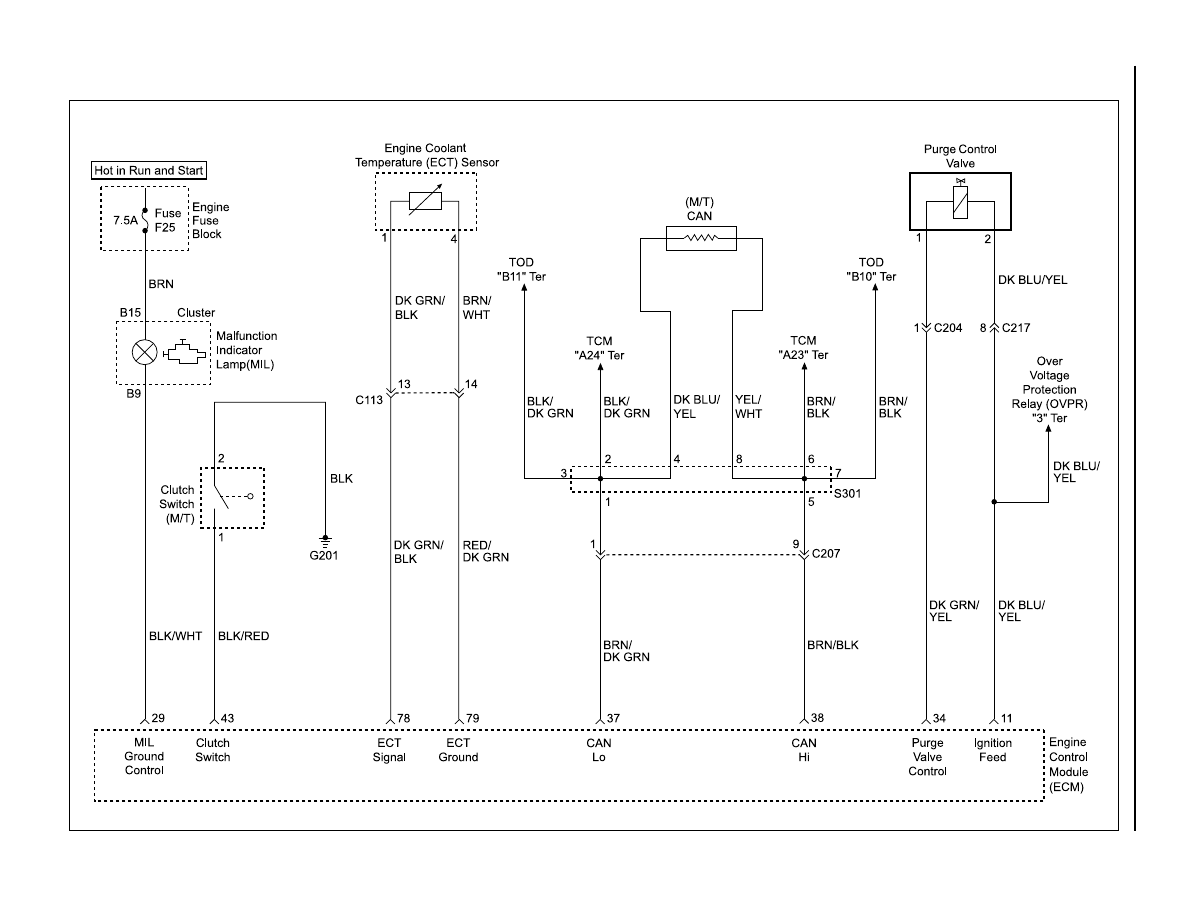

ECM WIRING DIAGRAM (3.2L DOHC - 7 OF 7) (MSE 3.63D)

Y

A

D1F070

M162 ENGINE CONTROLS  1F1-101

SSANGYONG  Y200

SPECIFICATIONS

ENGINE DATA DISPLAY TABLE

Parameter

Engine Coolant Temp.

Intake Air Temp.

Engine RPM

Regular RPM

Engine Load

Mass Air Flow Meter

Throttle Position Angle

Spark Advance

Indicated Engine Torque

Injection Time

Battery Voltage

Front Axle Speed

Rear Axle Speed

Accel. Pedal Position 1

Accel. Pedal Position 2

Throttle Position 1

Throttle Position 2

Fuel Integrator

Oxygen Sensor

A/C S/W Condition

Full Load State

Shift Gear State (A/T)

A/C Control State

Clutch Switch (M/T)

Cam Actuator State

Knocking Control

Protect Mission

Purge Control Valve

Lambda Function

Catalyst Heating

Overrun Fuel Cut

Ful l Fuel Cut

Brake Switch

Cruise Control Status

Unit

°C

°C

rpm

rpm

%

Kg/h

°TA

°CA

Nm

ms

V

Km/h

Km/h

V

V

V

V

mv

1=ON/0=OFF

1=ON/0=OFF

1=ON/0=OFF

1=ON/0=OFF

1=ON/0=OFF

1=ON/0=OFF

1=ON/0=OFF

1=ON/0=OFF

1=ON/0=OFF

1=ON/0=OFF

1=ON/0=OFF

1=ON/0=OFF

1=ON/0=OFF

1=ON/0=OFF

1=ON/0=OFF

Value

greater than 95 °C after warm up

-40 ~ 130 °C (varies with ambient

temp. or engine mode)

700 ± 50 (P/N), 600 ± 50 (D)

700 ± 50 (P/N), 600 ± 50 (D)

18 ~ 25 %

16 ~ 25 Kg/h

0 °TA (up to 100 °TA at t he wi de

open throttle)

°CA (6 ~ 9 °CA)

Varies with engine condition

3 ~5 ms

 13.5 ~ 14.1 v (engine running)

0 ~ 265 Km/h

0 ~ 265 Km/h

0.4 ~ 4.8 V

0.2 ~ 2.4 V

0.3 ~ 4.6 V

0.3 ~ 4.6 V

 0.8 ~ 1.2

100 ~ 900 mv

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

*Condition : Warmed up, idle, P/N or neutral
