ELECTRICAL WIRING DIAGRAMS  5-37

SSANGYONG  REXTON XDi (LHD)

(4) O

2

SENSOR

SSANGYONG  REXTON XDi (LHD)

5-38  ELECTRICAL WIRING DIAGRAMS

A. CONNECTOR INFORMATION

Connector Number

(Pin Number, Color)

Engine Room Fuse Box (D) - Engine

Engine Room Fuse Box (E) - Engine

Engine Room Fuse Box (F) - Engine

Engine Room Fuse Box (J) - Engine

Engine Room Fuse Box (K) - Engine

Engine Room Fuse Box (M) - Engine

Engine - Engine Control

Engine - Engine Control

Main - Floor (LH)

Main - Floor (LH)

Main - Floor (LH)

Main - Floor (LH)

Main - Floor (LH)

Engine - Main (RH)

Main - Diagnosis Connector

Engine - Main (RH)

Engine - Main (RH)

Main - Floor (RH)

Engine - Main (RH)

Floor - Fuel Sender

OVPR “8” - IGN Coil

W/H Main

W/H Main

W/H Floor

W/H Main

W/H Floor

C104 (20Pin, White)

C105 (22Pin, White)

C106 (18Pin, White)

C107 (14Pin, White)

C108 (4Pin, Colorless)

C109 (16Pin, White)

C113 (40Pin, Black)

C114 (6Pin, Black)

C203 (13Pin, Green)

C204 (12Pin, Black)

C205 (11Pin, White)

C206 (20Pin, Black)

C207 (15Pin, Blue)

C210 (13Pin, Green)

C211 (14Pin, White)

C215 (14Pin, White)

C217 (20Pin, Black)

C218 (22Pin, Yellow)

C219 (13Pin, Green)

C903 (2Pin, White)

S102 (4Pin, -)

S201 (14Pin, Black)

S206 (14Pin, Black)

S301 (8Pin, Black)

G204

G301

Connecting Wiring

Harness

Engine Room Fuse Box

Engine Room Fuse Box

Engine Room Fuse Box

Engine Room Fuse Box

Engine Room Fuse Box

Engine Room Fuse Box

Right Engine Room Dash PNL

Right Engine Room Dash PNL

Under the I/P Fuse Box

Inside Driver Side Cowl PNL

Inside Driver Side Cowl PNL

Inside Driver Side Cowl PNL

Inside Driver Side Cowl PNL

Inside Driver Side Cowl PNL

Upper the Diagnosis

Inside Co-Driver Side Cowl PNL

Inside Co-Driver Side Cowl PNL

Inside Co-Driver Side Cowl PNL

Inside Co-Driver Side Cowl PNL

Left the T/C (Under the Floor)

Inside the Injector “6”

Upper the I/P Relay Box

Behind the Left the FATC

Under Driver Seat

Inside Co-Driver Side Cowl PNL

Under Driver Seat

GSL

GSL

A/T

ABS, ABD

DSL

GSL

GND

CAN (GSL)

ECU GND

Remark

Connector Position

ELECTRICAL WIRING DIAGRAMS  5-39

SSANGYONG  REXTON XDi (LHD)

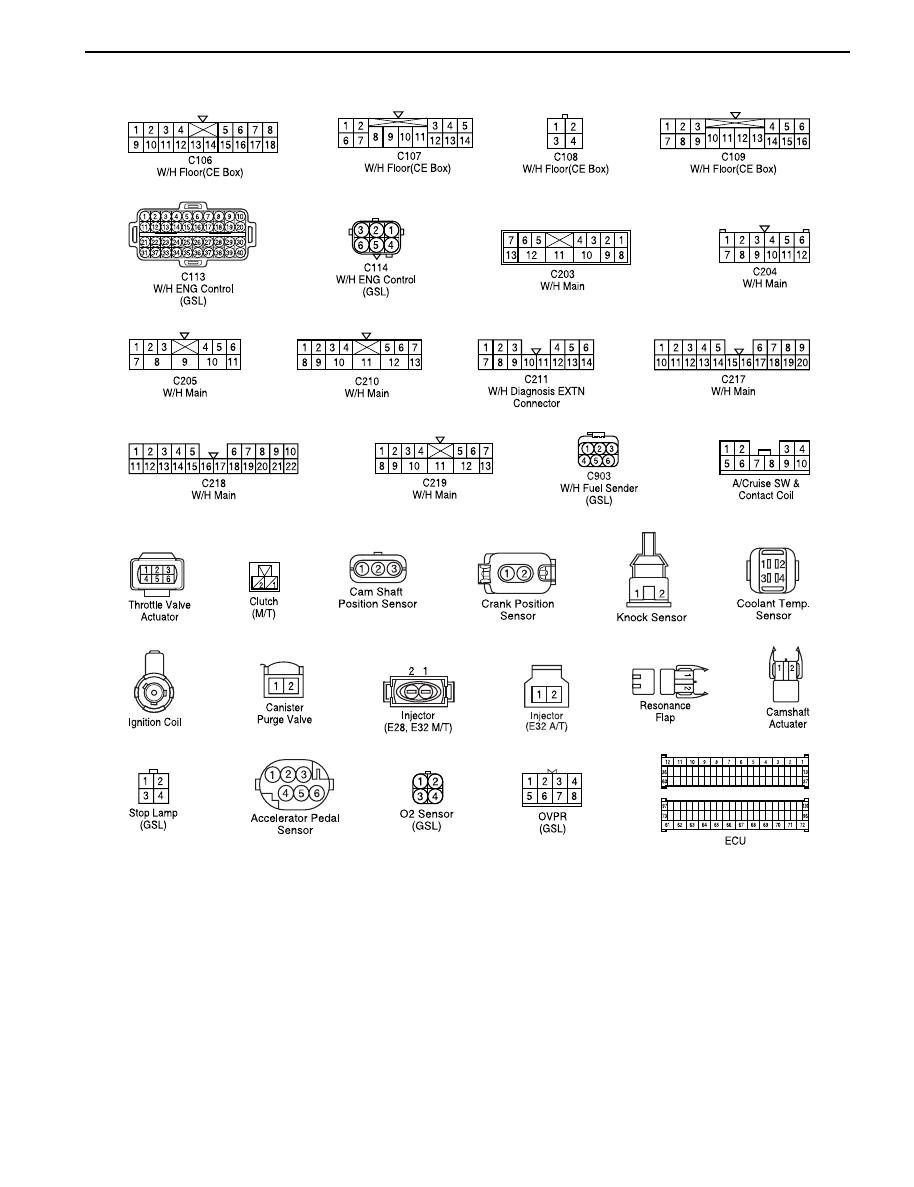

B. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION

SSANGYONG  REXTON XDi (LHD)

5-40  ELECTRICAL WIRING DIAGRAMS

6. ECU(XDi)

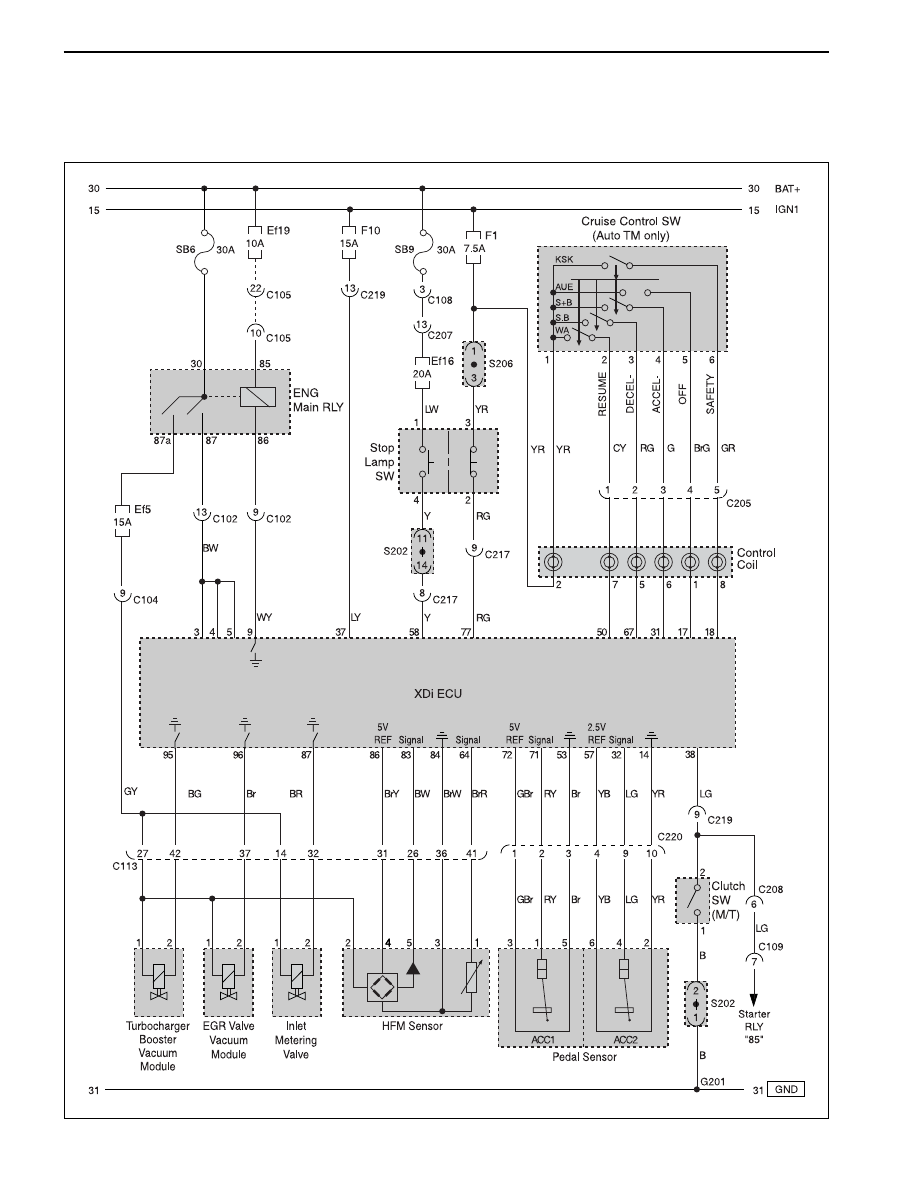

1) ENG MAIN RLY, PEDAL MODULE, HFM SENSOR, VALVE

(TURBO CHANGER BOOSTER, EGR VACUUM MODULE, INLETMETERING VALVE)
