ELECTRICAL WIRING DIAGRAMS  5-17

SSANGYONG  REXTON XDi (LHD)

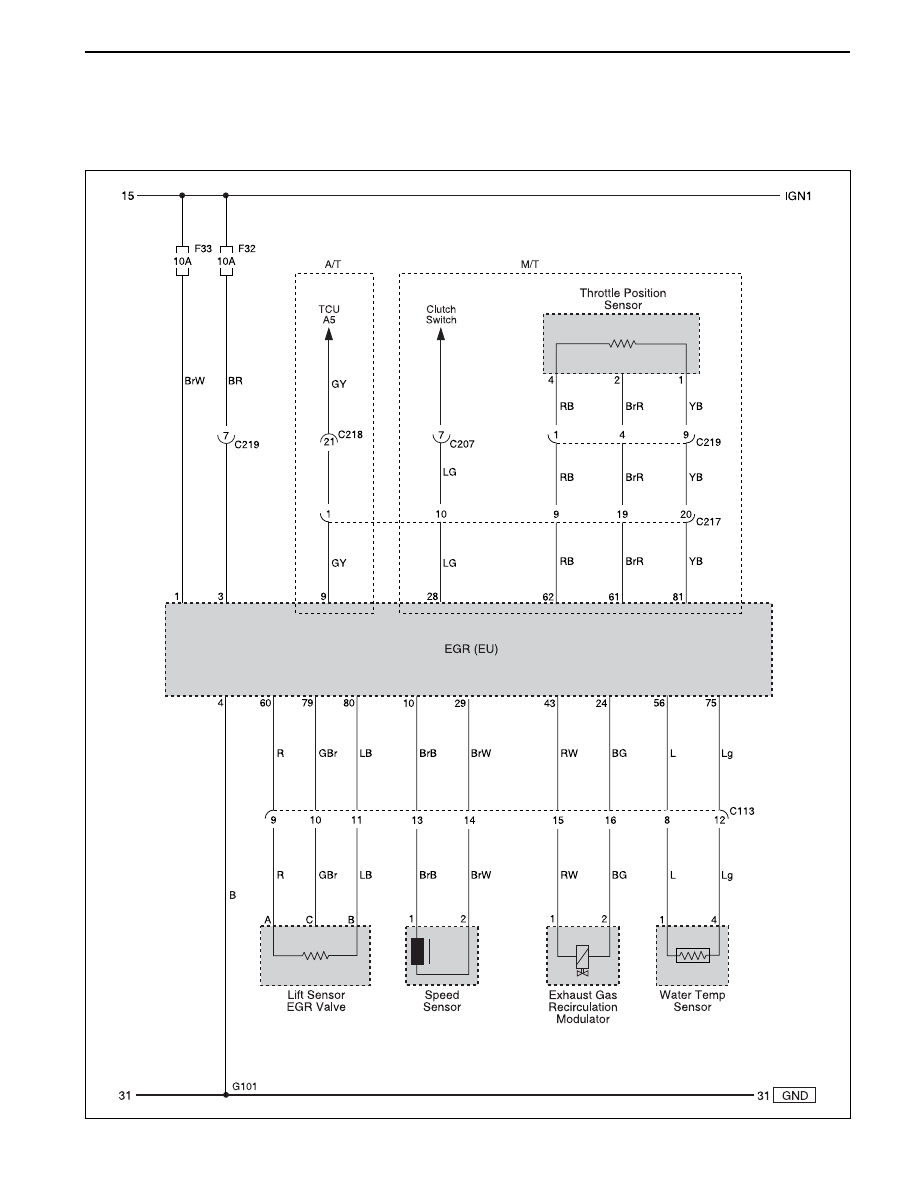

(2) EURO

SSANGYONG  REXTON XDi (LHD)

5-18  ELECTRICAL WIRING DIAGRAMS

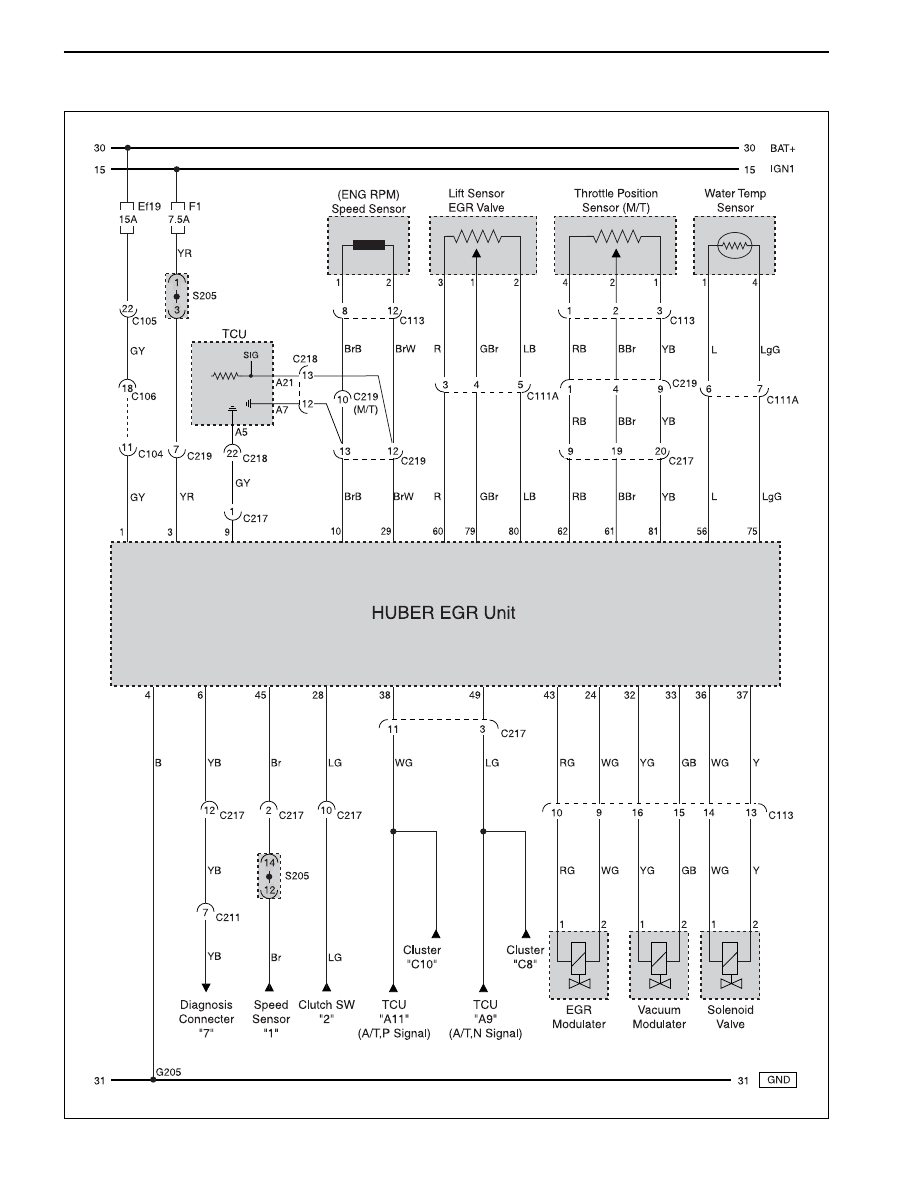

2) HUBER EGR

ELECTRICAL WIRING DIAGRAMS  5-19

SSANGYONG  REXTON XDi (LHD)

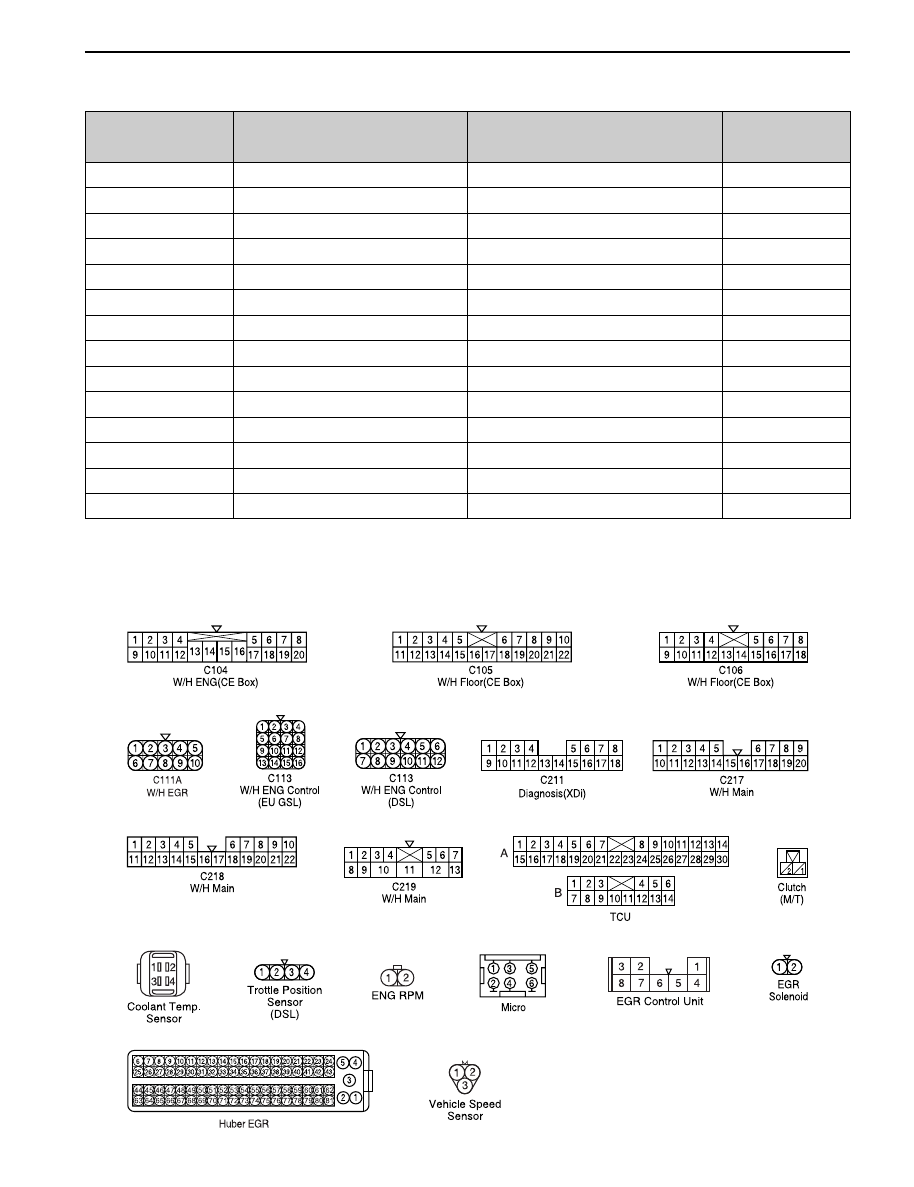

A. CONNECTOR INFORMATION

B. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION

Connector Number

(Pin Number, Color)

Engine Room Fuse Box (D) - Engine

Engine Room Fuse Box (E) - Engine

Engine Room Fuse Box (F) - Engine

Engine - W/H EGR

Engine - Engine Control

Engine - Engine Control

Main - Diagnosis Connector

Engine - Main (RH)

Main - Floor (RH)

Engine - Main (RH)

W/H Engine

W/H Engine

W/H Main

W/H Main

C104 (20Pin, White)

C105 (22Pin, White)

C106 (18Pin, White)

C111A (10Pin, Black)

C113 (12Pin, Black)

C113 (16Pin, Black)

C211 (18Pin, White)

C217(20Pin, Black)

C218 (22Pin, Yellow)

C219 (13Pin, Green)

G101

G105

G205

S205 (14Pin, Black)

Connecting Wiring

Harness

Engine Room Fuse Box

Engine Room Fuse Box

Engine Room Fuse Box

FRT Pre-Heating Unit

Right Engine Room Dash PNL

Right Engine Room Dash PNL

Upper the Diagnosis

Inside Co-Driver Side Cowl PNL

Inside Co-Driver Side Cowl PNL

Inside Co-Driver Side Cowl PNL

Center the Engine Room Fuse Box

Behine the Right Head Lamp

Inside Co-Driver Side Cowl PNL

Behind the Left FATC

CLUSTER

DSL

DSL (EU)

XDi

GSL

GND

Remark

Connector Position

SSANGYONG  REXTON XDi (LHD)

5-20  ELECTRICAL WIRING DIAGRAMS

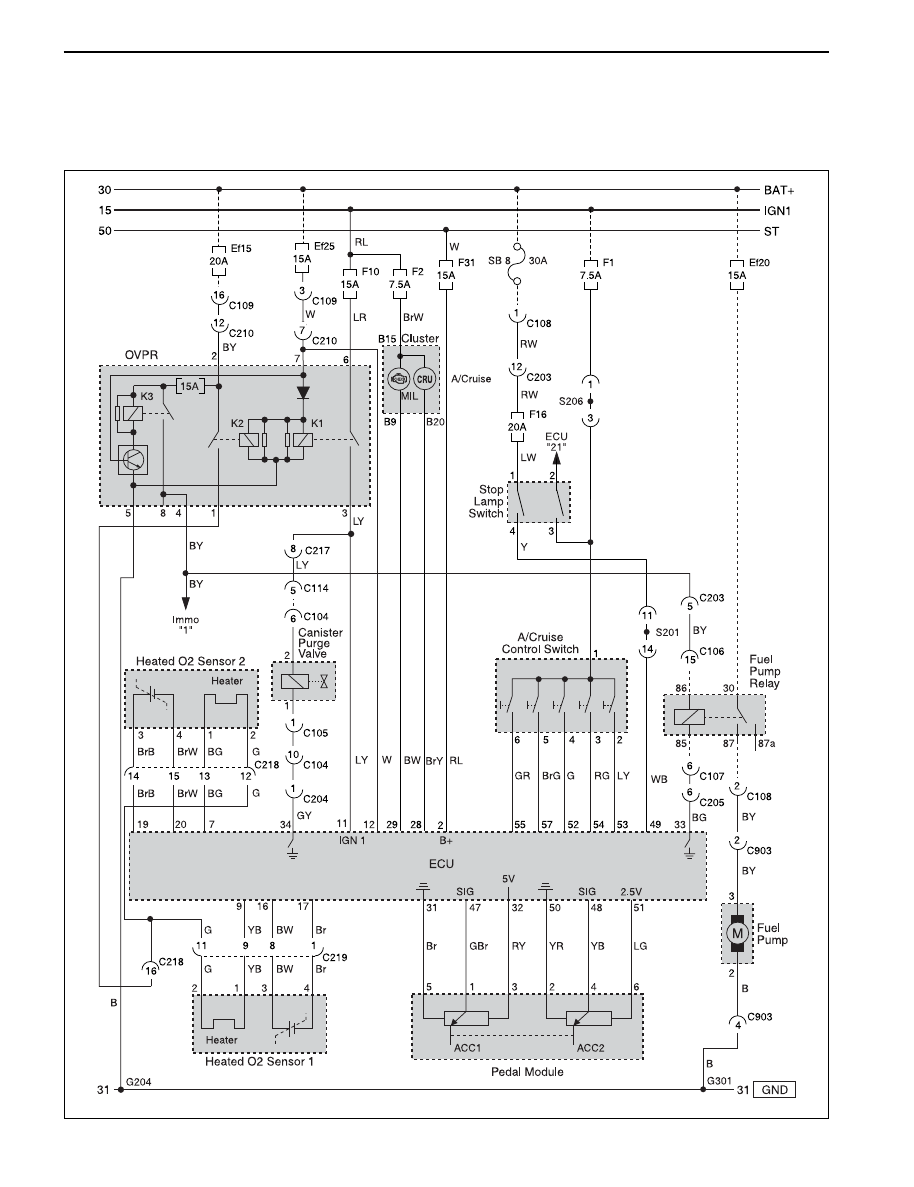

4. ECU (ELECTRONIC CONTROL UNIT) (E23)

1) ~ 2002 MODEL

(1) OVPR, FUEL PUMP, CANISTER PURGE VALVE, O

2

SENSOR, PEDAL MODULE CIRCUIT
