SSANGYONG  REXTON XDi(RHD)

5-168  ELECTRICAL WIRING DIAGRAMS

(2) 2003 MODEL ~

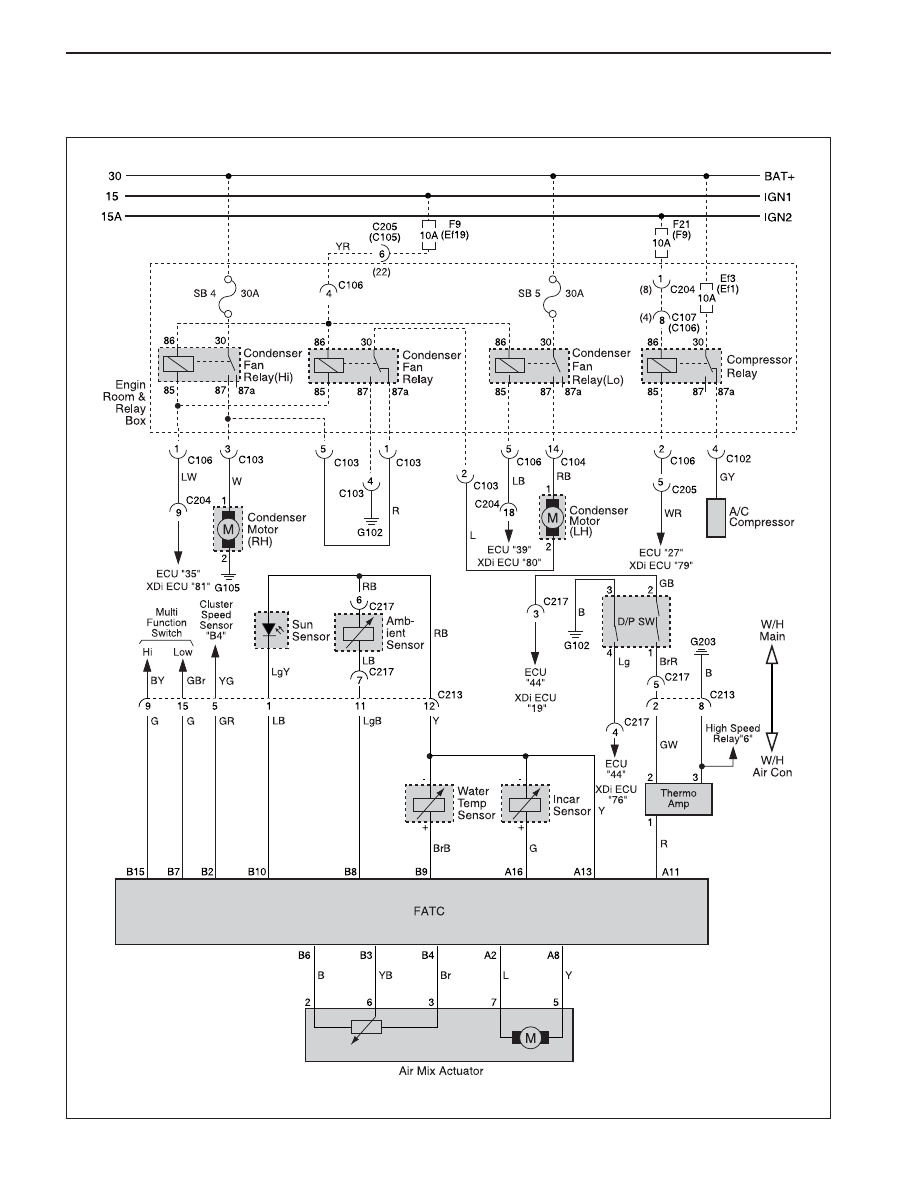

(A) AIR MIX ACTUCTOR, SENSOR(SUN, AMBIENT, INCAR, WATER TEMP) CIRCUIT

(   ): XDi

ELECTRICAL WIRING DIAGRAMS  5-169

SSANGYONG  REXTON XDi(RHD)

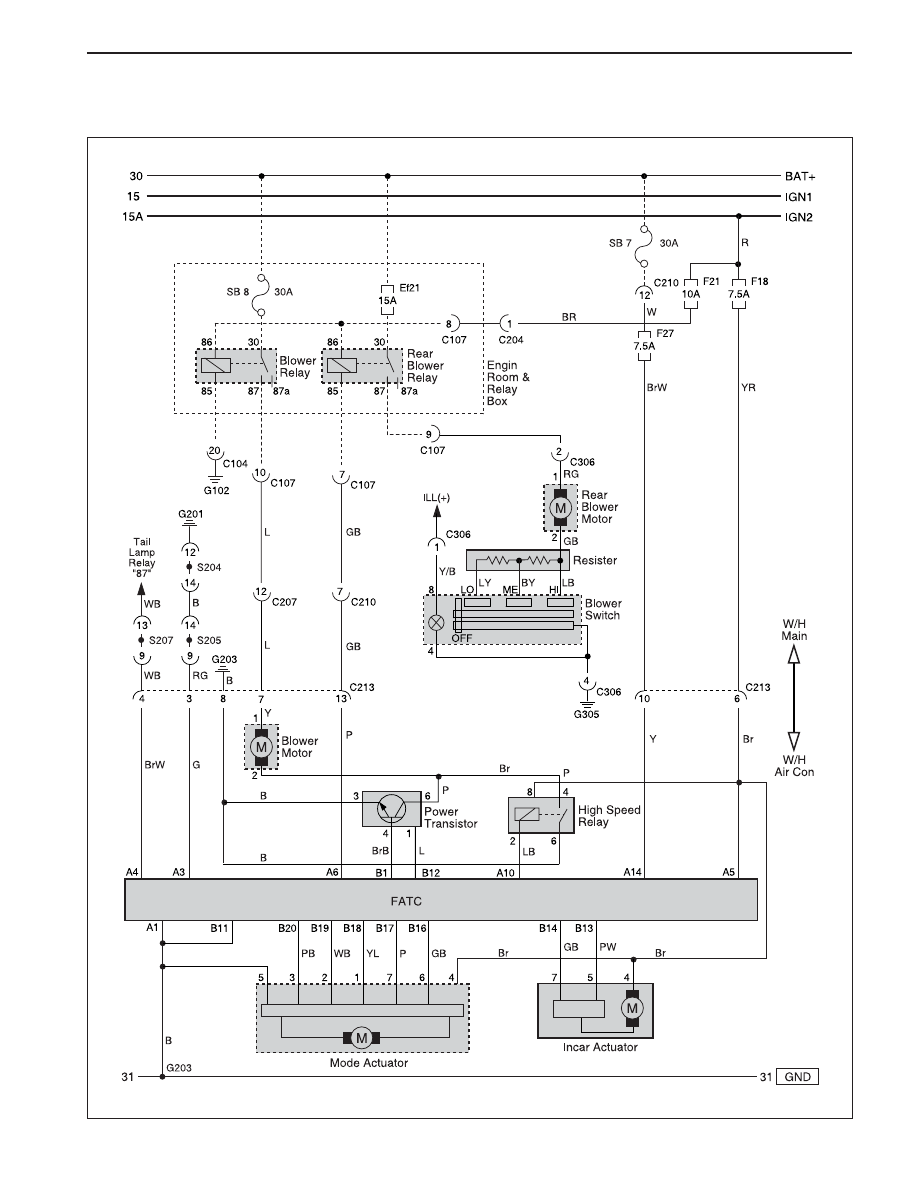

(B) ACTURATOR(MODE, INTAKE) CIRCUIT



SSANGYONG  REXTON XDi(RHD)

5-170  ELECTRICAL WIRING DIAGRAMS

A. CONNECTOR INFORMATION

Connector Number

(Pin Number, Color)

Engine Room Fuse Box(B) - Engine

Engine Room Fuse Box(C) - Engine

Engine Room Fuse Box(D) - Engine

Engine Room Fuse Box(F) - Engine

Engine Room Fuse Box(J) - Engine

Engine Room Fuse Box(M) - Engine

Main - Floor(LH)

Main - Floor(LH)

Main - Floor(LH)

Main - Floor(LH)

Main - Air-Con

Engine - Main(RH)

Floor - RR Air-Con

W/H Main

W/H Main

W/H Main

W/H Engine

W/H Engine

W/H Main

W/H Main

W/H Floor

C102(20Pin, White)

C103(6Pin, Colorless)

C104(20Pin, White)

C106(18Pin, White)

C107(14Pin, White)

C109(16Pin, White)

C204(20Pin, Black)

C205(11Pin, White)

C207(15Pin, Blue)

C210(13Pin, Green)

C213(16Pin, White)

C217(20Pin, Black)

C306(4Pin, Colorless)

S204(14Pin, Black)

S205(14Pin, Black)

S207(14Pin, Black)

G102

G105

G201

G203

G305

Connecting Wiring

Harness

Engine Room Fuse Box

Engine Room Fuse Box

Engine Room Fuse Box

Engine Room Fuse Box

Engine Room Fuse Box

Engine Room Fuse Box

Inside Co-Driver Side Cowl PNL

Inside Co-Driver Side Cowl PNL

Inside Co-Driver Side Cowl PNL

Inside Co-Driver Side Cowl PNL

Inside Dash PNL

Inside Driver Side Cowl PNL

Right Side 3rd Seat

Behind the Left the FATC

Behind the Left the FATC

Behind the Right the FATC

Center BATT

Behine the Right Head Lamp

Inside Driver Side Cowl PNL

Under the Seat Heating SW

Behind the Quarter Grass #1

A/C

GND

GND

Tail Lamp

W/H Air Bag

Remark

Connector Position

ELECTRICAL WIRING DIAGRAMS  5-171

SSANGYONG  REXTON XDi(RHD)

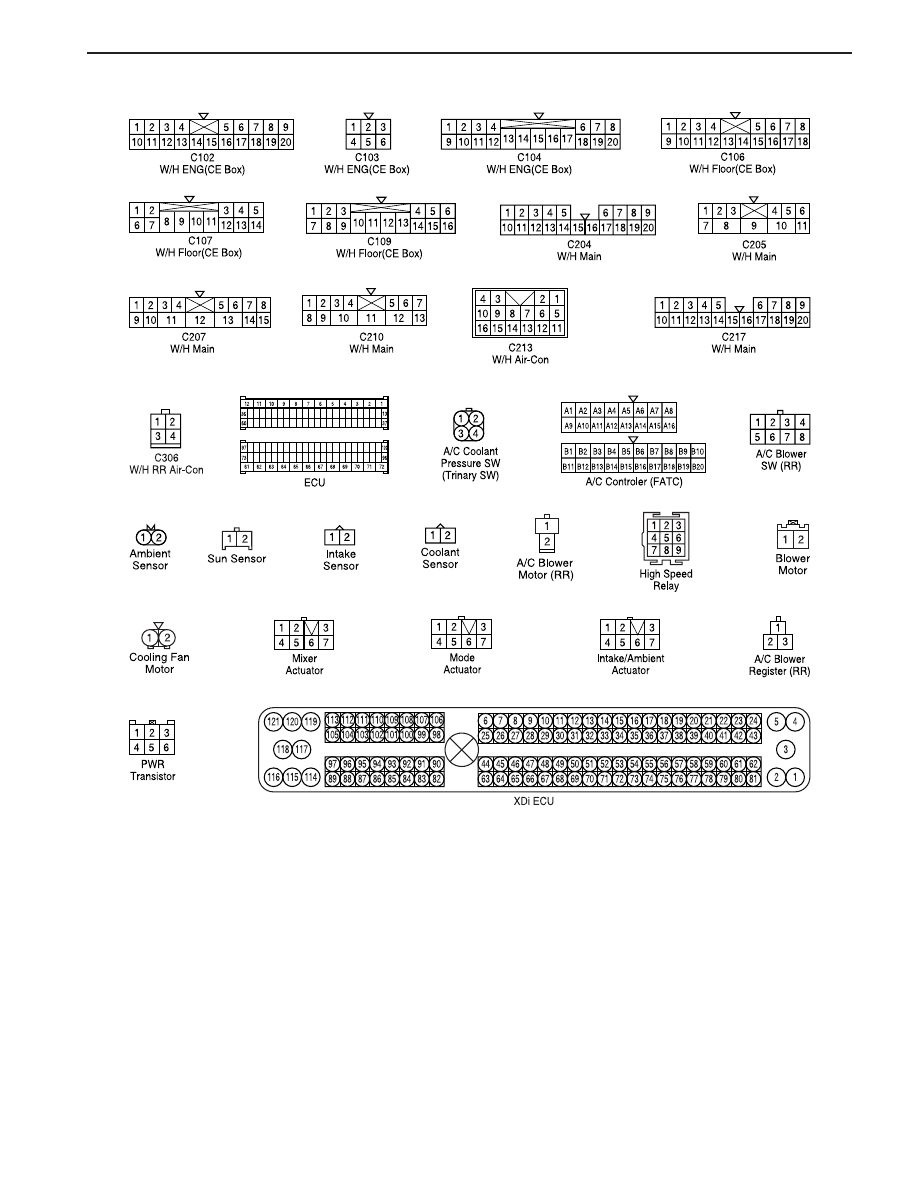

B. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION
