SsangYong Rexton. Service manual - part 167

SSANGYONG  REXTON XDi(RHD)

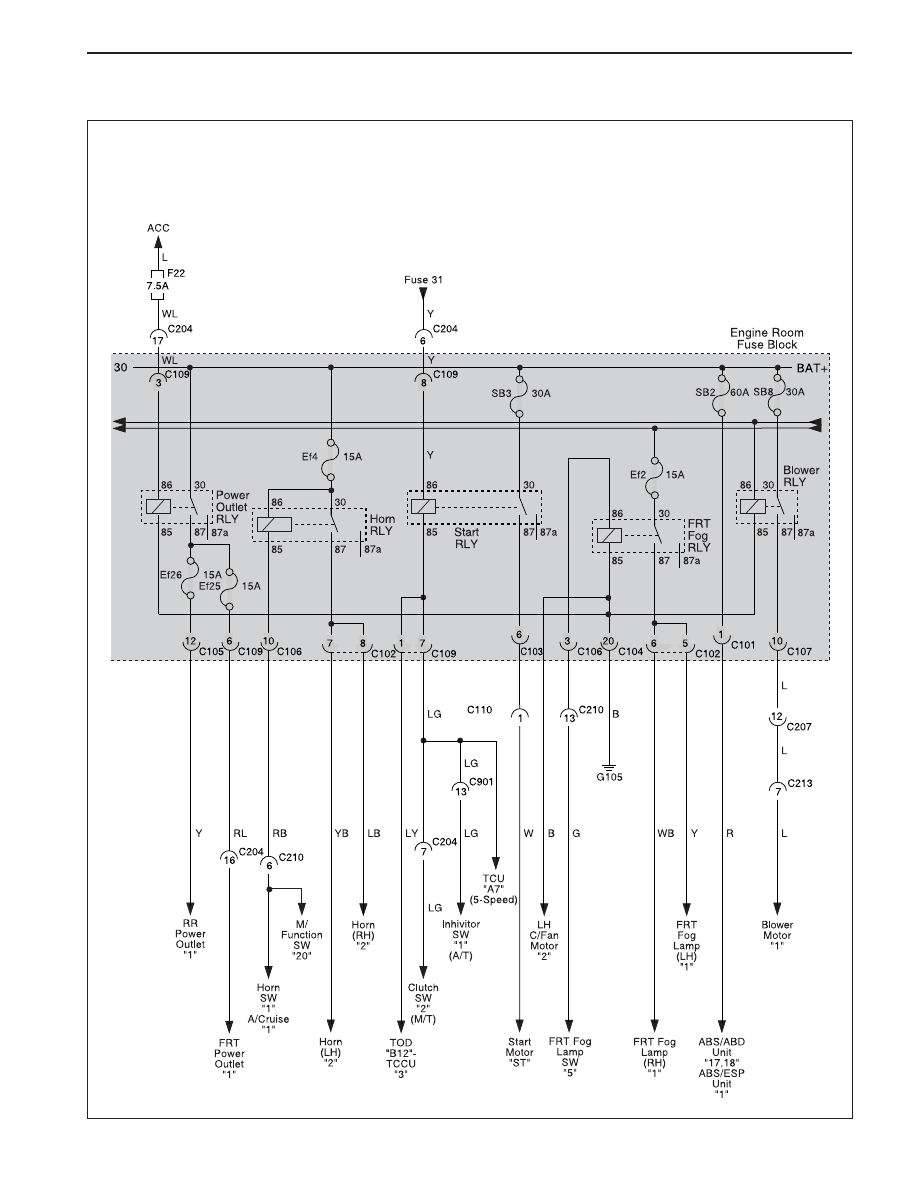

3-32  WIRING DIAGRAM FOR POWER SUPPLIES

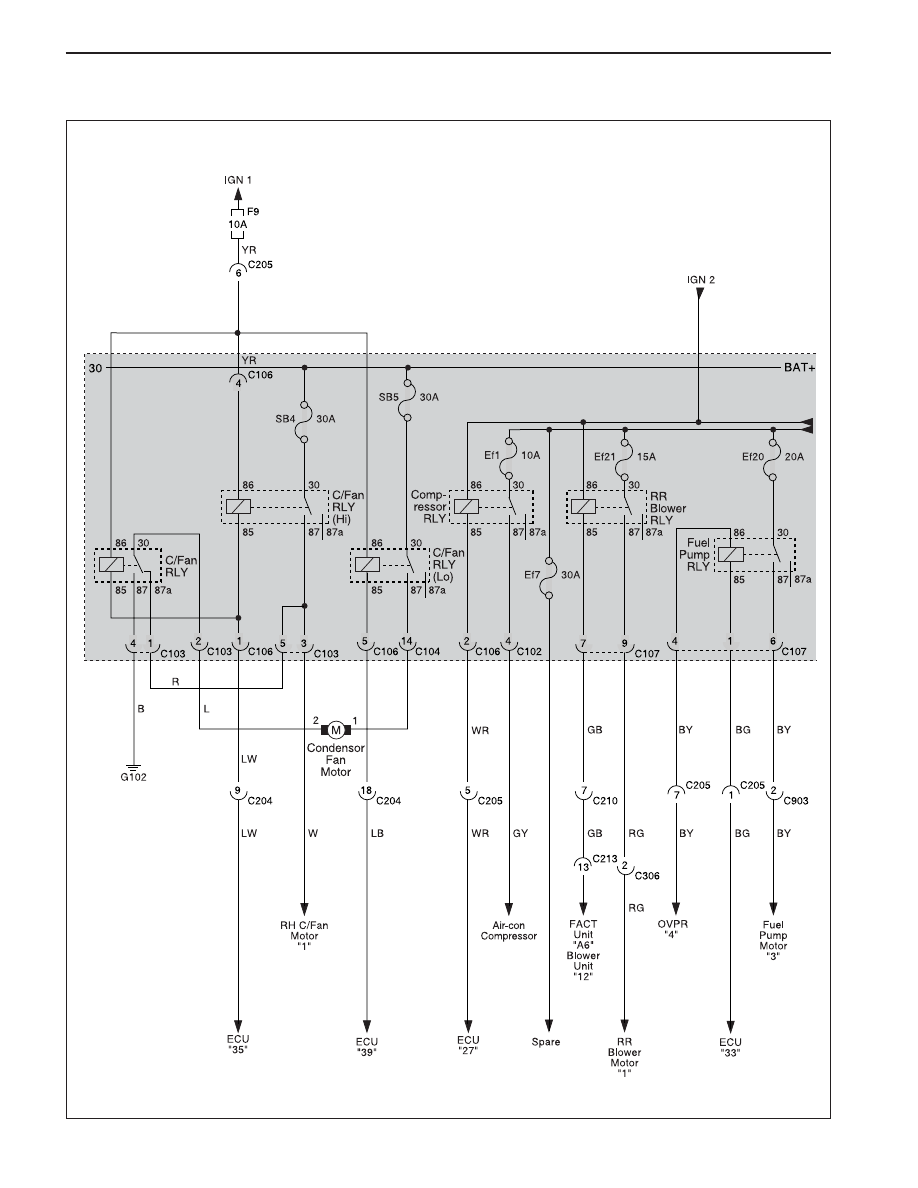

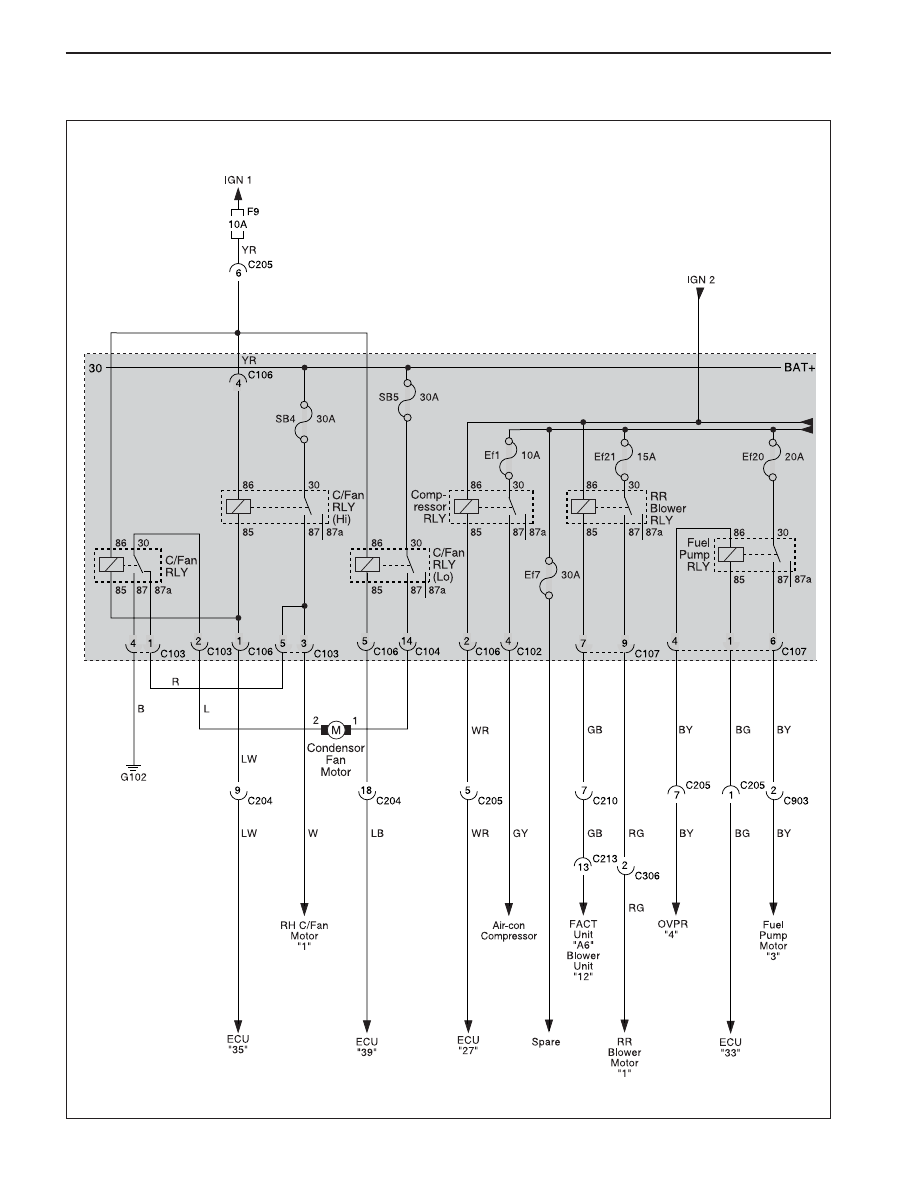

WIRING DIAGRAM FOR POWER SUPPLIES  3-33

SSANGYONG  REXTON XDi(RHD)

SSANGYONG  REXTON XDi(RHD)

3-34  WIRING DIAGRAM FOR POWER SUPPLIES

3. POWER WIRING DIAGRAM(XDi, 2004 MODEL(E32) ~ )

1) ENG ROOM & FUSE BOX

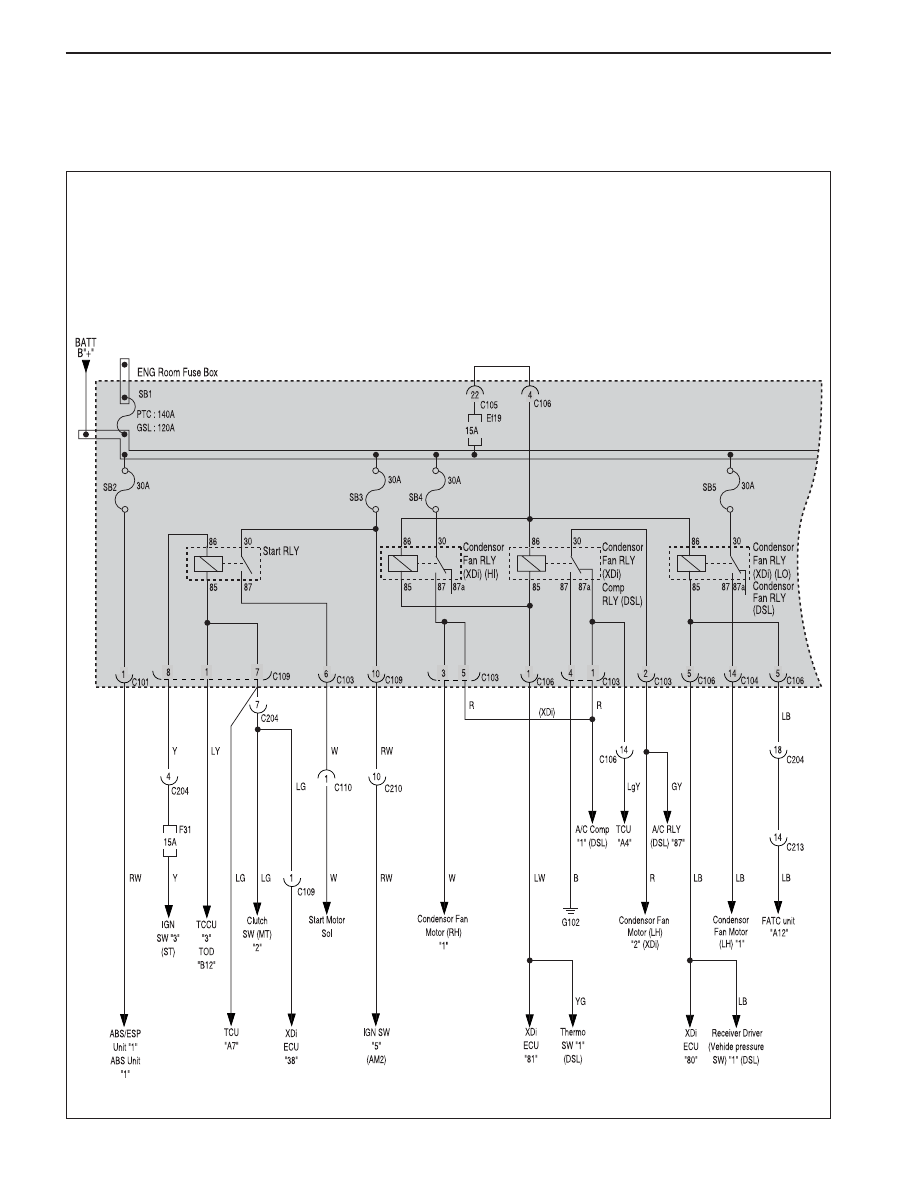

(1) SB1 ~ SB5

WIRING DIAGRAM FOR POWER SUPPLIES  3-35

SSANGYONG  REXTON XDi(RHD)

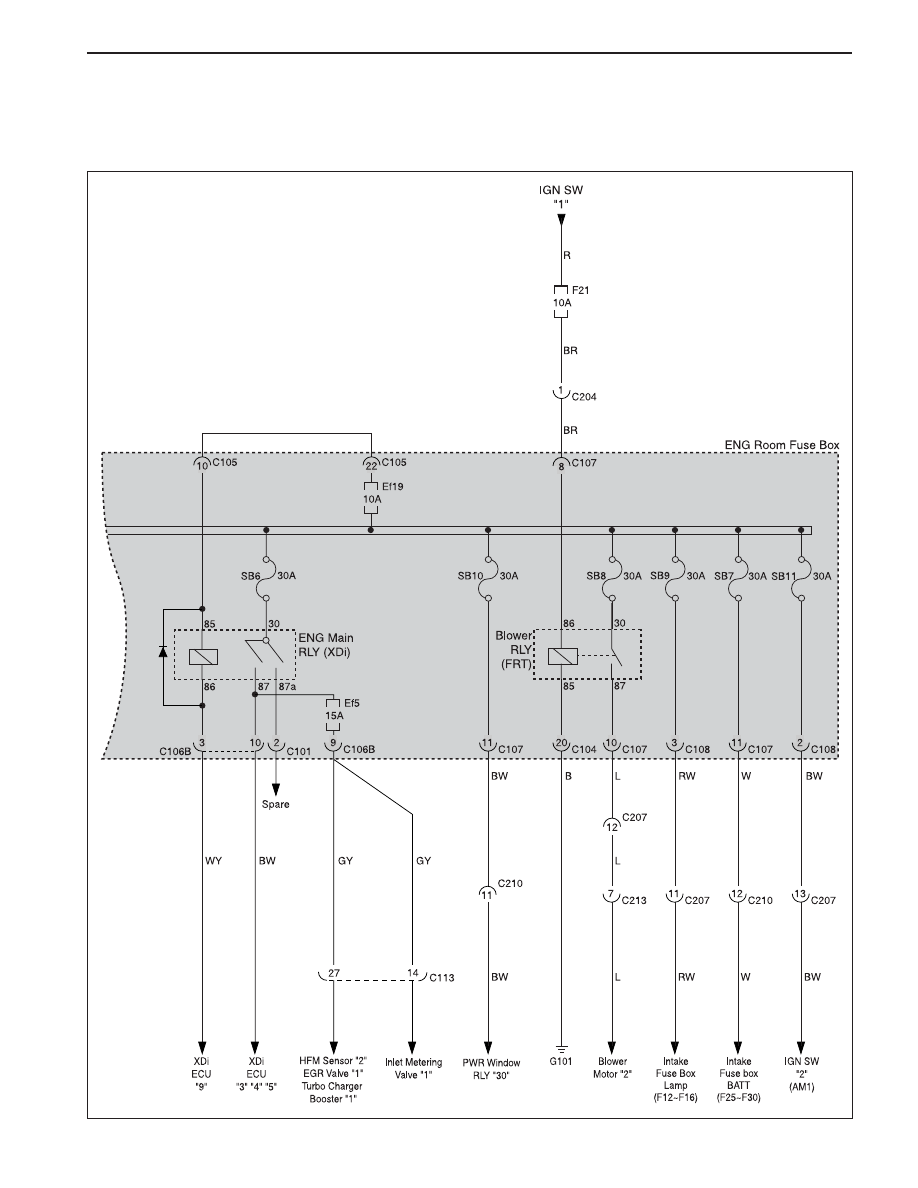

(2) SB6 ~ SB11
