SsangYong Rexton. Service manual - part 164





SSANGYONG  REXTON XDi(RHD)

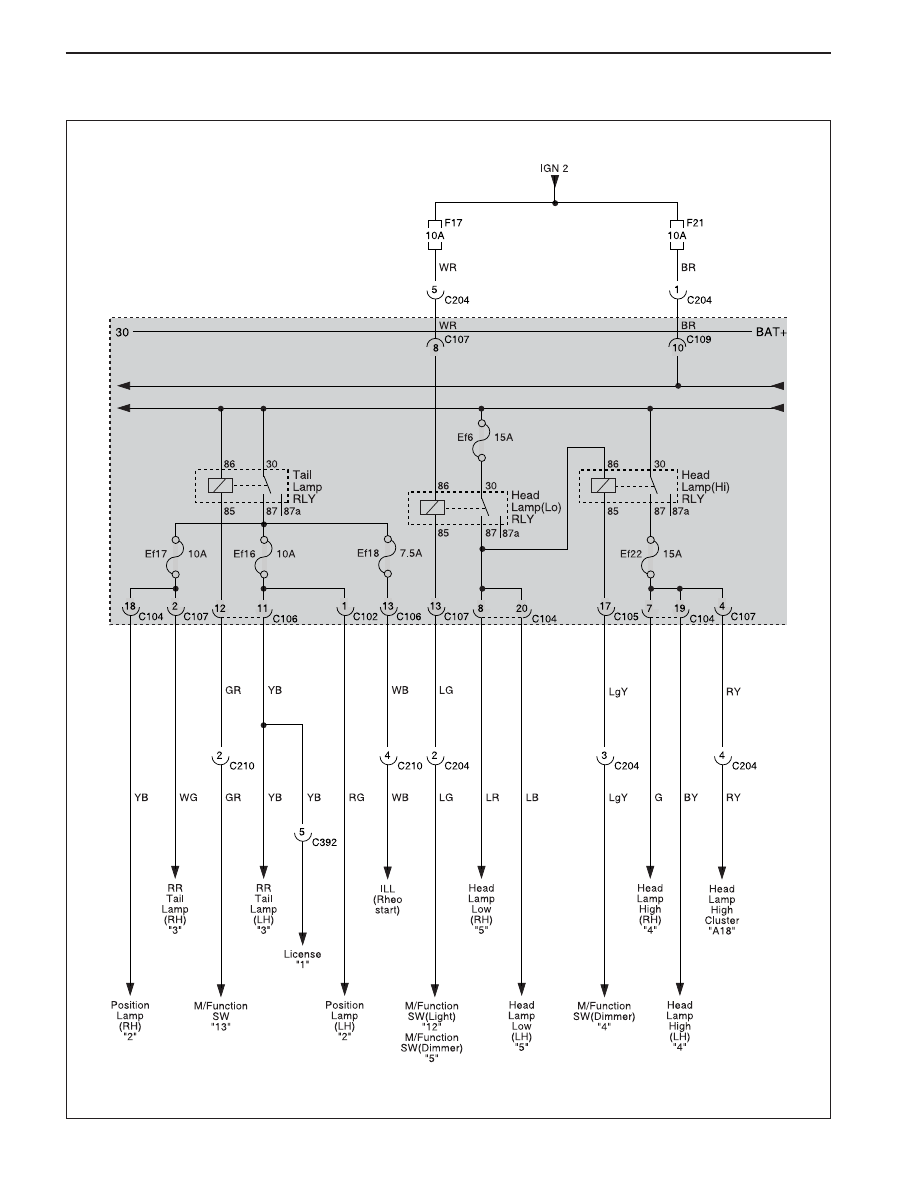

3-20  WIRING DIAGRAM FOR POWER SUPPLIES

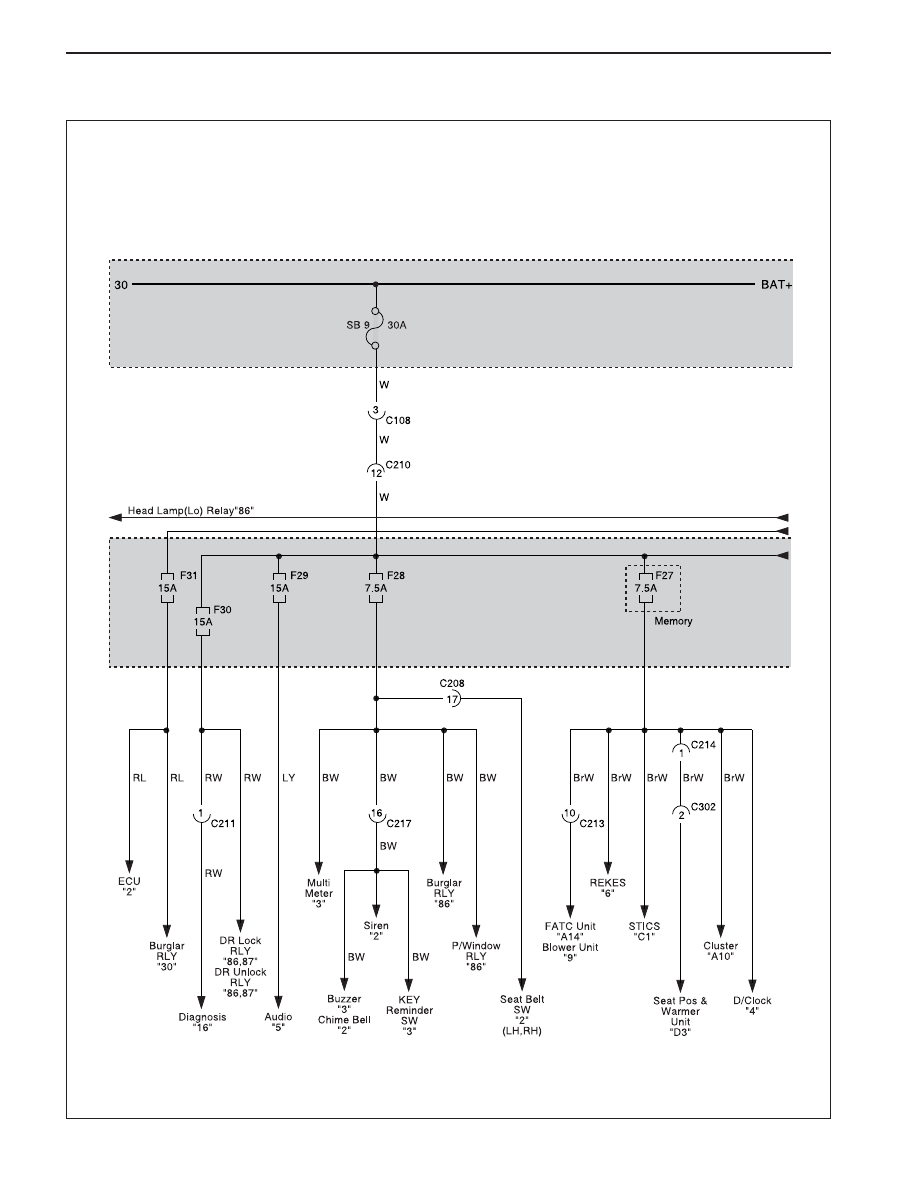

WIRING DIAGRAM FOR POWER SUPPLIES  3-21

SSANGYONG  REXTON XDi(RHD)

SSANGYONG  REXTON XDi(RHD)

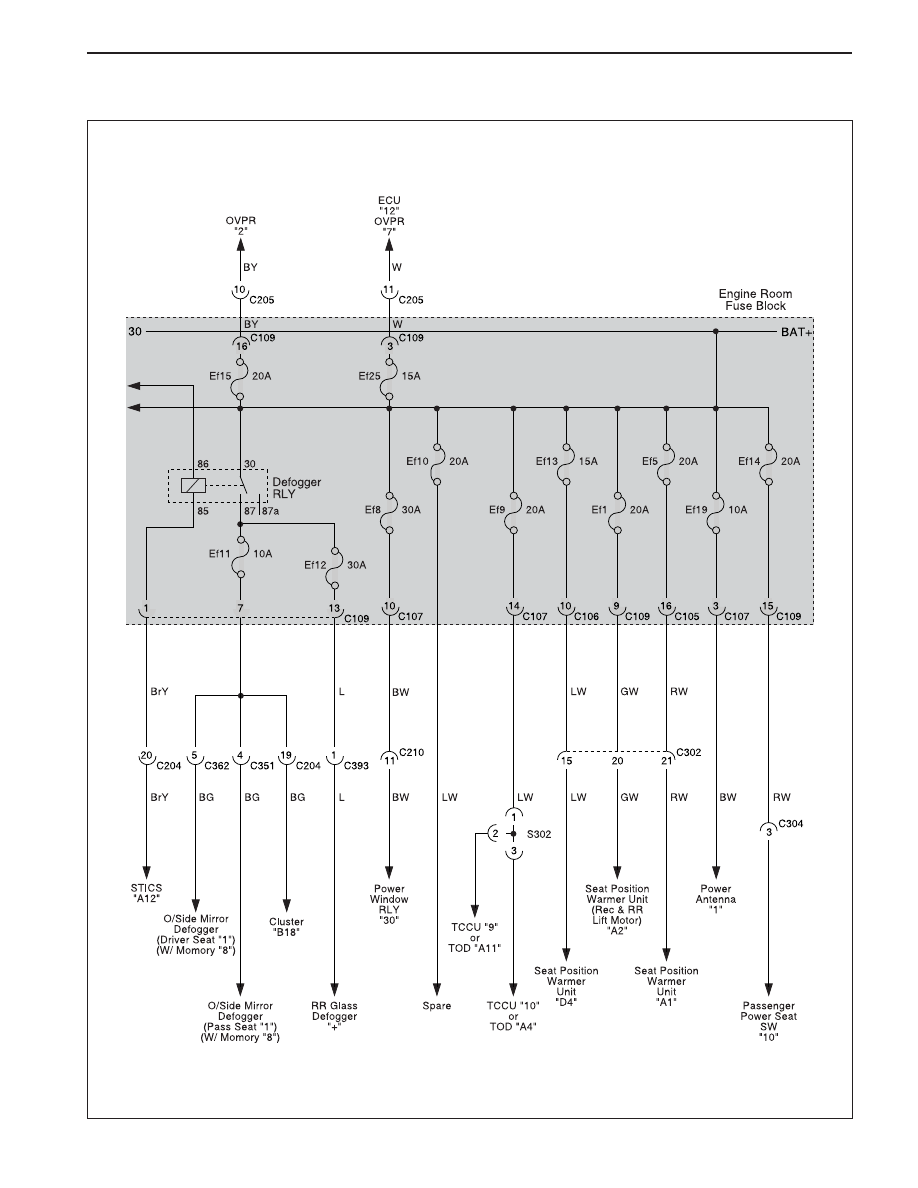

3-22  WIRING DIAGRAM FOR POWER SUPPLIES

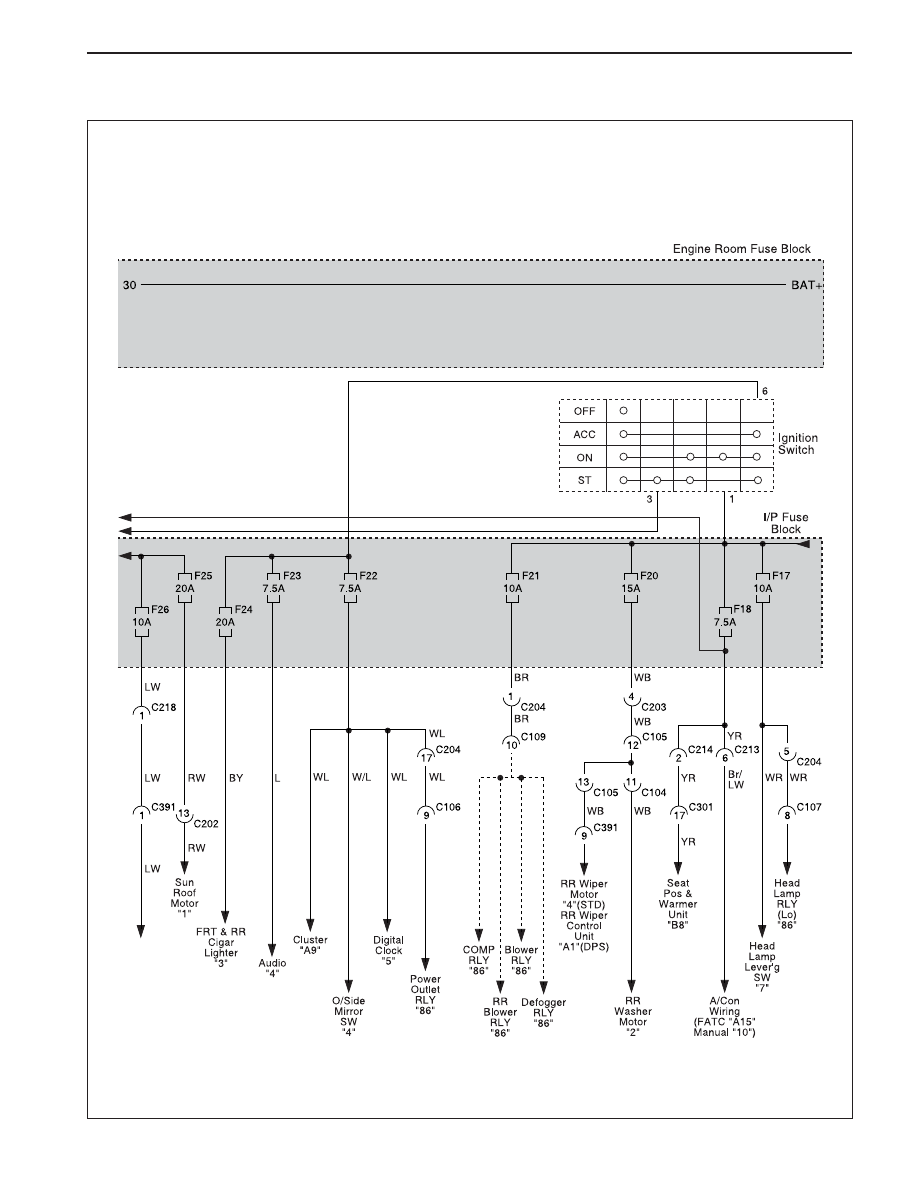

WIRING DIAGRAM FOR POWER SUPPLIES  3-23

SSANGYONG  REXTON XDi(RHD)
