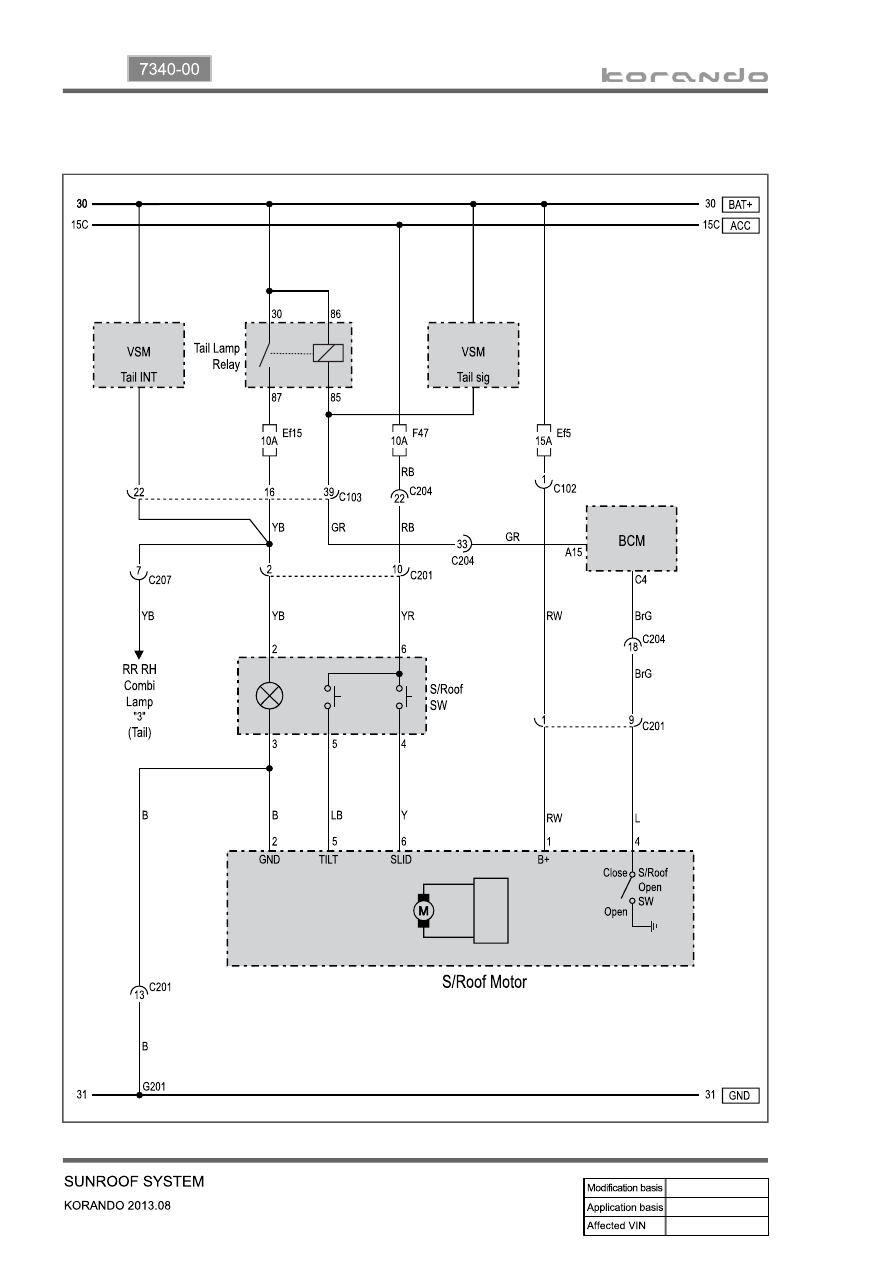

4. CIRCUIT DIAGRAM

05-2

Cluster fascia panel

RH cluster fascia panel and molding have been newly applied.

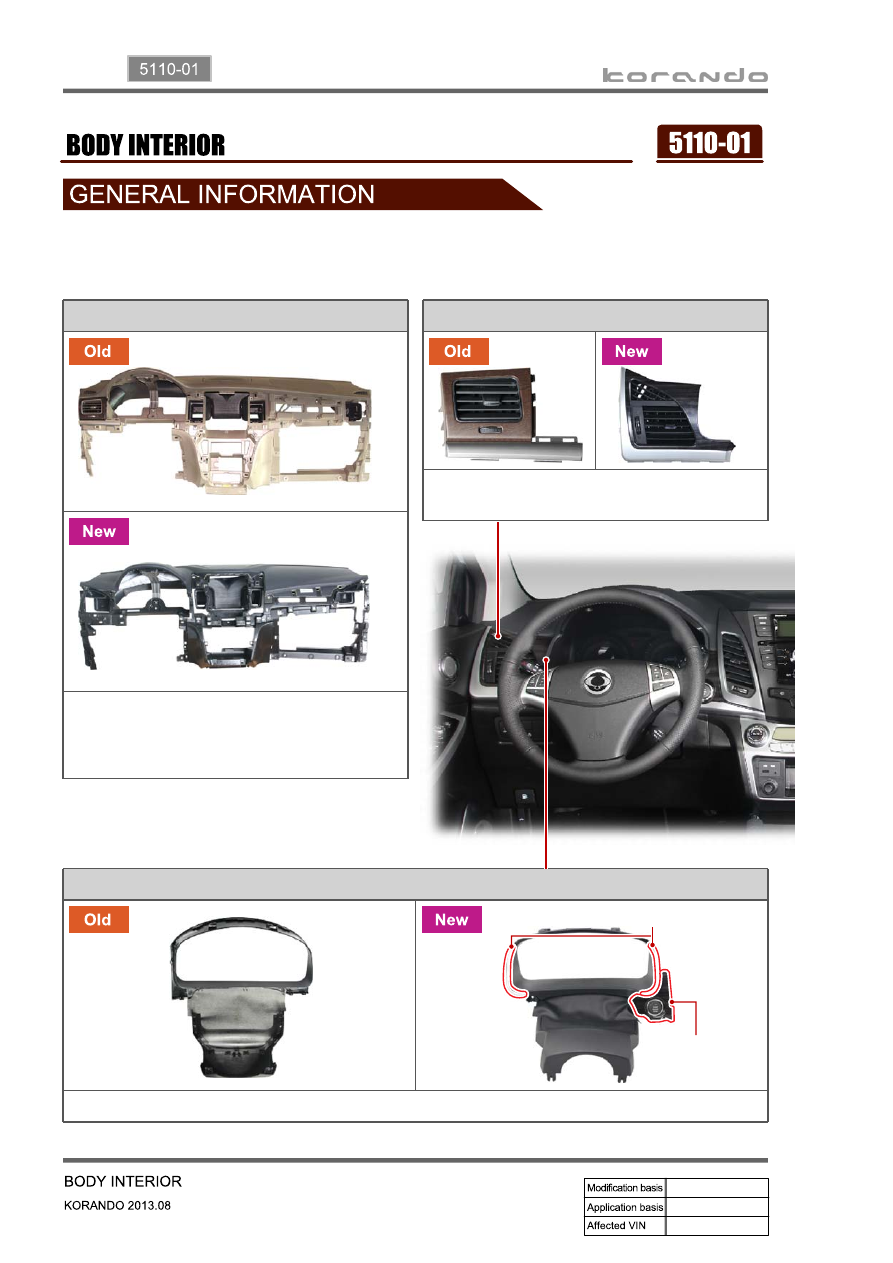

Instrument panel

- The design and material of IP have been
  changed.
- An invisible type passenger air bag
  module has been applied.

LH side fascia panel & molding

The design of LH side fascia panel & molding has
been changed.

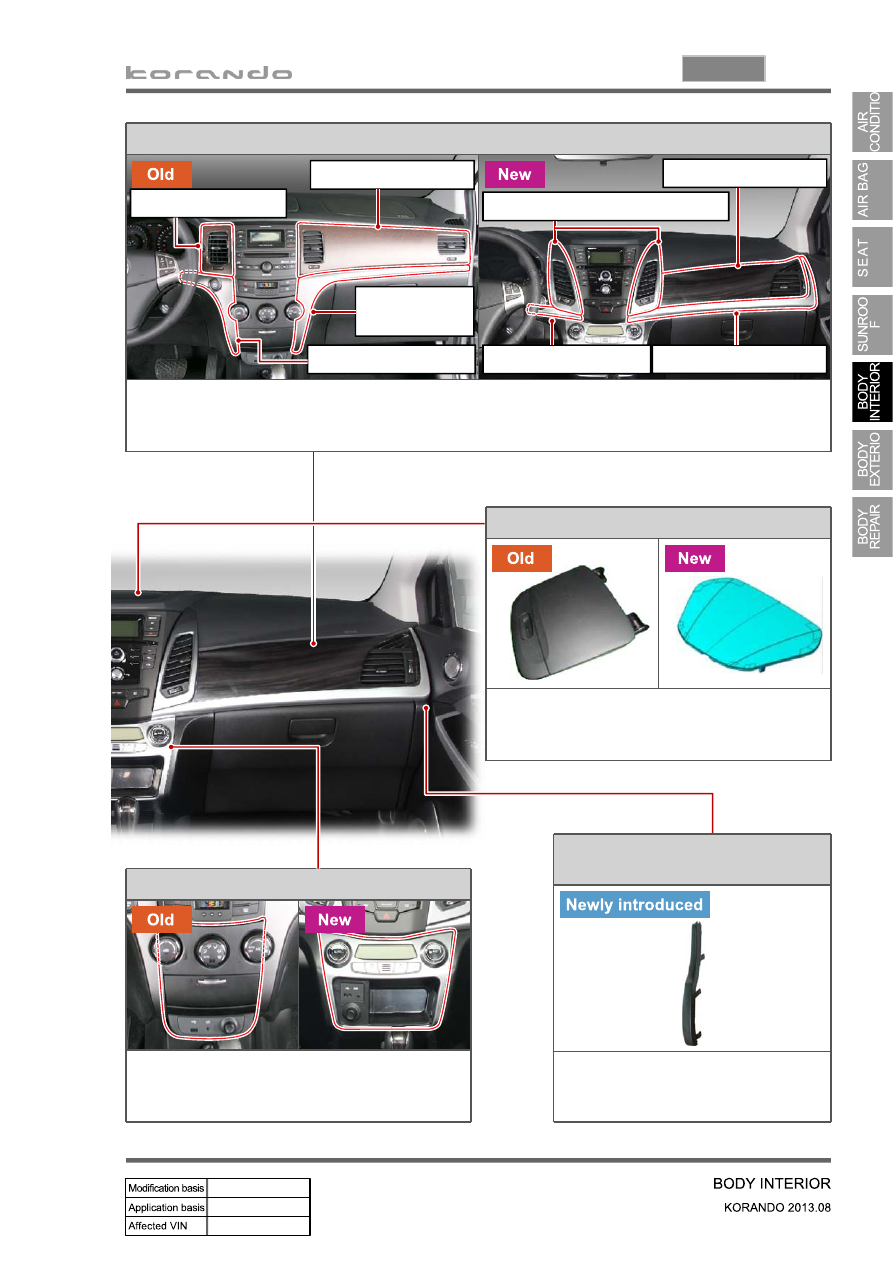

1. MAJOR CHANGES

Instrument Panel

▶

Cluster fascia molding

RH cluster

fascia panel

05-3

5110-01

Center fascia lower panel

The design of center fascia lower panel has been
changed (lower tray, heater and A/C control
assembly).

Center fascia panel & molding, RH side fascia panel & molding

- The design of center fascia panel & molding has been changed.
- The design of RH side fascia panel & molding has been changed.
- RH center fascia panel has been newly applied.

RH glove box housing

extension

RH glove box housing  extension panel
has been newly added on the right side
of glove box housing.

Center fascia panel

RH side fascia panel

Center fascia molding

RH side fascia

molding

LH and RH center fascia panels

RH side fascia panel

Center fascia molding

RH side fascia molding

Crash pad upper cover

The name of crash pad upper tray has been
changed to "crash pad upper cover" and its
design also has been changed.

05-4

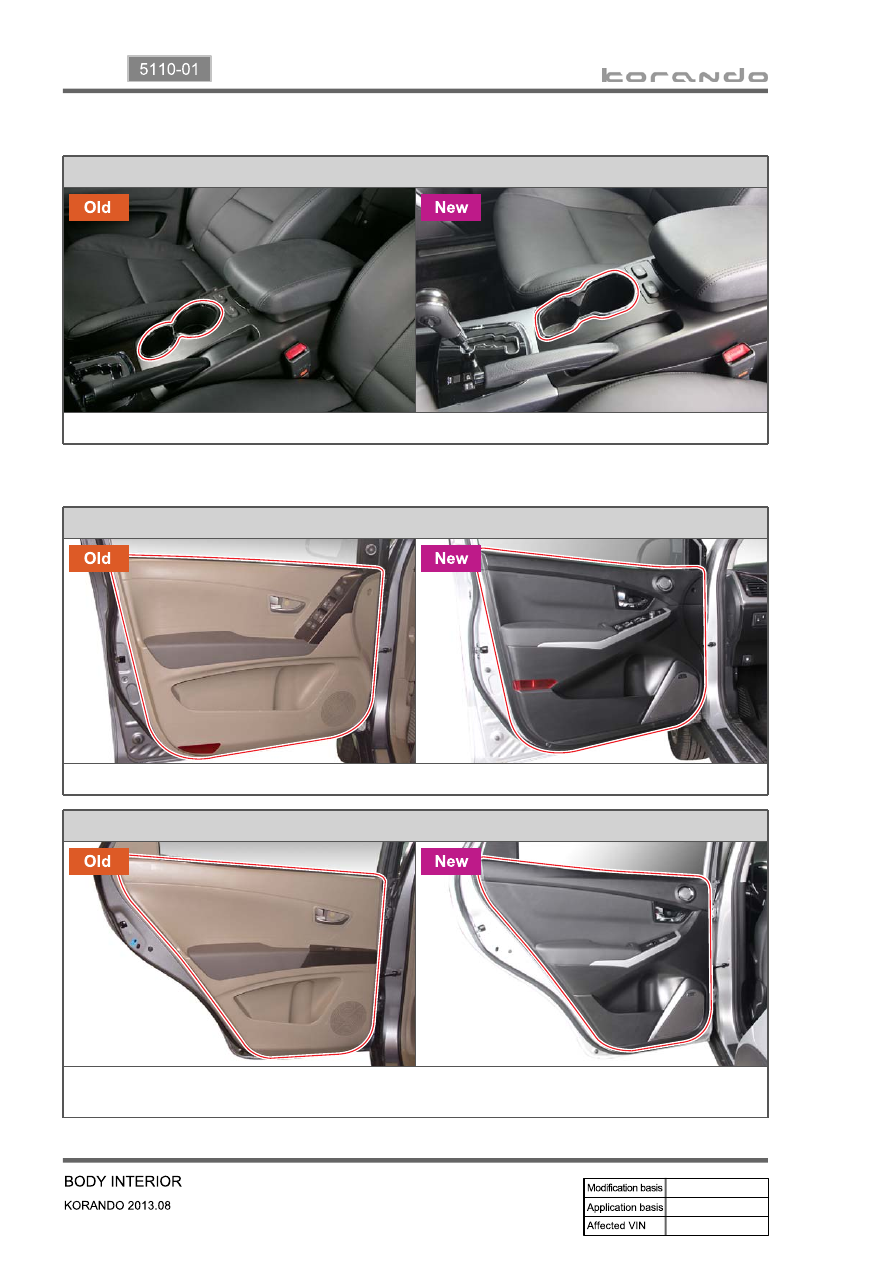

Front console

The appearance of the front console cup holder housing has been changed.

Front Console

▶

Front door trim

The design of front door trim has been changed.

Door Trim

▶

Rear door trim

- The design of rear door trim has been changed.
- 2 Mounting points → 3 Mounting points
