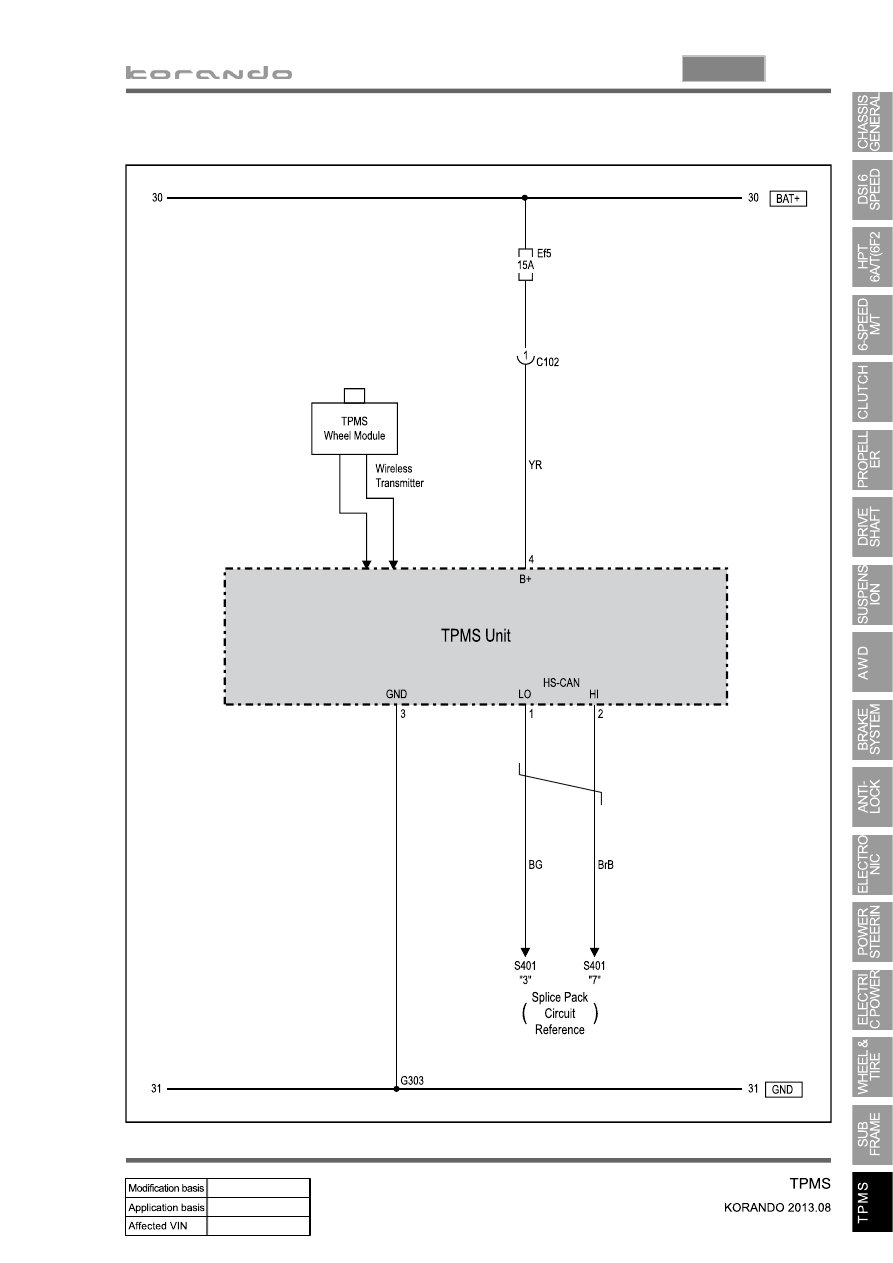

8. CIRCUIT DIAGRAM

01-3

6810-00

1. SPECIFICATIONS

Unit

Item

Specification

Heater

Core size (㎣)

200 x 168.5 x 23.5

Capacity (kcal/h)

4,800

Evaporator

Core size (㎣)

254.8 x 196.7 x 60

Capacity (kcal/h)

4,700

Blower motor

Supply power (W)

240 + 10% Max (at 12 V)

Fan speed (rpm)

2900±200 Max

(Rec. Mode: 420㎥/h)

PTC

Supply power

1 kW

Condenser

Core size (㎣)

588 x 455 x 16 (2,625)

Capacity (kcal/h)

12,000

Capacity of receiver drier

250 cc

Compressor

Volume

170 cc/rev

Diameter of pulley

Ø120

Max. continuous speed

8,000 rpm

Voltage

DC 12 V

Current consumption

2.2 A

Heater & A/C
control assembly
(FATC)

Rated voltage

DC 13.5 V

Operating voltage

DC 9 V to 16 V

Operating temperature

-30 ~ 80℃

Max. current consumption

2.5 A

Dark current

1.1 mA

Button switch

Type

Push type (self-return)

Operating force

2.54±0.5N

Temperature & air
distribution switch

Type

Dial type

Rotation angle

360˚

01-4

Item

Component

Specification

Heater & A/C
control assembly
(MTC)

Rated voltage

DC 13.5 V

Operating voltage

DC 9 V to 16 V

Operating temperature

-30 ~ 80℃

Max. current consumption

2.5 A

Dark current

1.1 mA

Button switch

Type

Push type (self-return)

Operating force

2.54±0.5N

Temperature switch

Type

Dial type

Rotation angle

220˚

Fan speed switch

Type

Dial type

Rotation angle

180˚

Refrigerant

Type

R134a

Volume

430 ± 30 g

01-5

6810-00

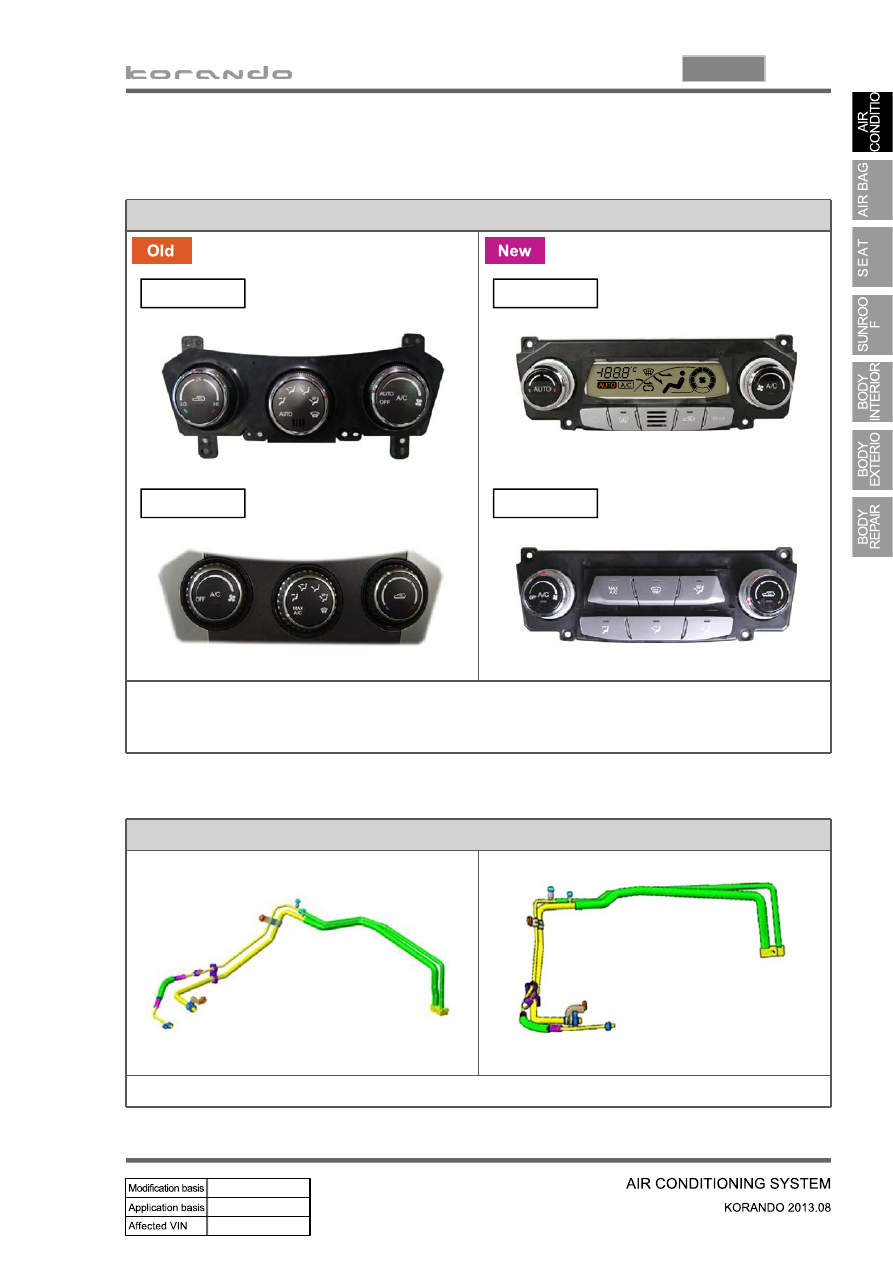

Heater & A/C control assembly

Heater and A/C control assembly design and switch arrangement changed
- Digital display (LCD display) with FATC used
- Push button type switch used (self-return type)

2. MAJOR CHANGES

Change of air conditioner pipe

▶

With MTC

With FATC

With MTC

With FATC

Changes in heater and control assembly

▶

Liquid and suction pipe

Liquid and suction pipe route changed due to change of headlamp mounting bracket
