11-4

ABS / ESP

CBS

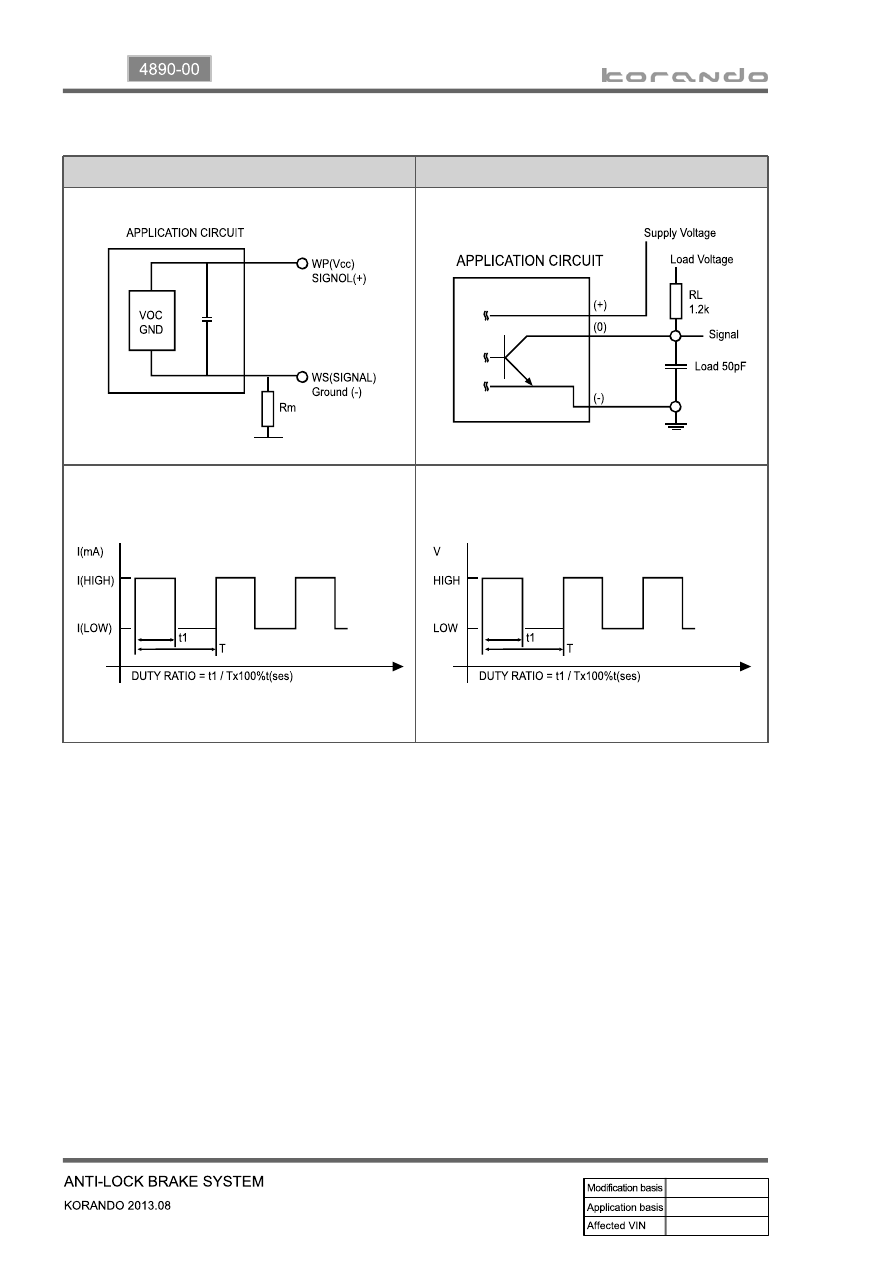

Circuit diagram of wheel speed sensor

▶

11-5

4890-00

1. SYSTEM OVERVIEW

1) What is ABS?

When braking suddenly or braking on slippery roads, the vehicle keeps moving forward but the wheels

are locking and not rotating. If these happen, the vehicle may lose stability or rotate resulting in an

accident. ABS helps to maintain directional stability and control of the vehicle. ABS is designed to

secure more safety and increase the control of steering wheel during emergency braking situation. But,

ABS does not guarantee perfect safety beyond its physical limit. ABS in this vehicle contains EBD

function. In normal driving conditions, the brake system operates without ABS function.

2) What is EBD (Electronic Brake-force Distribution)?

EBD is an automobile brake technology that automatically varies the amount of force applied to each of a

vehicle's brakes, based on road conditions, speed, loading, etc. Always coupled with anti-lock braking

systems, EBD can apply more or less braking pressure to each wheel in order to maximize stopping

power whilst maintaining vehicular control. EBD does not operate when ABS is working.

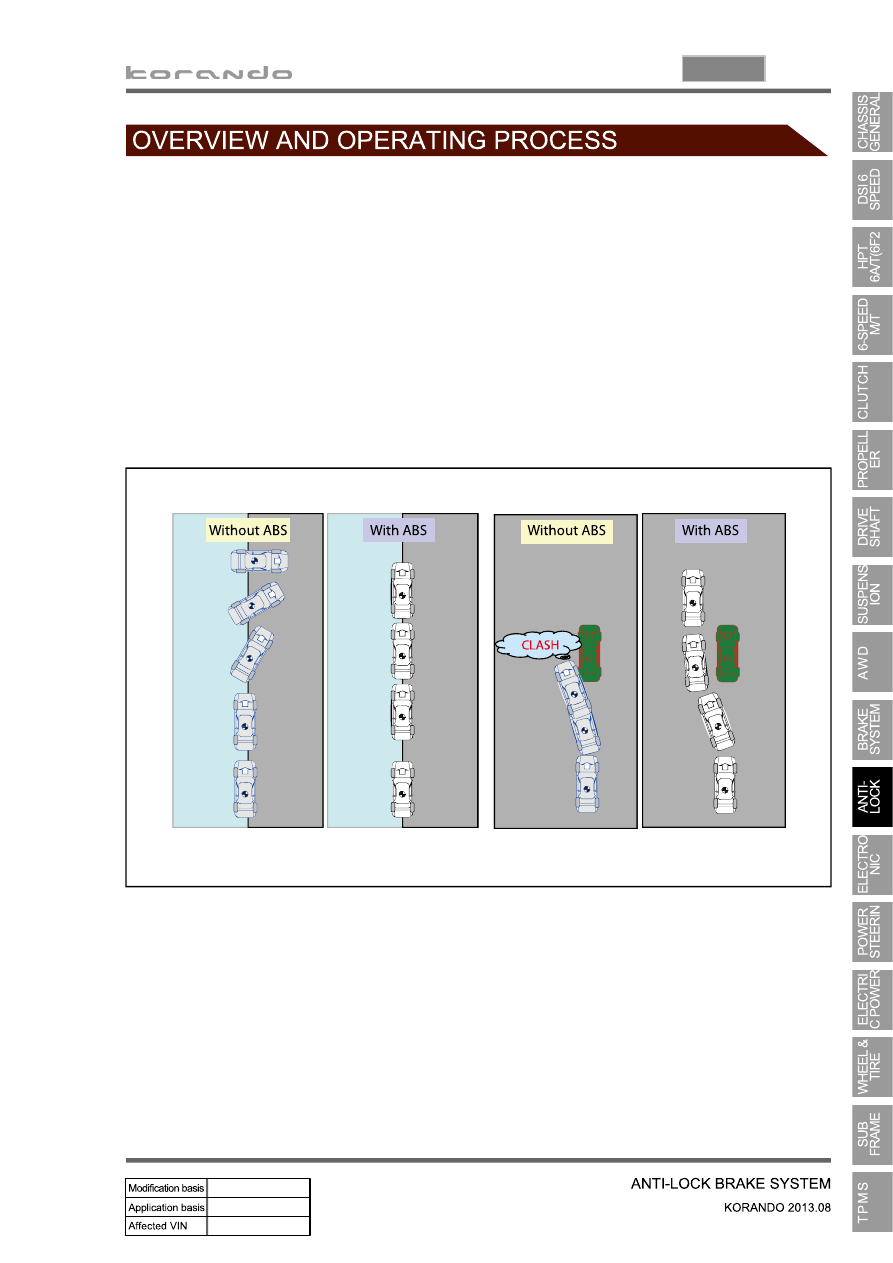

ABS effect according to braking conditions

▶

Braking on split road

Maneuvering while braking

11-6

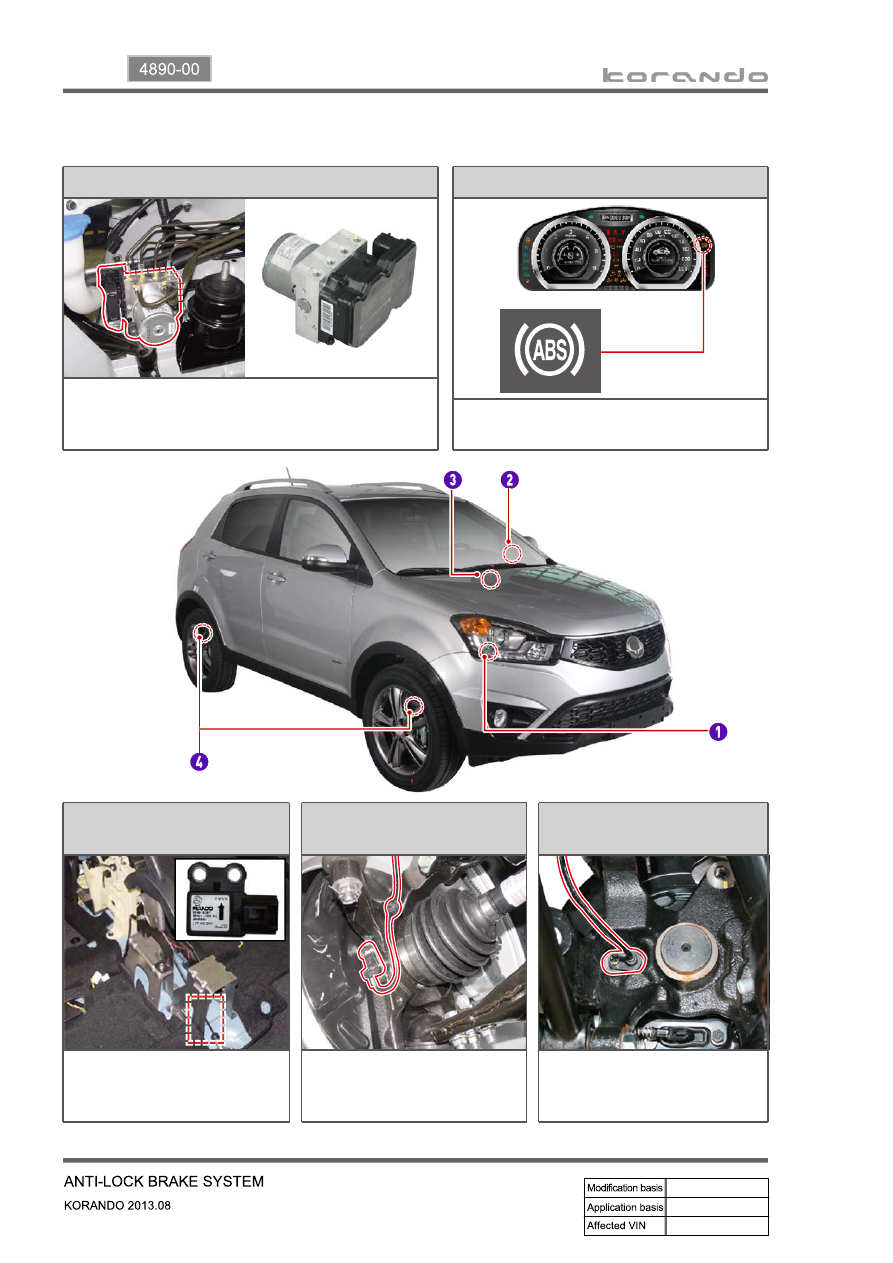

3. G-sensor (for 4WD)

Located on the floor under
parking brake bracket in center
console.

4. Rear wheel speed sensor

(for 2WD)

Located on knuckle. The
appearance is different from that
for 4WD.

4. Wheel speed sensor

(for 4WD)

Located on knuckle. The
appearance of front sensor is
same with rear sensor.

2. ABS warning lamp

EBD warning lamp (ABS warning lamp +
Brake warning lamp)

1. ABS hydraulic device and control unit

Located under the power steering fluid reservoir and
contains the pressure sensor.

2. COMPONENT

11-7

4890-00

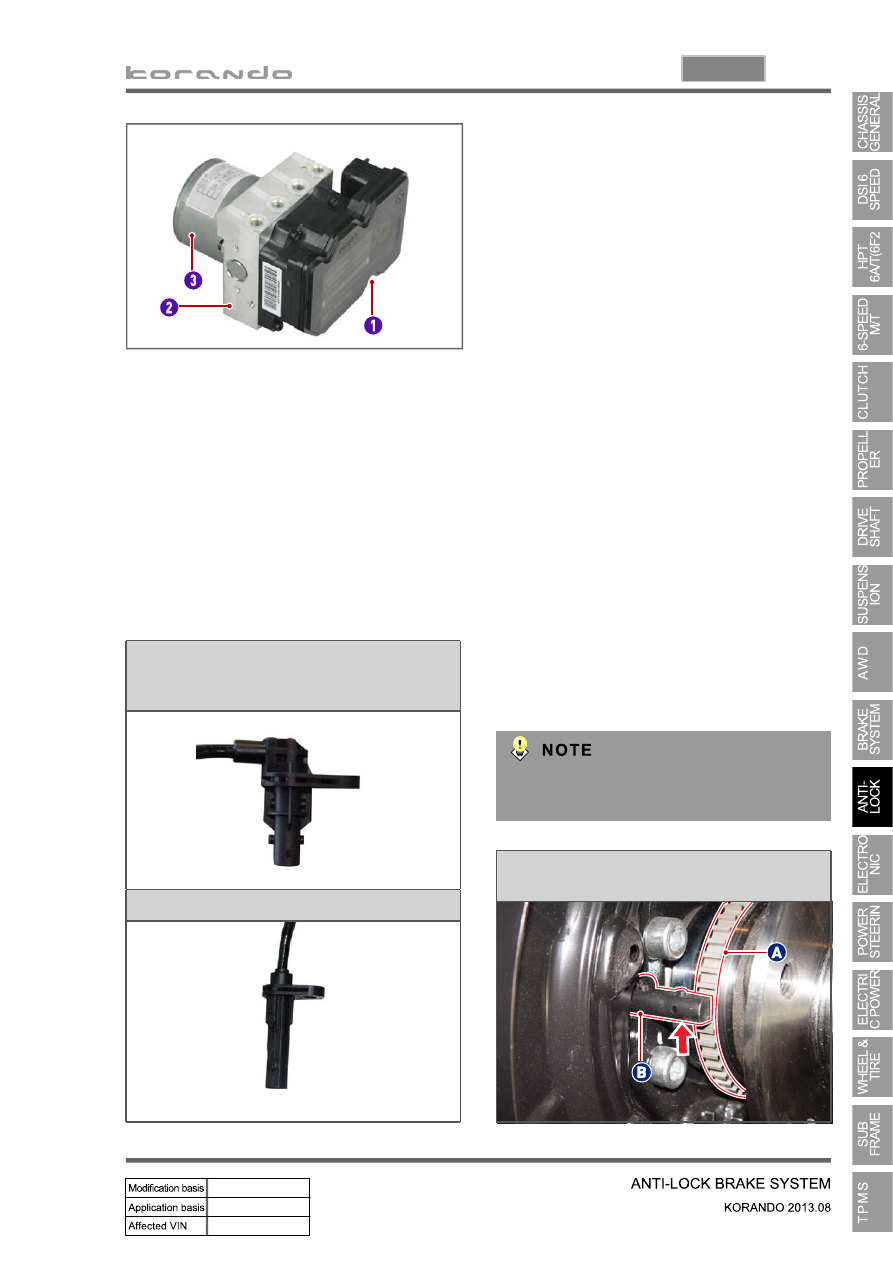

4WD - Front/Rear wheel speed

sensor

2WD - Front wheel speed sensor

2WD - Rear wheel speed sensor

ECU (Electronic Control Unit)

1.

ECU calculates the wheel speed, acceleration and

deceleration with the information from wheel

speed sensor, and determines the wheel slip to

control the valve and motor.

HU (Hydraulic Unit)

2.

The hydraulic circuit contains the primary circuit

and secondary circuit for ABS operation. This unit

controls the hydraulic pressure to each wheel. If

the system needs ABS operation, the valves in

the unit operate to control HOLD, RISE and

DUMP according to ECU control logic.

Motor

3.

The motor is operated when ABS is activated. The

cam-shaped output shaft of the motor enables the

brake system to receive and supply the brake fluid

during the motor operation.

Wheel speed sensor

▶

Wheel speed sensor sends the data detected by

tone wheel to HECU.

HECU

▶

Rear wheel speed sensor in 2WD vehicle is

different from that in 4WD vehicle.

Location of rear tone wheel (A) and wheel

sensor (B) in 2WD vehicle
