08-5

0000-00

2. TIGHTENING TORQUE

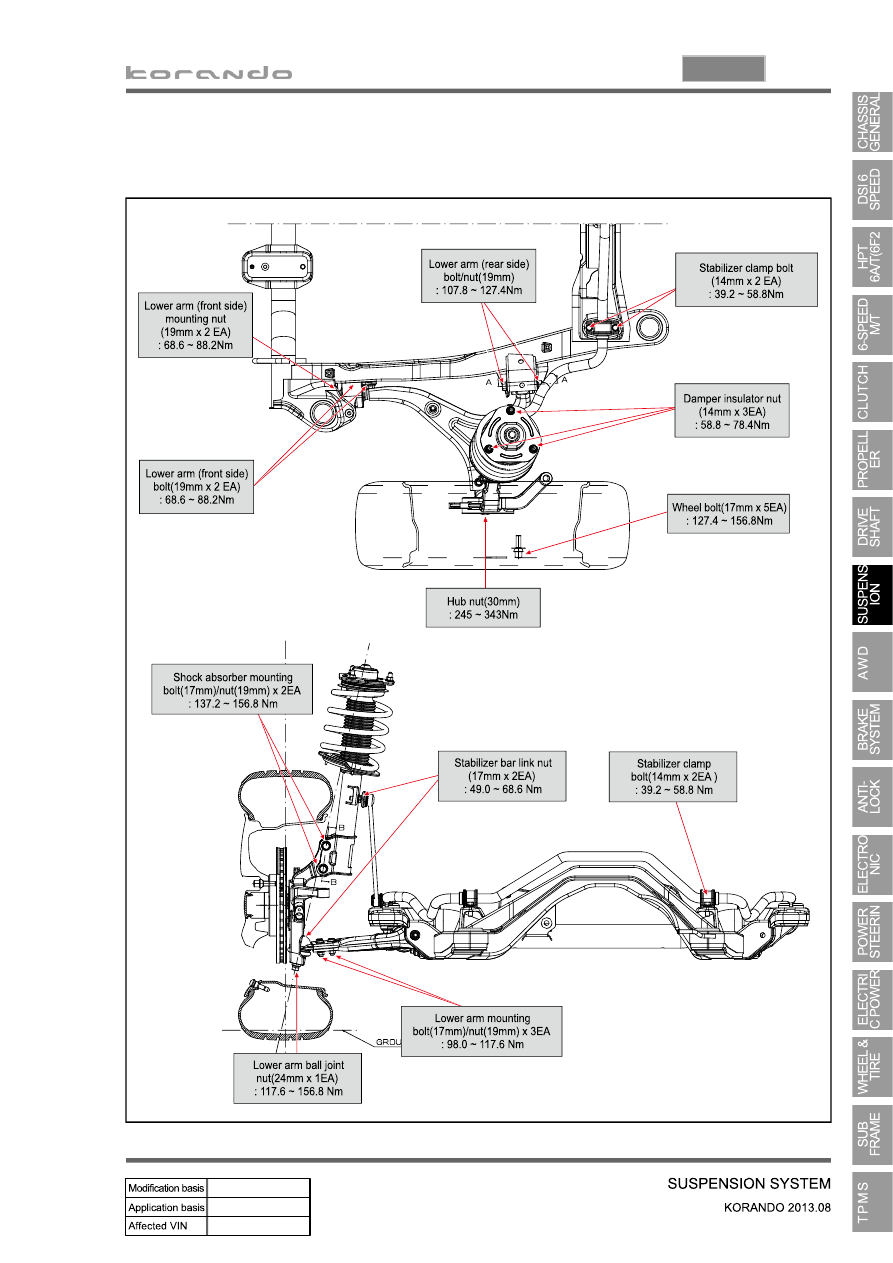

Front suspension assembly

▶

08-6

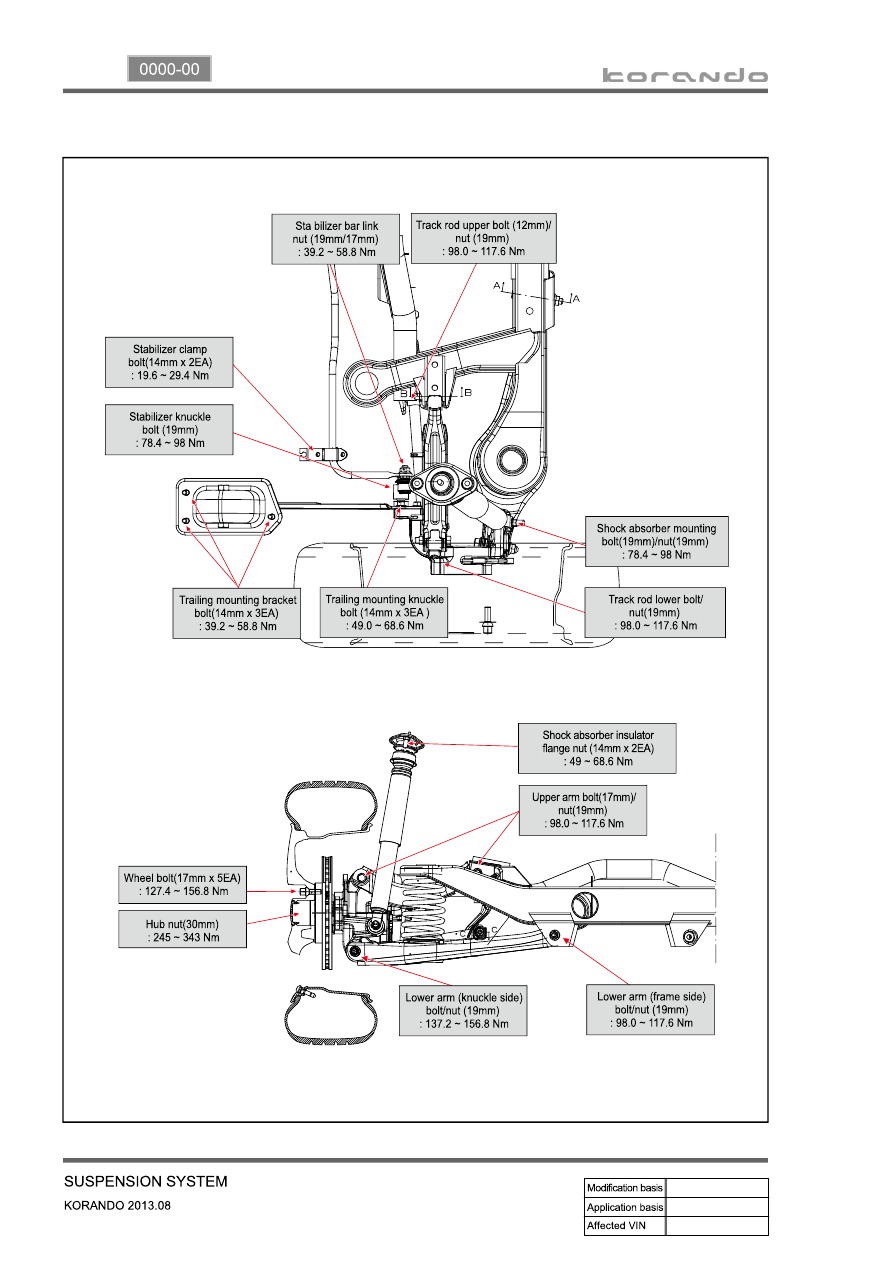

Rear suspension assembly

▶

08-7

0000-00

1. OVERVIEW

The suspension is the device to connect the axle and vehicle. It absorbs the vibrations and impacts from

road surface, which enhances the comforts, driving force, braking force and drivability.

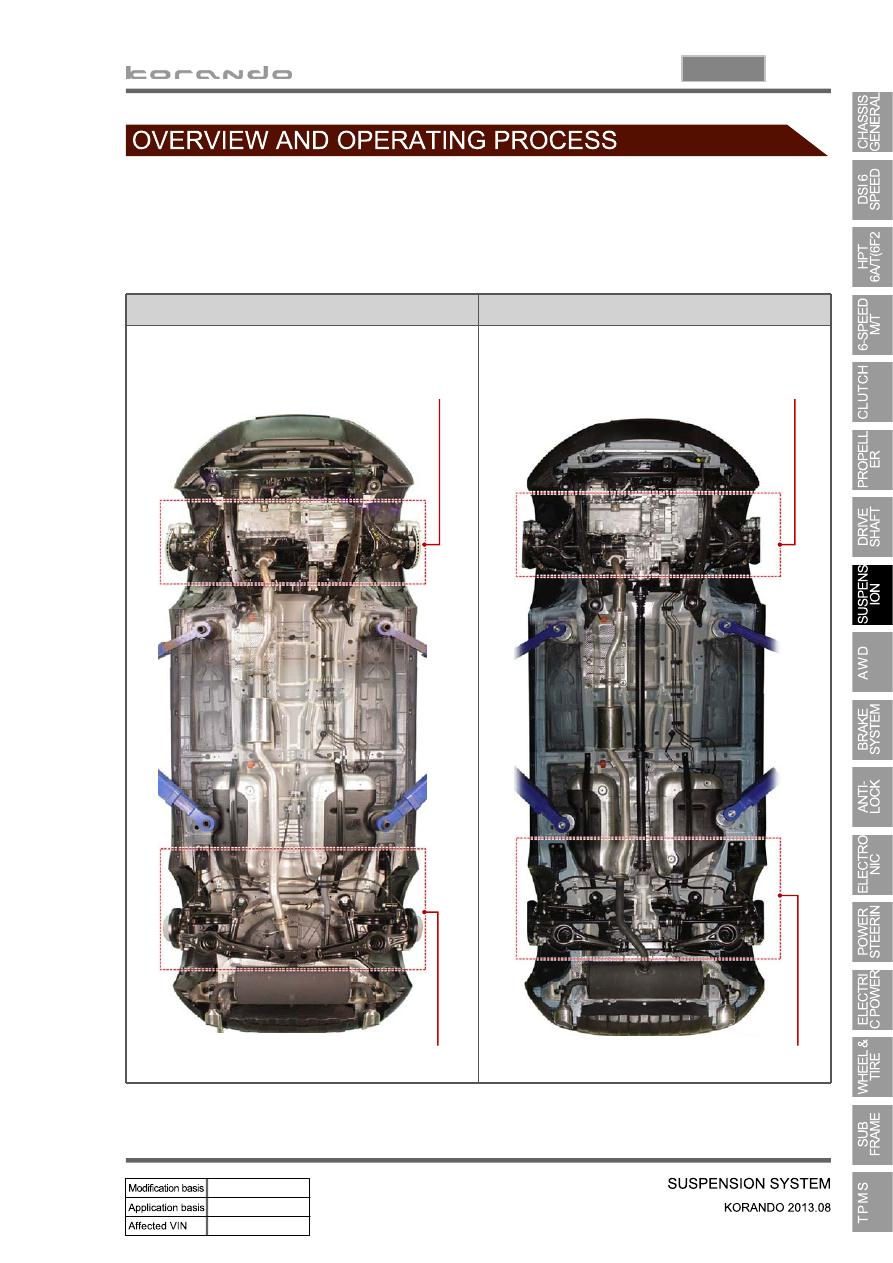

Underview of vehicle with 2WD, 6M/T

Underview of vehicle with 4WD, 6A/T

Front suspension

Rear suspension

Front suspension

Rear suspension

08-8

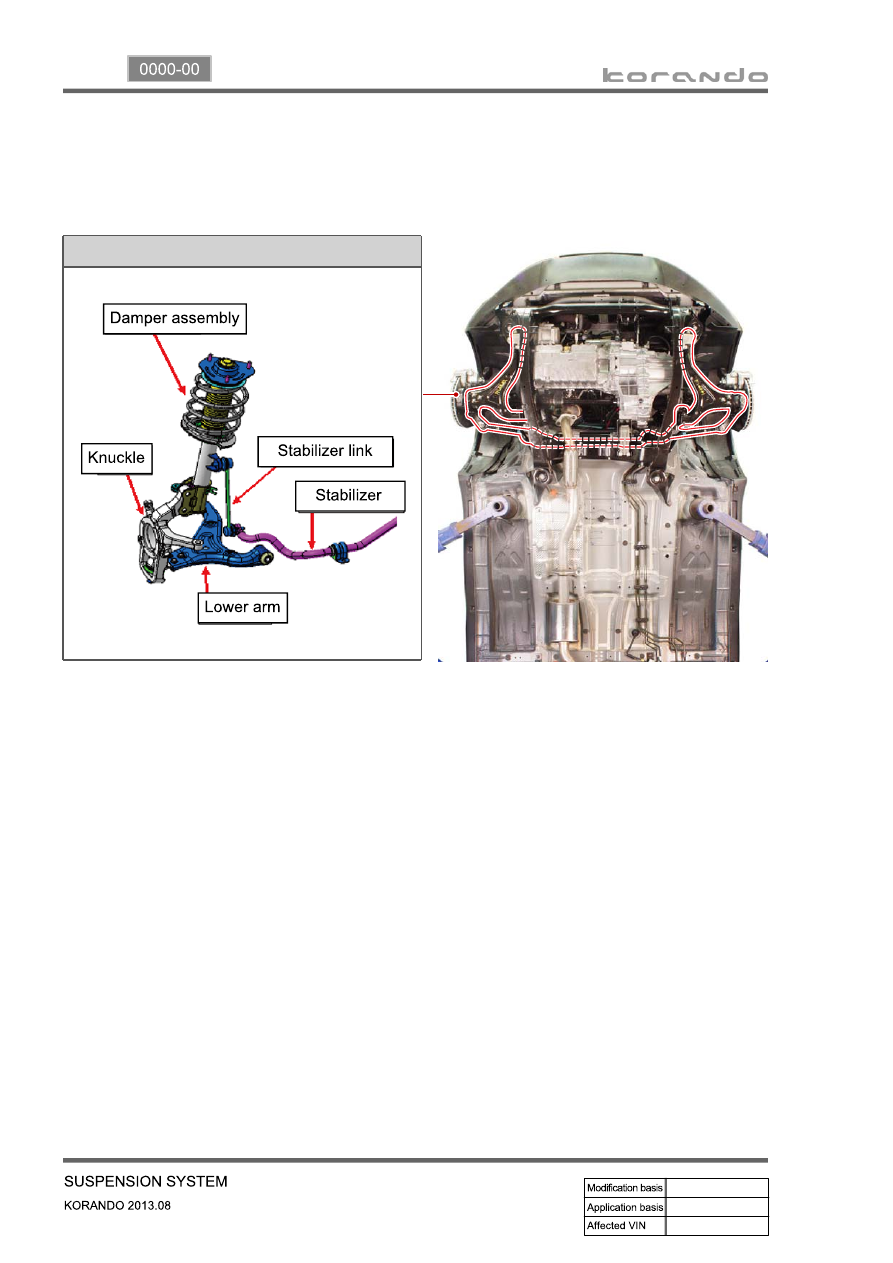

1) Front Suspension (Macperson Strut Type)

Front suspension supports the vehicle weight and absorber the vibration from tires. And, in this type of

suspension, the steering linkage tie rod is mounted on the knuckle.

Macperson strut type suspension is the independent suspension which has the spring on the strut

integrated with shock absorber. The lower arm is installed on sub frame and large strut damper is

installed on the knuckle to support the tire. This type of suspension is normally applied to the vehicle with

monocoque body, especially on the front wheel drive type. The upper part with spring is mounted at

body mount and the strut with shock absorber is linked on the steering knuckle.

Advantages

▶

Compact and simple design

Stable wheel alignment

Good load distribution and easy installation

Less effect from tire up/down movement

1.

2.

3.

4.

Disadvantages

▶

Comparatively weak to the impact from road surface and lateral shock due to long strut and single

swing arm

1.

Macperson strut type suspension
