Rain sensor unit

Wiper and washer switch

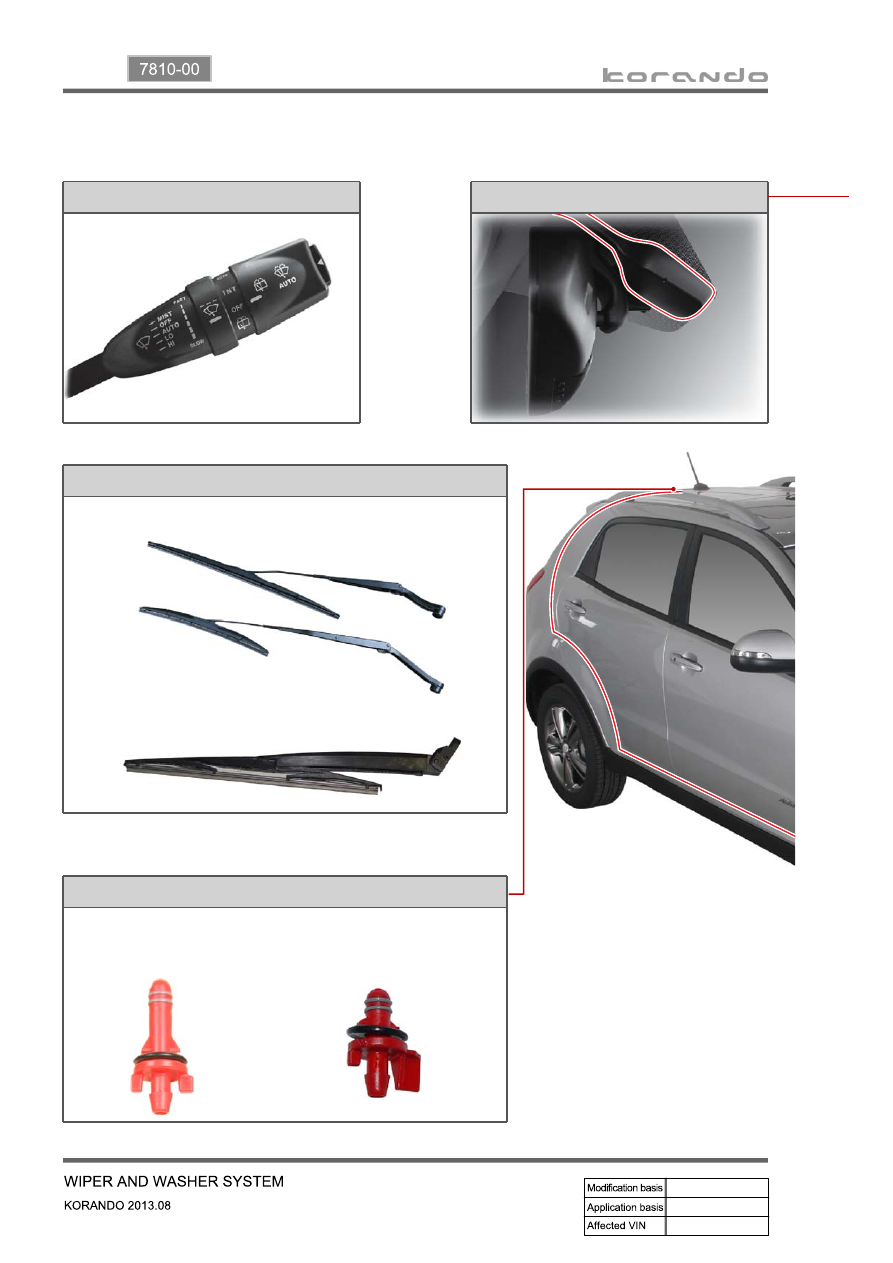

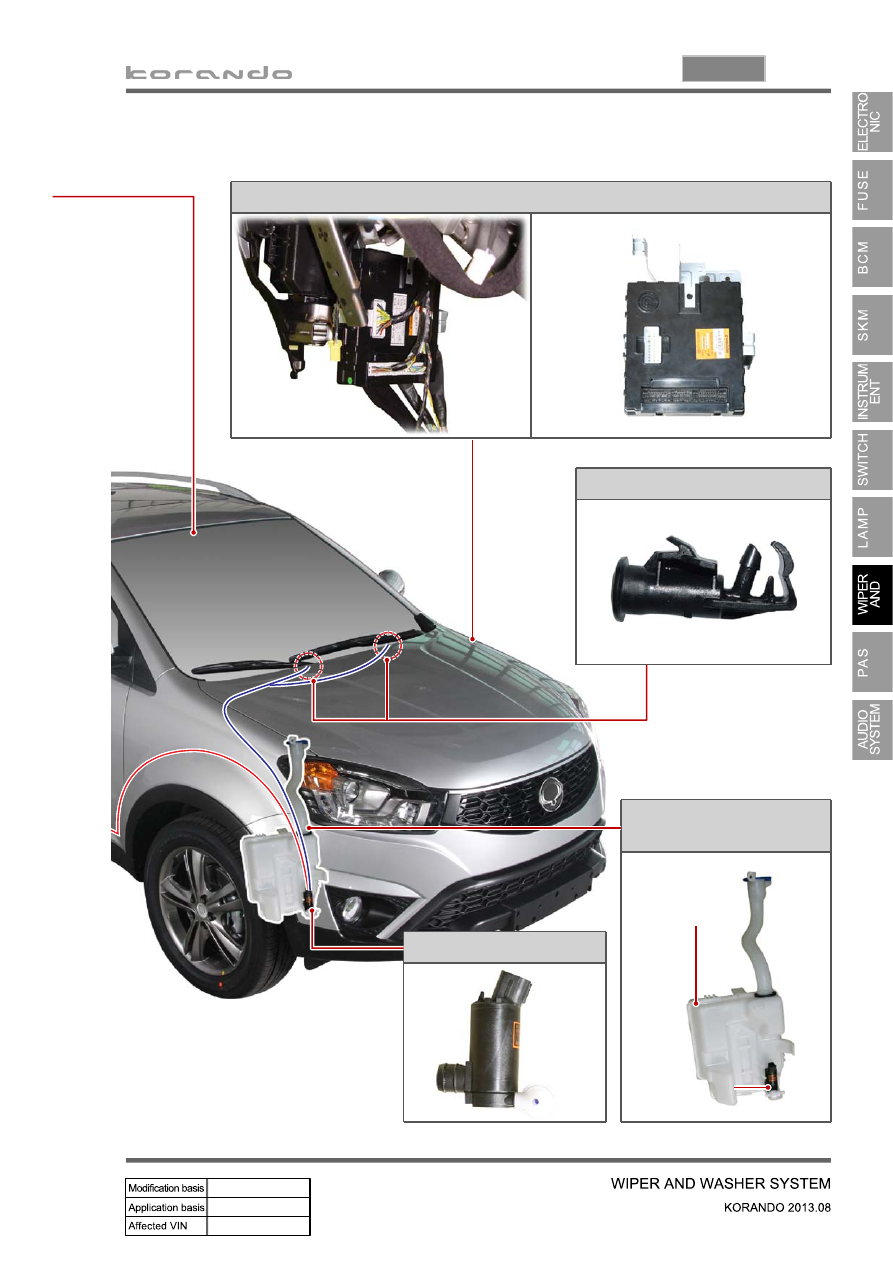

3. SYSTEM LAYOUT (INCLUDING RAIN SENSOR)

Wiper

Front wiper

Rear wiper

Rear washer hose and nozzle

For vehicles with

rear spoiler

For vehicles without rear

spoiler

08-9

7810-00

BCM

Front nozzle assembly

Washer fluid reservoir

assembly

Washer motor

Reservoir tank

Washer motor

08-10

4. WIPER AND WASHER OPERATION

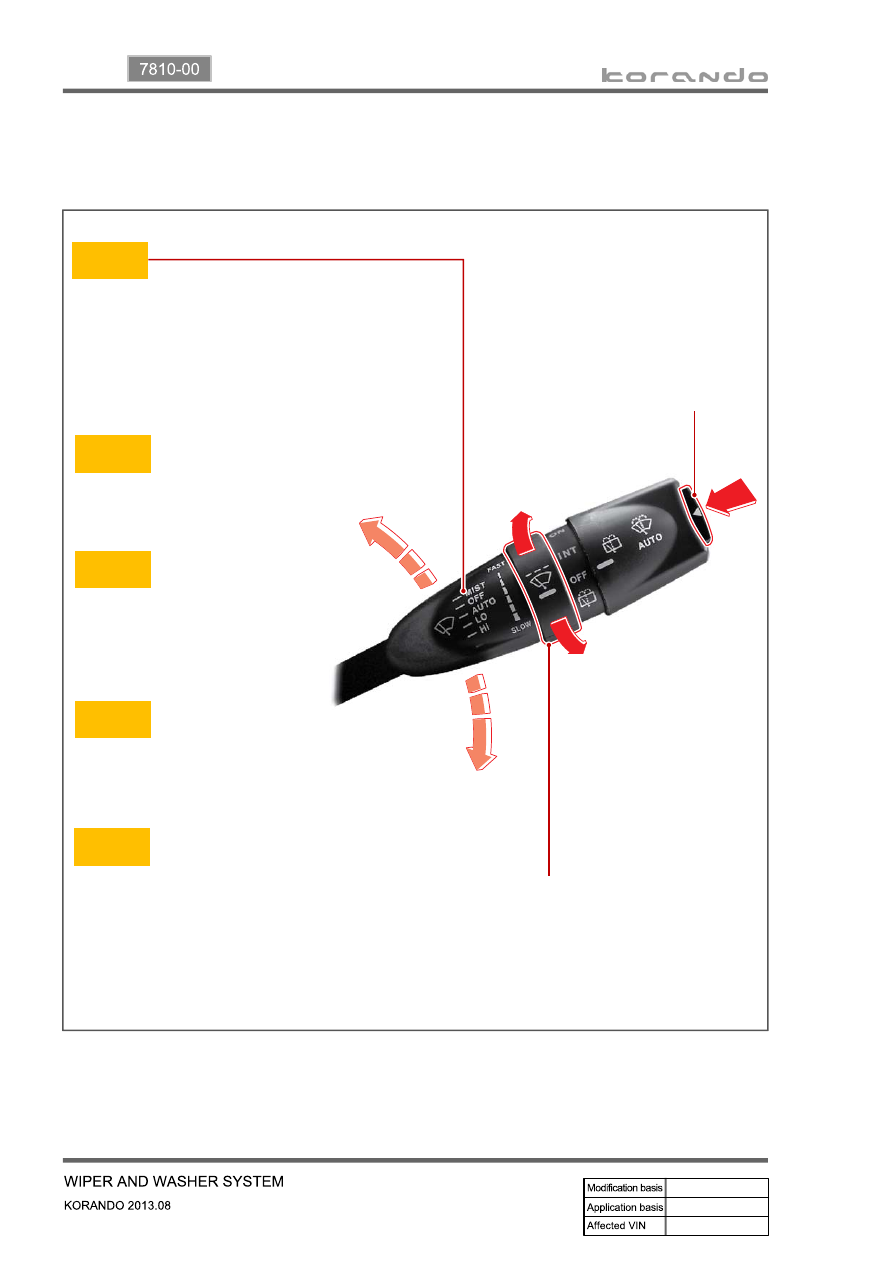

1) Windshield Wiper Control Function

If you move the wiper switch to “MIST”

position and release it, the windshield wipers

operate one wiping cycle. The wipers will

operate continuously if the switch is held in this

position.

Front automatic wiping speed control switch

turning the control knob upward or downward when the

windshield wiper switch is in AUTO position.

Fast: Fast interval

Slow: Slow interval

Wipers are not in operation.

Operates automatically according to

the vehicle speed and amount of

rainfall.

Continuous wipe, fast

operation

Continuous wipe, slow operation

MIST

OFF

AUTO

LO

HI

Front auto washer switch

When you press this switch with the
front wiper switch in “OFF” position,

washer fluid will be sprayed and the

wiper will automatically operate 4 times.

Then, the fluid will be sprayed again and

the wiper will automatically operate 3

times.

08-11

7810-00

(1) Wiper mist

When the multifunction switch is pushed to the MIST position for 0.1 sec. or more with the IGN1 ON,

the wiper relay is turned on after 0.1 sec. has passed. When the wiper returns to the park position, the

wiper relay is turned off.

When the MIST switch signal is input the wiper is operated at high speed. When the switch is release

from the MIST position, the wiper is operated at low speed.

1.

2.
