SsangYong Korando III (2010 year). Service manual - part 500

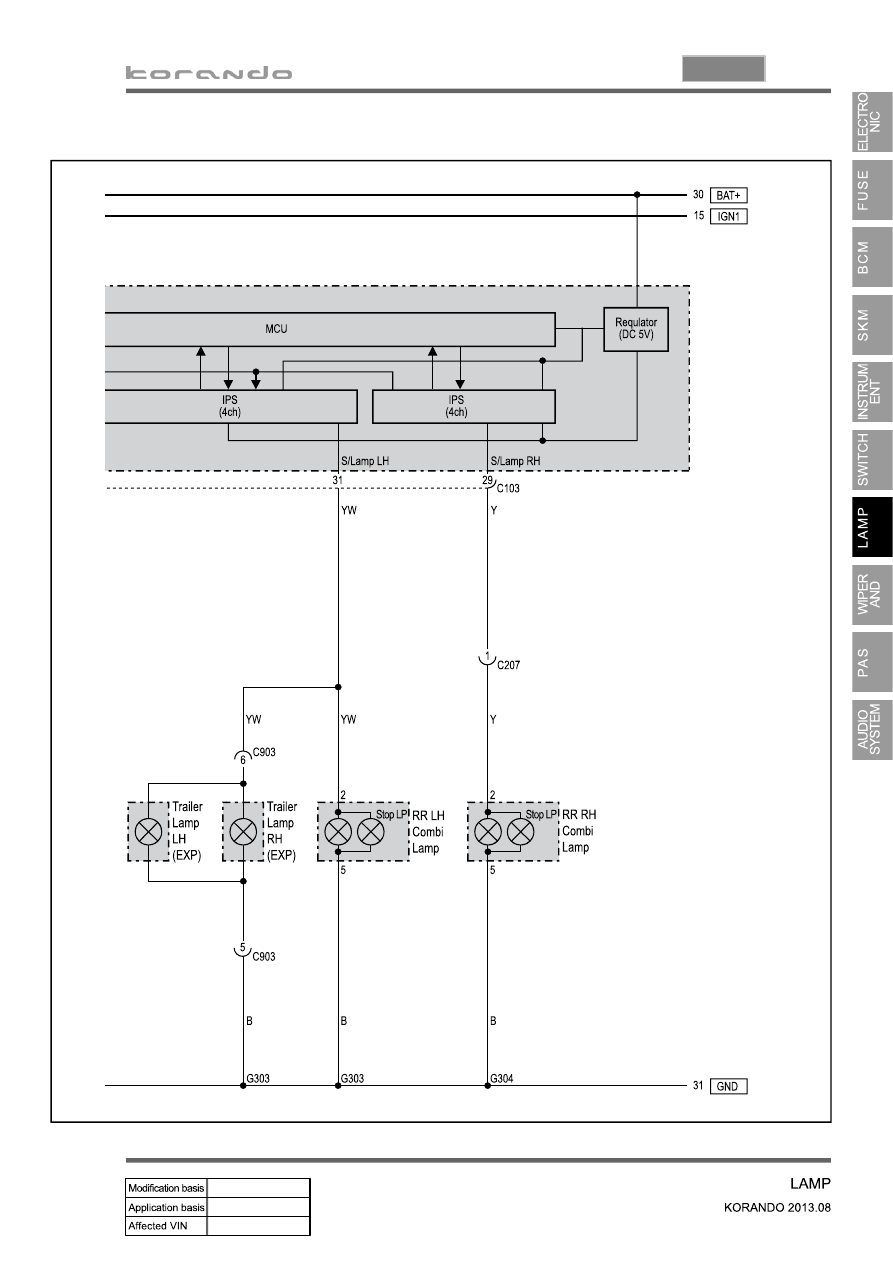

07-33

8310-00

07-34

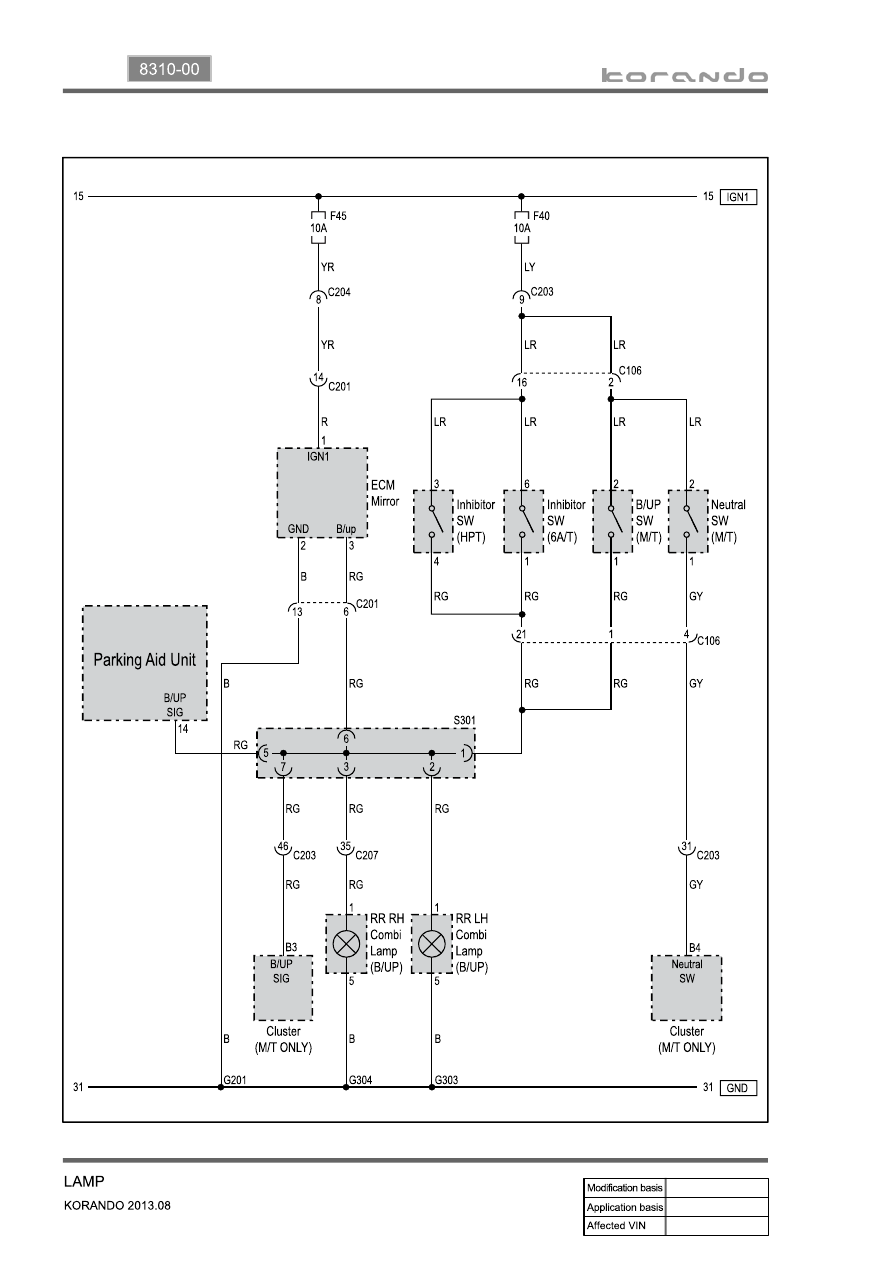

Backup lamp circuit diagram

▶

07-35

8310-00

Approach (puddle) lamp

(10) Puddle (approach) lamp

Approach lamp ON

1.

Lamp control for models with SKM

▶

When turning the ignition switch to OFF from ON position and opening the driver door, the

approach lamps come ON.

When receiving the UNLOCK signal from the smart key remote control or outside door handle

switch signal in the theft deterrent mode, the approach lamps come ON for 30 seconds.

When receiving the AUTO approach signal in the theft deterrent mode, the approach lamps come

ON for 30 seconds.

-

-

 -

Approach lamp OFF

2.

When receiving the door lock signal from the smart key remote control or outside door handle

switch signal with the approach lamps ON, the lamps go OFF (reactivation of theft deterrent

mode).

When turning the ignition switch to ON position with the approach lamps ON, the lamps go OFF.

The approach lamps go OFF after 30 seconds.

-

-

-

Approach lamp ON

1.

Lamp control for models without SKM

▶

When receiving the UNLOCK signal in the theft deterrent mode, the approach lamps come ON for

30 seconds.

When turning the ignition switch to OFF from ON position and opening the driver door, the

approach lamps come ON.

-

 -

Approach lamp OFF

2.

When receiving the door lock signal with the approach lamps ON, the lamps go OFF (reactivation

of theft deterrent mode).

When turning the ignition switch to ON position with the approach lamps ON, the lamps go OFF.

The approach lamps go OFF after 30 seconds.

-

 -

 -

07-36

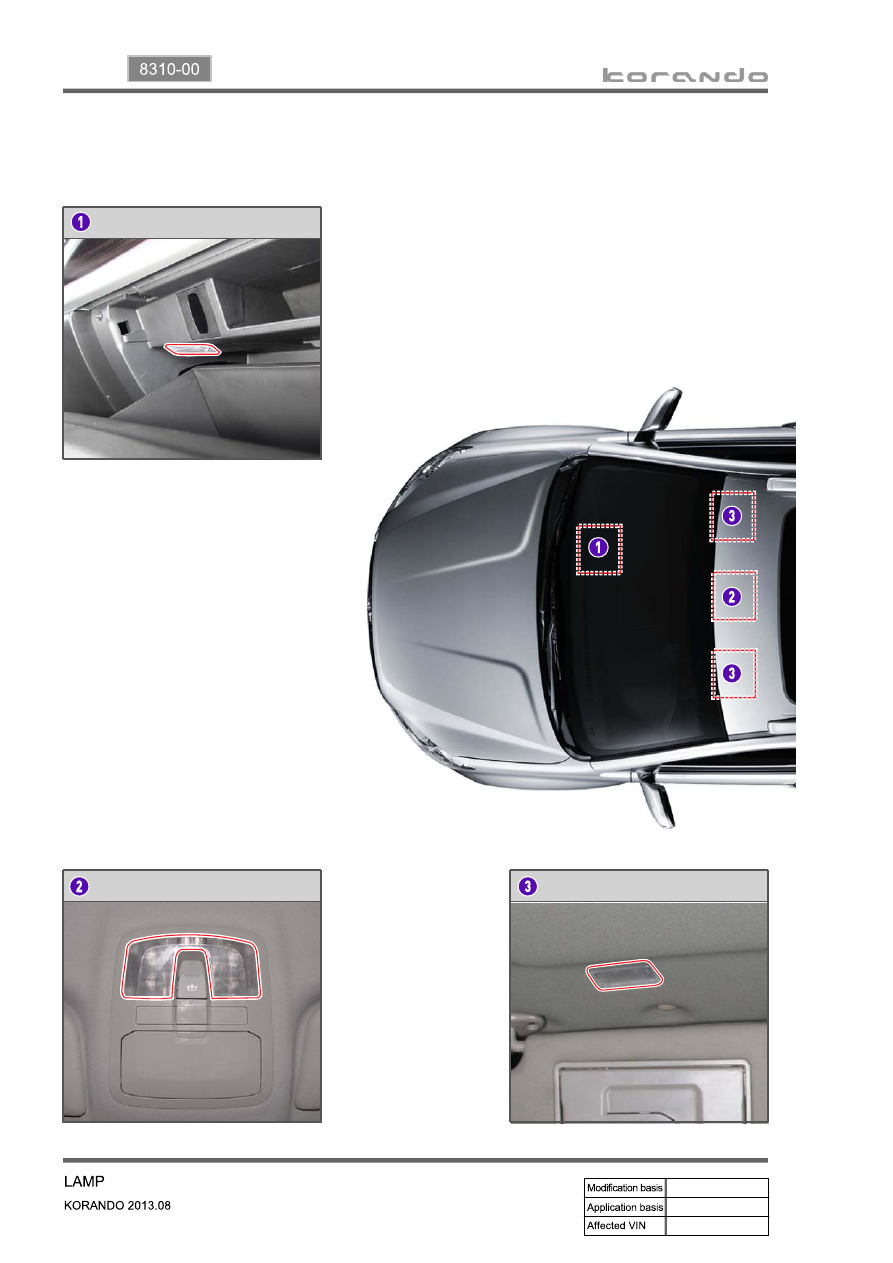

Front room lamp

Glove box lamp

Sun visor lamp

1) Layout

2. INTERIOR LAMPS
