07-21

8310-00

07-22

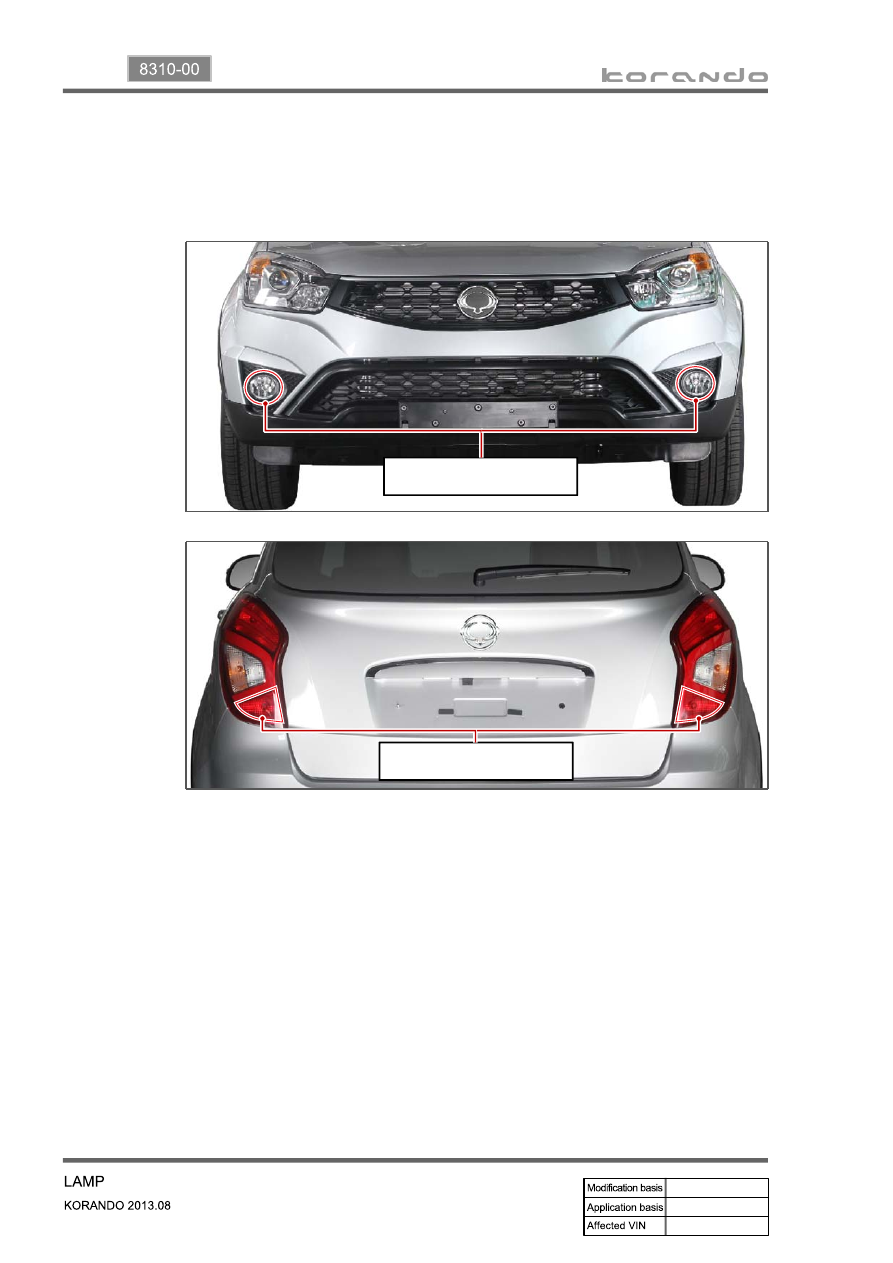

(5) Fog lamp

The fog lamp is operated by the fog lamp switch only when the headlamp (tail lamp) is operating.

The front and rear fog lamps go off when turning the ignition switch or headlamp (tail lamp) switch to the

"OFF" position.

Front

▶

Rear

(EU only)

▶

Rear fog light

Front fog lamp

07-23

8310-00

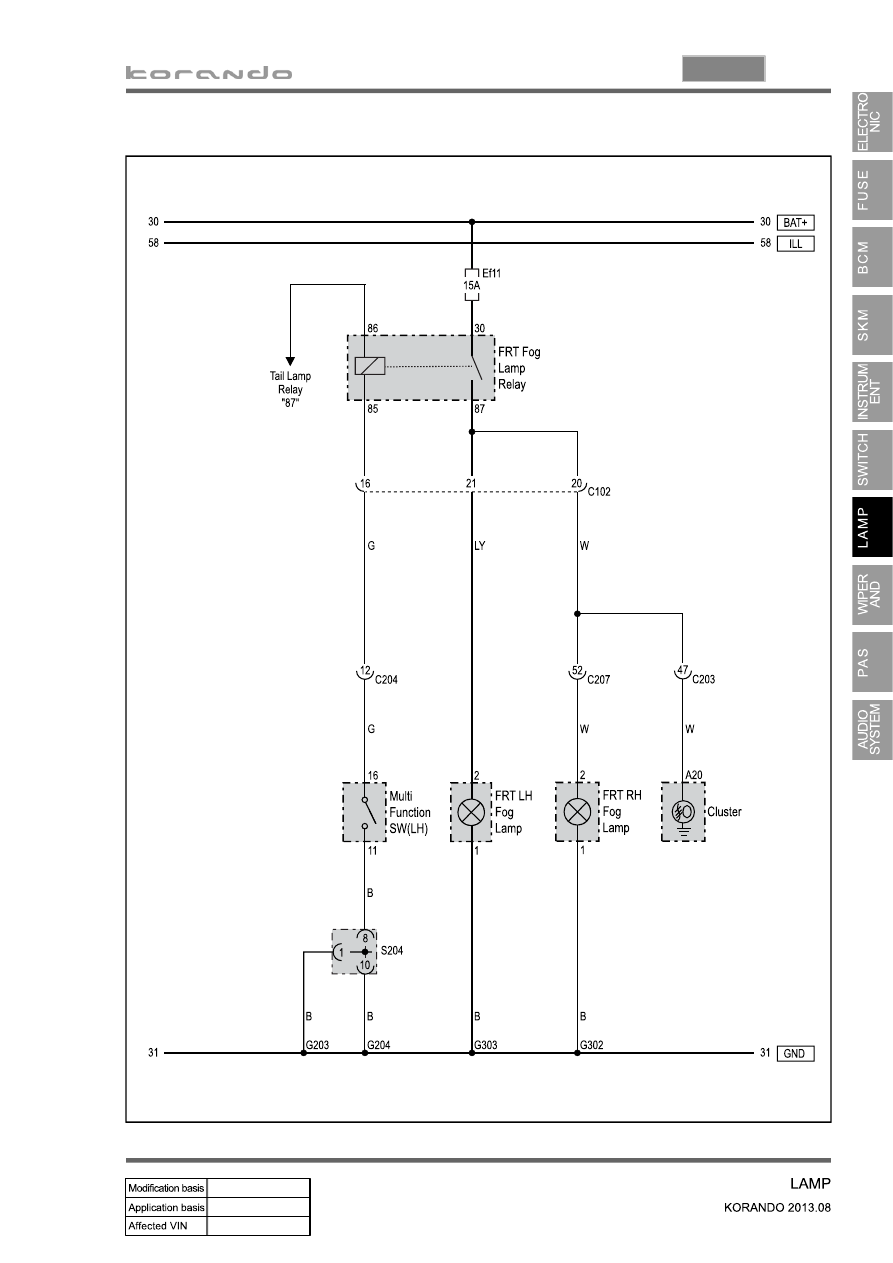

Fog lamp circuit diagram

▶

07-24

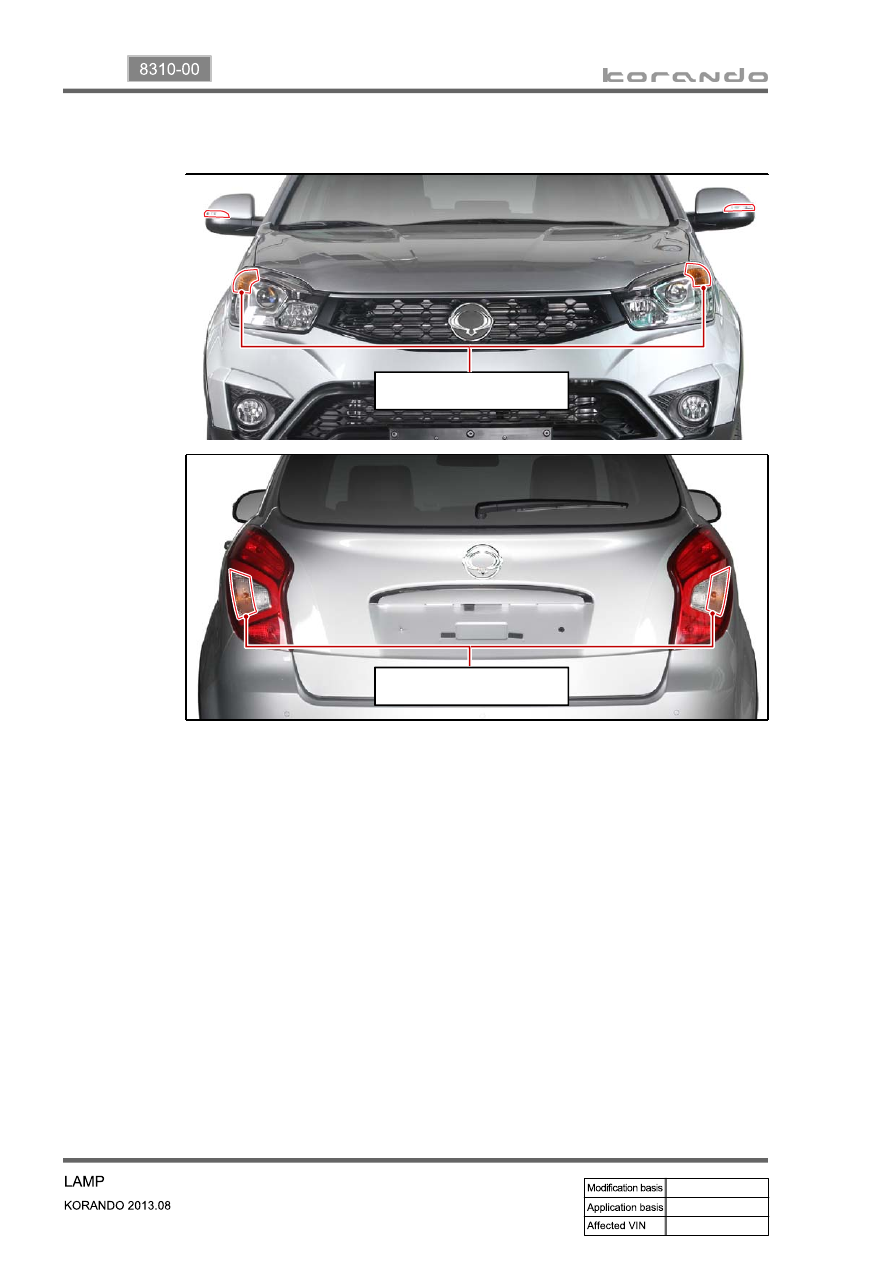

Turn signal lamp

Rear

▶

Front

▶

(6) Turn signal lamp / Side repeater lamp

The turn signal lamp is operated by the BCM when the BCM receives a signal from the multifunction

switch. The BCM cycles the turn signal lamp and buzzer (ON/OFF) 75 times per minute.

The turn signal lamps are operational only when IGN1 is ON.

If the turn signal lamp fails while it is illuminated, the BCM cycles the lamp and buzzer 100 times per

minute.

The BCM determines that there is an open circuit if the load is 3.0 A or less, and there is a short circuit if

the load is 7.0 A or more.

When turning ON the turn signal switch, the lamp blinks 3 times by the BCM. When turning OFF the

switch during the operation, the turn signal lamp blinks 3 times and goes off.

When turning OFF and then immediately ON the turn signal switch during auto blinking operation of 3

times, the turn signal lamp blinks additional 3 times.

If one of the turn signal lamp is flashing and the other lamp switch is turned on, the lamp for the activated

switch flashes.

Turn signal lamp
