SsangYong Korando III (2010 year). Service manual - part 494

07-9

8310-00

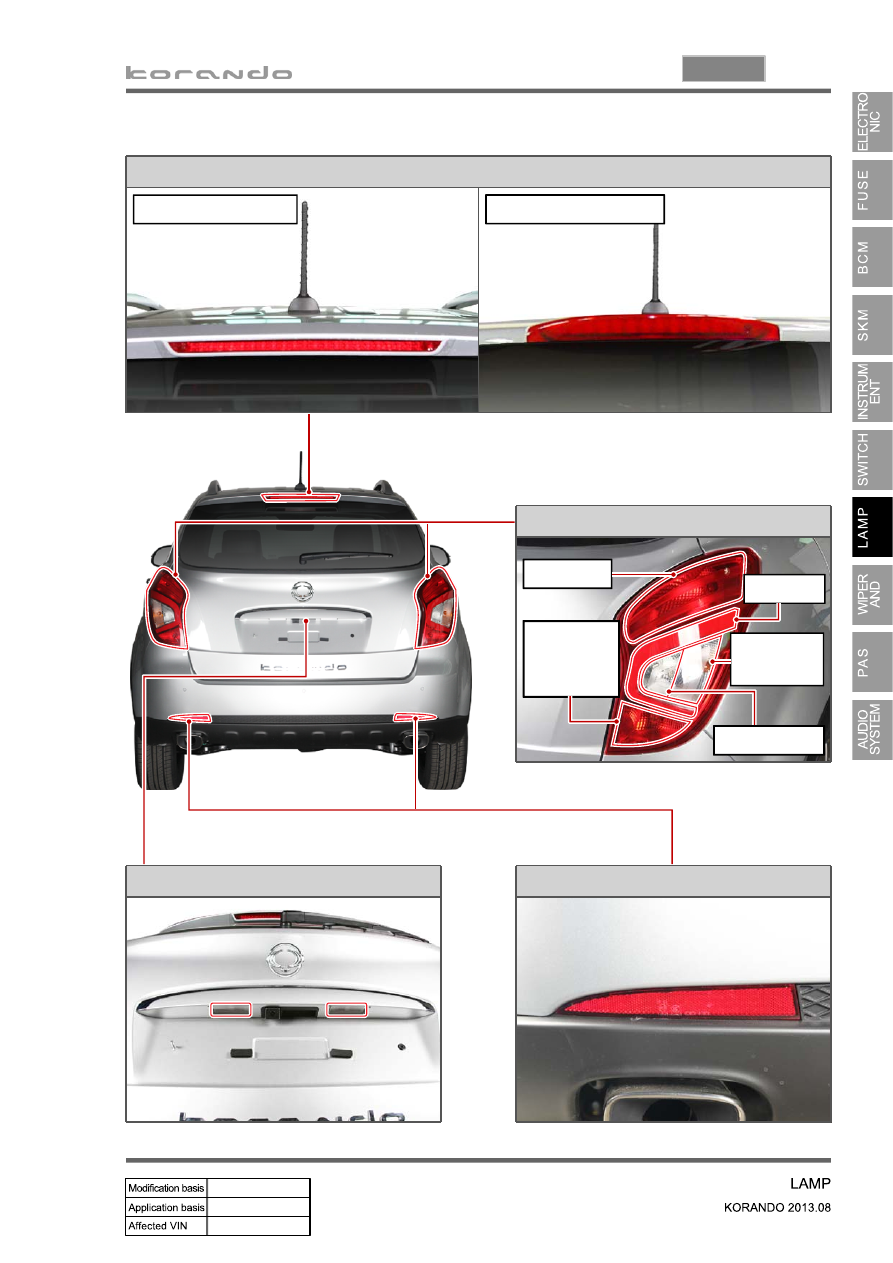

Rear combination lamp

Rear side

▶

License plate lamp

Reflex reflector lamp

High mounted stop lamp

Vehicle with spoiler

Vehicle without spoiler

Tail lamp

Stop lamp,

Rear fog

light (EU)

Turn signal

lamp

Backup lamp

Stop lamp

07-10

3) Operating Process

(1) Headlamp (high/low beam) operation process

The headlamp is usually operated by the multifunction switch or by the REKES or smart key through the

BCM.

The BCM controls the headlamp and tail lamp according to the signal from the AUTO light sensor

through LIN communication when the multifunction switch is in "AUTO" position.

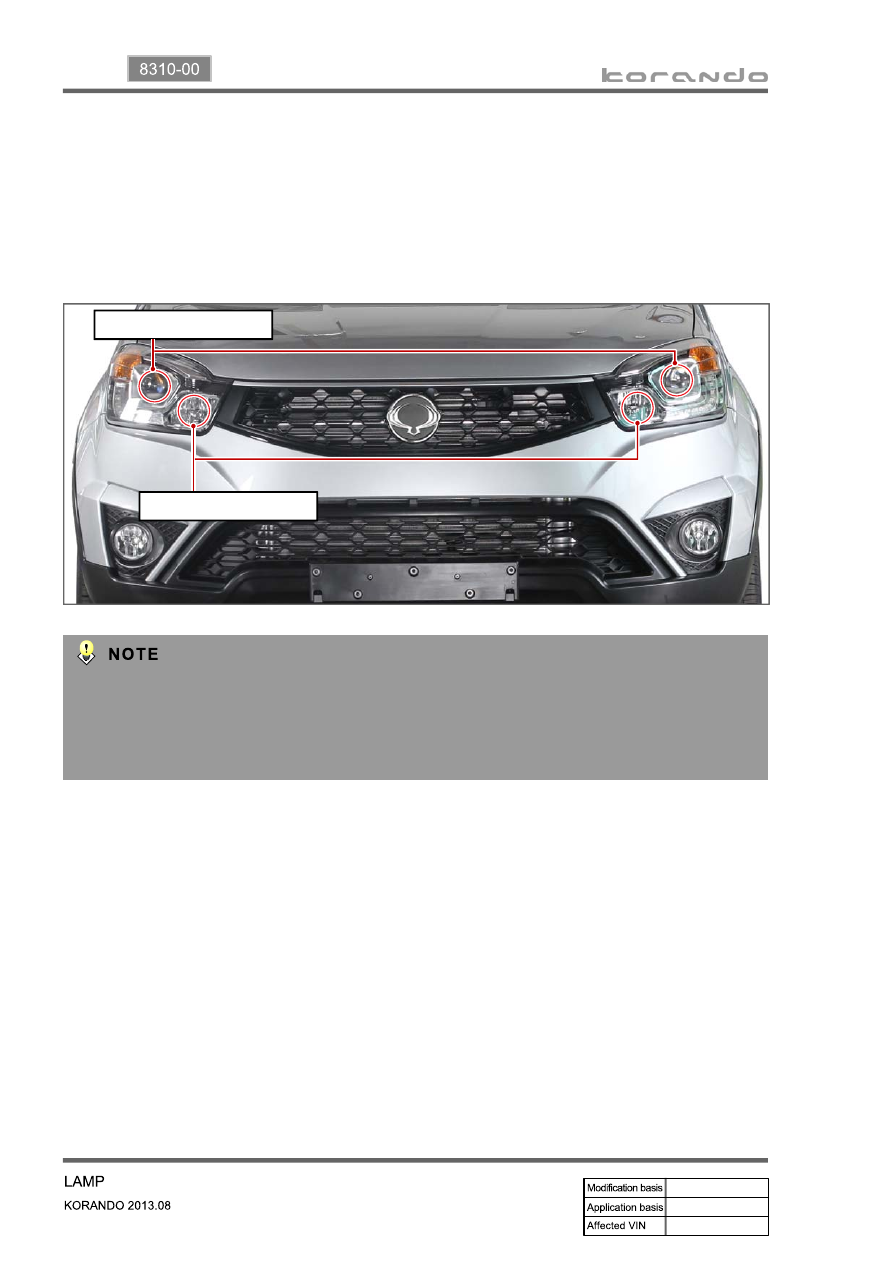

Headlamp - low beam

Headlamp - high beam

DRL (Day Time Running Light)

▶

DRL is the function to turn on the high beam and tail lamp without any intervention from the light

switch. DRL turns off the lamps when turning off the light switch. This is an additional safety device to

prevent the accident.

07-11

8310-00

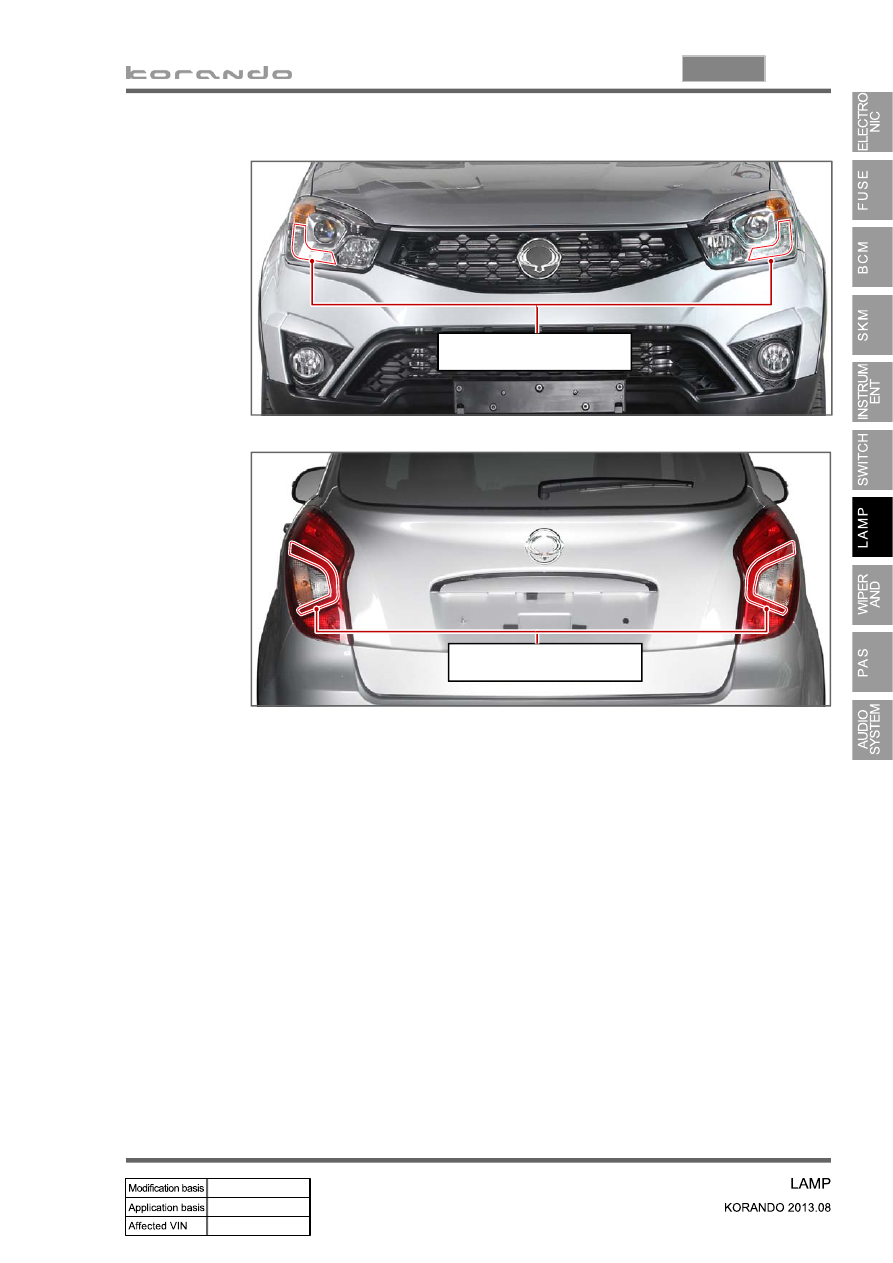

(2) Tail lamp

Front

▶

Rear

▶

Tail lamp

Tail lamp

The tail lamp is operated by the BCM when the BCM receives a signal from the multifunction switch.

Tail lamp warning

▶

The buzzer sounds for 10 seconds with the interval of 0.02 s ON and 1.38 s OFF when opening the

driver door with the key removed (without SKM)/with IGN OFF or ACC (with SKM) and tail lamp ON.

The buzzer stops its operation when turning off the tail lamp or closing the driver door during buzzer

operation. The buzzer stays ON when turning the tail lamp on again after turning it off during buzzer

operation.

1.

2.

Tail lamp auto turn-off

▶

When opening and closing the driver door after turning off the ignition with the tail lamp ON, the tail

lamps go off automatically.

The tail lamps come on again when inserting the ignition key (without SKM) and turning on the ignition

(with SKM) after tail lamp auto OFF.

The tail lamp should not go off when turning on the tail lamp switch with the ignition key removed

(without SKM) and with power off or ACC ON (with SKM).

-

-

-

07-12

(3) Auto light (LIN)

The auto light sensor unit is installed to the back side of the ECM mirror located upper center of the

windshield, and detects the illuminance change. The BCM communicates with the auto light sensor

when the ignition is turned on, and turns on or off the tail lamp and headlamp automatically according to

the signals from the sensor when the multifunction switch is set to AUTO light.

The BCM communicates with the rain sensor even if the multifunction switch is in tail lamp.

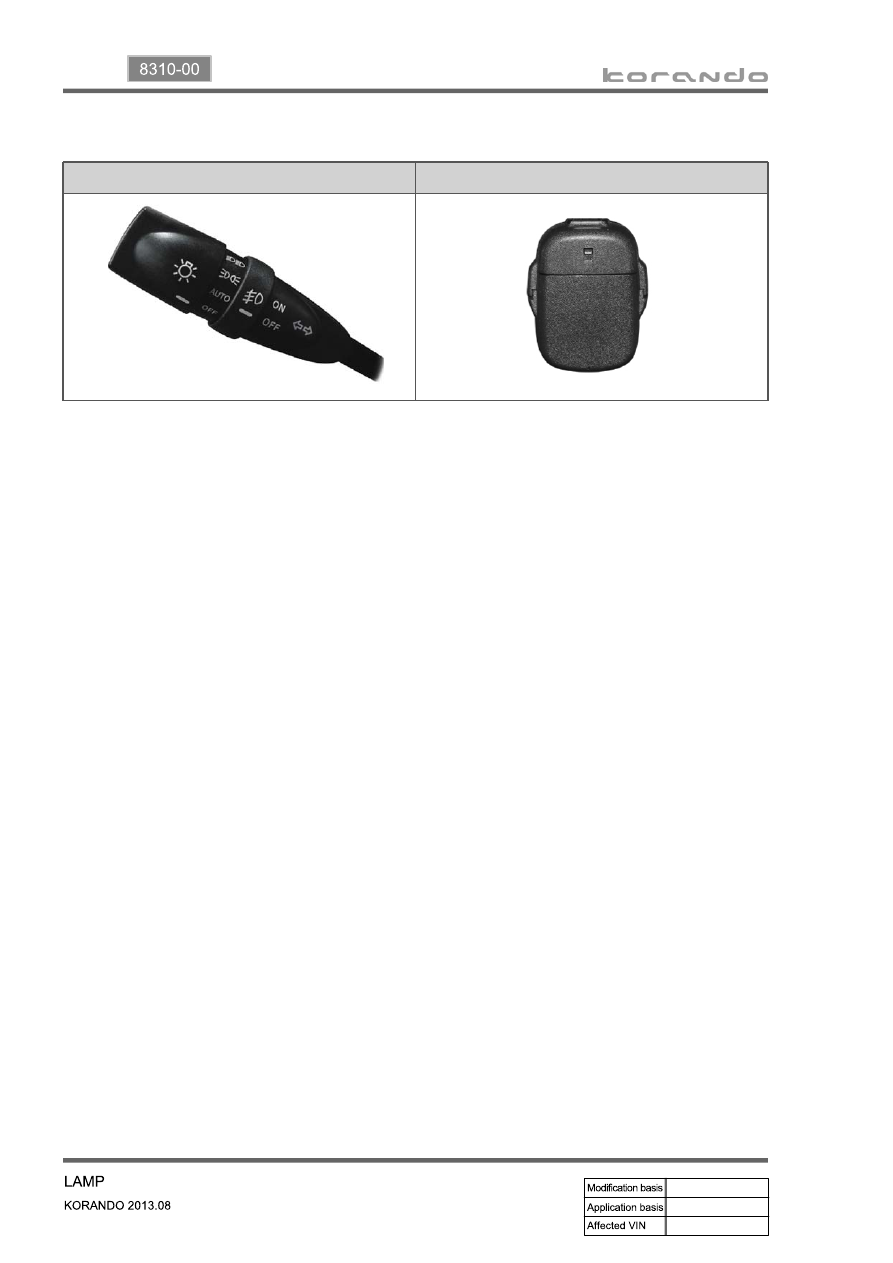

Auto light switch

Automatic light sensor unit
