SsangYong Korando III (2010 year). Service manual - part 475

05-32

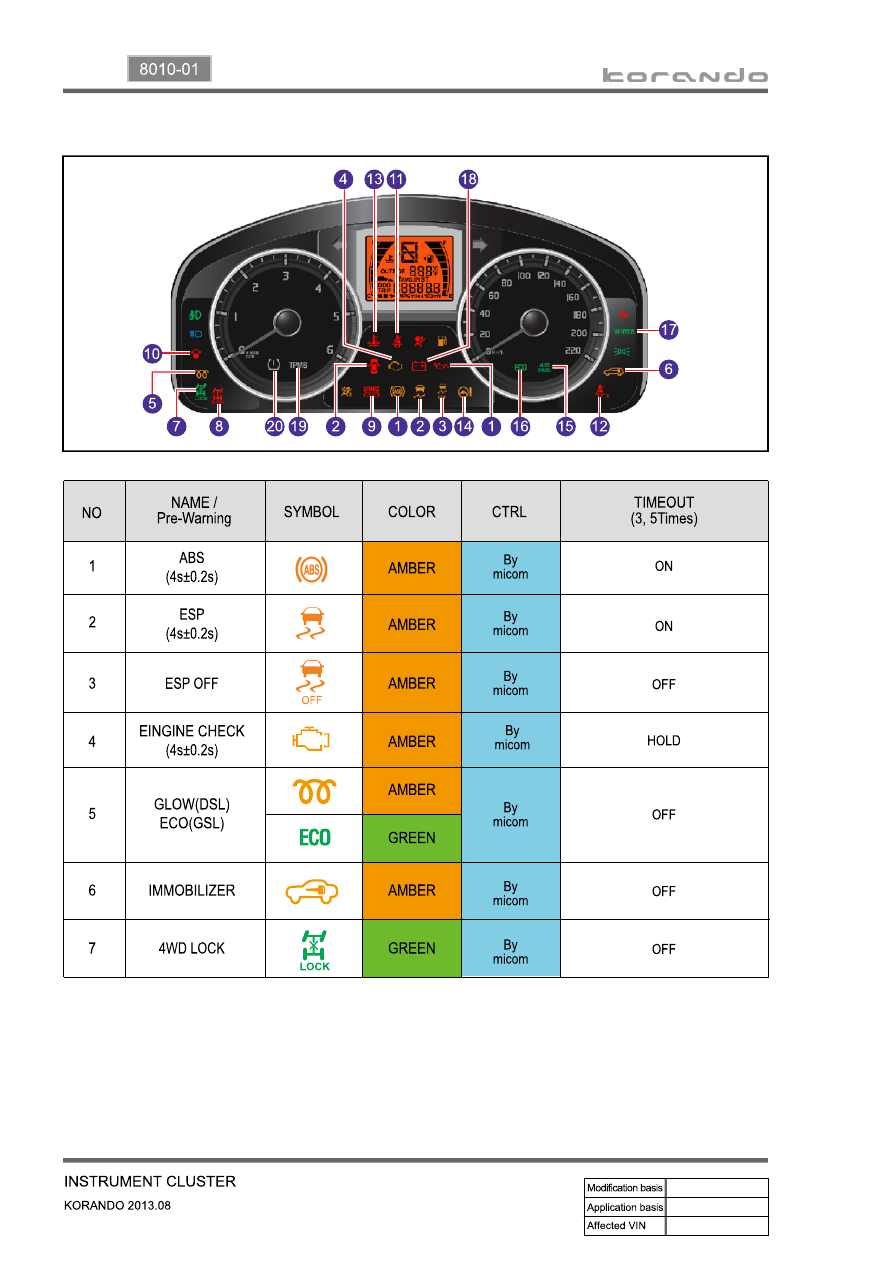

Symbols in STD (via CAN)

▶

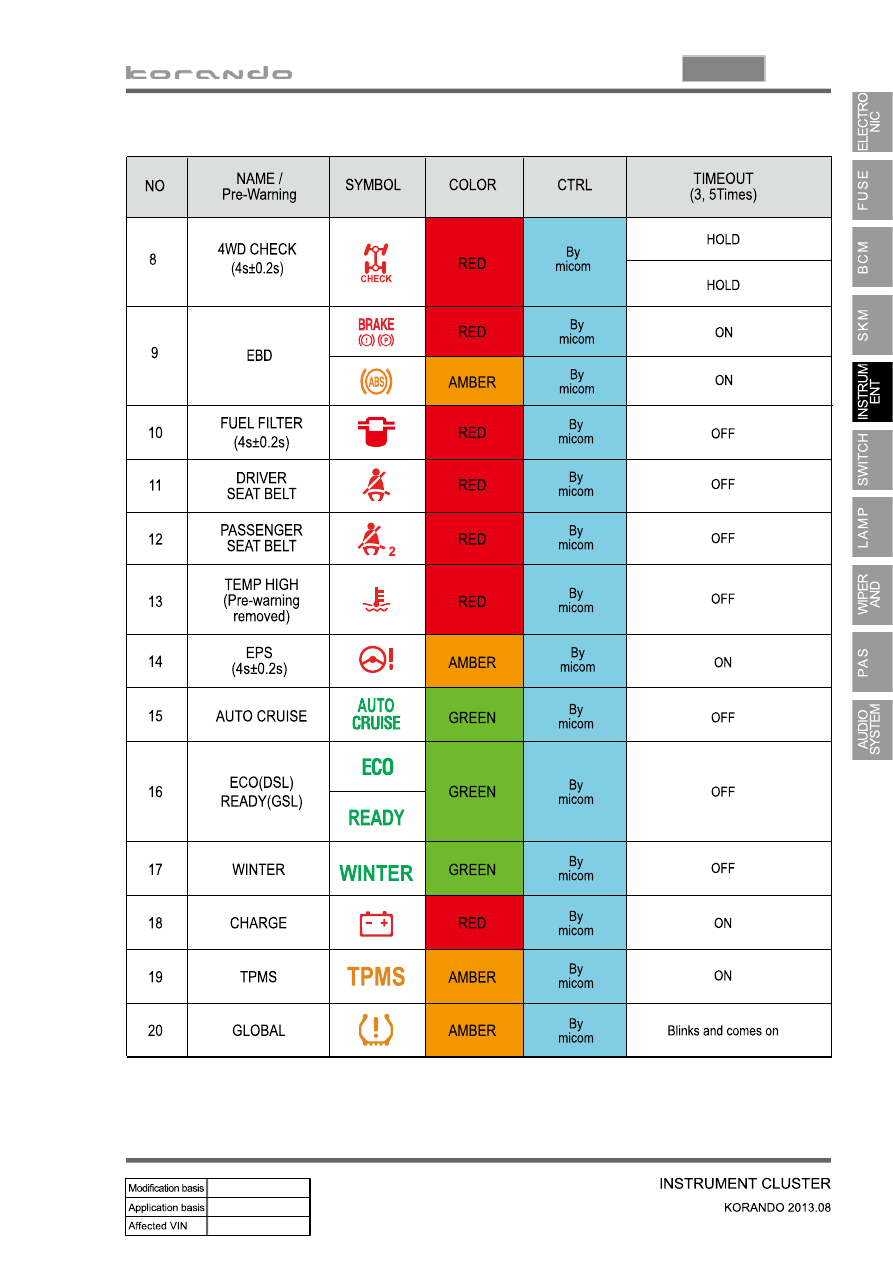

05-33

8010-01

05-34

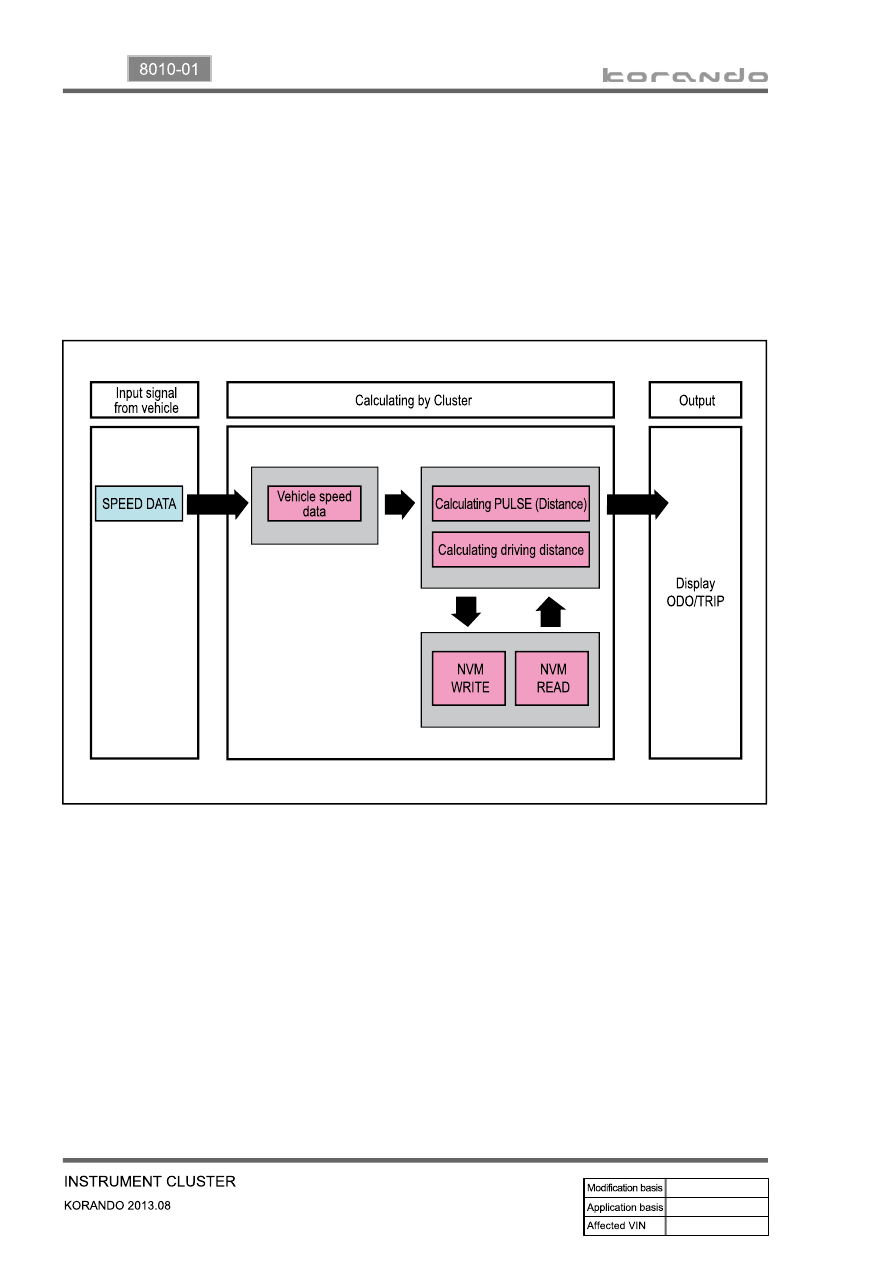

6) Odometer (ODO) and Trip Meter (TRIP)

The total driving distance (0 to 999,999 km or 0 to 999,999 miles) and the trip distance (0.0 to 999.9 km

or 0.0 to 9,999.9 miles) are calculated by using the value of pulse per 1 km which is programmed in the

EEPROM.

Applicable maximum driving speed is 300 km/h. If the vehicle speed goes over the limit, ODO and Trip

meter does not operate any more and the pointer indicates the maximum km/h (MPH). The pulse count

information is sent from the speed module according to the speed CAN data that matches the speed

frequency.

05-35

8010-01

Function

Signal

Remark

Input data

Speed signal

Display type

4 digits LCD

Display range

A: 0.0 ~ 999.9 km
(mile)
B: 0.0 ~ 9999.9 km
(mile)

Resolution

0.1 km (mile)

Maximum Odo
value

A: 0.0 → 999.9 → 0.0
km
B: 0.0 → 9999.9 →
0.0 km

IGN OFF

Memorize and maintain previous trip distance

Data clear

Supply B+ voltage for the first time
Press and hold mode switch for more than 1 sec.

Maximum Odo
value

If the signal indicating actual vehicle speed above 300 km/h is received, the data is
not accumulated.

Function

Signal

Remark

Input data

Speed signal

Display type

6 digits LCD

Display range

0~999999 km(mile)
Hold

Resolution

1 km (mile)

Maximum Odo
value

If the signal indicating
actual vehicle speed
above 300 km/h is
received, the data is
not accumulated.

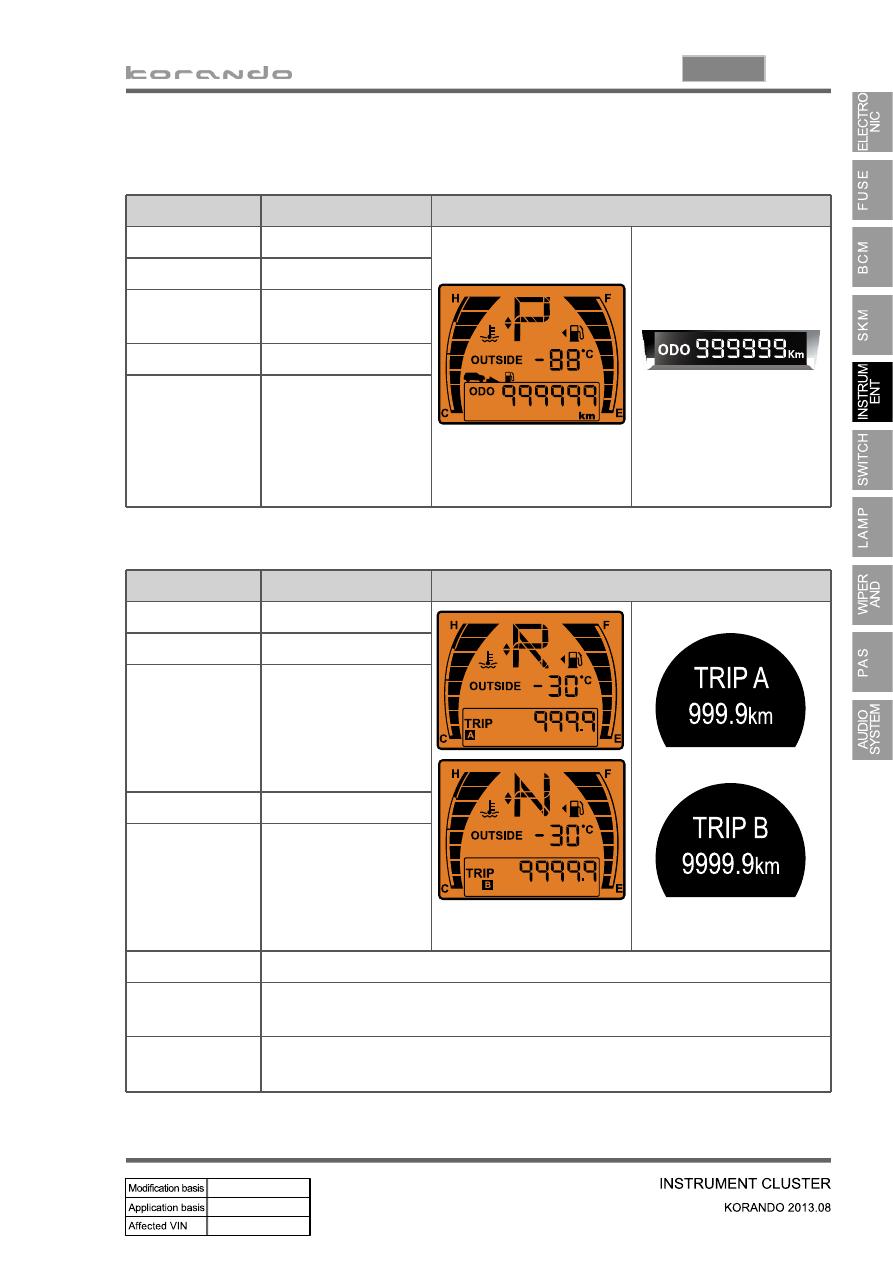

STD Class Odometer Display & Data Storage

▶

STD Class Tripmeter Display

▶

<STD>

<SVC>

<STD>

<SVC>
