03-64

Front defogger (heated wire) switch

03-65

8710-01

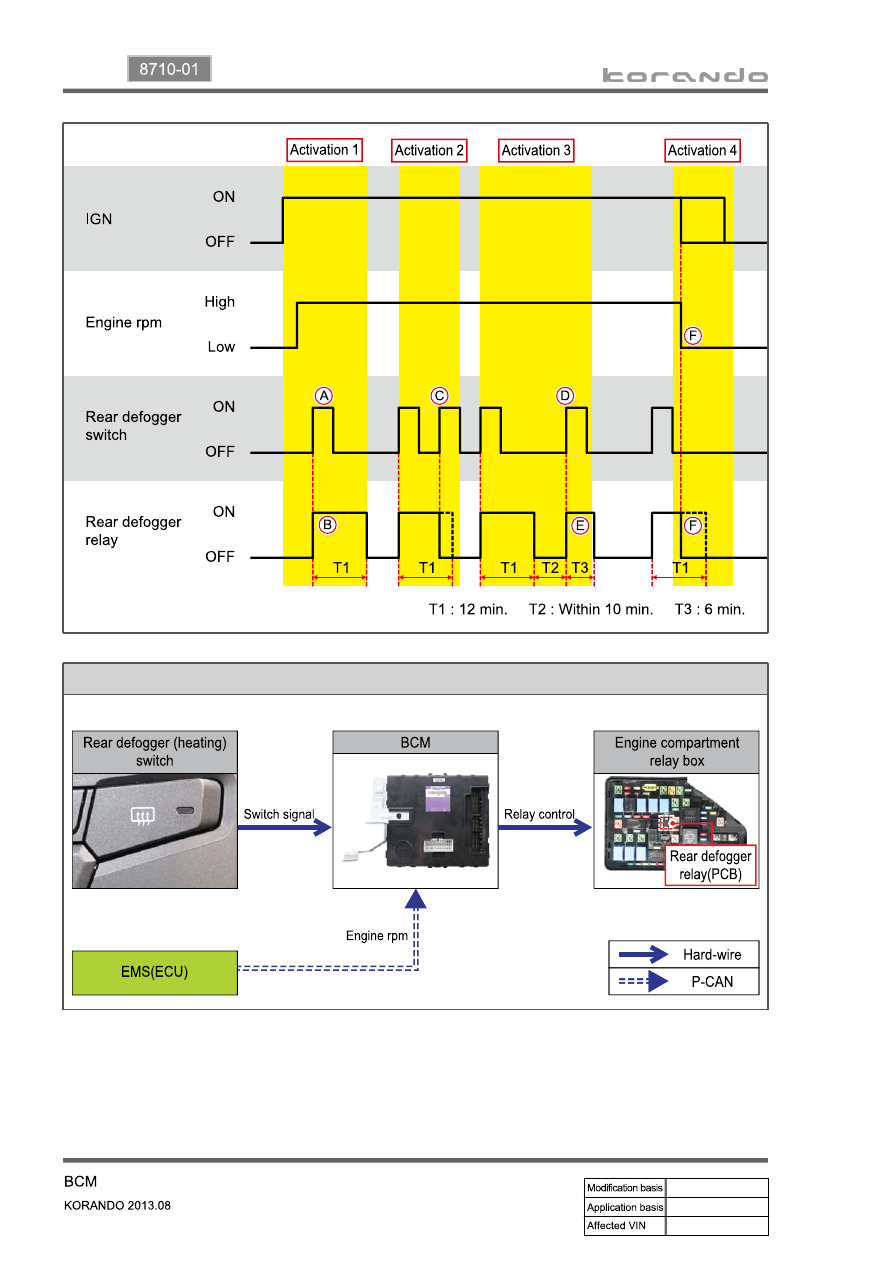

Rear defogger (heated wire) timer control

▶

The rear defogger (heated wire) switch is turned ON.

The rear defogger (heated wire) is activated for 12 minutes (T1).

A.

B.

Operation 1.

Turning on the rear defogger (heated wire) switch again when the defogger is activated turns off the

fog lamp output.

C.

Operation 2.

Within 10 minutes (T2) after the output of the rear defogger (heated wire) for 12 minutes (T1).

When the rear defogger (heated wire) switch is turned ON, the front defogger is activated for only 6

minutes (T3).

(This operation is not available when the rear defogger is turned off by turning off engine, IGN OFF, or

front defogger (heated wire) switch)

D.

E.

Operation 3.

If the engine is running at low speed with IGN OFF or IGN ON, the rear defogger (heated wire) is

deactivated.

F.

Operation 4.

The rear defogger is turned OFF when the ignition is turned OFF or engine is not running.

03-66

Operating process

- Engine running (Alternator: High)

03-67

8710-01

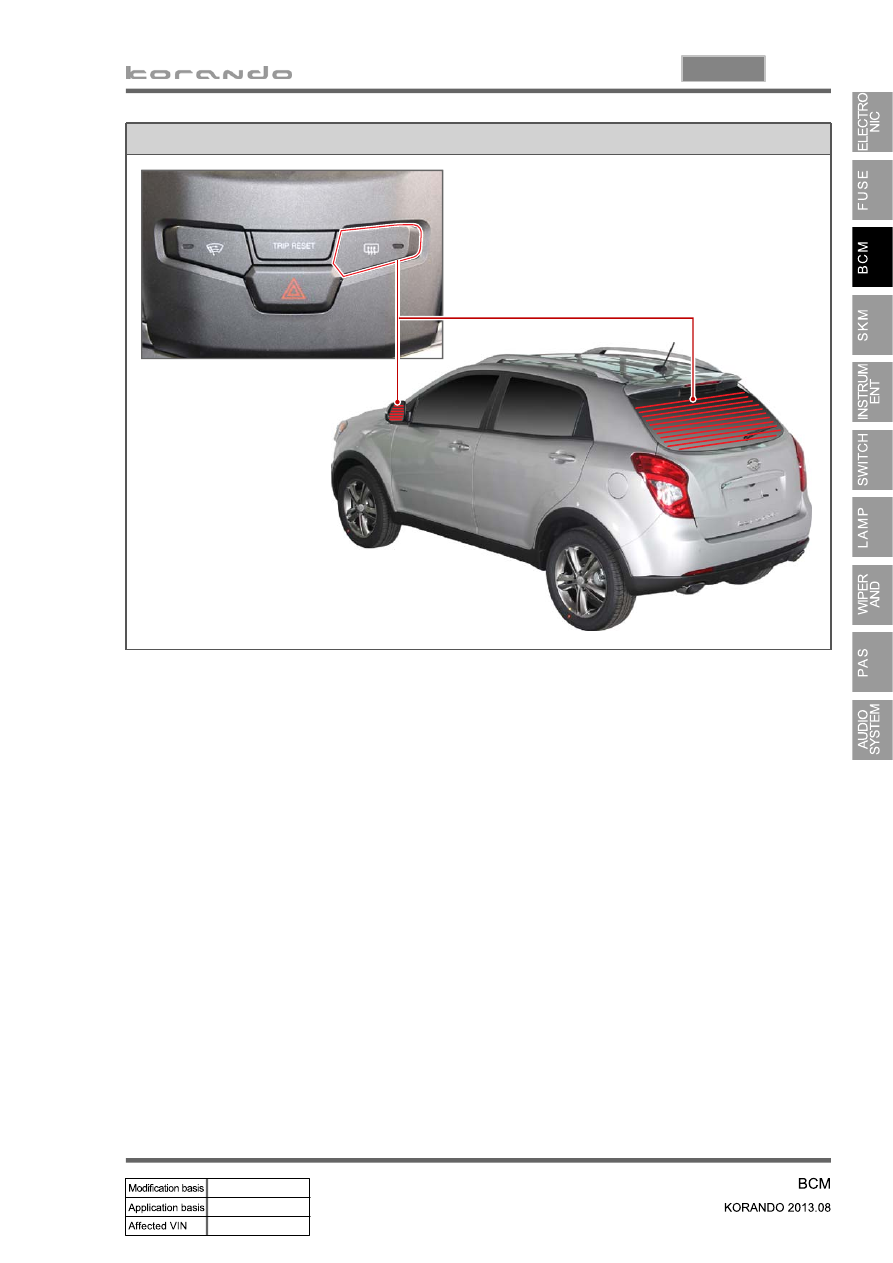

Rear defogger (heated wire) switch
