03-32

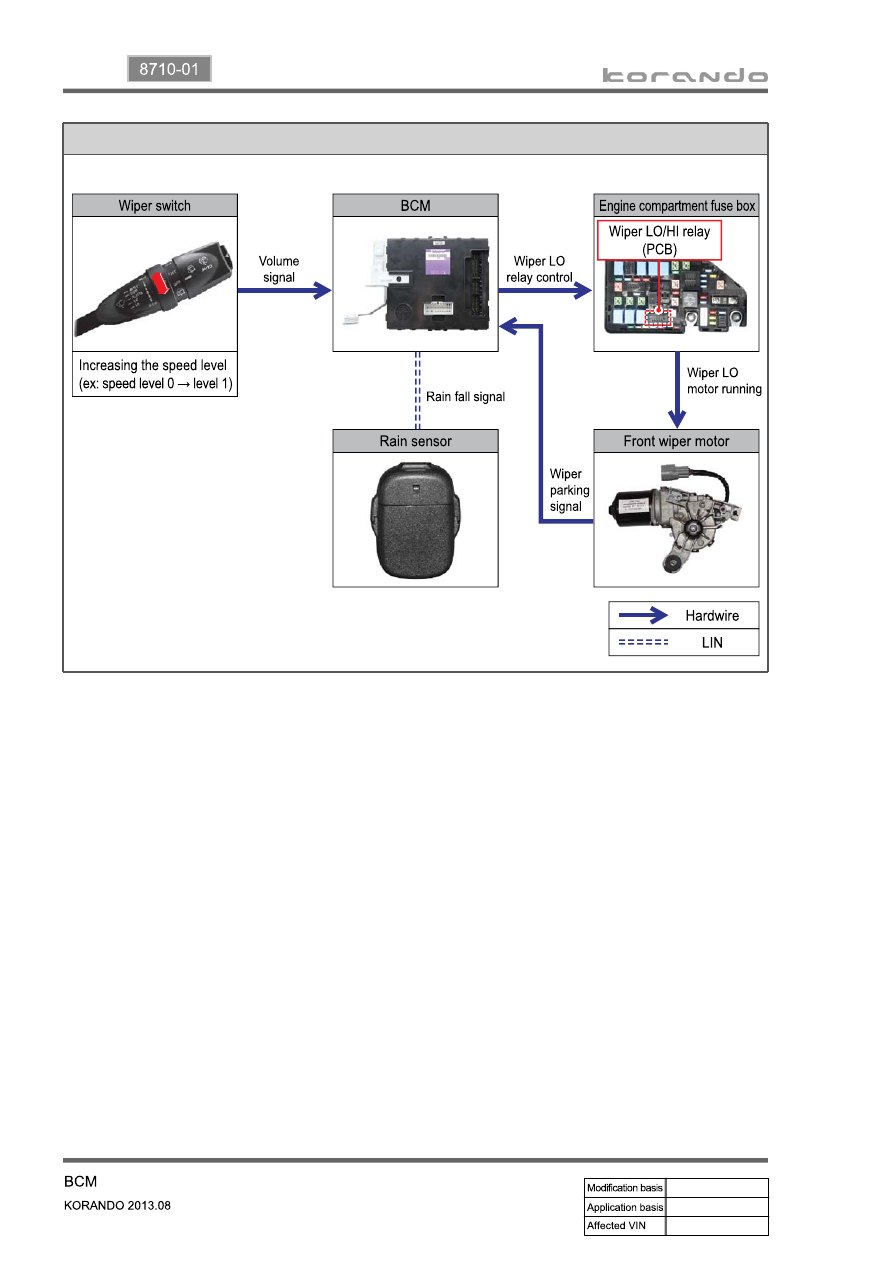

Operating process

- IGN ON/Wiper AUTO switch ON/Wiper motor in parking position

03-33

8710-01

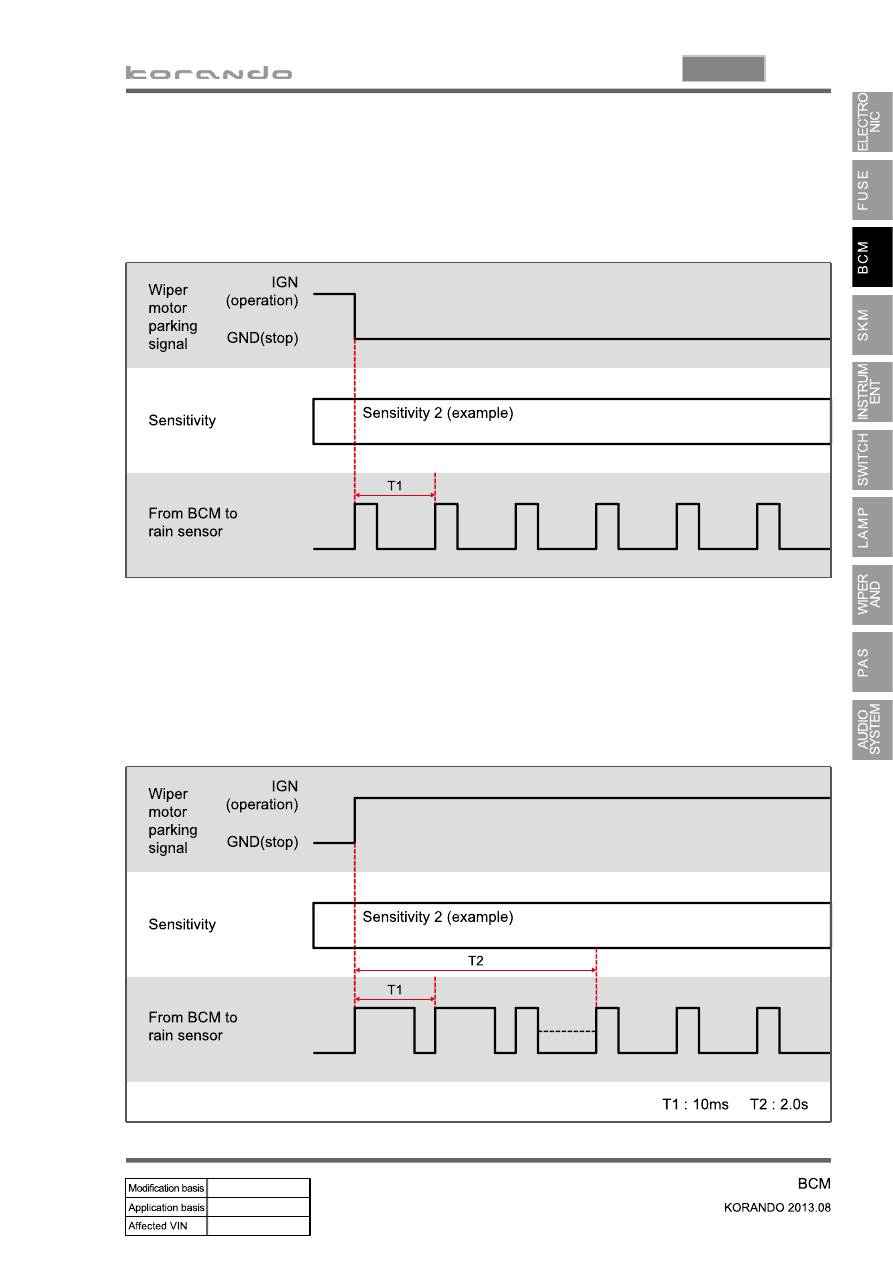

Abnormal wiper parking signal stop (GND)

▶

The wiper system sends the corresponding signal of current status with IGN ON and wiper AUTO

switch ON.  (The wiper motor is operated only when the request signal from the rain sensor is

received.)

A.

Operation 1. (When the wiper motor parking signal stopped at GND)

Abnormal wiper parking signal stop (IGN)

▶

The wiper system sends the corresponding signal of current status for 2 seconds (T2) with IGN ON

and wiper AUTO switch ON.

After the 2 seconds (T2), the system outputs the signal of the stopped status.

(The wiper motor is operated only when the request signal from the rain sensor is received.)

A.

B.

Operation 1. (When the wiper motor parking signal stopped at ING)

03-34

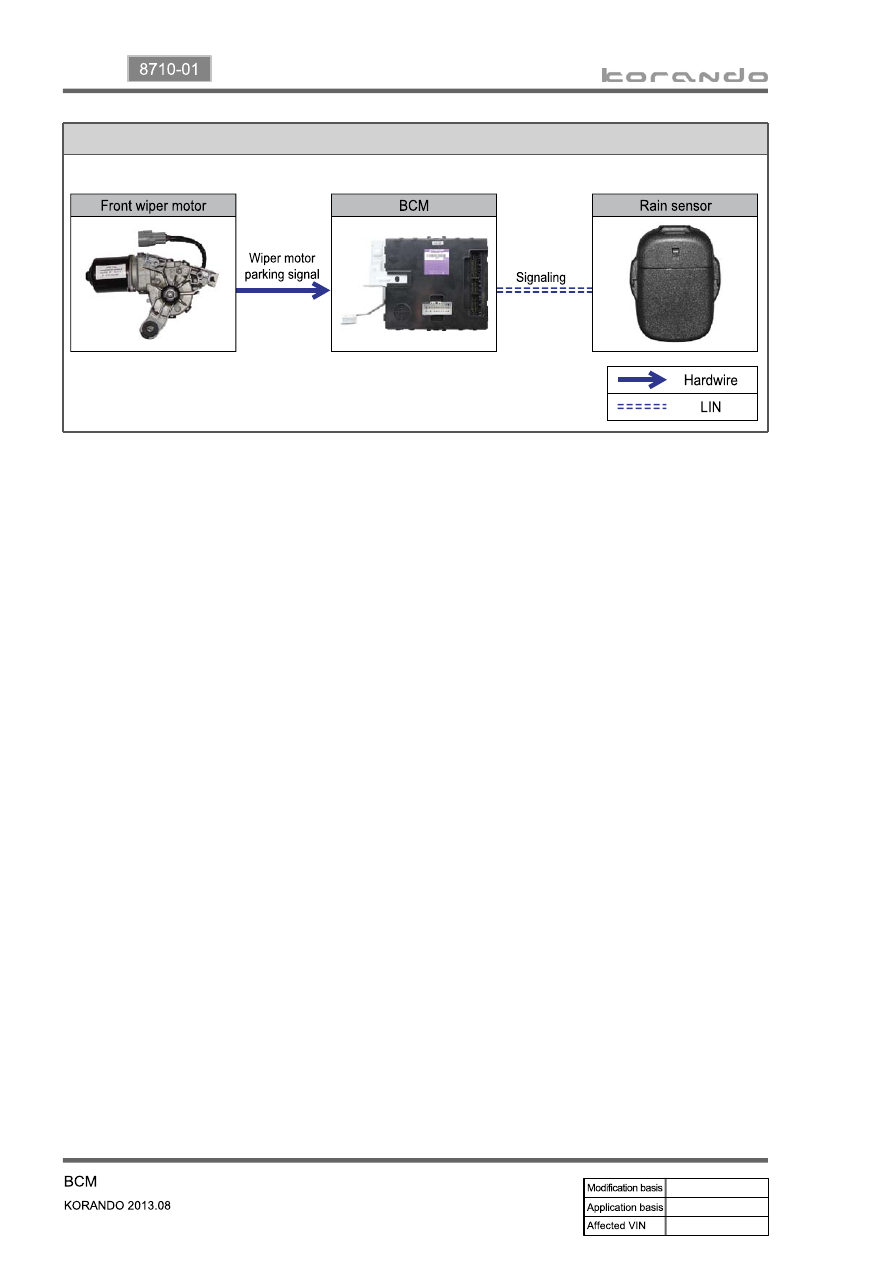

Operating process

- IGN ON/Wiper AUTO switch ON/Wiper motor in parking position

03-35

8710-01

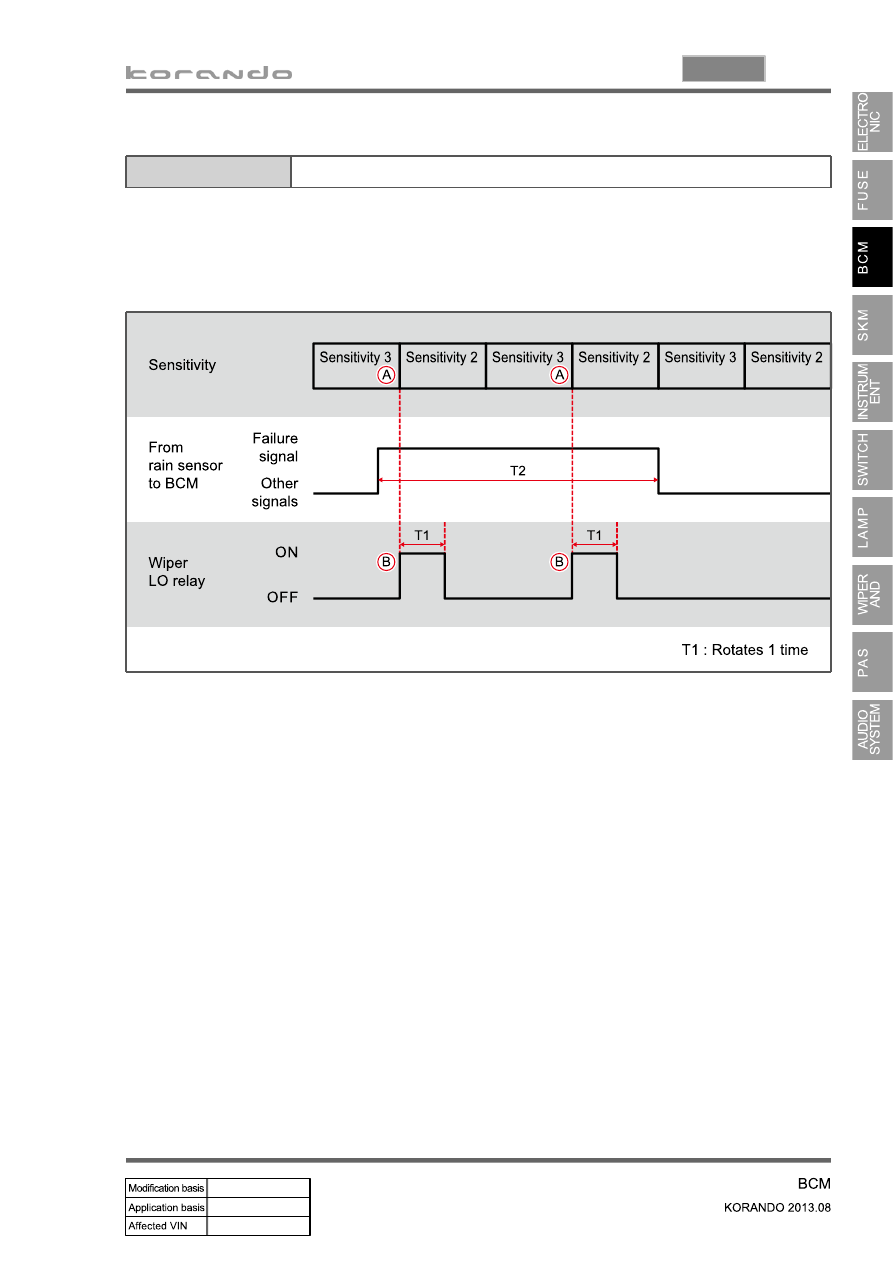

Rain sensor malfunction (rain sensor external malfunction)

▶

The wiper AUTO switch speed level is adjusted (speed level 3 → level 2)

The wiper LO relay is operated once (T1).

A.

B.

Operation 1.

("rain sensor installed improperly" signal received from the rain sensor)

Basic conditions

IGN ON and wiper AUTO switch in ON position
