SsangYong Korando III (2010 year). Service manual - part 425

01-4

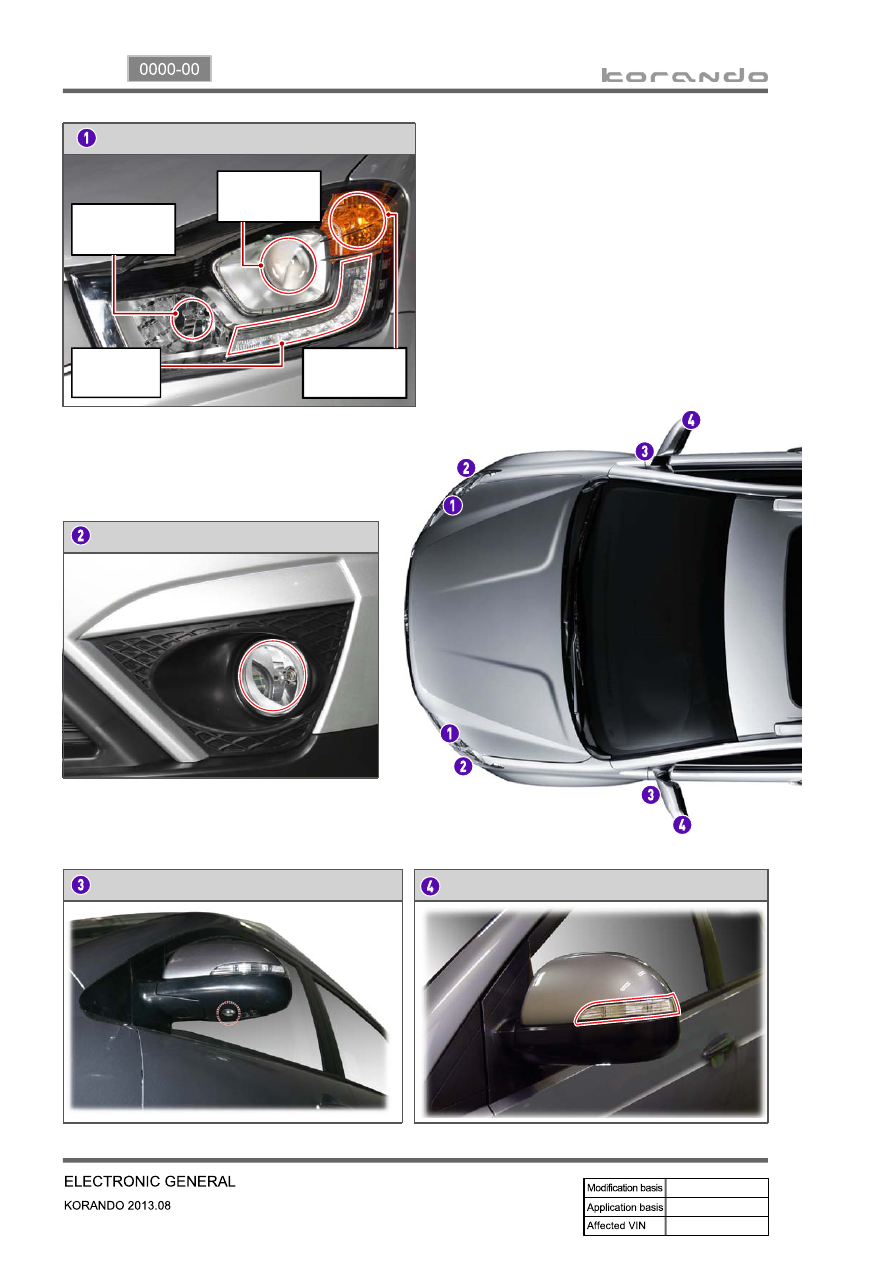

Headlamp

Puddle lamp

Front fog light

Side repeater

Turn signal

lamp

Headlamp

(High beam)

Headlamp

(Low beam)

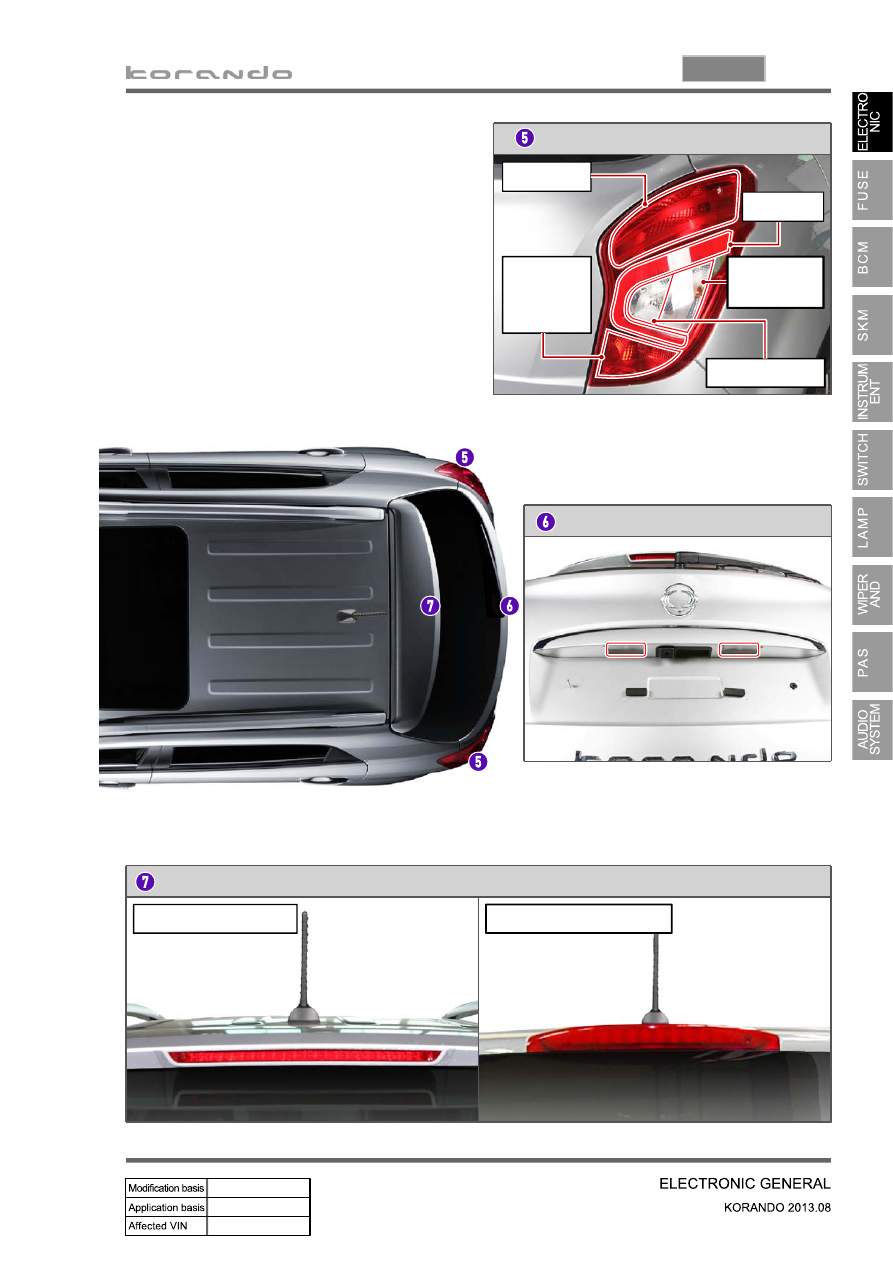

Tail lamp,

DRL (EU)*

01-5

0000-00

High mounted stop lamp

License plate lamp

Rear combination lamp

Vehicle with spoiler

Vehicle without spoiler

Back-up lamp

Stop lamp

Tail lamp

Turn signal

lamp

Stop lamp,

Rear fog

light (EU)

01-6

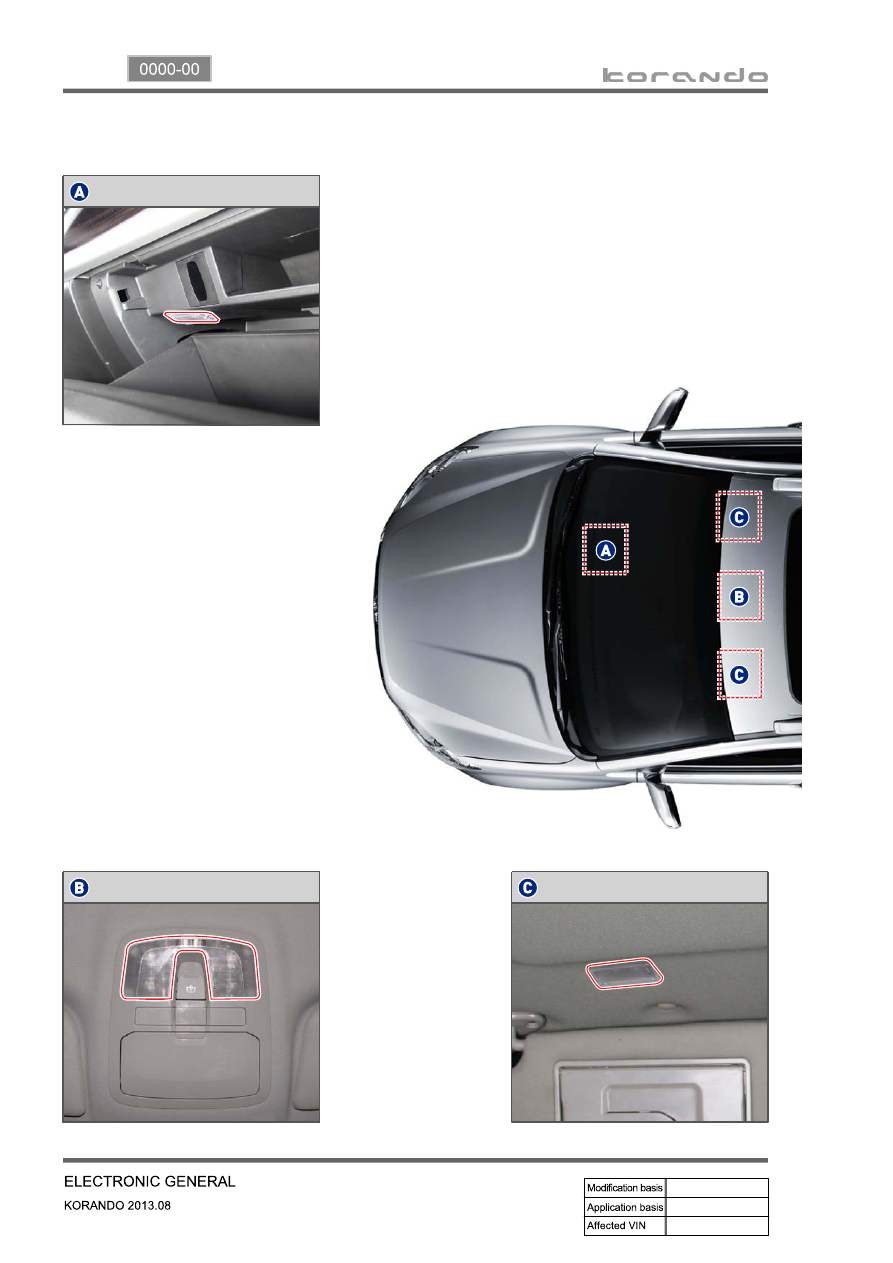

Front room lamp

Glove box lamp

Sun visor lamp

2. INTERIOR LAMP SYSTEM LAYOUT

01-7

0000-00

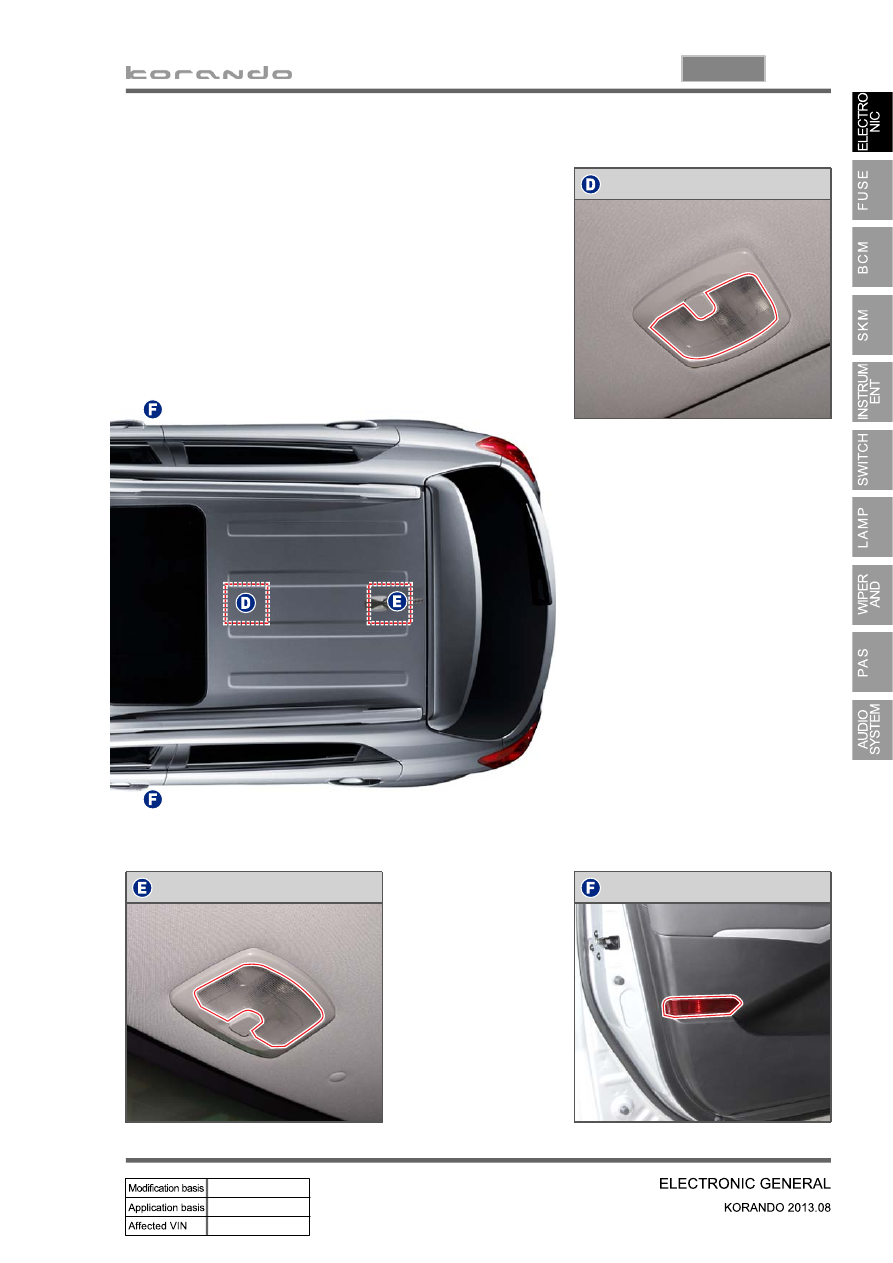

Luggage lamp

Door courtesy lamp

Center room lamp
