SsangYong Korando III (2010 year). Service manual - part 405

09-13

1452-01

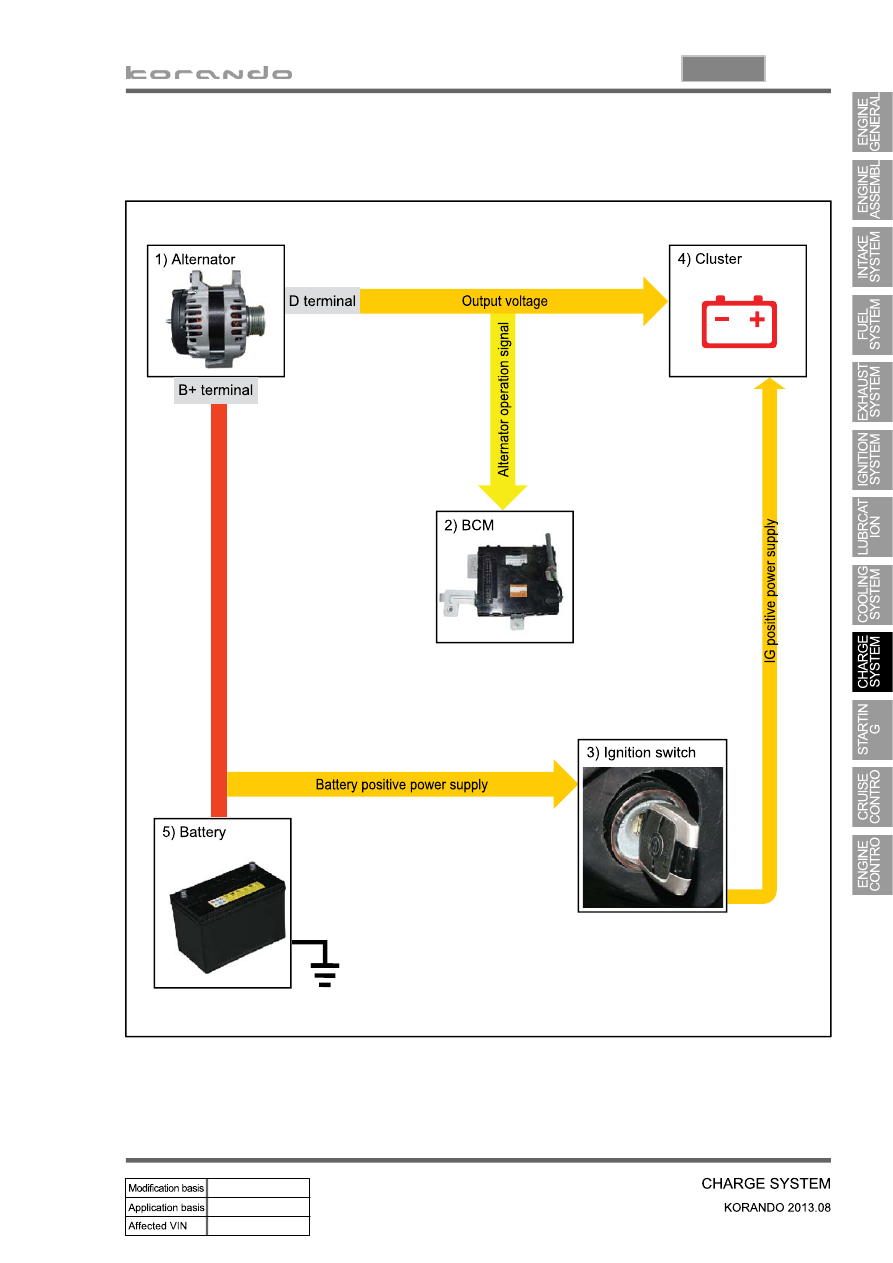

2. CHARGING OPERATION

1) Vehicle without Smart key system

09-14

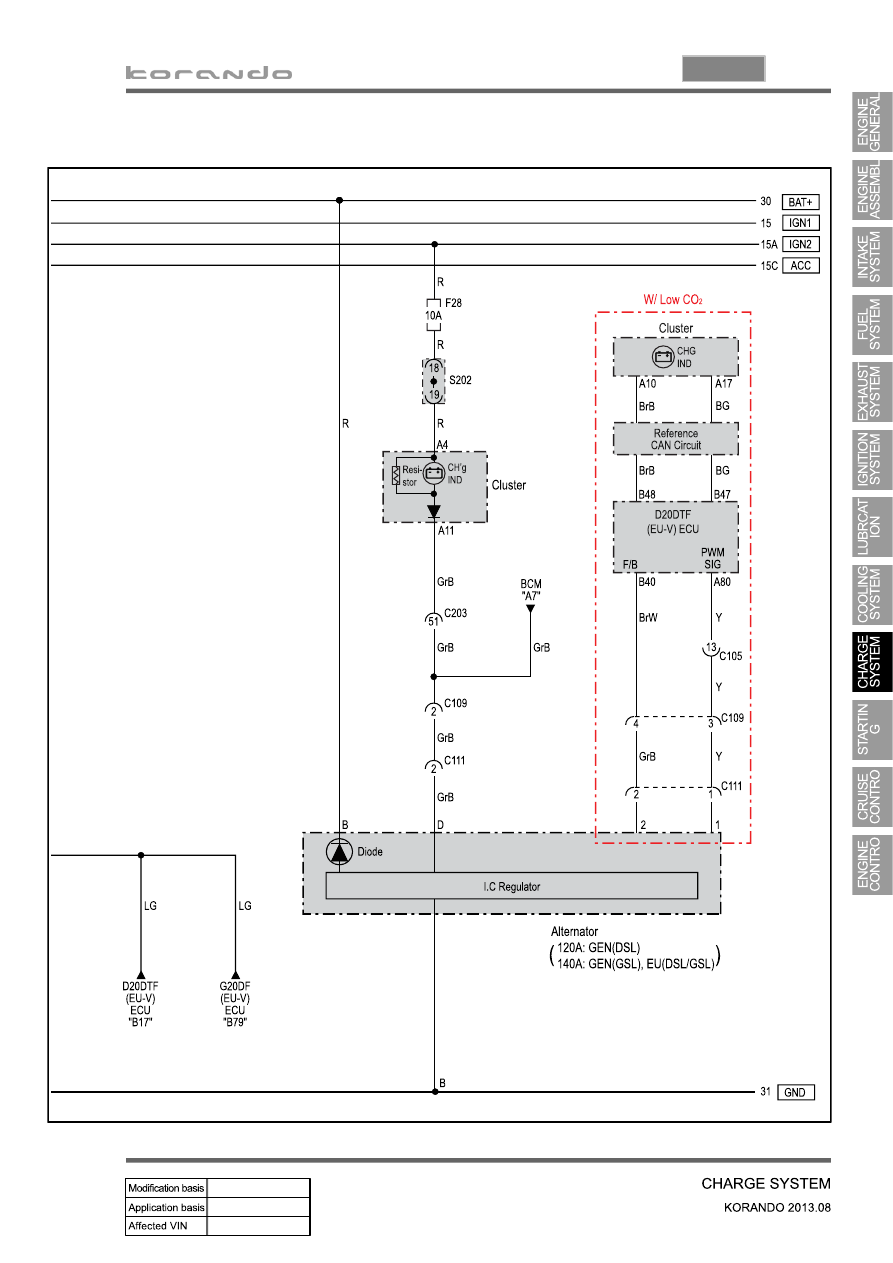

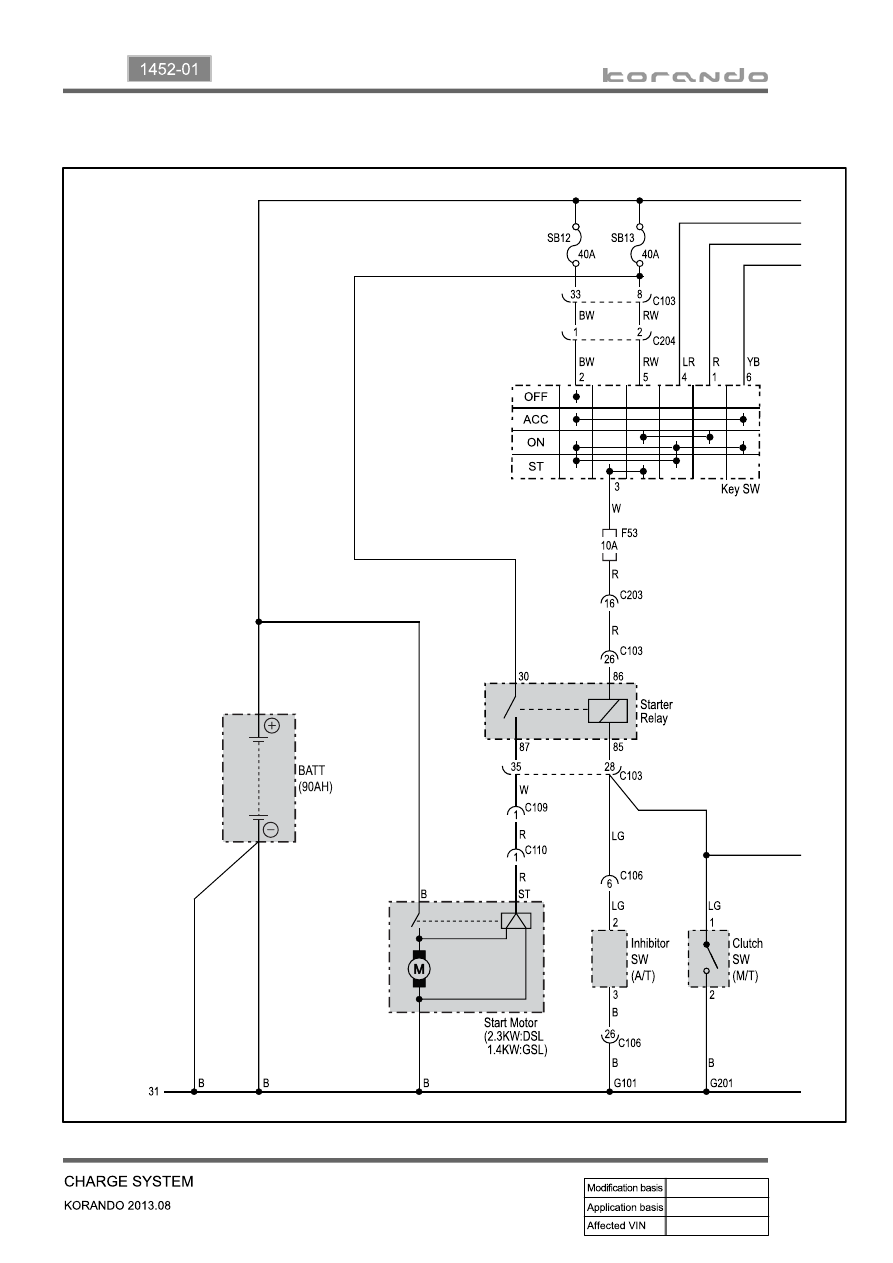

2) Circuit Diagram

09-15

1452-01

11-3

1462-01

1. SPECIFICATION

Unit

Description

Specification

Start motor

Capacity

12V 1.4kw

Engagement

Meshed type

Rotating direction

Clockwise

Solenoid operating voltage

Max. 8V

Weight

2.5kg
