07-8

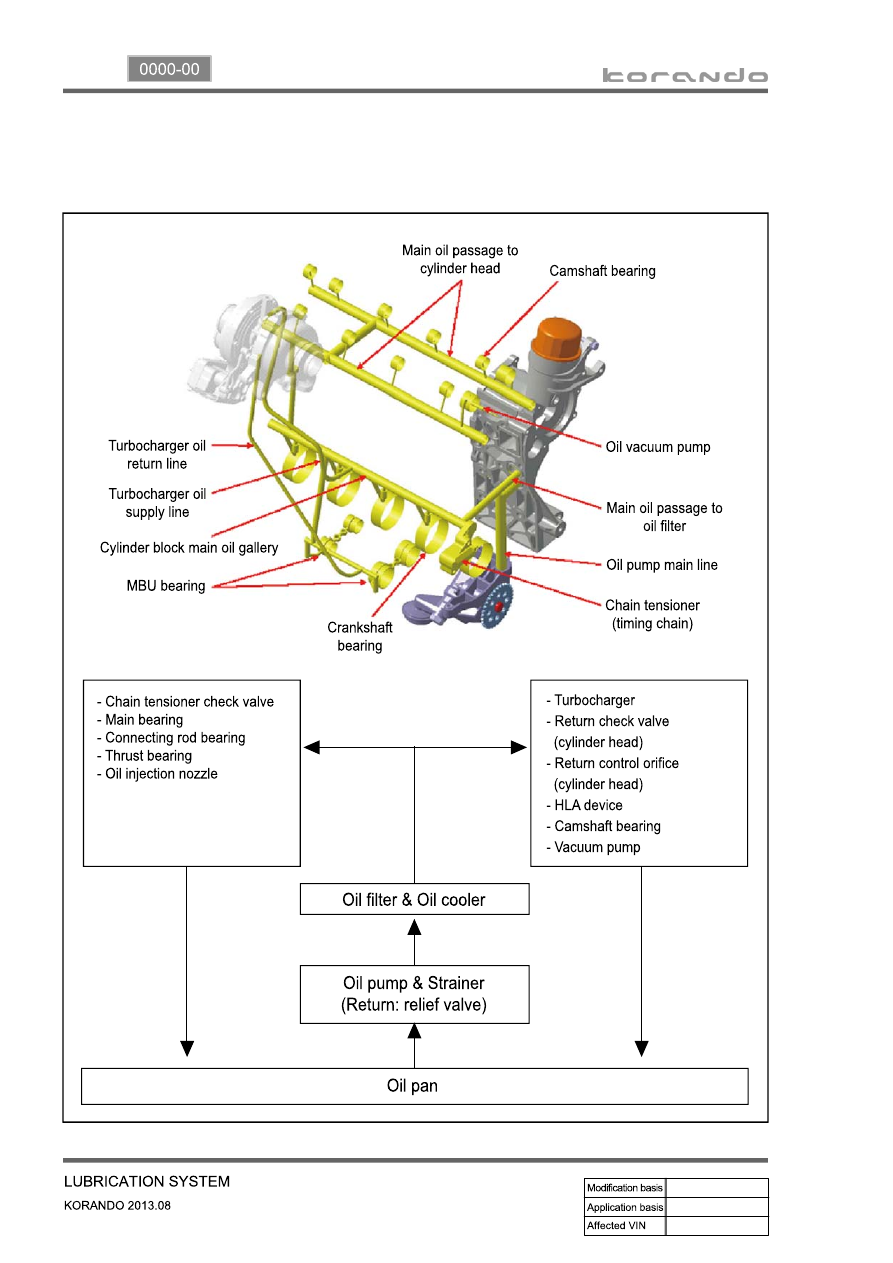

1) Operation Flow

2. OPERATING PROCESS

07-9

0000-00

3. LUBRICATION

1)Anti-friction

The oil makes a thin film on the surface of sliding components to reduce the wear due to friction.

2)Cooling

The friction makes the heat on the components. The oil absorbs the heat and radiates it or cools it down.

3) Sealing

The piston ring on the piston seals the cylinder. The oil gets into the clearance in piston ring to secure

the sealing for compression pressure and combustion gas.

4) Anti-corrosion

The oil generates the thin film on the surface of components to prevent the material from contacting with

air, water and corrosive gas.

5) Cleaning

The oil transfers the residue of material due to friction, oxidized substance, and carbonized substance

while circulating in the engine by oil pump.

08-3

0000-00

1. SPECIFICATION

Description

Specification

Cooling system

Type

Water cooling, forced circulation

Coolant

Capacity

Approx. 8.5 liter

Radiator

Core size

740W X 380H X 27t (over 281,200㎣)

Flow type

Cross flow

Min. cooling capacity

over 68,000kcal/h

Antifreeze

Type

Long life coolant (SYC 1025)

Mixing ratio

(water:antifreeze)

50 : 50

Cooling fan module

Type

Electric

Control type

Series: low speed, Parallel: high speed

Coolant reservoir

Capacity

over 2.2L

Circulation

Closed roof type

Pressure cap

Screw type, 1.4bar

Vacuum valve

Screw type, 1.4bar

Thermostat

Type

Wax pallet type

Opening temperature

90℃

Fully open temperature

100℃

Valve lift

8mm

Capacity

M/T

180W (Ø360) + 120W (Ø360)

A/T

220W (Ø360) + 150W (Ø360)

08-4

2. INSPECTION

Possible Cause

Action

Coolant level
is too low

- Leak from the radiator
- Leak from the auxiliary reservoir
- Leak from the heater core

- Replace the radiator
- Replace the auxiliary reservoir
- Replace the heater

- Leak from the coolant hose connections
- Damaged coolant hose

- Reconnect the hose or replace
  the clamp
- Replace the hose

- Leak from the water pump gasket
- Leak from the water pump internal seal

- Replace the gasket
- Replace the water pump

- Leak from the water inlet cap
- Leak from the thermostat housing

- Replace the water inlet cap
  gasket
- Replace the thermostat sealing

- Incorrect tightening torque of the
  cylinder head bolts
- Damaged cylinder head gasket

- Tighten the bolts to the specified
  torque
- Replace the cylinder head
  gasket

Coolant
temperature is
too high

- Coolant leakage (Coolant level is low)
- Improper coolant mixture ratio
- Kinked coolant hose

- Add coolant
- Check the coolant concentration
  (Anti-freeze)
- Repair or replace the hose

- Defective thermostat
- Defective water pump
- Defective radiator
- Defective auxiliary reservoir or tank cap

- Replace the thermostat
- Replace the water pump
- Replace the radiator
- Replace the auxiliary reservoir
  or tank cap

- Cracks on the cylinder block or cylinder
  head
- Clogged coolant passages in the
  cylinder block or cylinder head

- Replace cylinder block or
  cylinder head
- Clean the coolant passage

- Clogged radiator core

- Clean the radiator core

- Improper operation of cooling fan

- Replace the cooling fan or repair
  the related circuit

- Defective temperature sensor or faulty
  wiring

- Replace the sensor or repair the
  related wiring

Coolant
temperature is
too low

- Thermostat is stuck open

- Replace the thermostat

- Improper operation of cooling fan

- Replace the cooling fan or repair
  the related circuit

- Defective temperature sensor or faulty
  wiring

- Replace the sensor or repair the
  related wiring
