02-22

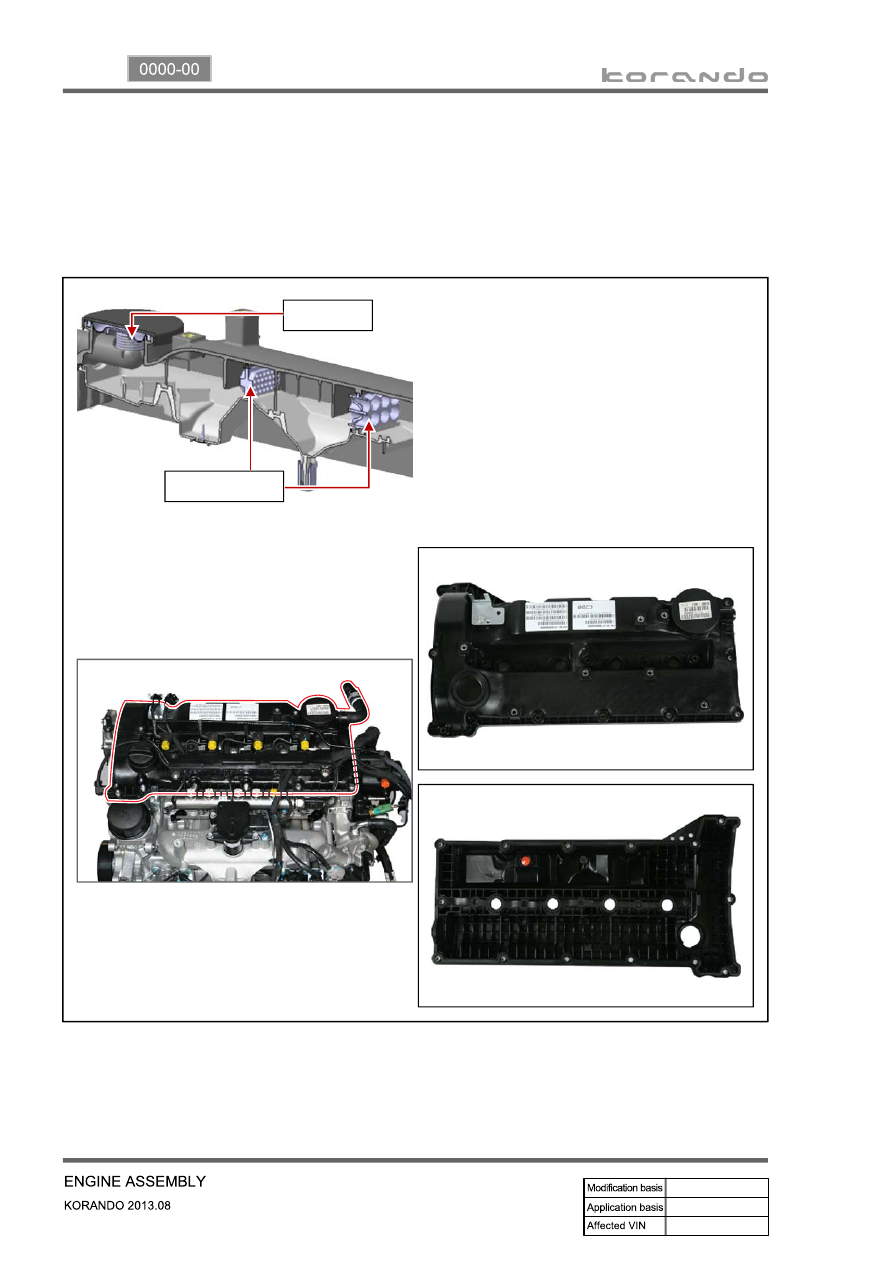

5. CYLINDER HEAD COVER AND OIL SEPARATOR

The cylinder head cover is made by high strength plastic to reduce the weight. The multi twist type oil

separator improves the oil consumption.

Components

▶

Oil separator

PCV valve

02-23

0000-00

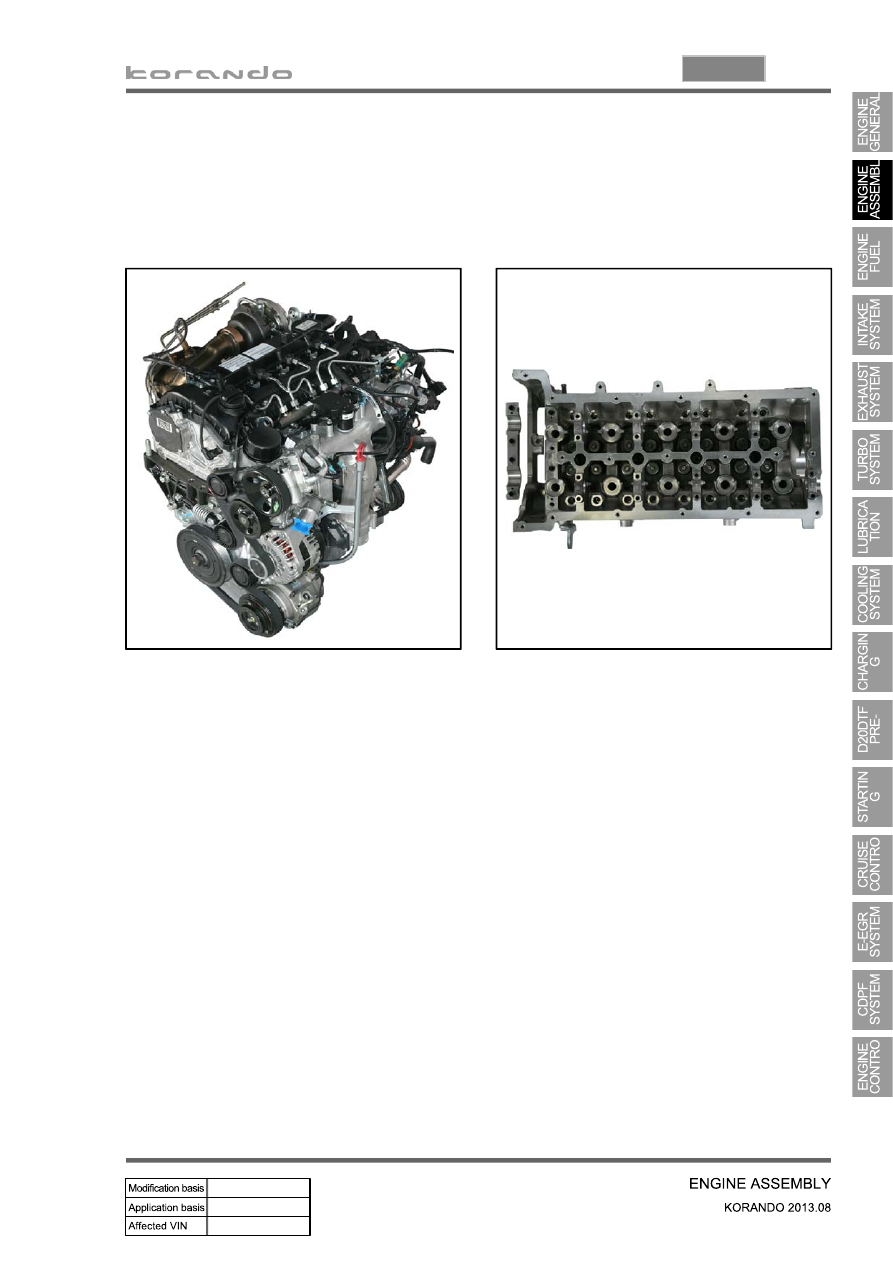

6. CYLINDER HEAD

Cylinder head contains cam position sensor, vacuum pump, intake manifold, exhaust manifold and valve

assembly. Vacuum pump and the high pressure (HP) pump are driven by Camshaft and valves are

install in vertical direction. This enables the compact layout in cylinder head assembly.

02-24

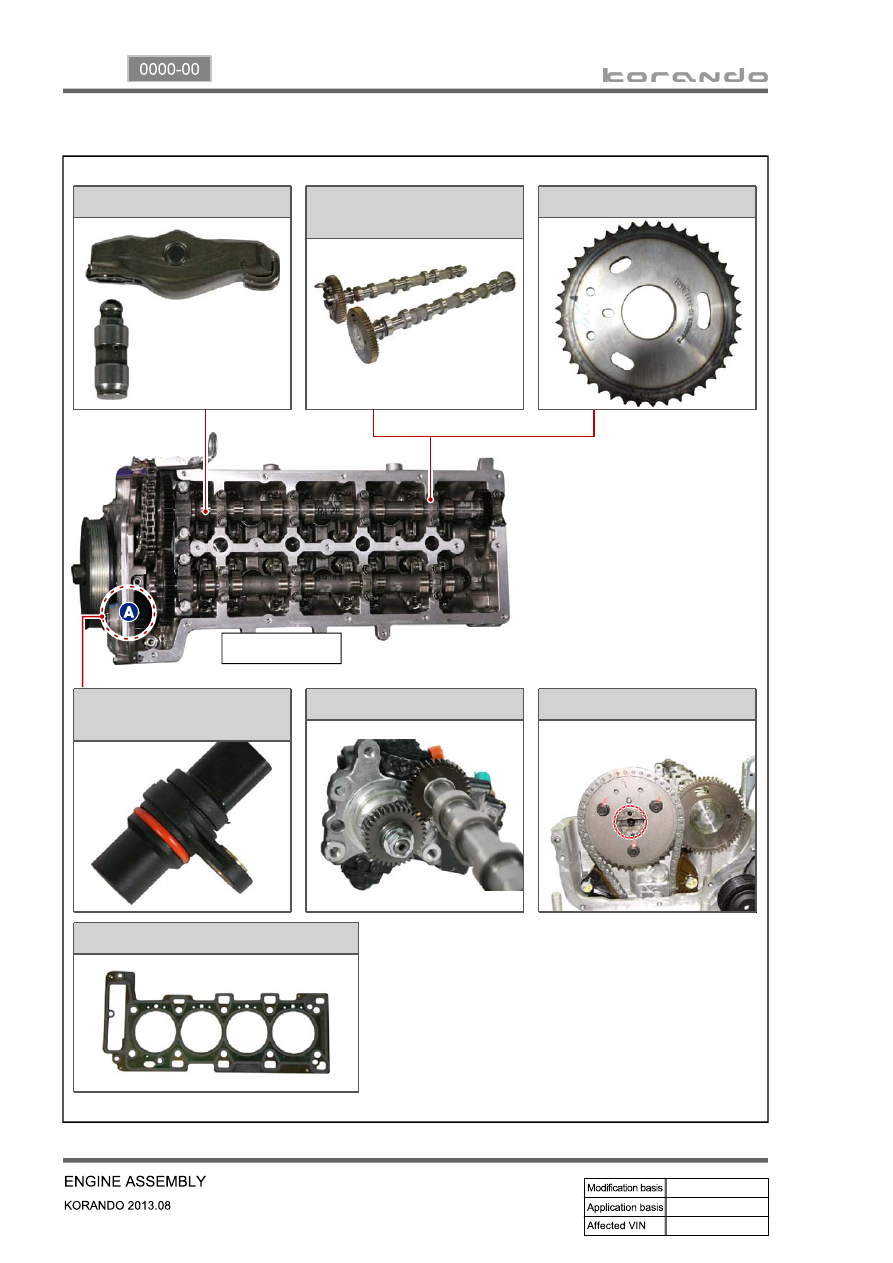

Vacuum pump drive

Intake/exhaust Camshafts

Camshaft sprocket

Finger follower & HLA

Components

▶

Cylinder head

Camshaft position sensor

HP pump drive gear

Cylinder head gasket

02-25

0000-00

Chain upper bush

Chain type: single bush
Chains: 112 EA

Hydraulic tensioner

Contains tensioner housing
plug, spring and check valve,
and operated by hydraulic
pressure

Exhaust Camshaft sprocket

Teeth: 42 EA

Clamping rail

Installed between exhaust
Camshaft sprocket and
crankshaft sprocket

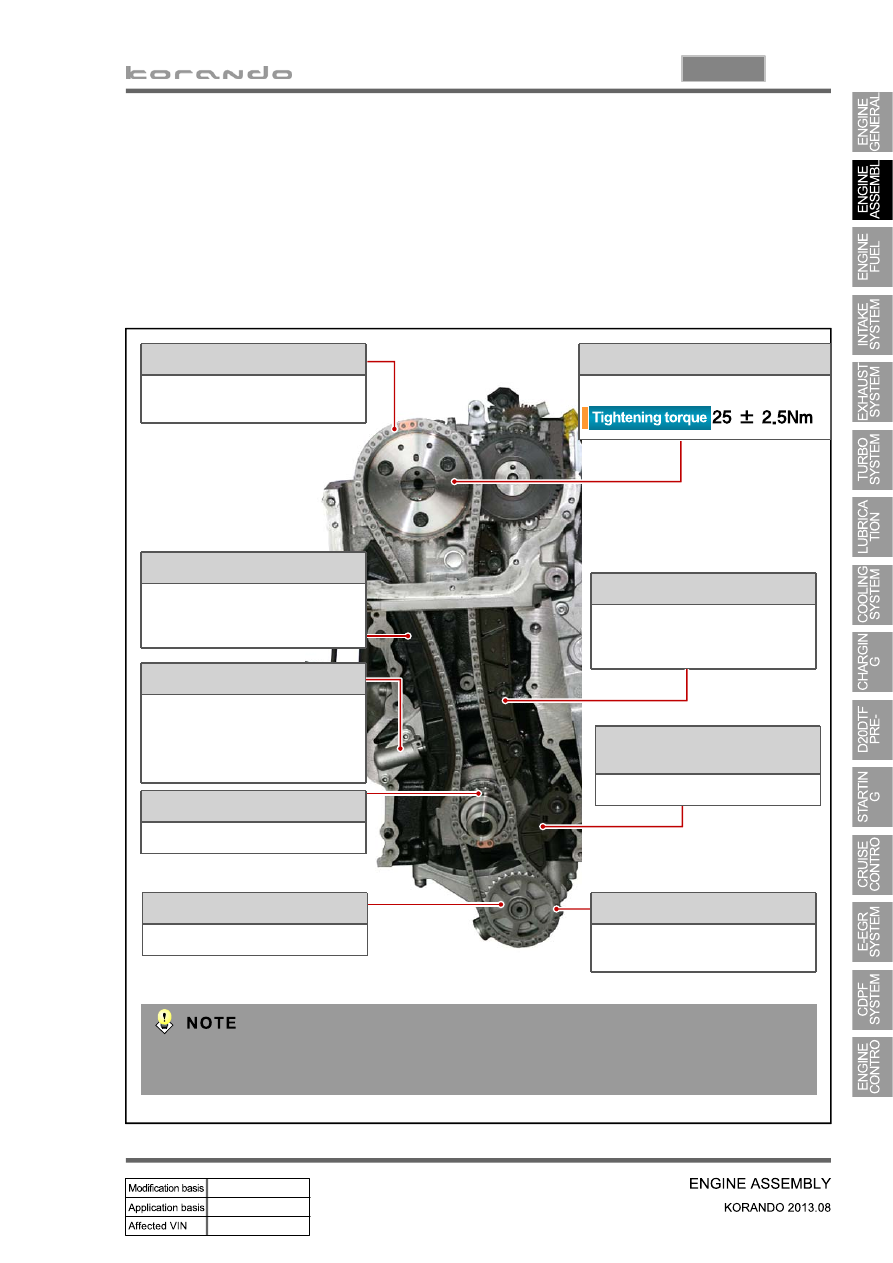

7. CHAIN AND GEAR DRIVE SYSTEM

D20DTF engine uses single stage chain drive system. Timing chain drives the exhaust side and gear drive

the intake side. Timing chain is single bush type. Upper chain drives HP pump connected to intake

Camshaft by driving exhaust cam shift sprocke, and lower chain drives oil pump to lubricate the engine.

And, MBU (Mass Balance shaft Unit) drive gear drives MBU.

Components

▶

Chain lower bush

Chain type: single bush
Chains: 60 EA

Mechanical type tensioner

Operated by internal spring

The timing links (gold color) on the timing chain are aligned with the timing marks on the

crankshaft sprocket and the camshaft sprocket whenever the crankshaft rotates 8 turns.

Oil pump sprocket

Teeth: 30 EA

Tensioner rail

Installed between exhaust
Camshaft sprocket and
crankshaft sprocket

Crankshaft sprocket

Teeth: 21 EA
