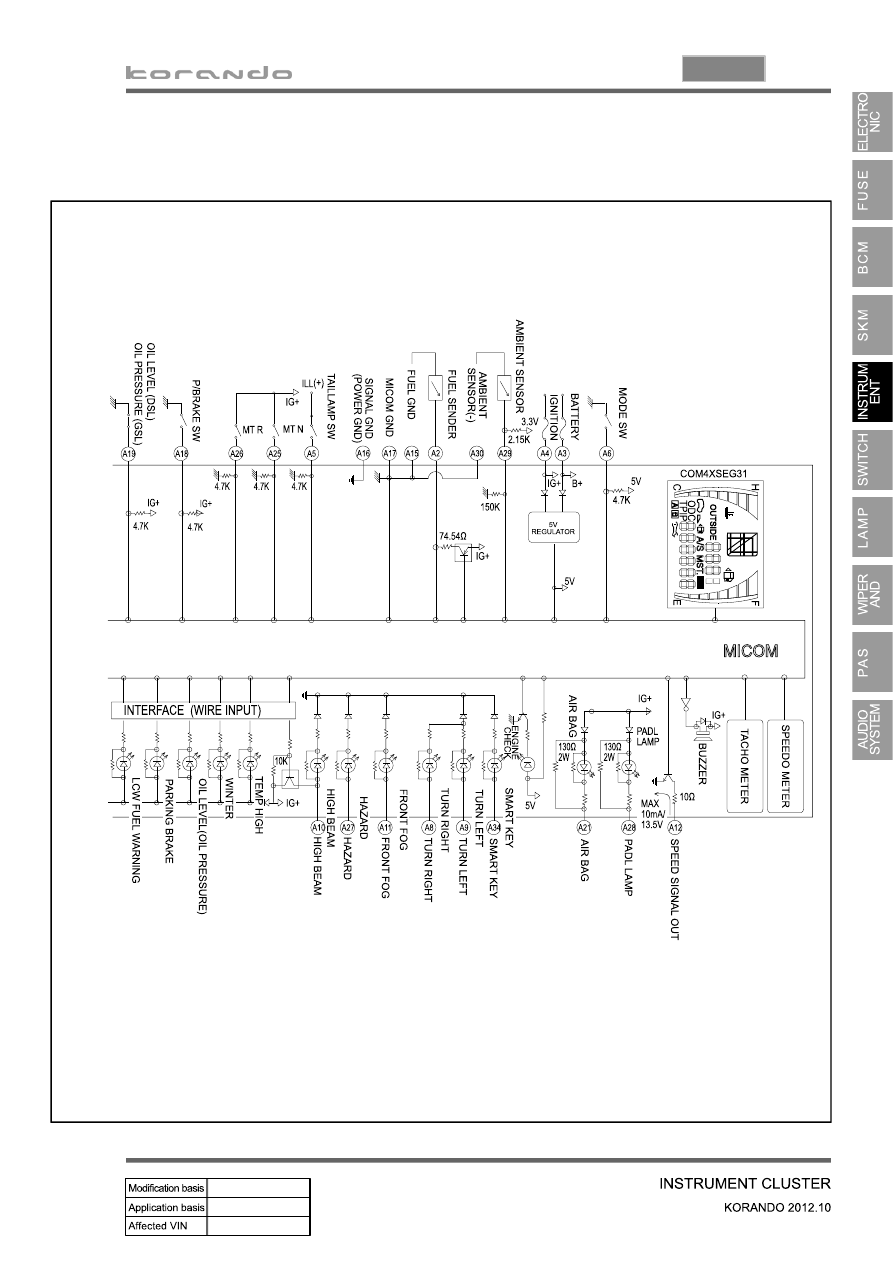

05-23

8010-01

05-24

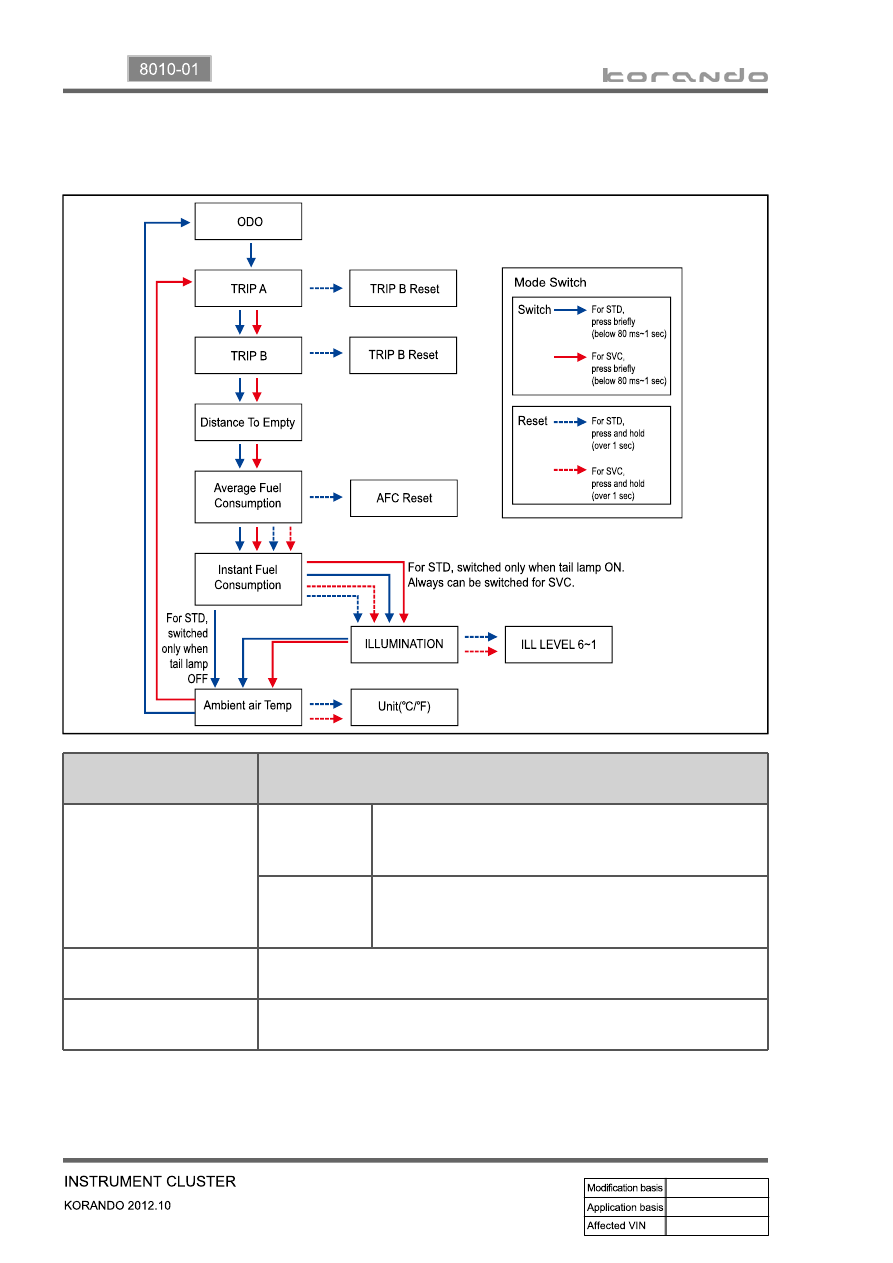

4) Display Sequence

Display sequence for STD main LCD & SVC DOT LCD

▶

Operating time of Trip

switch

Function

Below 1 second
(60 to 980 ms)

STD

Mode change
(ODO → TRIP A → TRIP B → DTE → AFC → IFC →
ILLUMINATION → OUT TEMP)

SVC

Mode change
(TRIP A → TRIP B → DTE → AFC → IFC →
ILLUMINATION → OUT TEMP)

Over 1 seconds

Reset function (Trip A, B, AFC)
(Illumination (6 to 1 level), unit of outside temperature (℃ ↔ ℉))

Over 3 seconds - Ready

Mode change
(Illumination → OUT TEMP → ODO)

If the Trip/Reset switch is not pressed within 3 seconds after getting into the illumination mode and the

ambient air temperature mode, the LCD changes to next mode.

The factory-setting mode is DTE (Distance To Empty) mode.

*

*

05-25

8010-01

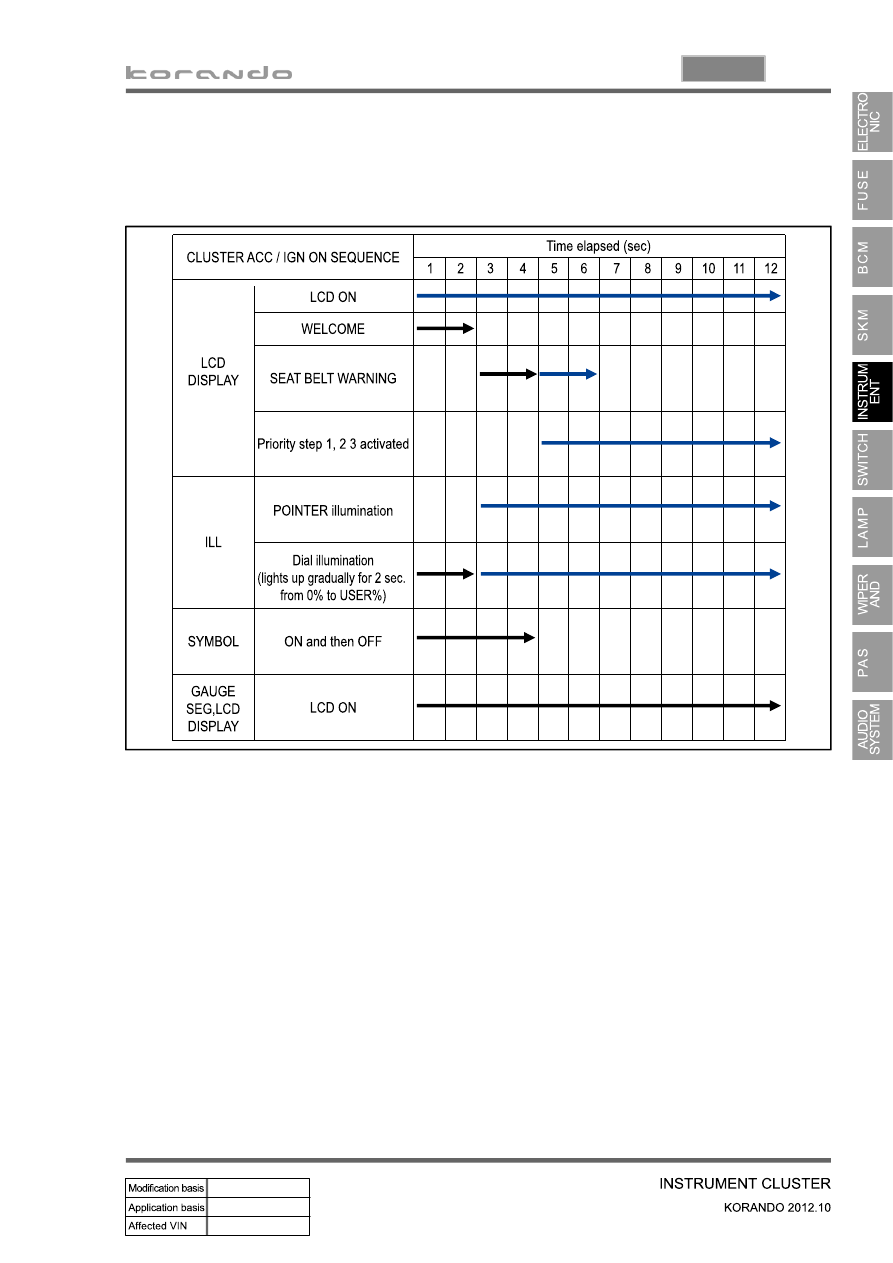

Operations for power supply in SVC

▶

When the ignition switch is turned to ON position, the message "WELCOME" is displayed for 2

seconds on the DOT LCD and the seat belt reminder comes on for 4 seconds. However, if a signal

with higher priority is received, the seat belt reminder comes on only for 2 seconds to display it.

The pre-warning (system check) indicator comes on for 4 seconds and goes off 0.4 seconds after

that the ignition is switched on.

All input signals can be input 4 seconds after the pre-warning (system check) indicator starts

illuminating.

Only the symbol and DOT LCD are illuminated initially, if the SKM (Smart Key Module) or door (B-

CAN) signal is received

while B+ power is supplied.

If the ignition is switched on with the LCD illuminated, the DOT LCD and the symbol follow

the side fascia panel.

When the step 1, 2 and 3 are performed after 4 seconds, the seat belt warning lamp is deactivated in

advance.

Dial light ON condition: Lights up gradually for 2 seconds when the ignition is switched on.

1.

2.

3.

4.

5.

6.

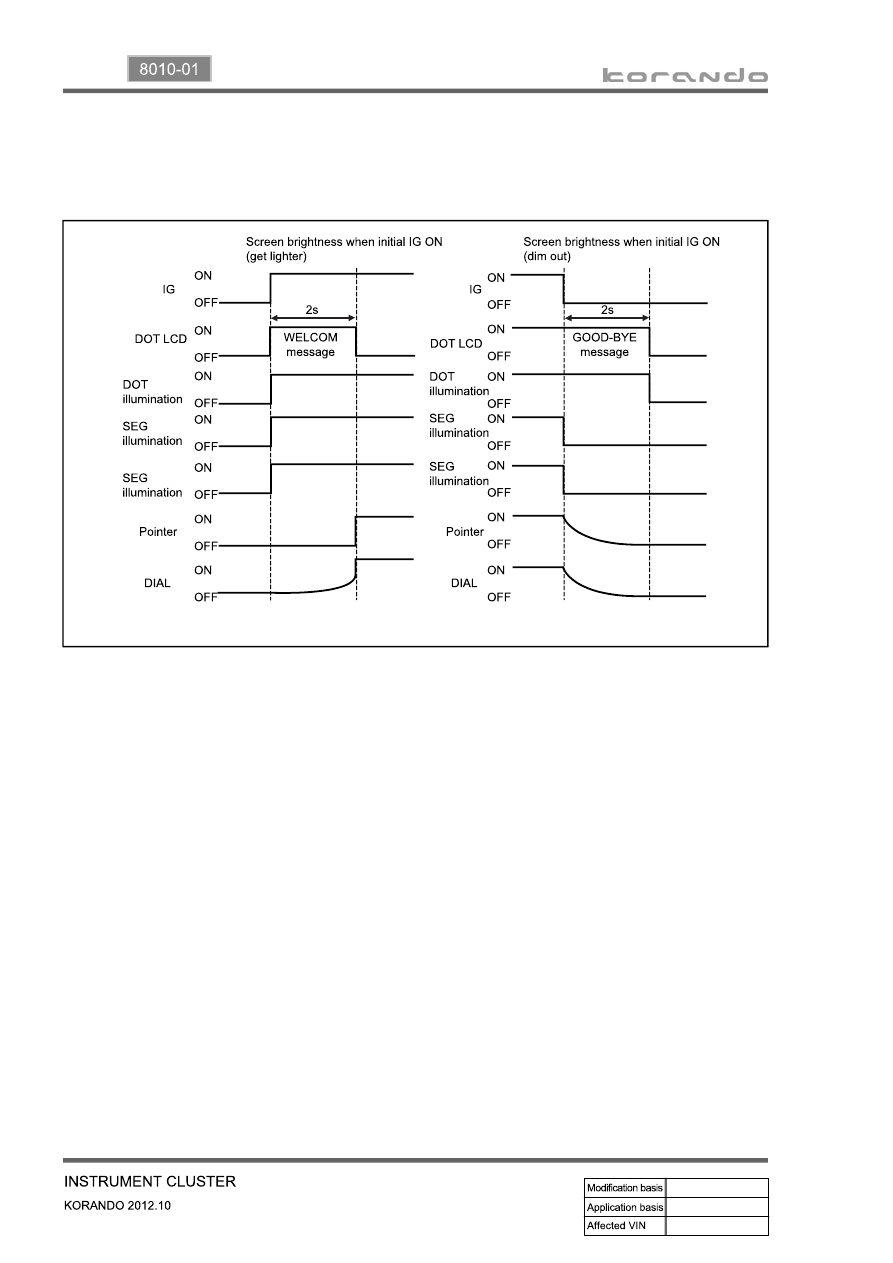

5) Illumination & Brightness

(1) Operations for Power Supply

05-26

When the ignition is switched off, the message "GOOD-BYE" is displayed for 2 seconds and disappears.

The other LCDs go off as soon as the ignition is switched off.

The dial and pointer dim down for 2 seconds and go off at the same time when the DOT LCD goes off.

7.
