02-24

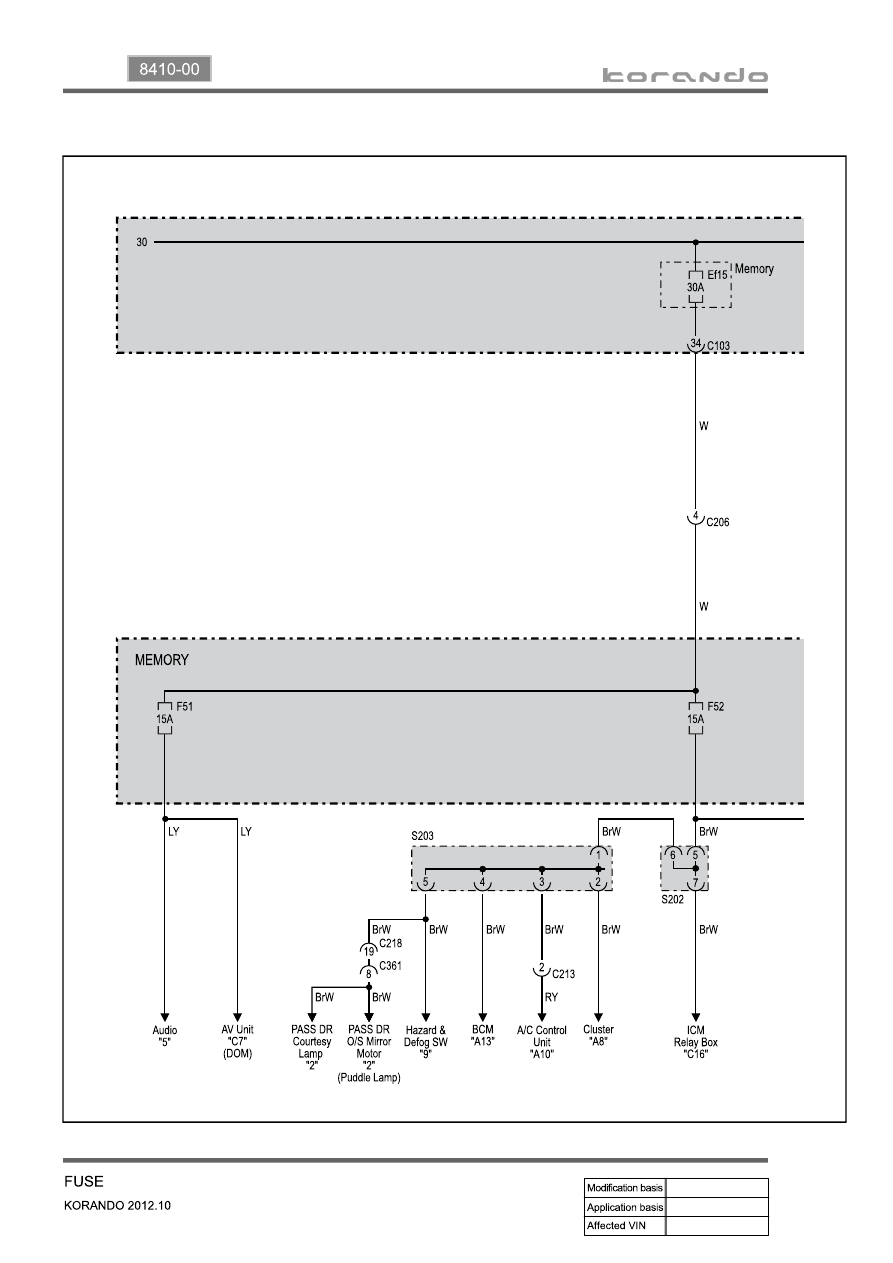

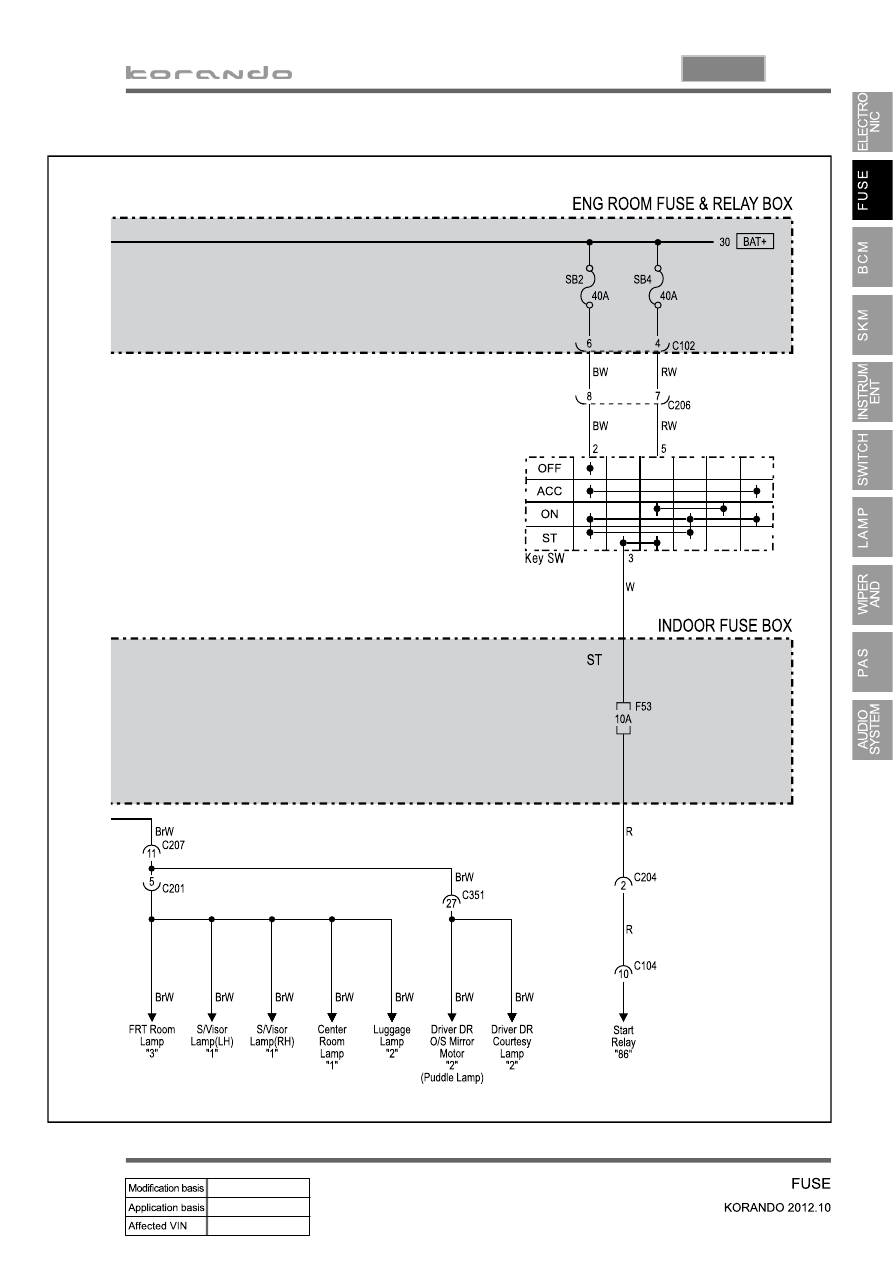

Interior fuse and relay box IV (F51~F53)

▶

02-25

8410-00

02-26

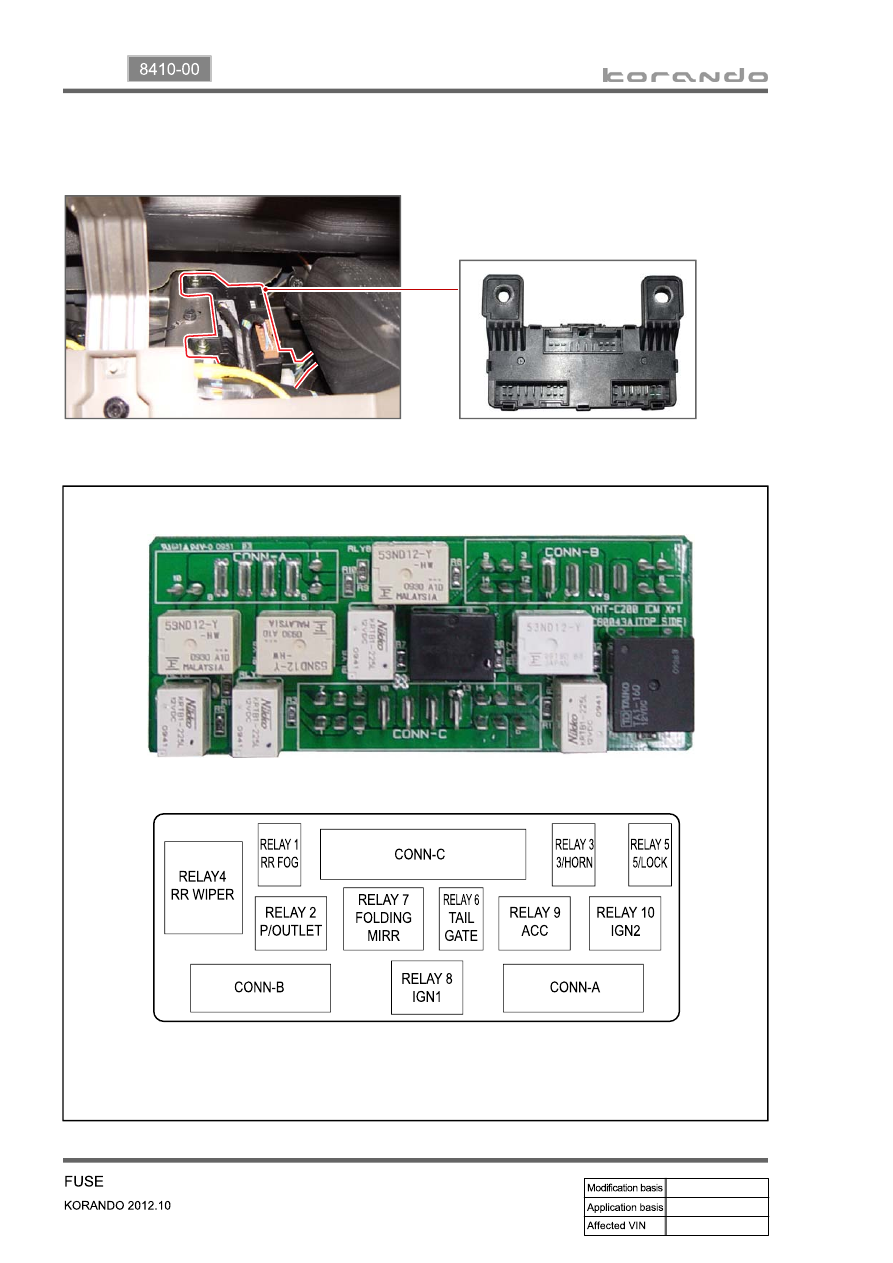

3) ICM Box

The ICM box is installed on the back side of the instrument panel.

Arrangement of connectors and relays

▶

02-27

8410-00

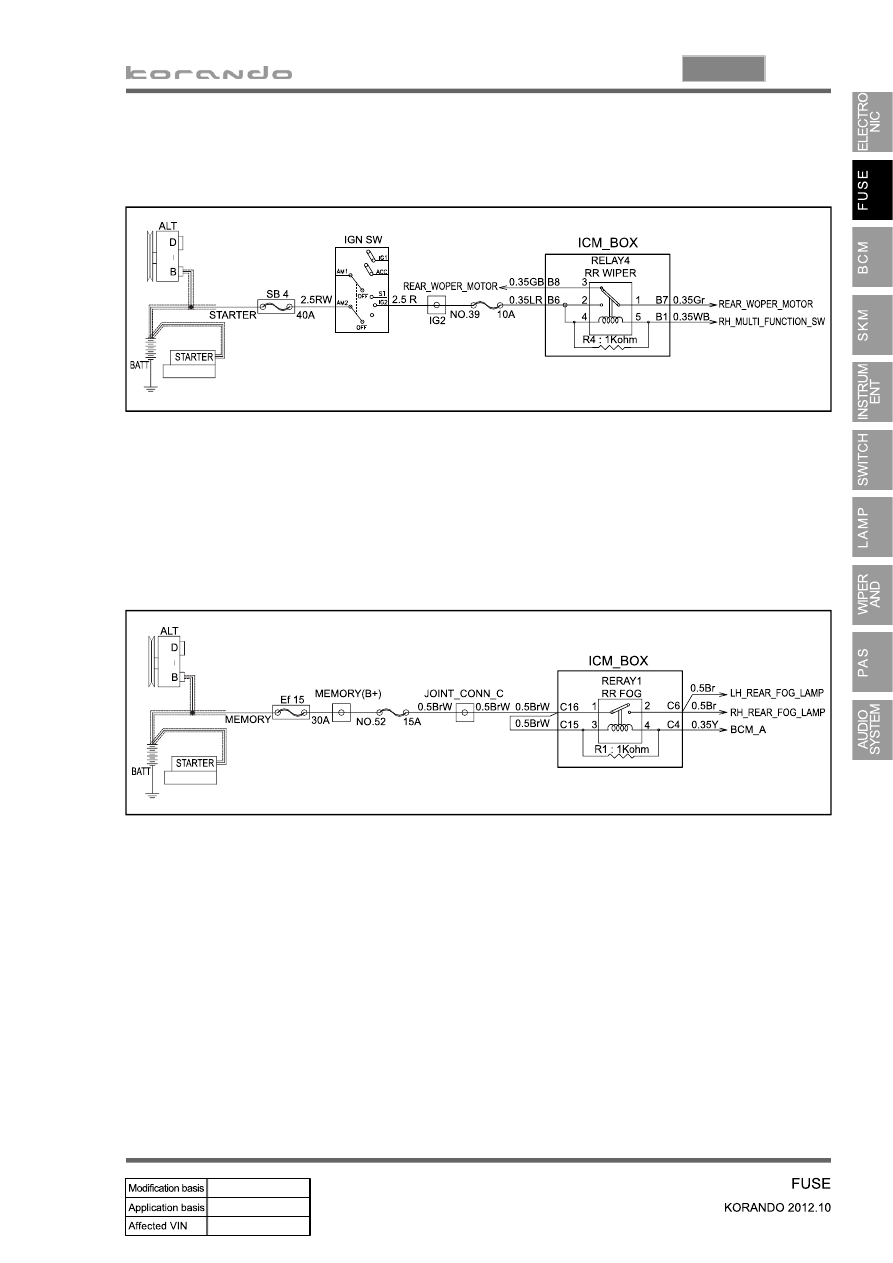

4) Operating Process By Power Supply

(1) Rear wiper relay

(2) Rear fog lamp relay

The rear wiper motor relay is turned on when the rear wiper switch is turned on with the ignition key ON.

This relay is turned off when the rear wiper switch is turned off.

The power is supplied to the ICM no. B6 connector through the SB4 and no. 39.

The power for the rear fog lamp relay is supplied through the memory fuse in the engine compartment

CE box and fuse no. 52 in the interior IP box. This relay is controlled (ON/OFF) by the relay operation

signal which is connected to the no. A11 of the BCM.

The rear fog lamp is turned on when the rear fog lamp switch is turned on with the headlamp turned

on (i.e. IGN2 switch ON).

Turning on the rear fog lamp switch again when the relay is activated turns off the fog lamp.

The rear fog lamps do not come ON when the IGN2 switch is turned to OFF position or the light

switch is OFF.

The rear fog lamp should not automatically come on again if it has been turned off by any methods

other than the rear fog lamp switch.

1.

2.

3.

4.

Operating conditions

▶
