06-10

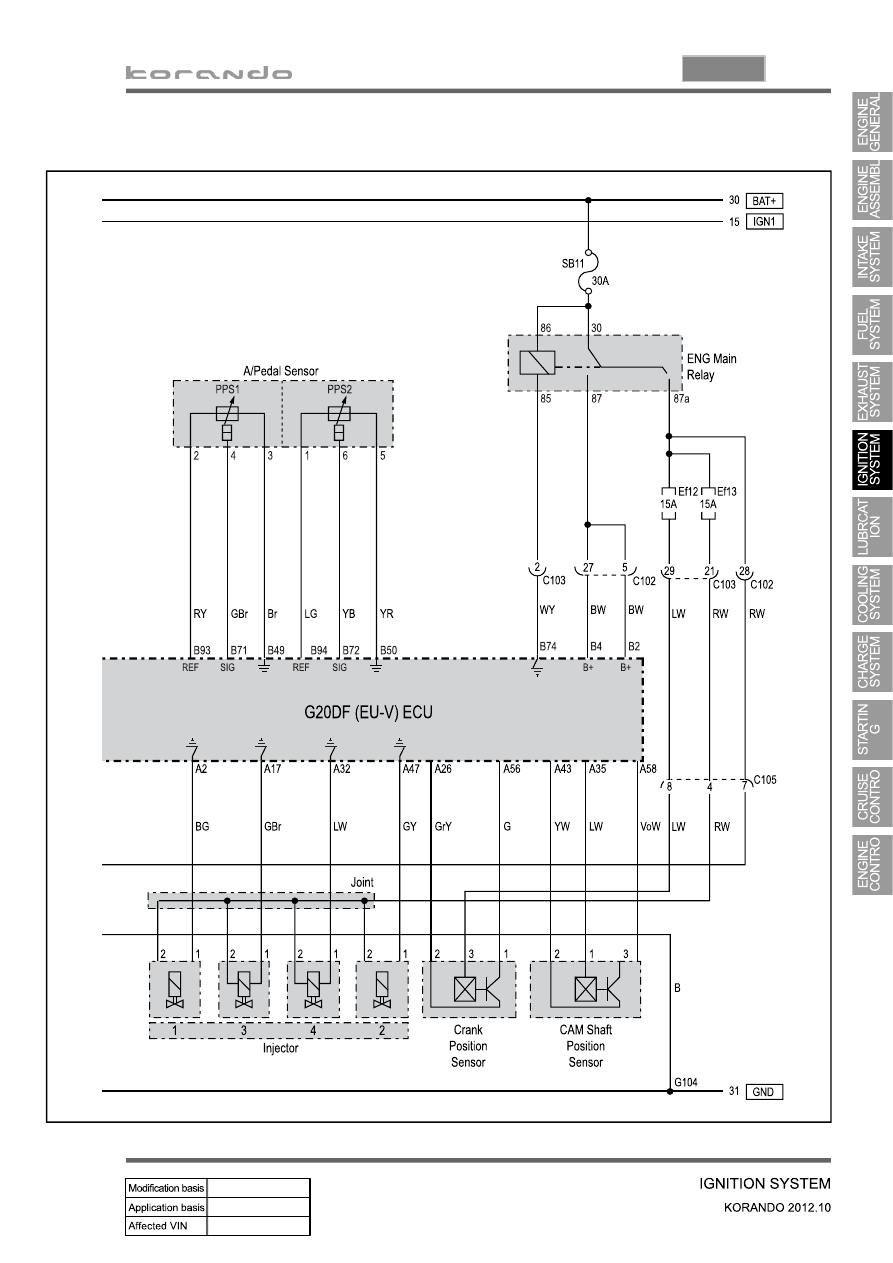

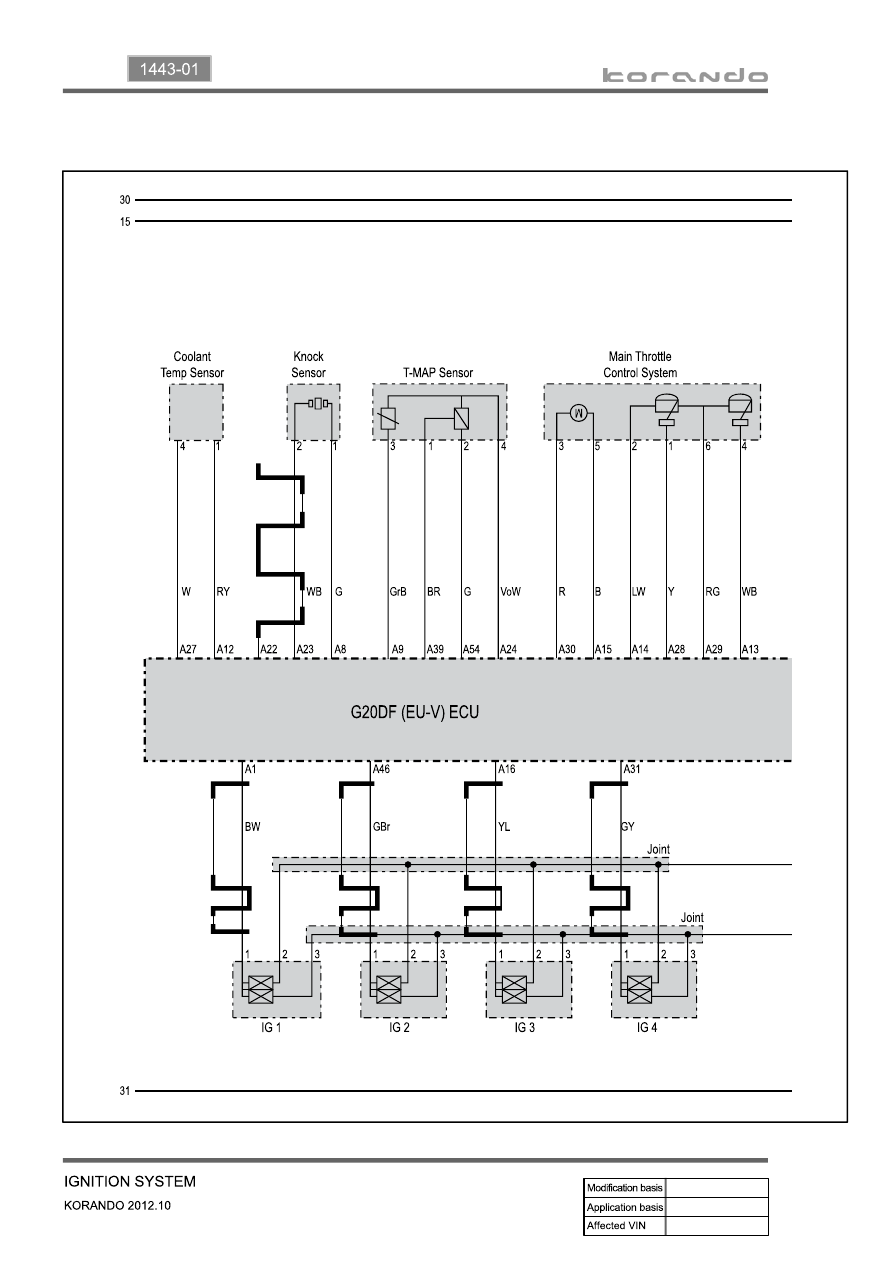

4. CIRCUIT DIAGRAM

06-11

1443-01

07-3

1535-01

1. SPECIFICATION

Description

Specification

Oil pump

Lubrication type

Gear pump, forced circulation

Type

Internal gear

Oil filter

Type

Full flow/Paper element

Engine oil

Oil

MB 229.51 SEA 5W30 or API

SN/GF-5 SAE 5W20

Capacity

4.5 L

Oil injection nozzle

Type

Flange and bolt type

Regularly check the engine oil level and add the engine oil if necessary.

Remember to check the engine oil level and shorten the cycle to replace the engine oil under

severe driving conditions.

-

-

The engine oil filter element should be changed at the same time with the engine oil.

Frequent stop-and-go traffic, extended idling, short driving distance below 6 km, driving distance

below 16 km when the outside temperature remains below freezing

Driving in a hilly or mountainous terrain, sandy, or dusty area

High load driving such as trailer towing

Taxi, patrol service or delivery service (extended idling and excessive driving with low speed)

-

-

-

-

Severe Driving Condition?

07-4

2. MAINTENANCE

Park the vehicle on a level ground and apply the parking brake. Stop the engine and wait more than 5

minutes.

Pull out the dipstick and wipe it with a clean cloth. Reinsert it all the way.

Pull out it again and check the oil level.

The oil level should be between the maximum (Max) mark and minimum (Min) mark on the oil

dipstick. Oil should be replenished before the level goes below the minimum mark.

-

-

-

Engine oil dipstick

Engine oil cap

Max

Min

Replenishment

▶

If the level gets to the lower point, open the filler cap on top of the cylinder block and add the genuine oil

without exceeding the level of the upper mark.

Recheck the oil level after 5 minutes.

Operating vehicle with insufficient amount of oil can damage the engine. Make sure the engine oil level

is correct and add oil if necessary.

Regularly check the engine oil level and add Ssangyong genuine engine oil if necessary.

Clean the dipstick with clean cloth so that any foreign materials cannot get into the engine.

The oil should not go above the upper mark on the dipstick.

The engine oil may be consumed more if the engine is new.

-

-

-

-
