05-3

1745-01

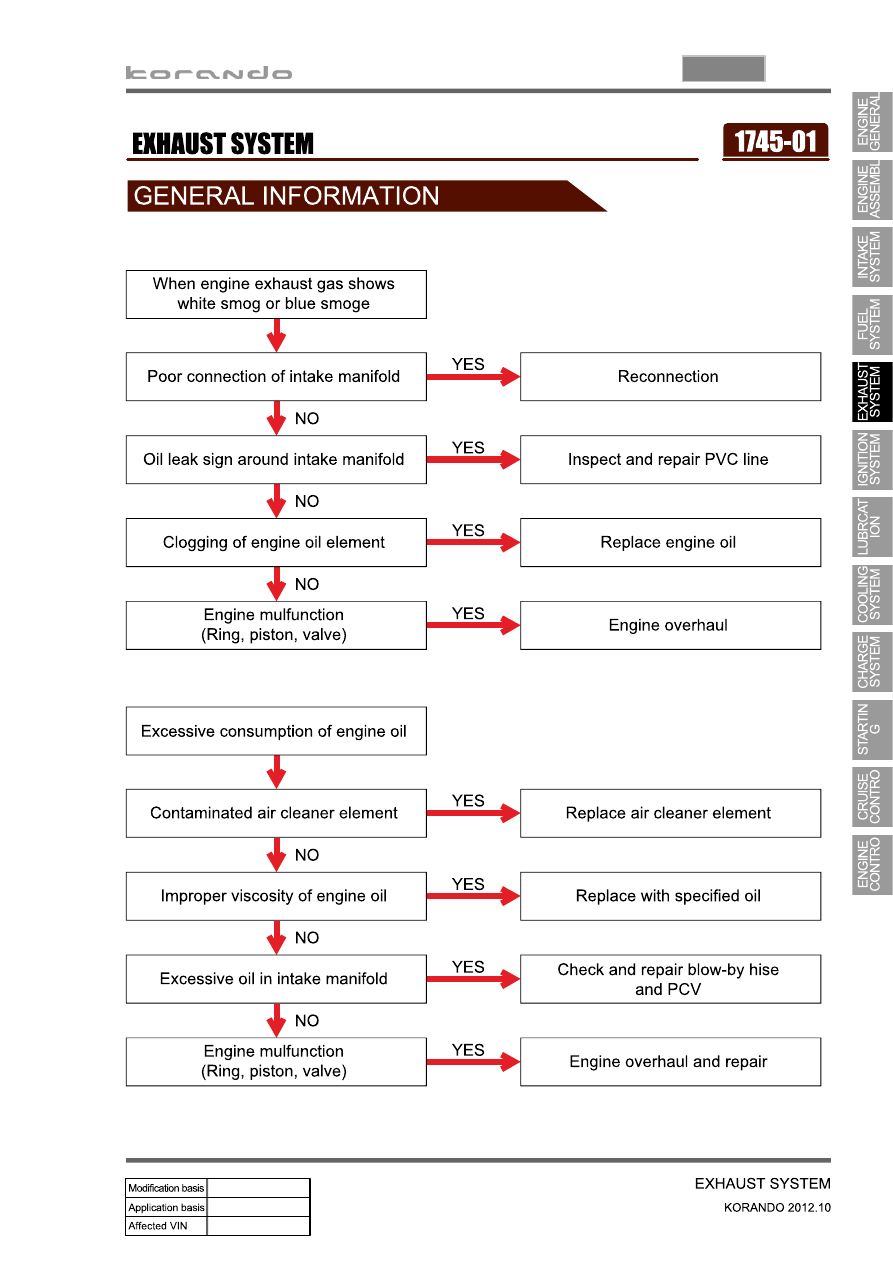

1. TROUBLESHOOTING

05-4

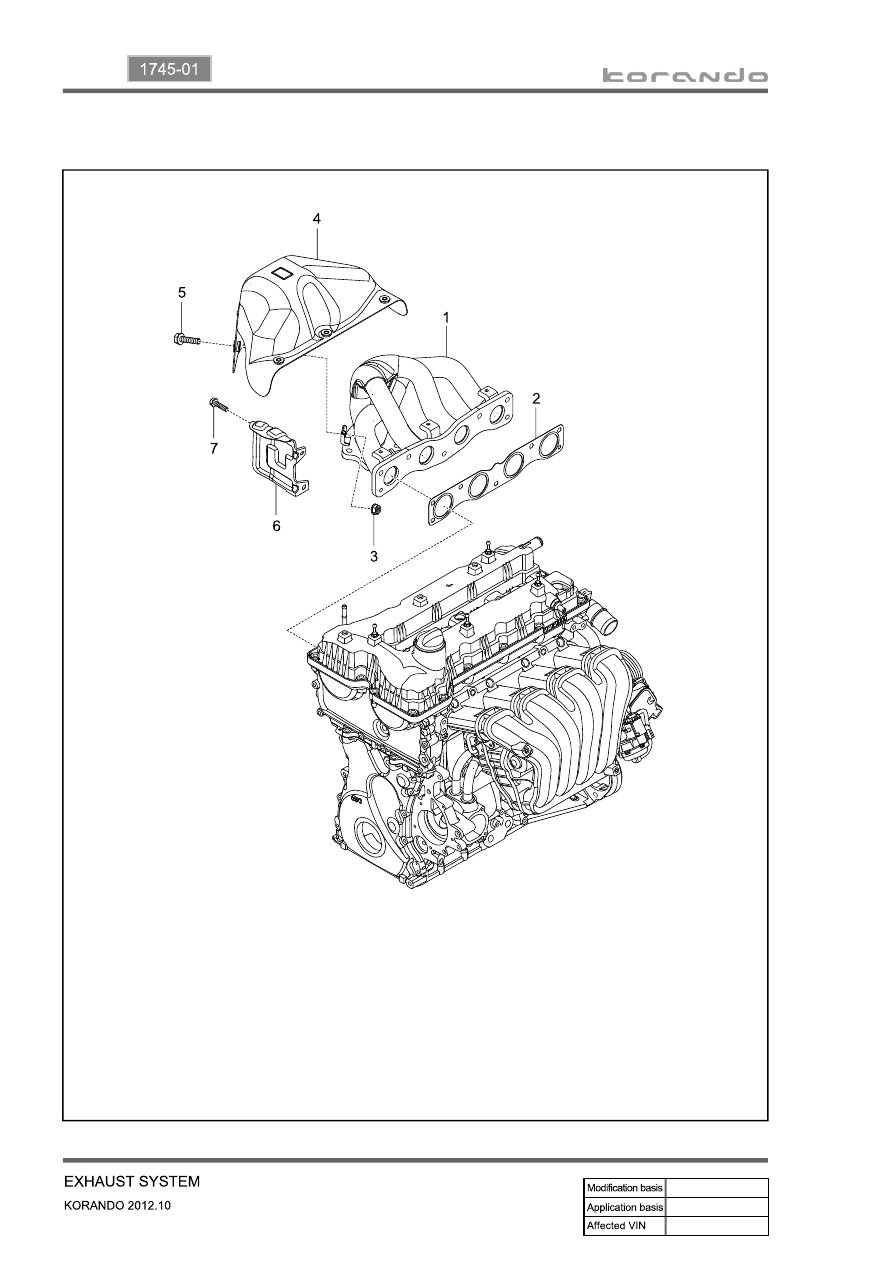

2. LAYOUT

Exhaust Manifold Assy

Exhaust Manifold Gasket

Hex Flange Nut

Heat Protector Assy

Hex Bolt (M6 X 1 X 25)

Heat Protector Assy

Hex Bolt (M8 X 1.25 X 16)

1.

2.

3.

4.

5.

6.

7.

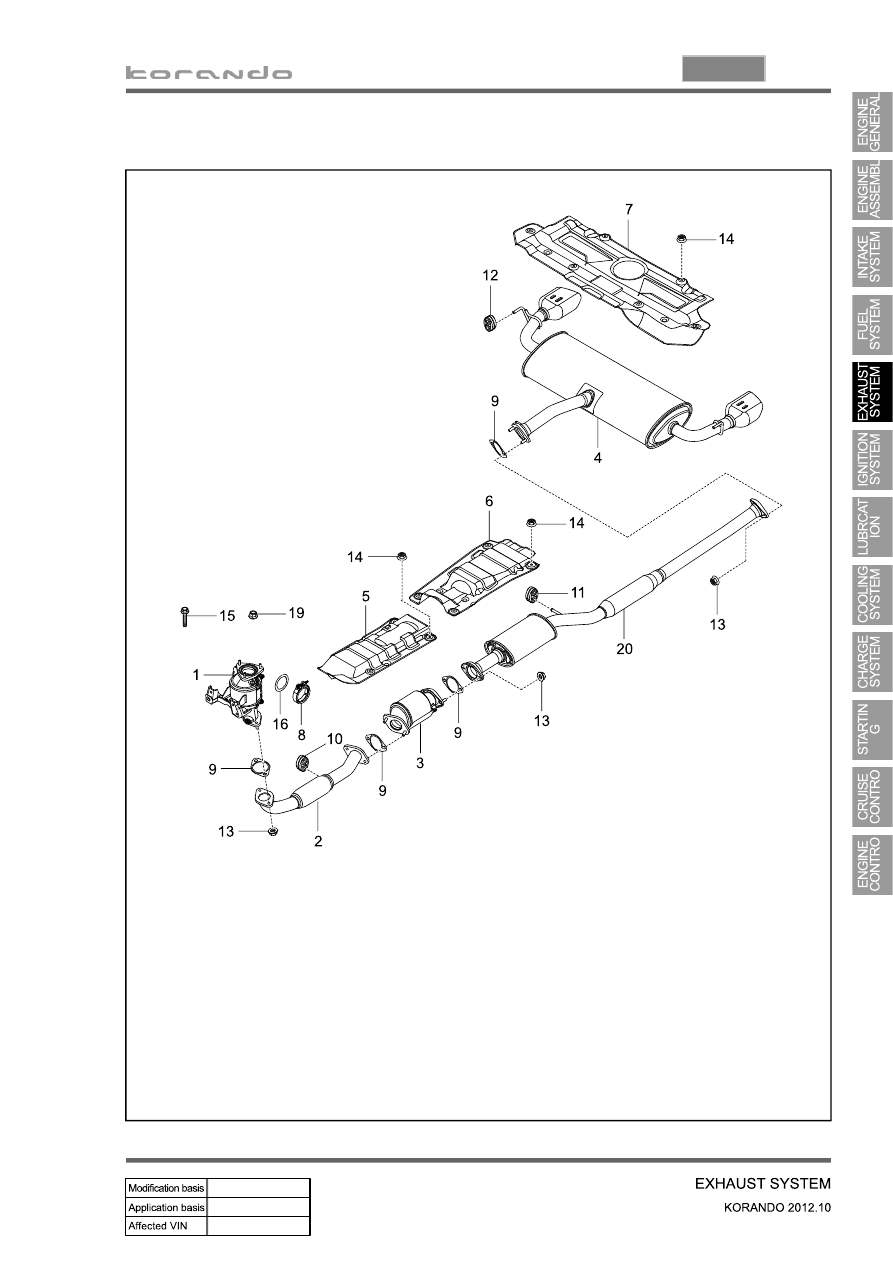

05-5

1745-01

WCC Compl

Exhaust FRT Pipe Assy

UCC Compl

Muffler Complete ?RR

Exhaust FRT Heat Protector

CTR Muffler Heat Protector

RR Muffler Heat Protector

Clamp

Gasket

1.

2.

3.

4.

5.

6.

7.

8.

9.

Hanger

Hanger

Hanger

Nut

Nut

Bolt

Gasket Ring

Nut

CTR Muffler Complete

10.

11.

12.

13.

14.

15.

16.

19.

20.

05-6

3. CAUTIONS

Do not park the vehicle on flammable materials, such as grass, leaves and carpet.

Do not touch the catalyst or the exhaust gas ignition system when the engine is running.

If a misfire occurs in the combustion chamber or the emission of pollutant exceeds the specified level,

the catalyst can be damaged.

When servicing or replacing components of the exhaust system, makes sure that the components

are positioned at regular intervals from all other parts of the under body.

Be careful not to damage the exhaust system when lifting the vehicle from its side.

All components and body parts of the engine exhaust system should be inspected for crack, damage,

air hole, part loss and incorrect mounting location. Also check for any deformation which can result in

exhaust gas drawn into the vehicle.

Make sure that the exhaust pipe is cooled down sufficiently before working on it because it is still hot

right after the engine is stopped.

Wear protective gloves when removing the exhaust pipe.

-

-

-

-

-

-

-

-
