SSANGYONG  MY2002

9S-4  BODY REAR END

ON-VEHICLE SERVICE

UNIT REPAIR

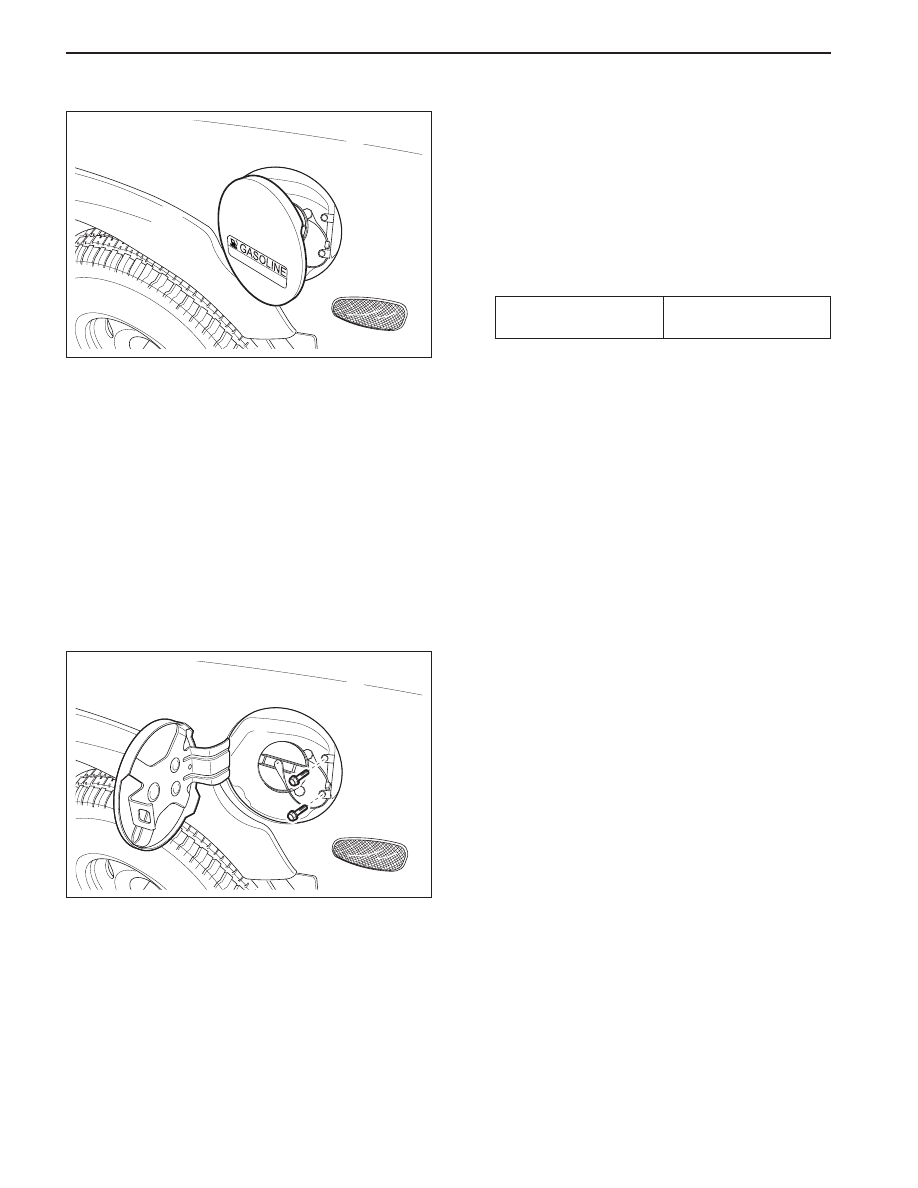

FUEL FILLER DOOR

Removal and Installation Procedure

1. Remove the bolts and the fuel filler door.

Installation Notice

•

Dissimilar metals in direct contact with each
other may corrode rapidly. Make sure to use
the correct fasteners to prevent premature
corrosion.

2. Installation should follow the removal procedure

in the reverse order.

REPAIR INSTRUCTIONS

KAA9S020

KAA9S030

FUEL FILLER DOOR REMOTE
HANDLE AND CABLE

Removal and Installation Procedure

1. Remove the front seat. Refer to Section 9H, Seats.

2. Remove the front floor insulator.

3. Remove the screw with the fuel filler door remote

handle.

4. Remove the quarter trim panel. Refer to Section

9G, Interior Trim.

5. Disconnect the fuel filler door cable.

6. Installation should follow the removal procedure

in the reverse order.

Tightening Torque

3.92 - 5.49 N•m

 (2.92 - 4.08 lb-ft)

BODY REAR END  9S-5

SSANGYONG  MY2002

SPECIFICATIONS

FASTENER TIGHTENING SPECIFICATIONS

Fuel Filler Door Bolts

Application

N•m

3.92 - 5.49

2.92 - 4.08

34.71 - 48.60

Lb-Ft

Lb-In

SECTION 9T1

REMOTE KEYLESS ENTRY AND ANTI-THEFT

SYSTEM

CAUTION: Disconnect the negative battery cable before removing or installing any electrical unit or when a
tool or equipment could easily come in contact with exposed electrical terminals. Disconnecting this cable
will help prevent personal injury and damage to the vehicle. The ignition must also be in LOCK unless
otherwise noted.

TABLE OF CONTENTS

Description and Operation ................................. 9T1-2

Remote Keyless Entry and Anti-Theft System ..... 9T1-2

Components Locator .......................................... 9T1-3

REKES & STICS ................................................ 9T1-3

Diagnostic Information and Procedure ............. 9T1-4

Input Memory .................................................... 9T1-5

Repair Instructions .............................................. 9T1-6

On-Vehicle Service Unit Repair .............................. 9T1-6

Receiver ............................................................ 9T1-6

Antenna ............................................................. 9T1-6

Stics .................................................................. 9T1-6

Schematic and Routing Diagrams ..................... 9T1-7

STICS - Stics Unit .............................................. 9T1-7

STICS - Door Contact Switch .............................. 9T1-8

STICS - Keyless, Key Reminder Switch, Siren,

Chime Bell Buzzer .......................................... 9T1-9

SSANGYONG  MY2002

9T1-2  REMOTE KEYLESS ENTRY AND ANTI-THEFT SYSTEM

DESCRIPTION AND OPERATION

REMOTE KEYLESS ENTRY AND
ANTI-THEFT SYSTEM

The remote keyless entry and anti-theft system can
perform the following functions:

•

Remotely lock and unlock the vehicle doors by
means of a hand-held, high-frequency transmitter.

•

Sense intrusion into the vehicle through the doors
or the hood.

•

Activate a warning if an intrusion is detected.

•

Automatically relock the doors if thedoor or the
tail gate is not opened within 30 seconds after the
vehicle has been unlocked by remote keyless
entry.

•

Help the driver find the vehicle in a parking area.

The remote keyless entry system consist of the
following components:

•

STICS.

•

Remote keyless entry system receiver.

•

Hand-held transmitter.

•

Tailgate open switch.

•

Door contact switch.

•

Siren.

•

Hood open switch

•

Key reminder switch.

•

Antenna.

STICS can perform the following functions:

1. Wiper INT sening vehicle speed.

•

By operating INT tiem control volume, variable
time will be changed within 1.5-20 seconds

2. Washer relating wiper.

•

3. Dimming room lamp.

•

When room lamp is coupled with door, it truns on
if door is opened. After closing the door it
maintains 2 seconds of lighting and dims off
whithin 3 seconds.

4. Time delayed power window control.

•

Power window can be operated within 30 seconds
after truning the IGN 1 switch from ON to OFF. If
driver/passenger’s door is opened within the 30
seconds from that moment.

5. Rear defogger timer.

•

The rear defogger will be operated for 12 min. by
turning ON the defogger switch while engine is
running.

•

Defogger will be stopped by pushing the switch
again.

•

The defogger will be operated 6 mim, if push ON
the switch within 10 min. after 12 min. of operation.

6. Seat belt waring.

•

The warning lamp will be turned on for about 6
sec. With an intermittent chime bell when the IGN.
Switch is ON unless fastening the seat belt.

7. parking brake warning.

•

The indicator lamp will flash if drive while the
parking brake is applied.

8. Tail lamp lighting warning.

•

When the driver’s door is opened while the tail
lamp is still ON, the buzzer operates intermittently.
In this condition, the door will be automatically
unlock when it locked.

9. Door ajar warning.

•

The indicator lamp will be blinking when the door
is not closed completely and driving.

10. IGN key reminder.

•

The chime will be operated intermittently if the
driver’s door is opened while the IGN key is still
remain-ing in the ignition switch. In this condition,
the door will be automatically unlocked when it
locked.

11. Central door lock.

•

All doors will be locked/unlocked by locking/
unlocking the driver’s or passenger’s door.

12. coupled with REKES.

•

Being coupled with REKES (remote keyless entry
system), all doors will be locked/unlocked
according to signals of transmitter when the
ignition key is not inserted.

13. iginition key hole illumination.

•

coupled with door switch, ignition key hole
illumination lamp will trun on when the driver ’s
door is opened and will dim off after 10 sec. After
closing the door.

14. Auto door lock.

•

All doors will be locked automatically if the vehicle
speed reaches 50 km/h though the doors are in
unlock.

15. Auto door unlock.

•

All doors will be automatically unlock if the vehicle
crashes while driving (over 15km/h).

Operate the burglar alarm.

1. Burglar alarm must operate immediately when the

door, tailgate or hood is opened with improper
ways after all doors and hood were closed and
continued this status for 1 seconds.

2. If the tailgate is opened by key when the system

is on the burglar alarm cindition, the sysem must
be changed to the second burglar alarm condition
frim normal condition.
