INSTRUMENTATION, DRIVER INFORMATION  9E-25

SSANGYONG  MY2002

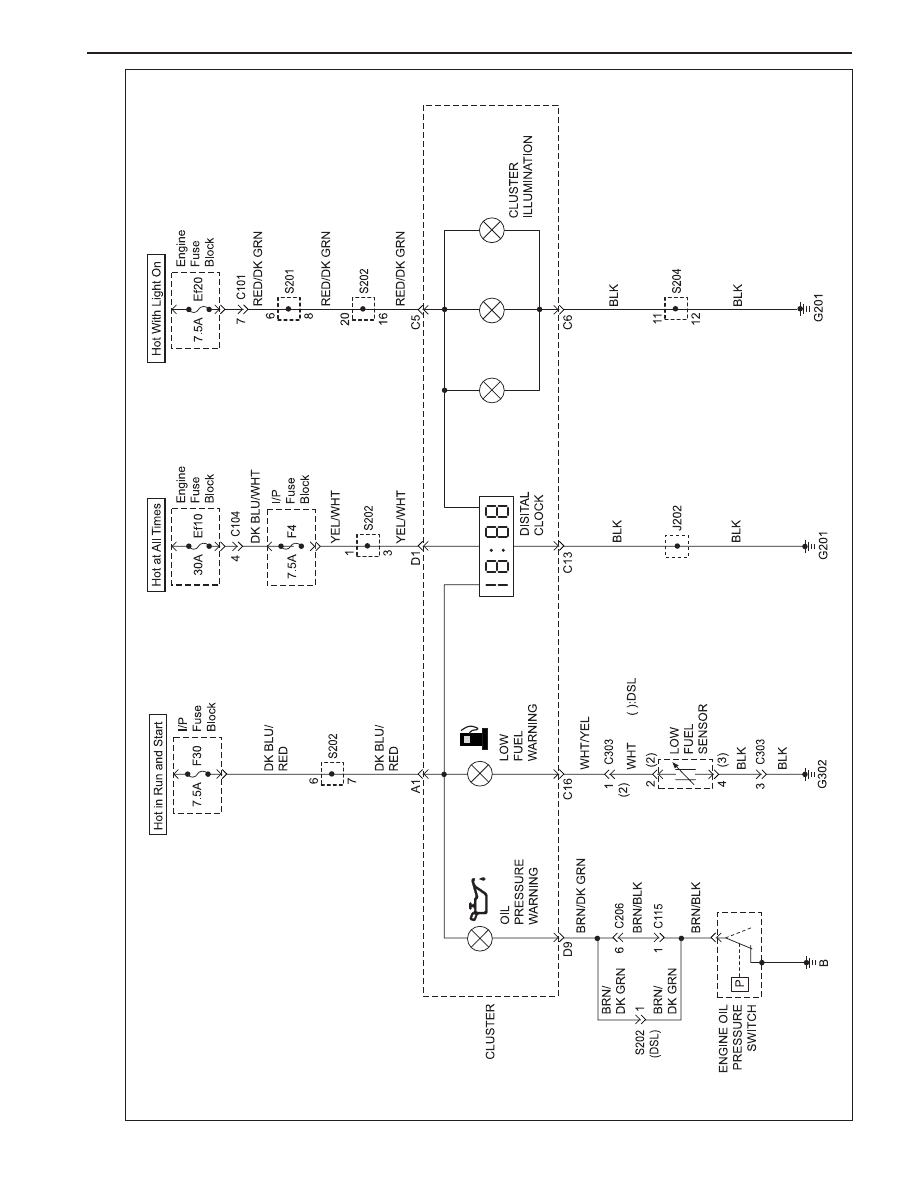

DIGITAL CLOCK, WARNING CLUSTER ILLUMINATION

KAA9E370

SSANGYONG  MY2002

9E-26  INSTRUMENTATION, DRIVER INFORMATION

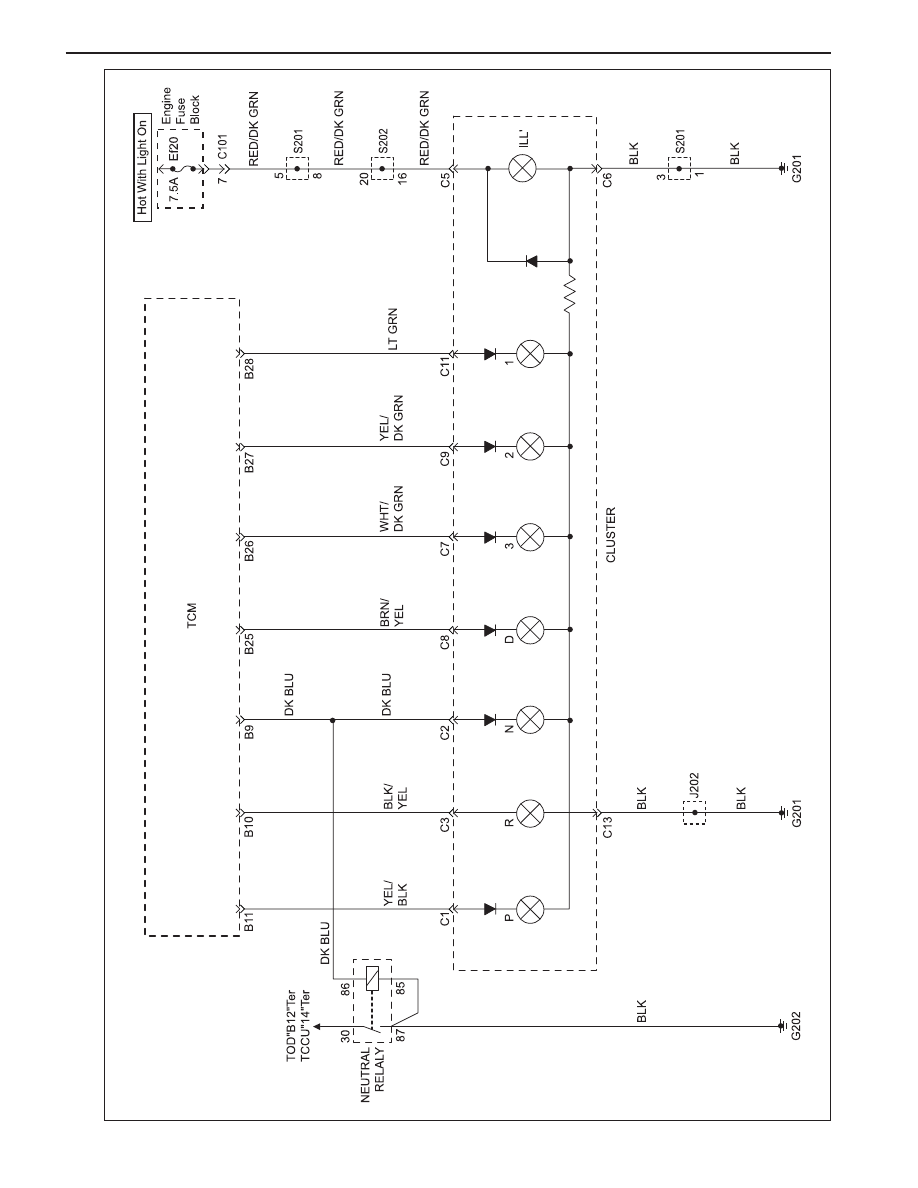

SELECTOR LEVER POSITION LAMP

KAA9E380

Description and Operation ..................................  9F-2

Speakers ............................................................  9F-2

Mast Antenna .....................................................  9F-2

Tape Player and Cassette Care ...........................  9F-2

Components Locator ...........................................  9F-3

Audio System .....................................................  9F-3

Repair Instructions ...............................................  9F-4

SECTION 9F

AUDIO SYSTEM

CAUTION: Disconnect the negative battery cable before removing or installing any electrical unit or when a
tool or equipment could easily come in contact with exposed electrical terminals. Disconnecting this cable
will help prevent personal injury and damage to the vehicle. The ignition must also be in LOCK unless
otherwise noted.

TABLE OF CONTENTS

On-Vehicle Service Unit Repair ...............................  9F-4

Stereo Cassette AM/FM Radio ............................  9F-4

Front Door Speakers ...........................................  9F-4

Rear Speakers ....................................................  9F-5

Mast Antenna .....................................................  9F-5

Schematic and Routing Diagram .......................  9F-7

Audio System Circuit ..........................................  9F-7

SSANGYONG  MY2002

9F-2  AUDIO SYSTEM

DESCRIPTION AND OPERATION

SPEAKERS

All audio systems use four speakers : two speakers
mounted in the front doors and two speakers mounted
in the quarter trim panel.

MAST ANTENNA

The center and the side vents in the instrument panel
can be adjusted up and down and from side to side.
The side vents can also be aimed toward the side
windows to defog them.

TAPE PLAYER AND CASSETTE
CARE

The glove box can be opened by pulling upon the latch
handle. The glove box must be removed to gain
access to the passenger side airbag module, (if
equipped).
