SSANGYONG MY2002
9D-2 WIPER, WASHER SYSTEMS
DESCRIPTION AND OPERATION

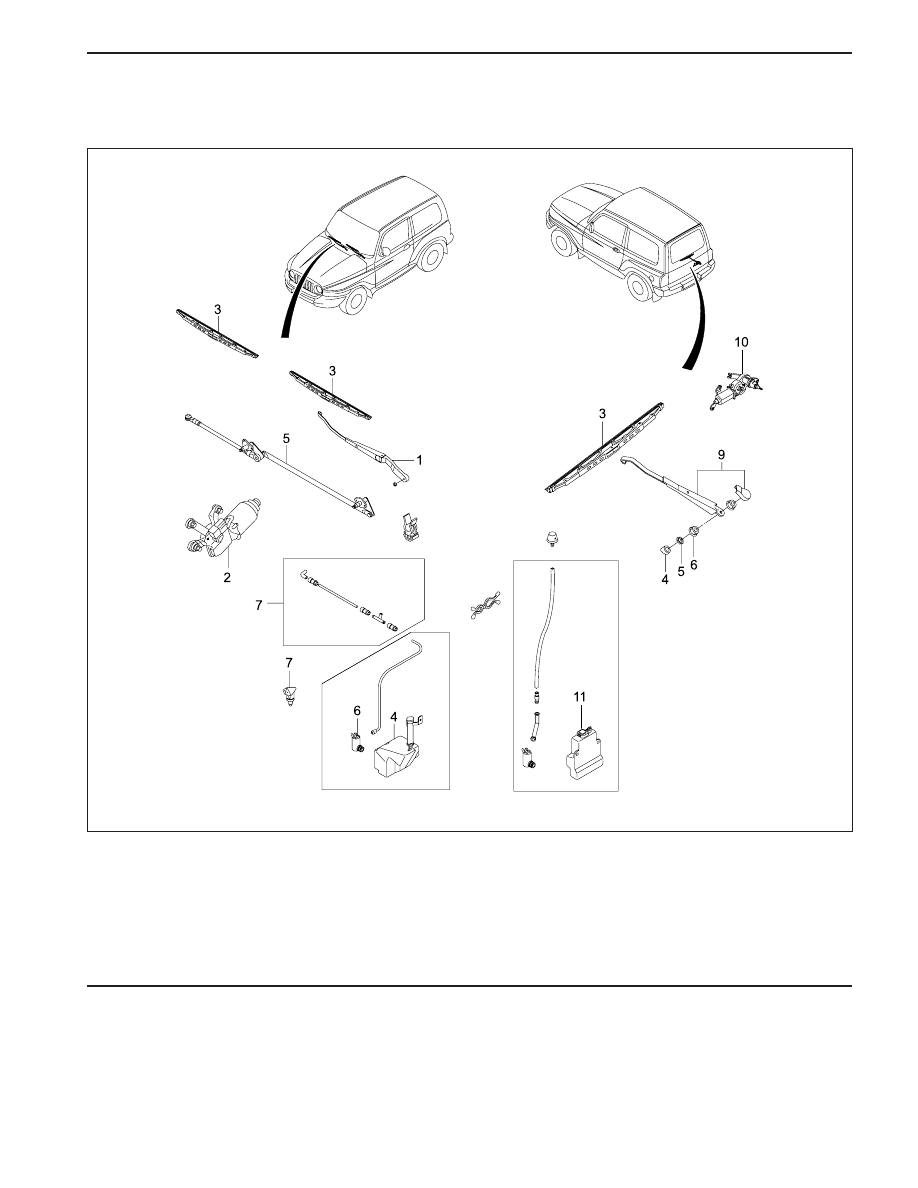

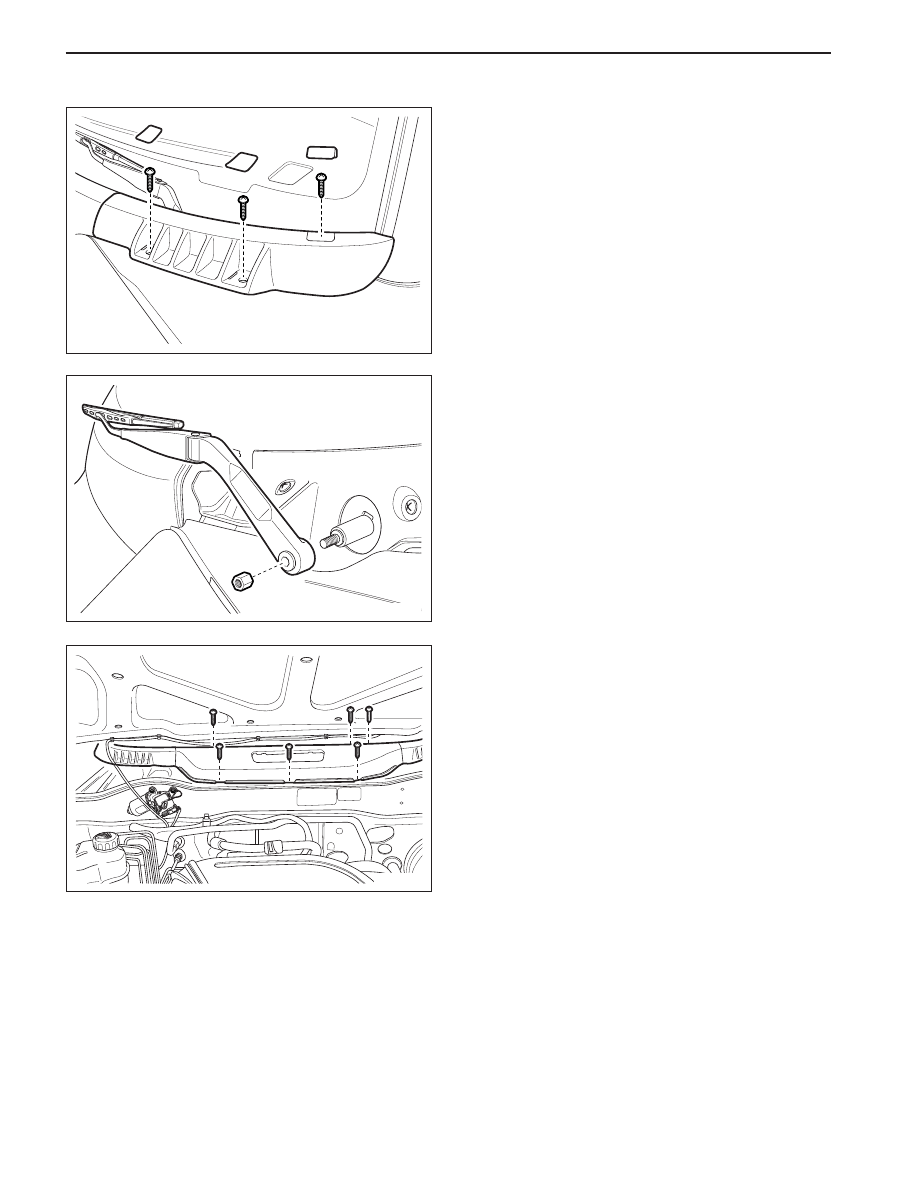

WINDSHIELD WIPER SYSTEM
The windshield wiper system consists of a wiper motor,
a linkage, wiper arms and blade, and a wiper/washer
switch. The windshield wiper circuit incorporates a self
parking device which consists of a worm gear and a
camplate in order to keep the circuit engaged
temporarily when the switch is turned off. The wiper
system is driven by a permanent magnet-type motor.

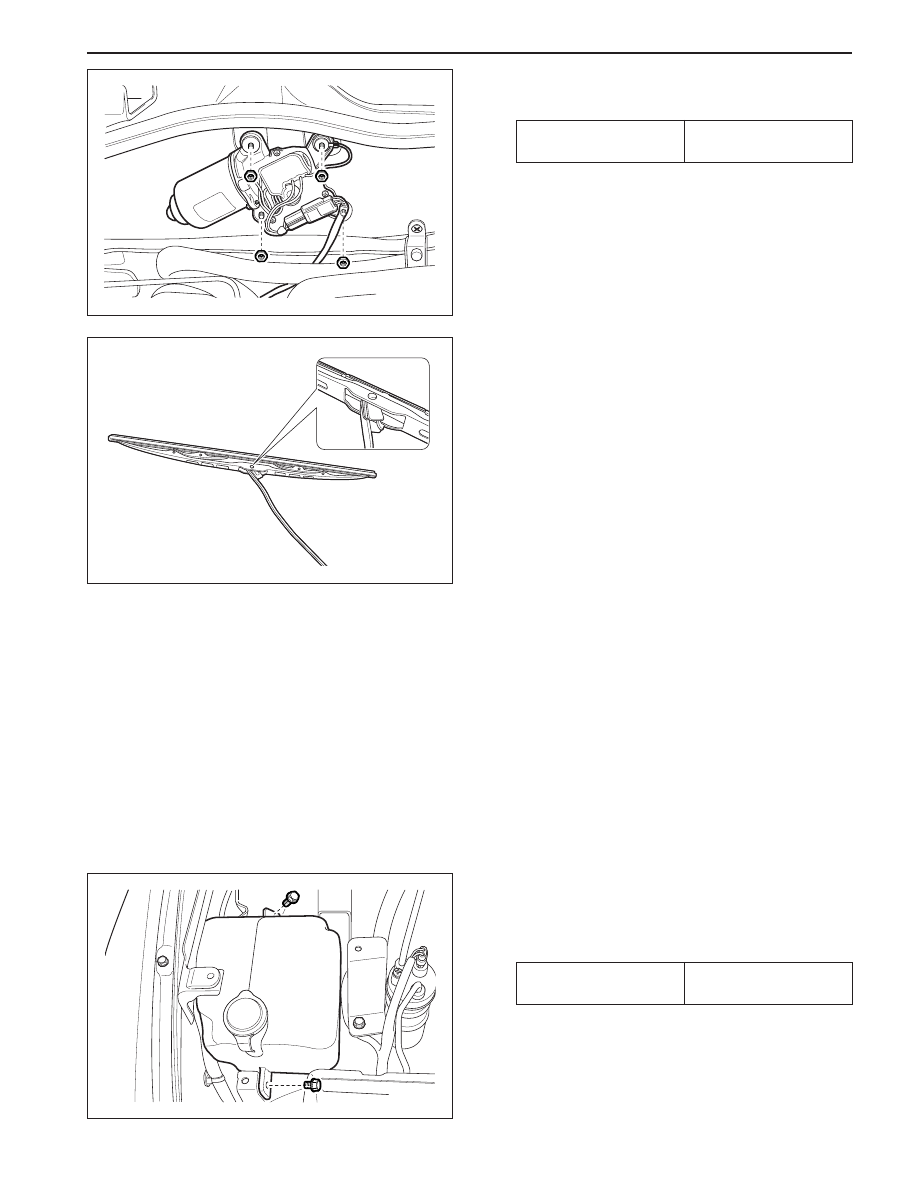

The windshield wiper motor is mounted on the dash
panel and is directly con-nected to the windshield
wiper linkage.
The windshield wiper motor has two speeds, LO and
HI, and also has intermittent wiper. The wiper switch
is an integral part of the wiper/washer switch.
Windshield wiper operation is actuated through the
lever on the right side of the steering column.
WINDSHIELD WASHER SYSTEM
The windshield washer system is equipped with a
washer fluid reservoir, a washer fluid pump, hoses,
nozzles, and a wiper/washer switch. The windshield
washer reservoir is mounted above the front right apron
panel. Attached to the reservoir is a washer pump,
which pumps fluid through the hoses to the two nozzles
mounted on the hood. The washer switch is an integral
part of the wiper/washer switch. Windshield washer
operation is actuated through the lever on the right
side of the steering column.
