BODY WIRING SYSTEM  9A-3

SSANGYONG  MY2002

ENGINE ROOM FUSE & RELAY BOX

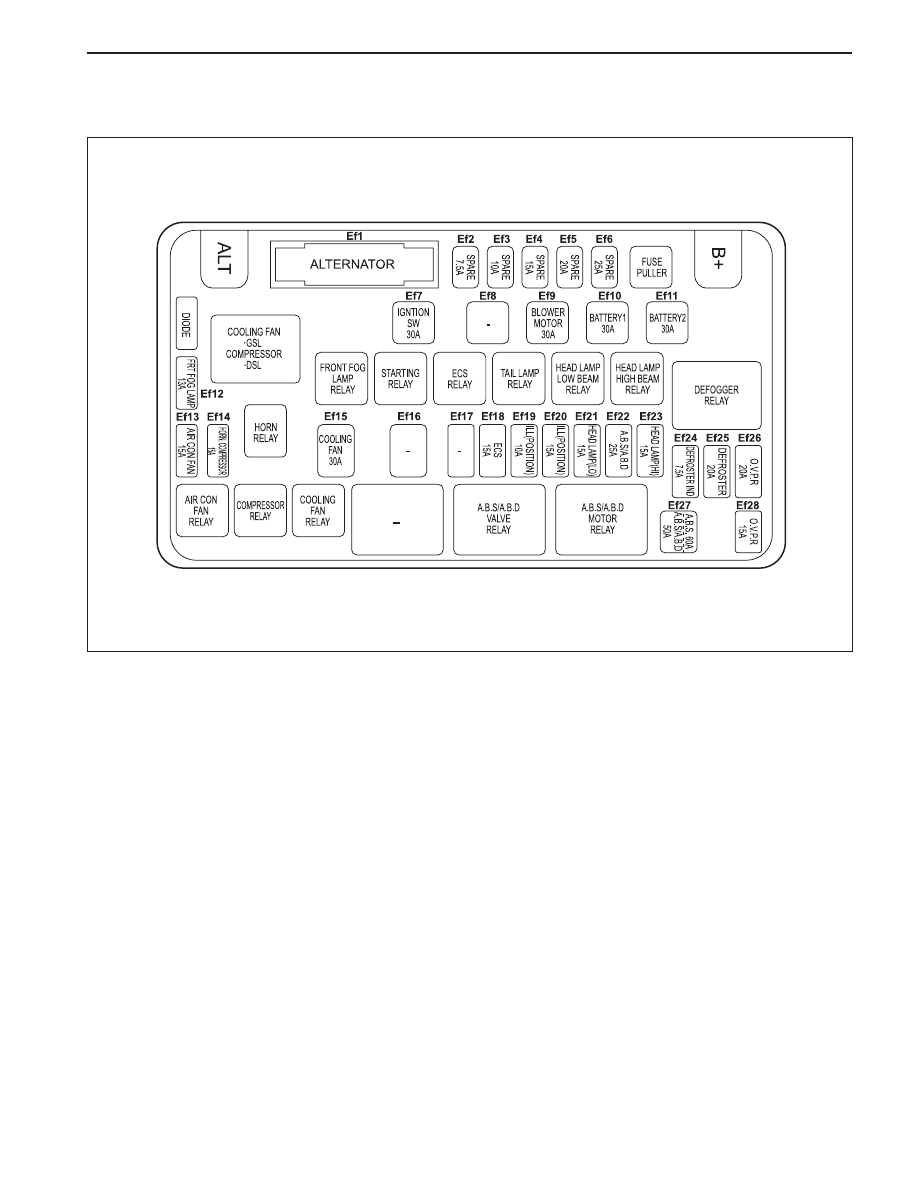

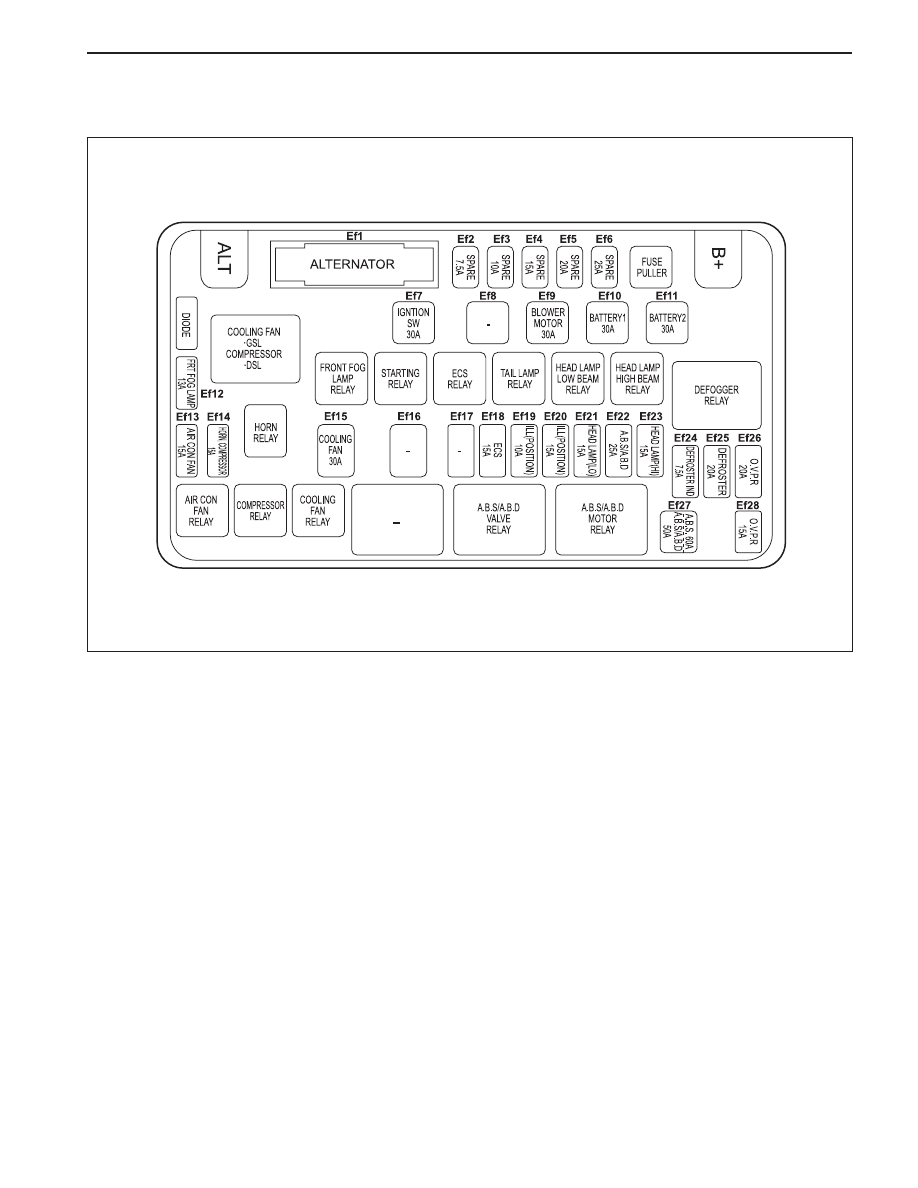

Position Of Relay And Fuse (Front View)

KAA9A010

SSANGYONG MY2002

9A-4  BODY WIRING SYSTEM

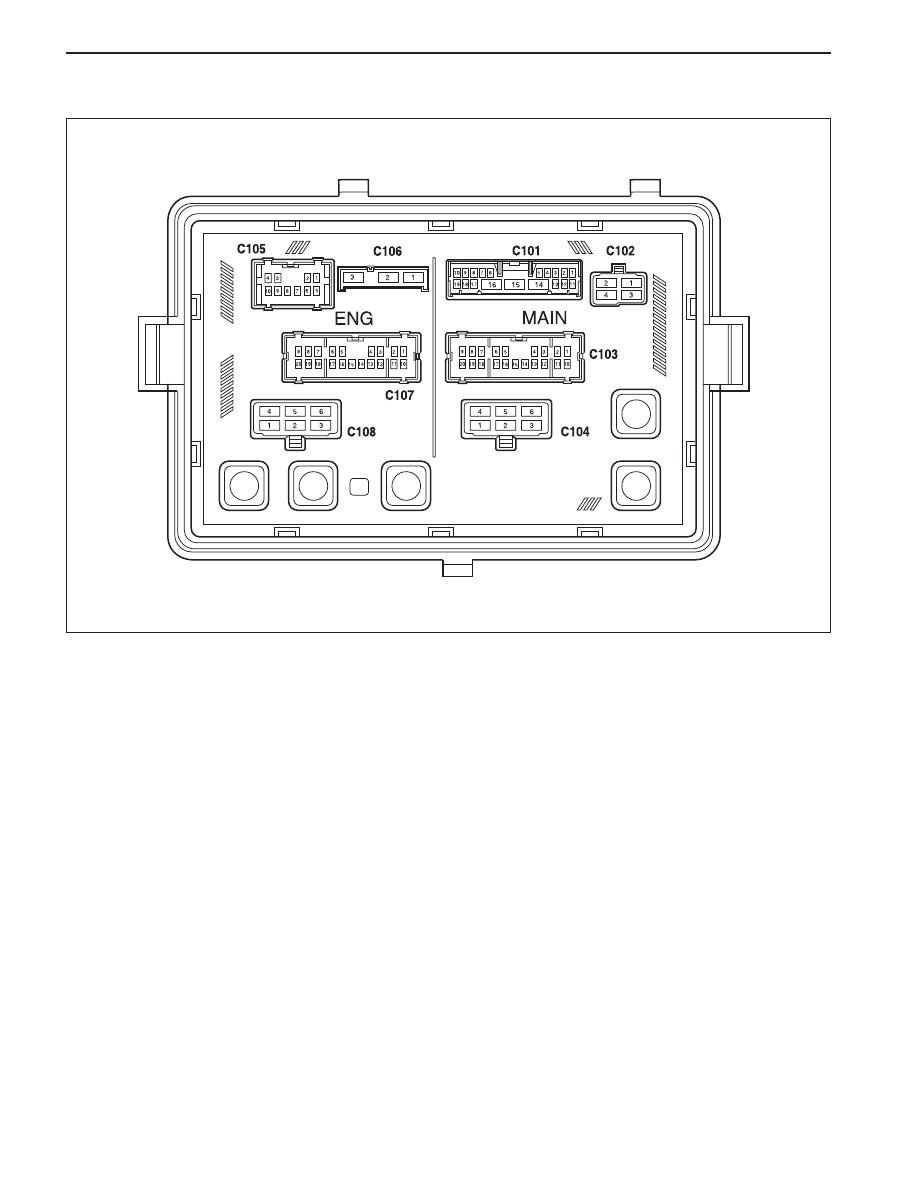

Position Of Relay And Fuse (Rear View)

KAA9A020

BODY WIRING SYSTEM  9A-5

SSANGYONG  MY2002

USAGE OF FUSE IN ENGINE ROOM FUSE BOX

Alternator Main - Gasoline

Alternator Main - Diesel

Not Used

Not Used

Not Used

Not Used

Not Used

Ignition SW

Not Used

Blower Motor

Battery 1 (F1 ~ F7)

Battery 2 (F17 ~ F22)

Front Fog Lamp

A/C Condenser Fan

Horn, A/C Compressor

Cooling Fan

Not Used

Not Used

ECS

Illumination (Position)

Illumination (Switch)

HeadLamp (LO)

ABS/ABD

Head Lamp (HI)

Defroster Indicator

Dsfroster

O.V.P.R

ABS

ABS/ABD

O.V.P.R

Power Supply

Usage

Classification

Fuse No

Capacity

30 BAT (+)

Spare

30 BAT (+) 30

IGN 2 (15A)

Illumination (58)

30 BAT (+)

IGN 2 (15A)

30 BAT (+)

SB (Slow-Blow)

Fuse

Blade Type

Fuse

SB (Slow-Blow)

Fuse

Blade Type

Fuse

SB (Slow-Blow)

Fuse

Blade Type

Fuse

SB (Slow-Blow)

Fuse

Blade Type

Fuse

Ef1

Ef2

Ef3

Ef4

Ef5

Ef6

Ef7

Ef8

Ef9

Ef10

Ef11

Ef12

Ef13

Ef14

Ef15

Ef16

Ef17

Ef18

Ef19

Ef20

Ef21

Ef22

Ef23

Ef24

Ef25

Ef26

Ef27

Ef28

120A

80A

7.5A

10A

15A

20A

25A

30A

-

30A

30A

30A

15A

15A

15A

30A

-

-

15A

10A

7.5A

15A

25A

15A

7.5A

20A

20A

60A

50A

15A

*30 : Battery (+) Power Supply

SSANGYONG MY2002

9A-6  BODY WIRING SYSTEM

PASSENGER ROOM FUSE BOX

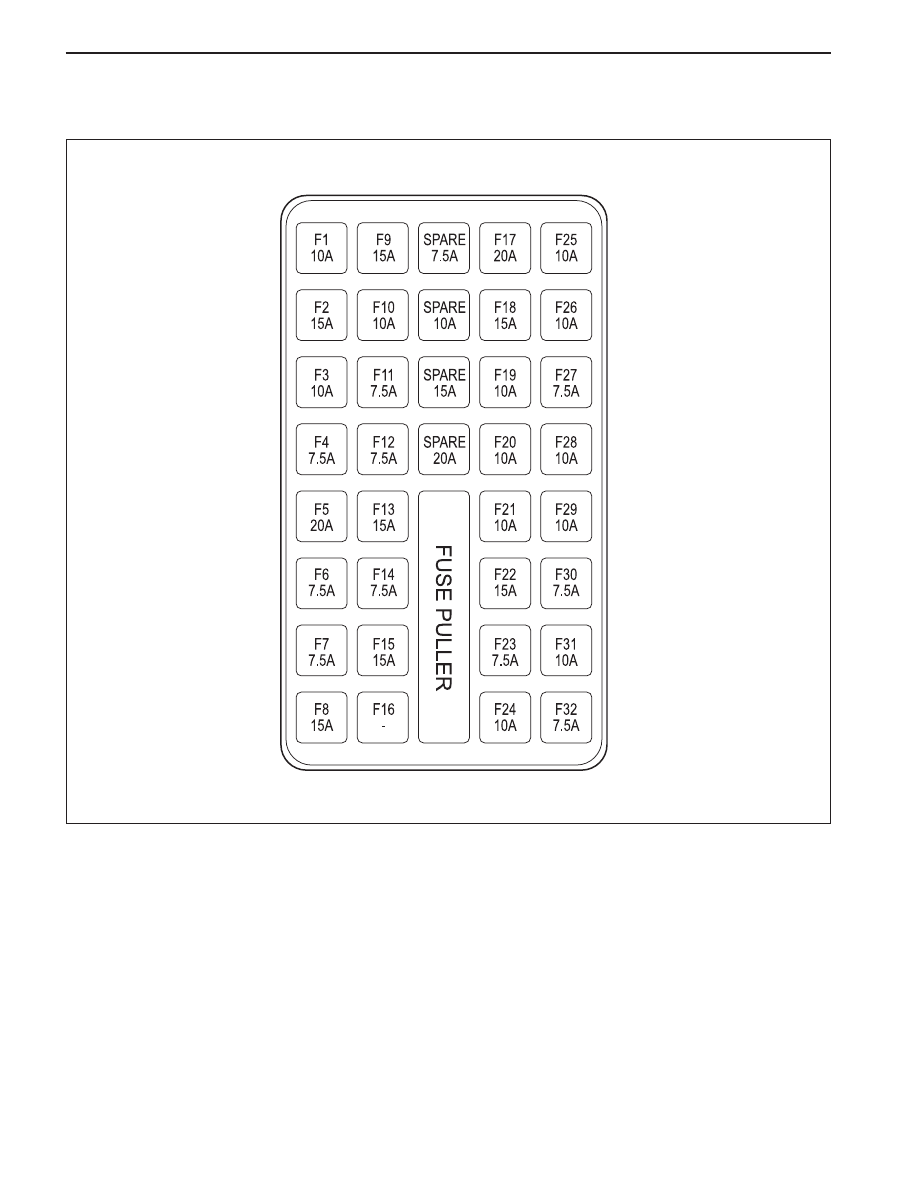

Position of Fuse

KAA9A030
