SSANGYONG  MY2002

8A-6  SEAT BELTS

KAA8A070

KAA8A060

KAA8A050

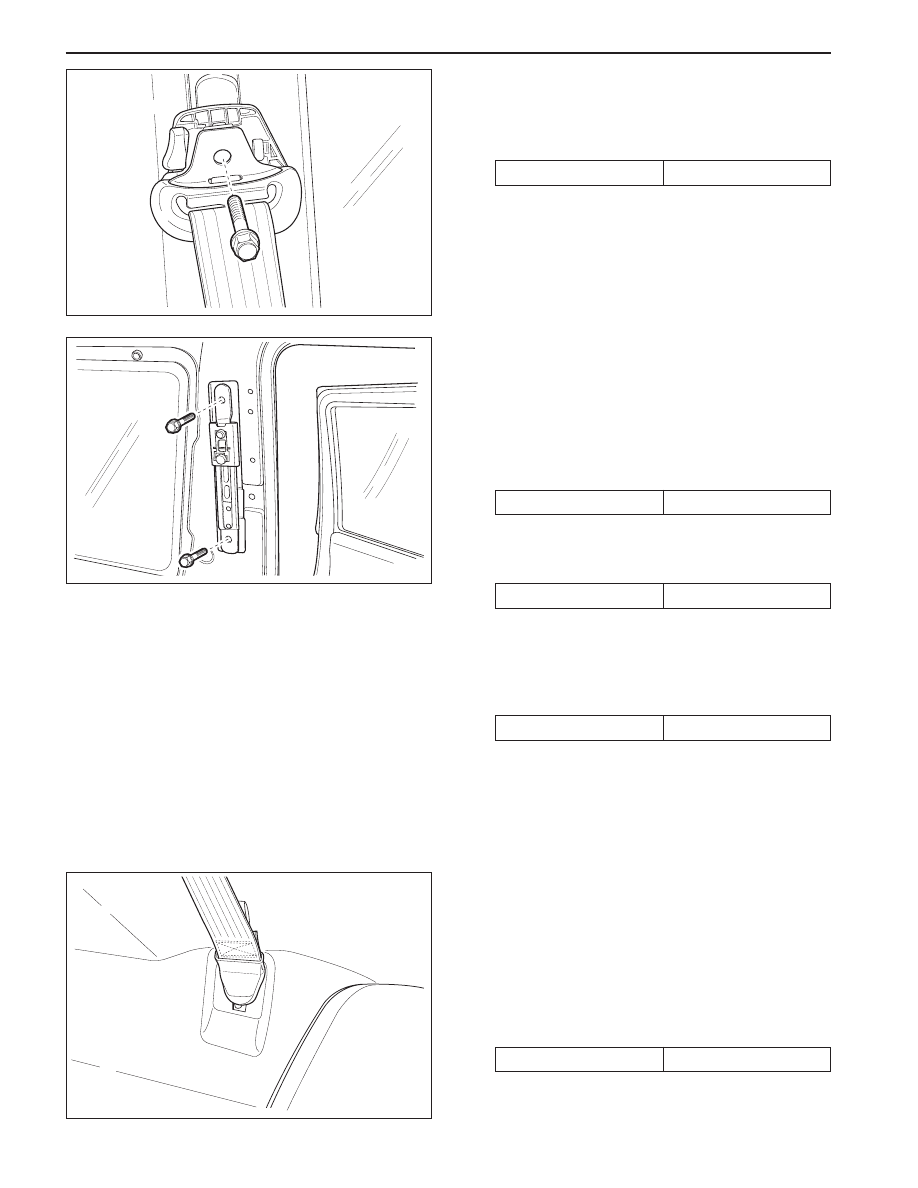

7. Remove the plastic cap to reveal the upper B-

pillar seat belt anchor.

8. Remove the bolt and B-pillar seat belt anchor.

Installation Notice

9. Installation should follow the removal procedure

in the reverse order.

Tightening Torque

45 N•m (33 lb-ft)

FRONT SEAT BELT HEIGHT
ADJUSTER

Removal and installation Procedure

1. Remove the front seat belt upper B-pillar anchor

bolt.

Installation Notice

2. Remove the rear seat belt upper anchor bolt.

Installation Notice

3. Remove the rear upper quarter trim panel. Refer

to Section 9G, Interior Trim.

4. Remove the bolts and seat belt height adjuster.

Installation Notice

5. Installation should follow the removal procedure

in the reverse order.

THREE-POINT REAR OUTBOARD
SEAT BELT

Removal and installation Procedure

1. Remove the plastic cap to reveal the seat belt

lower anchor bolt.

2. Remove the lower anchor bolt.

Installation Notice

Tightening Torque

45 N•m (33 lb-ft)

Tightening Torque

45 N•m (33 lb-ft)

Tightening Torque

45 N•m (33 lb-ft)

Tightening Torque

45 N•m (33 lb-ft)

SEAT BELTS  8A-7

SSANGYONG  MY2002

;;;;

;;;;

;;;;

yyyy

yyyy

yyyy

KAA8A090

KAA8A100

KAA8A110

KAA8A080

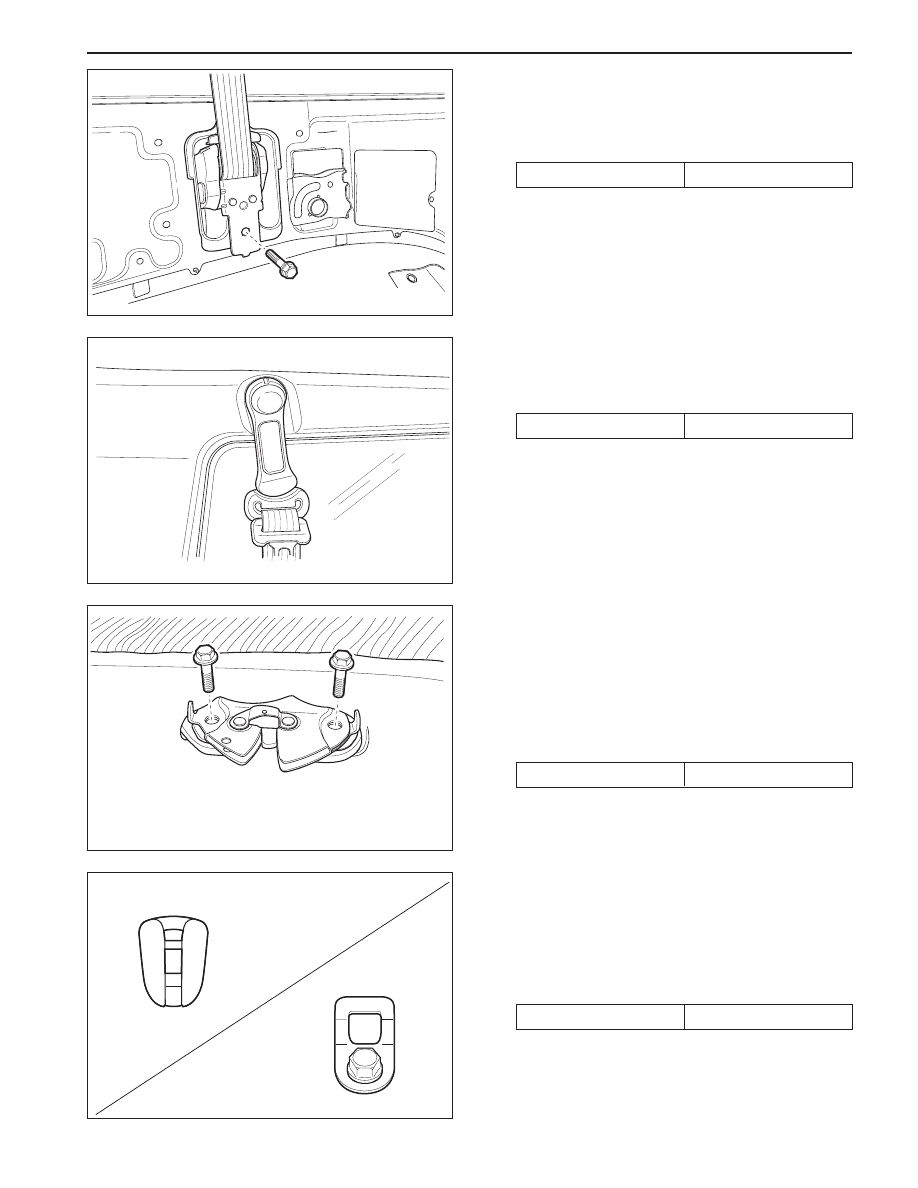

3. Remove the lower quarter trim panel. Refer to Sec-

tion 9G Interior Trim.

4. Remove the bolt, screw and seat belt retractor.

Installation Notice

5. Remove the plastic cap to reveal the bolt.

6. Remove the upper anchor bolt.

Installation Notice

7. Installation should follow the removal procedure

in the reverse order.

TWO-POINT LAP REAR CENTER
SEAT BELT

Removal and installation Procedure

1. Fold the rear seat cushion.

2. Remove the bolts and the seat belt anchors.

Installation Notice

3. Installation should follow the removal procedure

in the reverse order.

CHILD SEAT TETHER ANCHOR

Removal and installation Procedure

1. Open the tether anchor access cap if equipped.

2. Remove the bolt and the tether anchor.

Installation Notice

3. Installation should follow the removal procedure

in the reverse order.

Tightening Torque

Bolt 45 N•m (33 lb-ft)

Tightening Torque

Bolt 45 N•m (33 lb-ft)

Tightening Torque

Bolt 45 N•m (33 lb-ft)

Tightening Torque

Bolt 19 N•m (14 lb-ft)

SSANGYONG  MY2002

8A-8  SEAT BELTS

N • m

19

45

45

45

Lb-Ft

14

33

33

33

Child Seat Tether Anchor Bolt

Seat Belt Anchor Bolt

Seat Belt Height Adjuster Bolt

Seat Belt Retractor Bolt

Lb-In

-

-

-

-

Application

SPECIFICATIONS

FASTENER TIGHTENING SPECIFICATIONS

SEAT BELTS  8A-9

SSANGYONG  MY2002

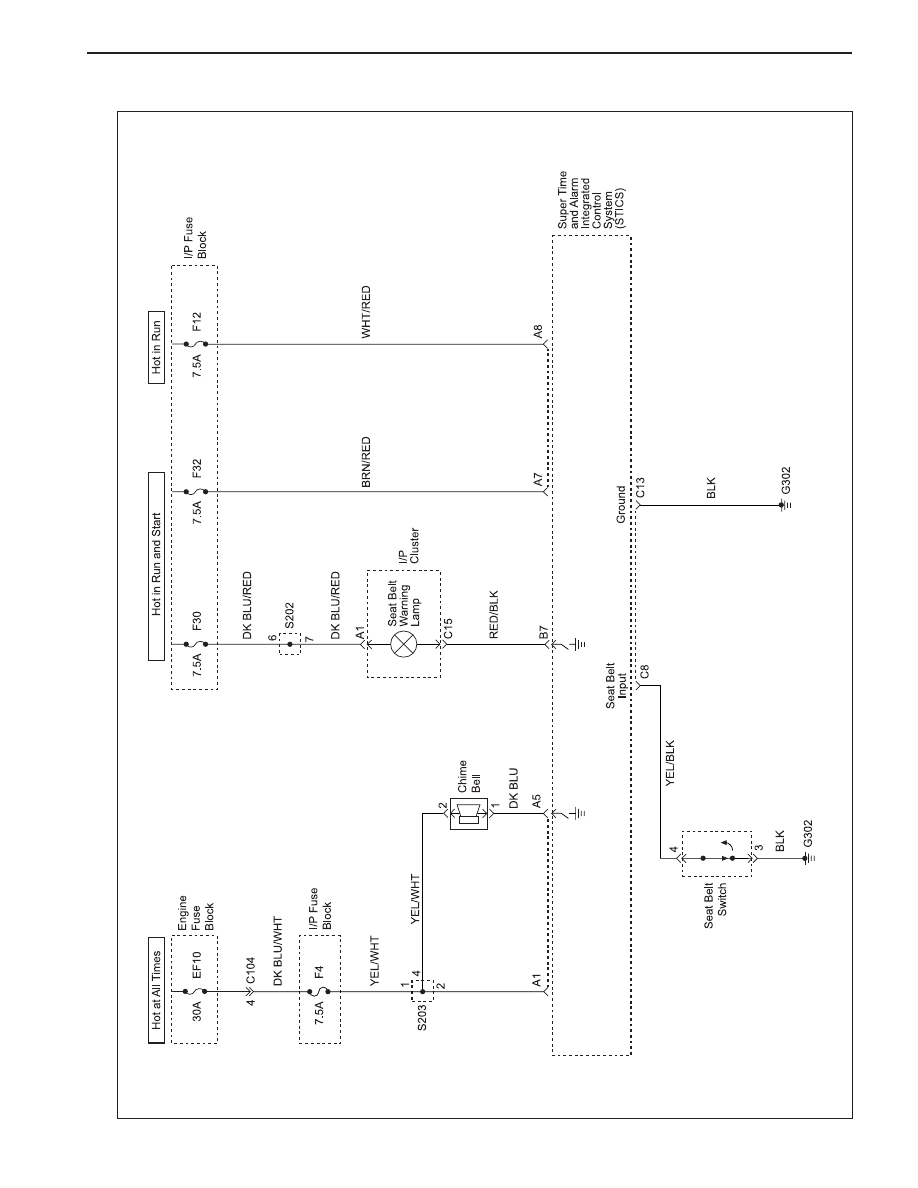

SCHEMATIC AND ROUTING DIAGRAM

SEAT BELT & TENSION REDUCER

KAA8A120
