SSANGYONG  MY2002

7D-16  FATC-HAVC

KAA7D130

KAA7D140

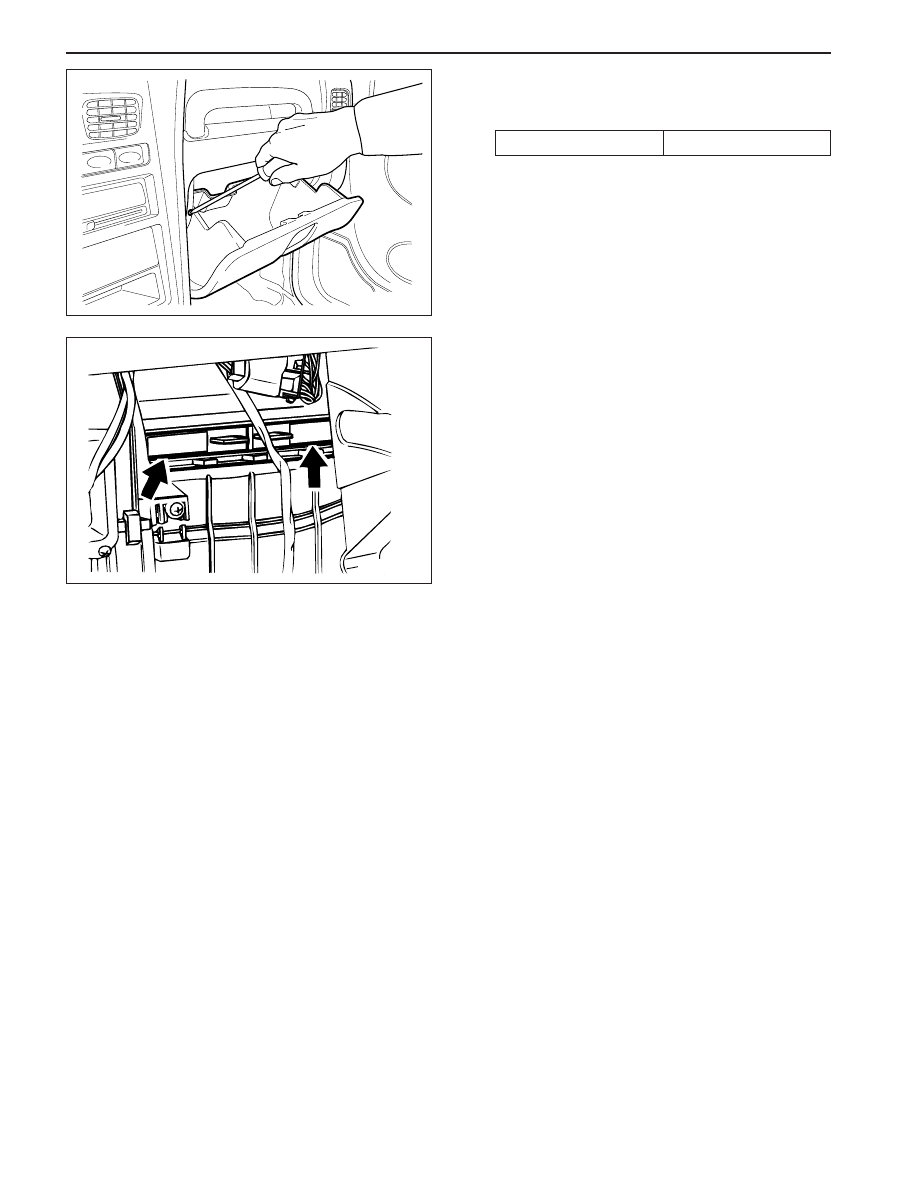

AIR FILTER

Removal and Installation Procedures

Notice: Replace earlier if air pollution is heavy.

1. Open the glove box and pull it inward to release

the upper left and right locking portion.

Notice: Remove the glove box by unscrewing
lower 2 screws, if necessary.

2. Press the 2 filter cover holds and remove the air

filter cover.

3. Remove the 2 air filters.

Notice: For installation, remember the installed
direction of the air filter before removal.

Replacement Interval

Every 10,000 km

FATC-HAVC  7D-17

SSANGYONG  MY2002

KAA7D150

KAA7D160

KAA7D170

KAA7D180

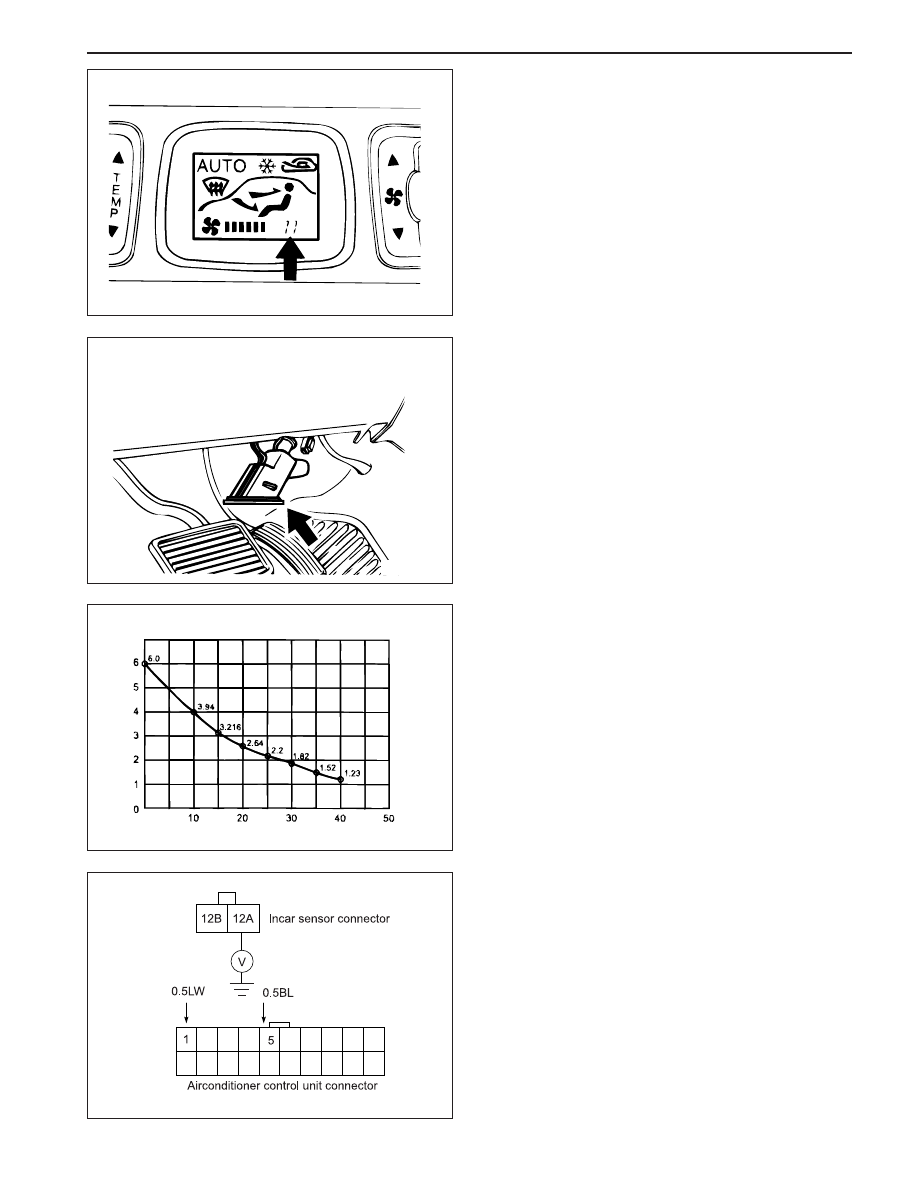

TROUBLESHOOTING

Check and Service

Incar sensor is a sensor that detects interior air
temperature and a thermistor that decreases its
resistance when temperature up and increases when
temperature down.

1. Check that there are incar sensor fault code (11,12)

by using self-diagnosis function.

2. Disconnect incar sensor 2-pin connector that

installed on inner lower instrument panel cover of
driver’s side and remove the sensor.

3. Check that measured resistance value among

incar sensor terminals is as shown in the right side
graph.

Notice: Measure resistance value by soaking the
sensor in the ice water and check changes in
resistance values after soaking it in the very hot
water.

4. If resistance value is out of specification, replace

the incar sensor.

5. Install the sensor and turn the ignition switch to

ON position and check that voltage between No.
12A terminal of incar sensor and body (-) is 5V.

6. Check current between the No. 12B and 12A

connector terminals of the incar sensor and the No.
1 and 5 connector terminals of the airconditioner
control unit and repair the wire if defective.

SSANGYONG  MY2002

7D-18  FATC-HAVC

KAA7D190

KAA7D200

KAA7D210

KAA7D220

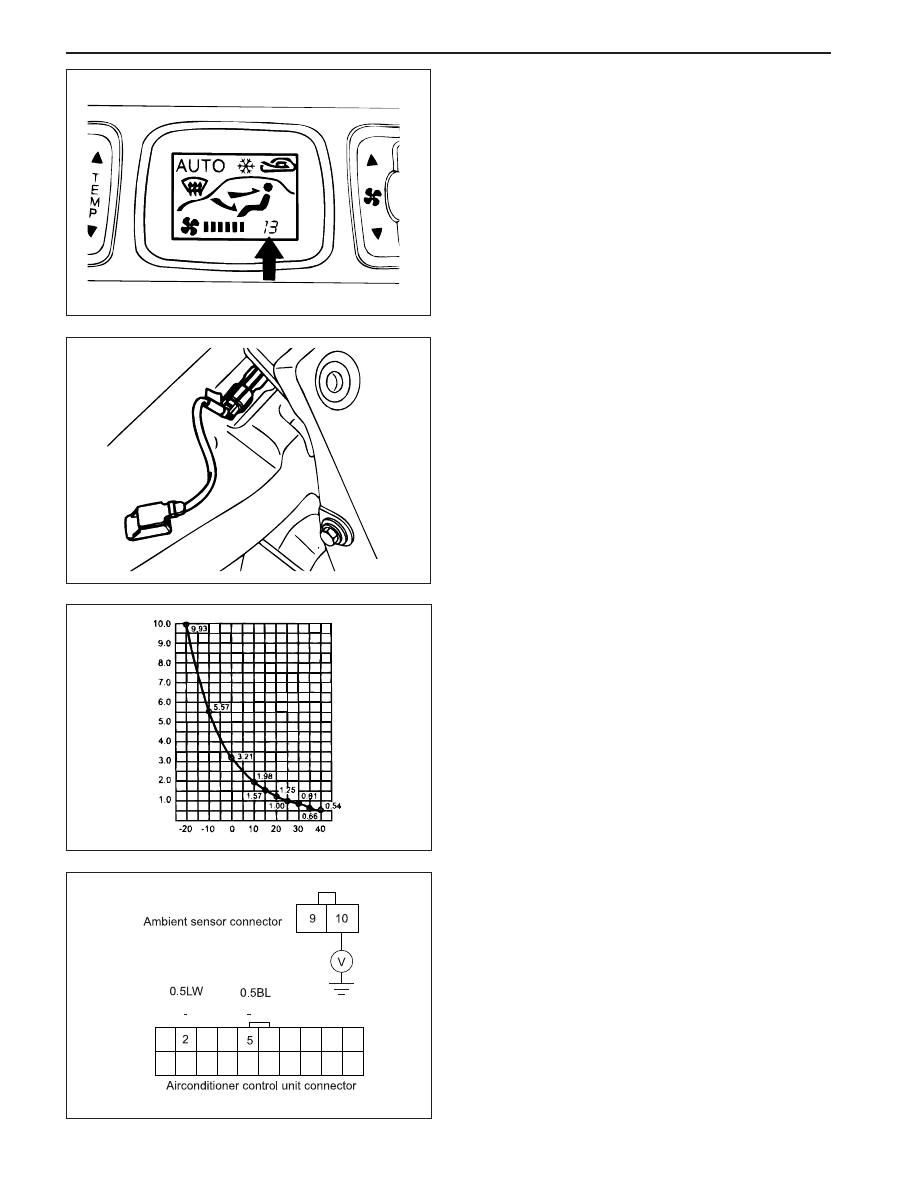

Ambient Sensor

Ambient sensor is a sensor that detects ambient
temperature and a thermistor that decreases its
resistance when temperature up and increases when
temperature down.

1. Check that there are ambient sensor fault code

(13,14) by using self-diagnosis function.

2. Disconnect ambient sensor 2-pin connector that

installed on front right side of the frame and
remove the sensor.

3. Check that measured resistance value among

ambient sensor terminals is as shown in the right
side graph.

Notice: Measure resistance value by soaking the
sensor in the ice water and check changes in
resistance values after soaking it in the very hot
water.

4. If resistance value is out of specification, replace

the ambient sensor.

5. Install the sensor and turn the ignition switch to

ON position and check that voltage between No.
10 terminal of the ambient sensor and body (-) is
5V.

6. Check current between the No. 10 and 9 connector

terminals of the ambient sensor and the No. 2 and
5 connector terminals of the airconditioner control
unit and repair the wire if defective.

FATC-HAVC  7D-19

SSANGYONG  MY2002

KAA7D230

KAA7D240

KAA7D250

KAA7D260

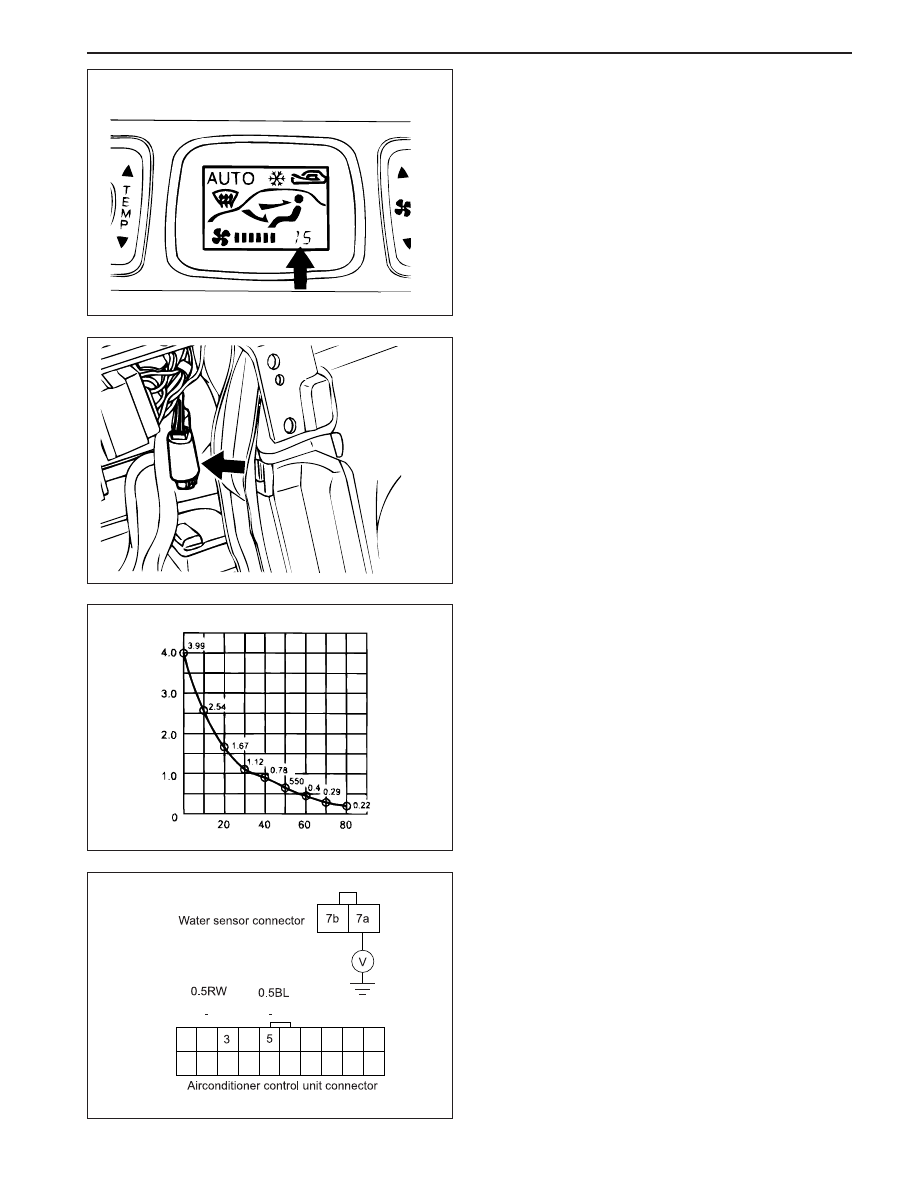

Water Sensor

Water sensor is a thermistor that detects engine coolant
temperature to operate the blower speed to LO when
water temperature is less than 50.

1. Check that there are water sensor fault code (15,16)

by using self-diagnosis function.

2. Disconnect water sensor 2-pin connector that

installed on the heater unit of inner instrument panel
and remove the water sensor.

3. Check that measured resistance value among

water sensor terminals is as shown in the right
side graph.

Notice: Measure resistance value by soaking the
sensor in the ice water and check changes in
resistance values after soaking it in the very hot
water.

4. If resistance value is out of specification, replace

the water sensor.

5. Install the sensor and turn the ignition switch to

ON position and check that voltage between No.
7a terminal of the water sensor and body (-) is 5V.

6. Check current between the No. 7a and 7b connector

terminals of the water sensor and the No. 3 and 5
connector terminals of the airconditioner control unit
and repair the wire if defective.
