SsangYong Korando II (1996-2006 year). Service manual - part 389

MANUAL & SEMIAUTO-HVAC  7C-25

SSANGYONG  MY2002

KAA7C300

KAA7C310

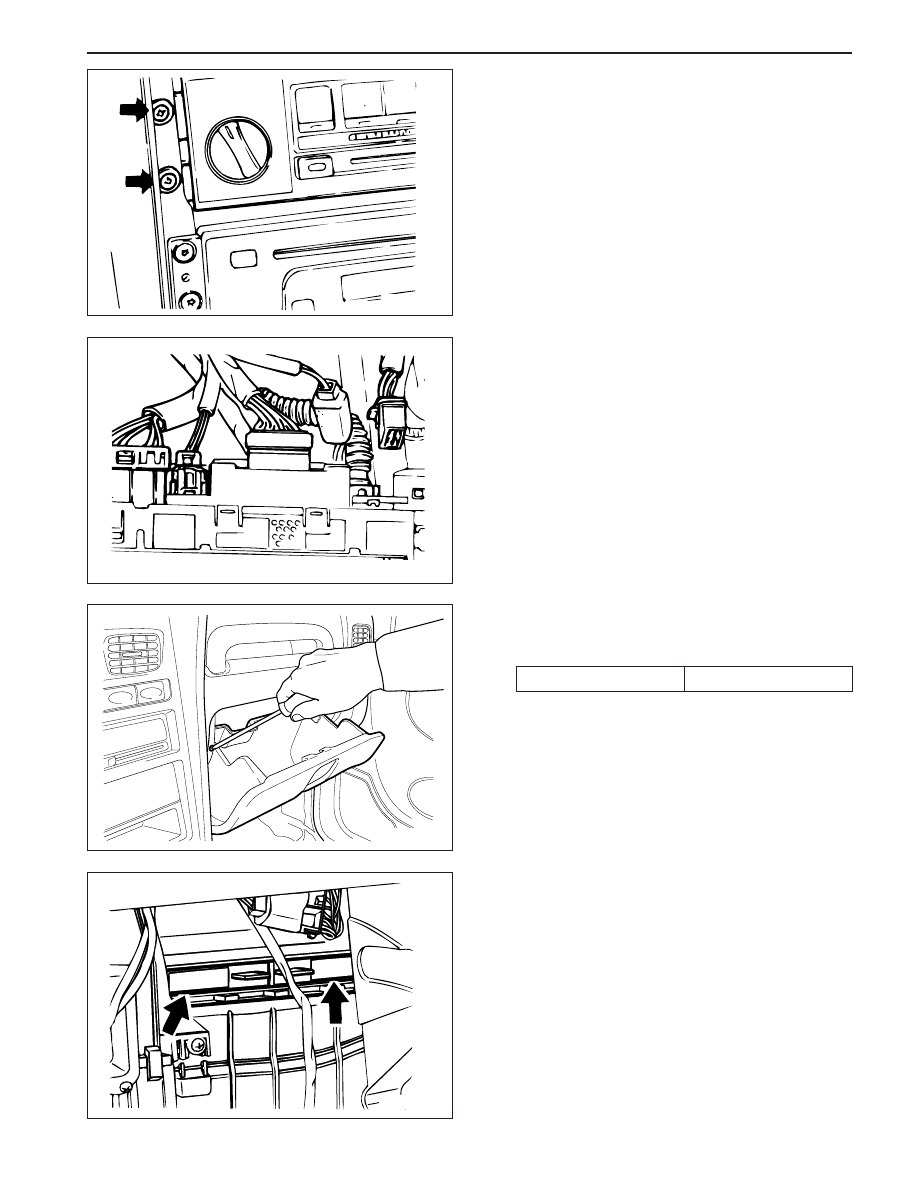

Removel & Installation Procedure

1. Remove the switch panel.

Notice: Be careful not to damage the switch panel.

2. Remove the fixing screws (4 screws) of the control

box.

3. Disconnect the wire connectors and remove the

control box.

4. Installation is reverse order of the removal.

KAA7D130

KAA7D140

AIR FILTER

Removal and Installation Procedures

Notice: Replace earlier if air pollution is heavy.

1. Open the glove box and pull it inward to release

the upper left and right locking portion.

Notice: Remove the glove box by unscrewing
lower 2 screws, if necessary.

2. Press the 2 filter cover holds and remove the air

filter cover.

3. Remove the 2 air filters.

Notice: For installation, remember the installed
direction of the air filter before removal.

Replacement Interval

Every 10,000 km

SECTION 7D

FULL  AUTOMATIC  TEMPERATURE

CONTROL  HEATING, VENTILATION  AND

AIR CONDITIONING  SYSTEM

FATC (Full Automatic Temperature Control) is full automatic heater and airconditioning system that detects
incar temperature, ambient temperature, sun load and coolant temperature and controls airconditioner
system blowing capacity, outlet temperature and intaking/outlet mode to maintain interior comfort.

TABLE OF CONTENTS

Specifications ....................................................... 7D-2

Refrigerant .......................................................... 7D-2

Evaporator Unit .................................................... 7D-2

Blower Unit .......................................................... 7D-2

Compressor ......................................................... 7D-2

Condenser ........................................................... 7D-2

Receiver Drier ...................................................... 7D-2

Pressure Switch ................................................... 7D-3

Air Filter ............................................................... 7D-3

Heater Unit .......................................................... 7D-3

Service Specifications .......................................... 7D-4

Fastener Tightening Specifications ....................... 7D-4

Schematic and Routing Diagrams ....................... 7D-5

Circuit Diagram .................................................... 7D-5

FATC Block Diagram ........................................... 7D-6

Component Locator ............................................. 7D-7

Ventilation System ............................................... 7D-7

Function Description ............................................ 7D-8

Diagnosis .............................................................. 7D-9

Diagnosis Test ..................................................... 7D-9

Maintenance and Repair ................................... 7D-13

FATC Control Panel ............................................ 7D-13

Air Filter ............................................................. 7D-16

Troubleshooting ................................................. 7D-17

SSANGYONG  MY2002

7D-2  FATC-HAVC

SPECIFICATIONS

REFRIGERANT

Core Size (LxWxT)

Core Type

Expansion Valve Type

Thermostat

Resister Type

Cooling Capacity

Application

Description

237.0 x 232.0 x 92.0

Aluminum plate

Angle

ON:4.5 ± 0.6°C, OFF:1.5 ± 0.6°C

Aluminum plate

4,300 Kcal/h (AT 420 CMH)

Capacity

Type

Application

Description

650 - 750 g

R134a

EVAPORATOR UNIT

BLOWER UNIT

Motor Type

Motor Size

Application

Description

Magnetic

φ

70 x 145

COMPRESSOR

Model

Type

Displacement (cc/rev.)

PCD (Pulley Center Diameter)

Oil

Magnetic clutch output

Application

Description

FK-II (DKV 14C)

Vane rotary type

140.5 (cc/rev)

φ

143

ZXL 200 PG (PAG Oil)

45 W

CONDENSER

Size (WxHxT)

Capacity

Type

Application

Description

650 x 339.2 x 22.0

11,000 Kcal/h

Parallel Flow

RECEIVER DRIER

Material

Capacity

Desiccant

Application

Description

Aluminum

250 cc

XH-9 (35 g)

FATC-HAVC  7D-3

SSANGYONG  MY2002

PRESSURE SWITCH

Type

High (OFF)

Low (ON)

Application

Description

Direct

OFF : 32 ± 2 Kgf/cm

2

, DIFF : 6 ± 2 Kgf/cm

2

OFF : 2.0 ± 0.2 Kgf/cm

2

, ON : 2.1 ± 0.2 Kgf/cm

2

AIR FILTER

 Replacement

Application

Description

Every 12,000 km (replace earlier if air pollution is heavy)

HEATER UNIT

Heater Core Type

Heating Capacity

Heater Core Size (L x W x T)

Application

Description

2-ROW

4,600 Kcal/h (AT 300 CMH)

219.5 x 151.8 x 52
