AUTOMATIC TRANSMISSION 5A-199
SSANGYONG MY2002

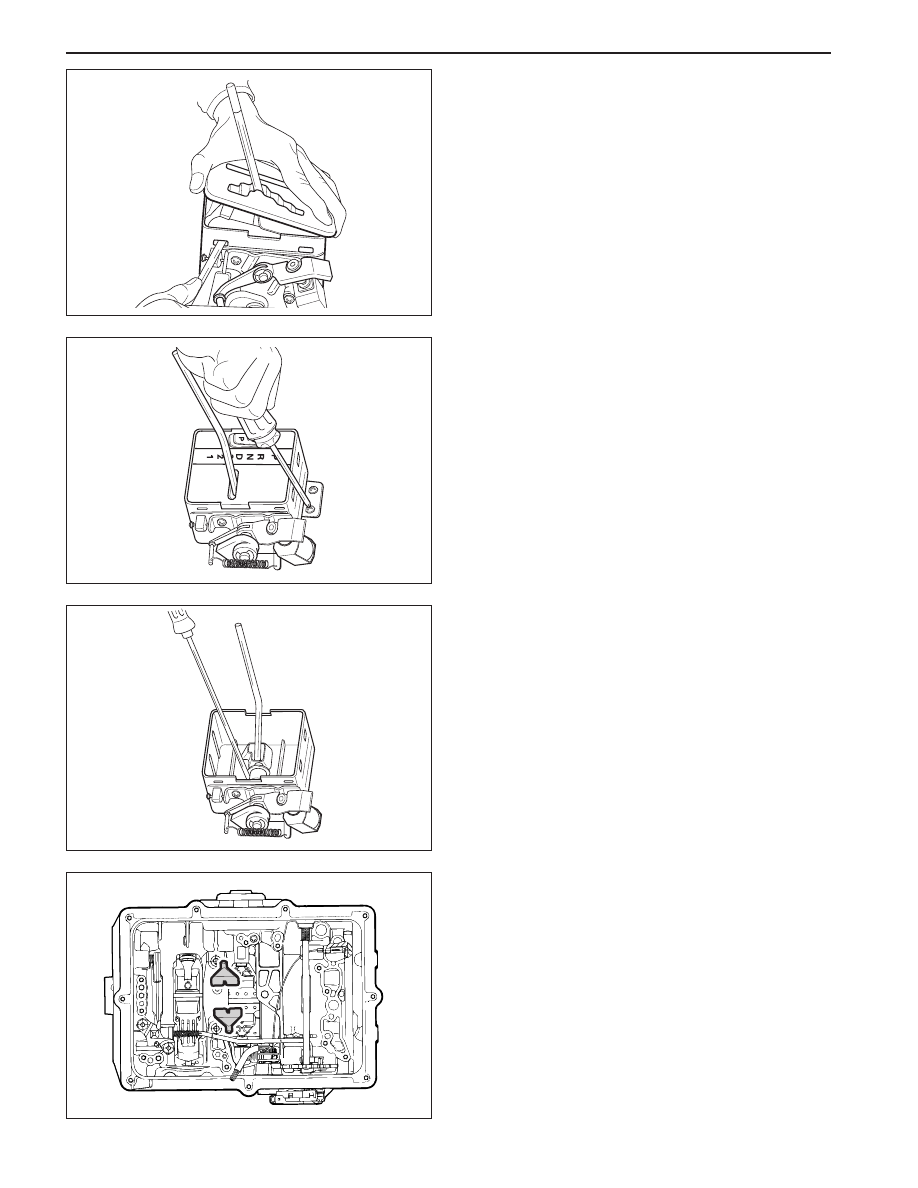

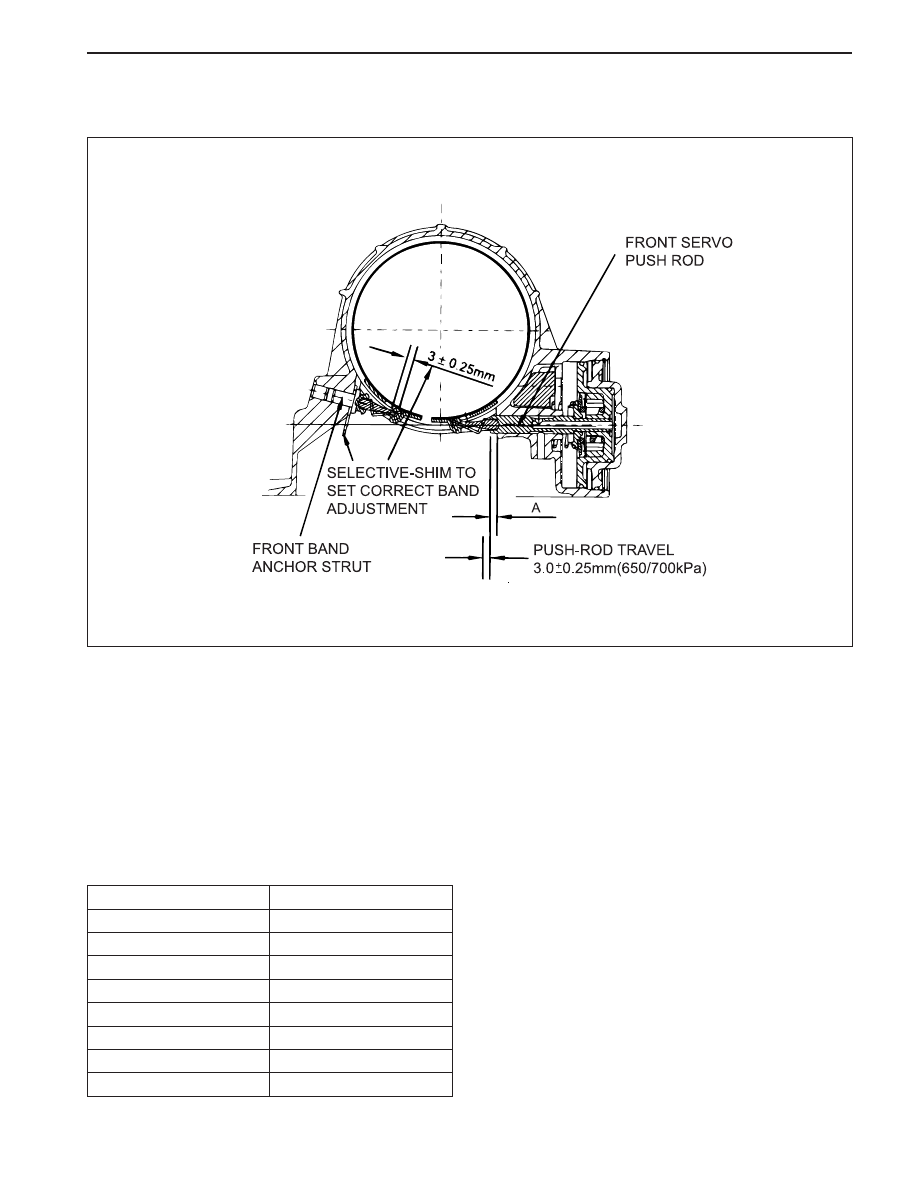

1. Measure the projection of the front servo push rod
from the transmission case dimension ‘A’.

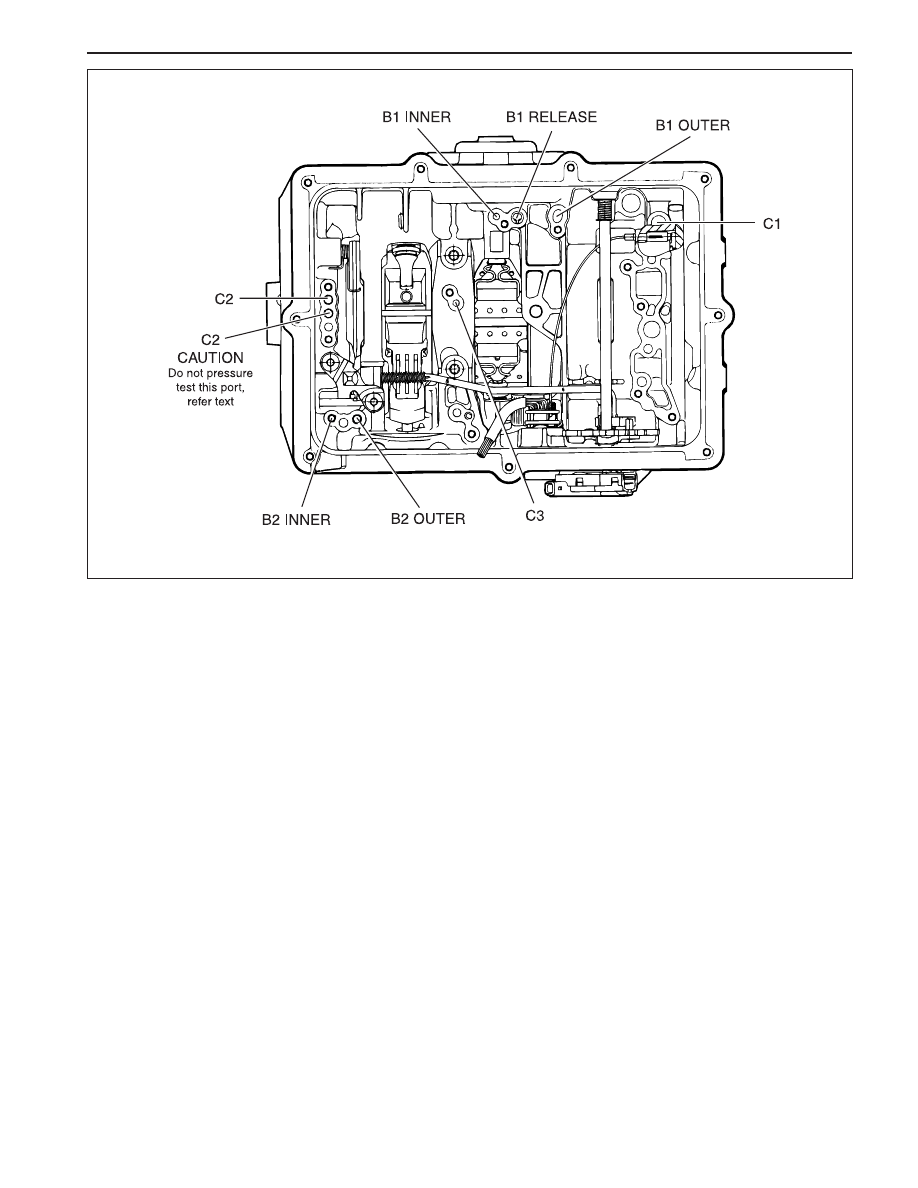

a. Apply air at 650/700 kPa to the front servo apply
area (B1 outer)
b. Measure the travel of the push rod and subtract
3 mm to find the shim size required.
c. Release the air.
Notice: A minimum of one shim is required at all times
- minimum shim size is 1 mm. The thickness of
available shims are listed in the table below.

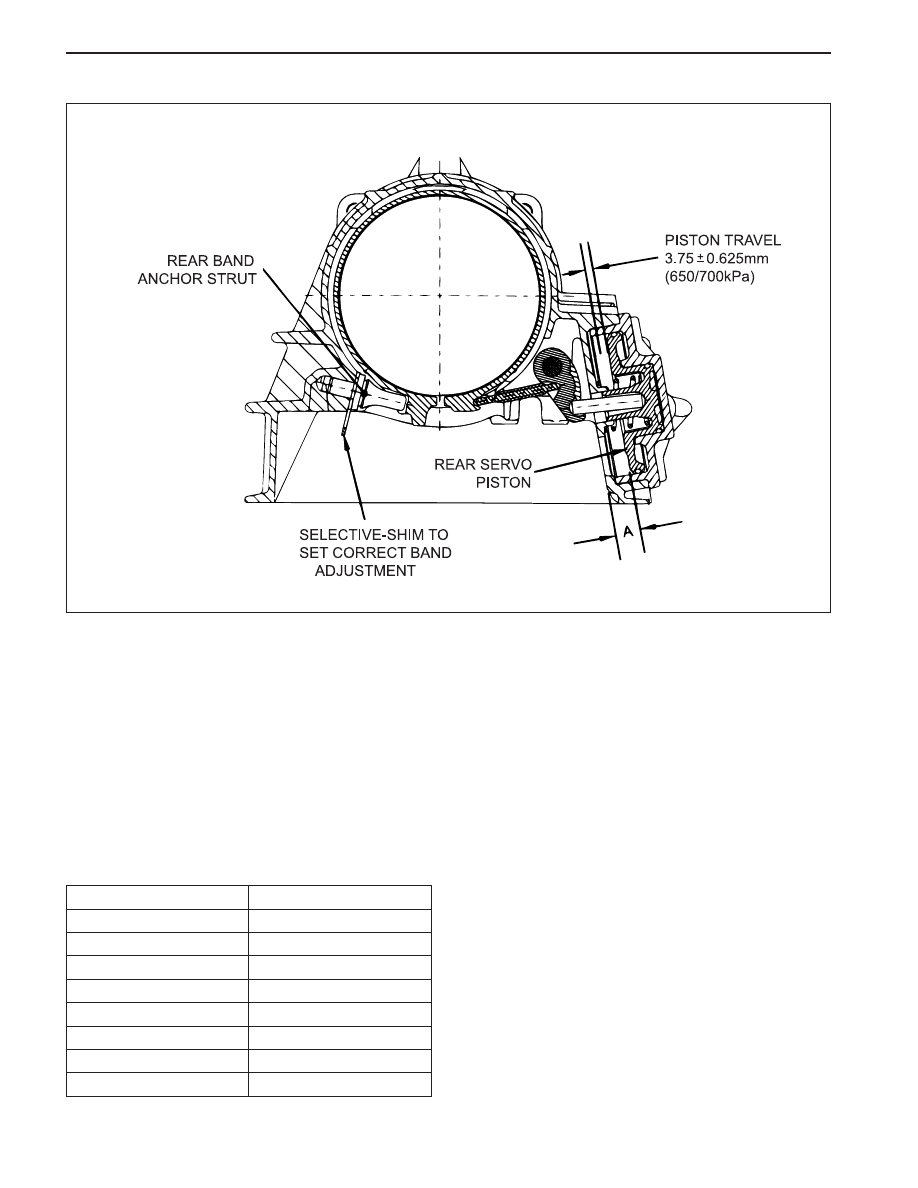

FRONT AND REAR BAND ADJUSTMENT
Front Band Setting Procedure
2. Fit the selected shim(s) to the shank of the anchor
strut as follows:
a. Inspect the shim(s) for damage, wear or corro-
sion. Replace as necessary.
b. The shim(s) are to be installed between the case
abutment face and the anchor strut flange.
c. The shim(s) are to be fitted by hand and under
no circumstances to be hammered or forced.
d. Shim(s) are to be pressed on by hand until an
audible click is heard. The click indicates that
the shim is clipped home correctly.
3. Re-check that the push rod travel. (3 mm ± 0.25
mm)
KAA5A2E0
Thickness (mm)
Part Number
0.95/1.05
0574-037017
1.15/1.25
0574-037018
1.44/1.56
0574-037019
1.73/1.87
0574-037020
1.93/2.07
0574-037021
2.12/2.28
0574-037022
2.42/2.58
0574-037023
2.61/2.79
0574-037024
