AUTOMATIC TRANSMISSION 5A-147
SSANGYONG MY2002
DTC P1745 Solenoid 5 Circuit Short
Test Description
The number(s) below refer to the step number(s) on
the Diagnostic Table.
3. Checks if the S5 circuit in the transmission is mal-
functioning.
4. Check cable in the transmission for short to
ground.
6. Check resistance between S5 terminal A and B.
Standard value is 3.6 - 5.5
Ω
.
10. Check connections of other connectors.
-
Go to Step 12
-
1
Perform Transmission Control Module (TCM) System
Check.
Is the check performed?
1. Install the scan tool.
2. Turn the ignition ON, with the engine OFF.
3. Record and then clear DTCs.
4. Operate the vehicle within the conditions for
setting this DTC as specified in the text.
Does the scan tool display P1745?
1. Turn the ignition OFF.

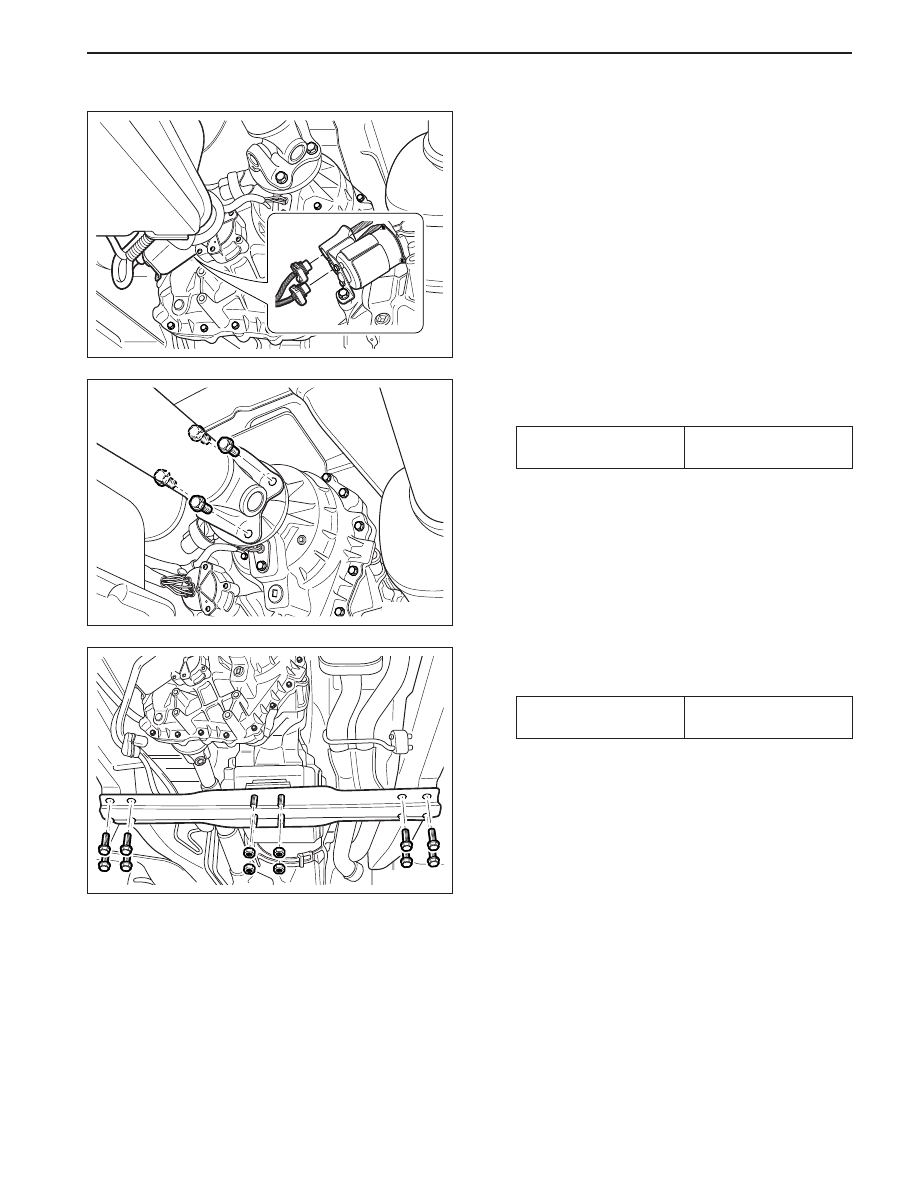

2. Disconnect the 10-way transmission connector.
(additional DTCs will set)
3. Connect Solenoid/Thermistor Electrical Tester
(STET) to the 10-way transmission connector of
transmission side.
4. Turn the mode knob of STET to 5 and push the red
button.
Does the bulb of close circuit on the solenoids side of
STET illuminate?
1. Remove the valve cover. Refer to the Transmission
in this section.
2. With a test light connected to B+ probe the wiring
harnesses from 10-way transmission connector to
Solenoid 5 (S5) on the valve body.
Does the test light illuminate?
Repair the short to ground in the wiring harness.
Is the repair complete?
Using a Digital Volt Meter (DVM), measure the resis-
tance between S5 terminal A and B.
Is the resistance within the specified value?
Replace the S5.
Is the action complete?
1. Disconnect the TCM connector A.
2. With a test light connected to B+, probe the wiring
harness from 10-way transmission connector
terminal 5 to TCM terminal.
Does the test light illuminate?
Probe the wiring harness from 10-way transmission
connector terminal 8 to TCM terminal A1.
Does the test light illuminate?
Check for a poor connection at the 10-way transmission
connector and TCM connector and repair the malfunc-
tioning terminals as necessary.
Is a repair necessary?
Step
Action
Value(s)
Yes
No
2
3
-
Go to Step 2
Go to “TCM
Diagnostic
System Check”
-
Go to Step 4
Go to Step 8
5
6
4
-
Go to Step 5
Go to Step 6
-
Go to Step 12
-
7
8
9
-
Go to Step 5
Go to Step 9
10
-
Go to Step 5
Go to Step 10
-
Go to Step 12
Go to Step 11
-
Go to Step 3
Go to
“Diagnostic
Aids”
3.6 - 5.5
Ω
Go to
“Diagnostic
Aids”
Go to Step 7
