SSAMGYONG MY2002

3A-4 FRONT AXLE

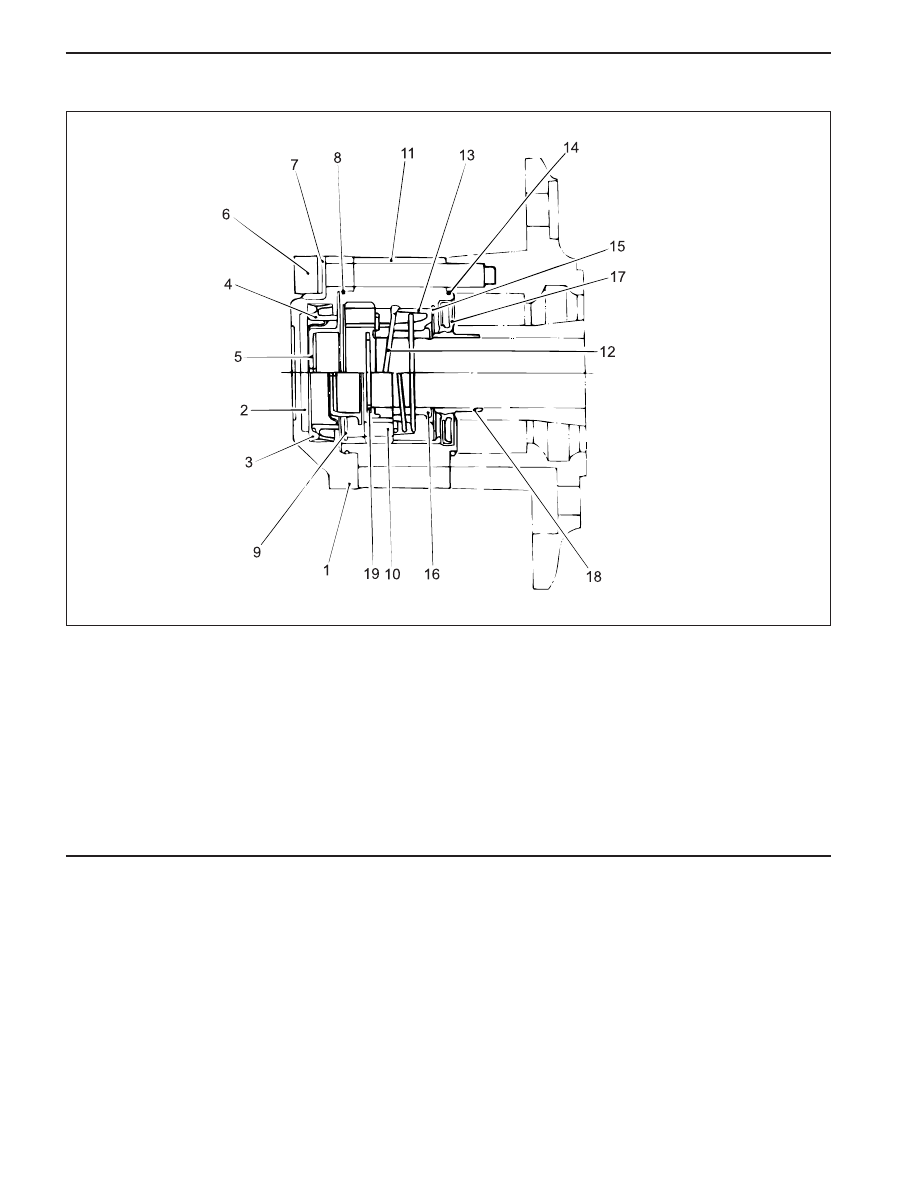

AUTO-LOCKING HUB

1 Cap
2 Filter
3 Vacuum Diaphragm
4 Diaphragm Retainer
5 Piston
6 Bolt (M10)
7 Lock Washer
8 O-ring
9 Retaining Ring

10 Clutch Ring

11 Body
12 Return Spring
13 Bearing
14 O-ring
15 Retaining Ring
16 Inner Drive Gear
17 Oil Seal
18 Oil Seal Race
19 Axle Retaining Ring

KAA3A020

FRONT AXLE 3A-5

SSANGYONG MY2002

MAINTENANCE AND REPAIR

ON-VEHICLE SERVICE

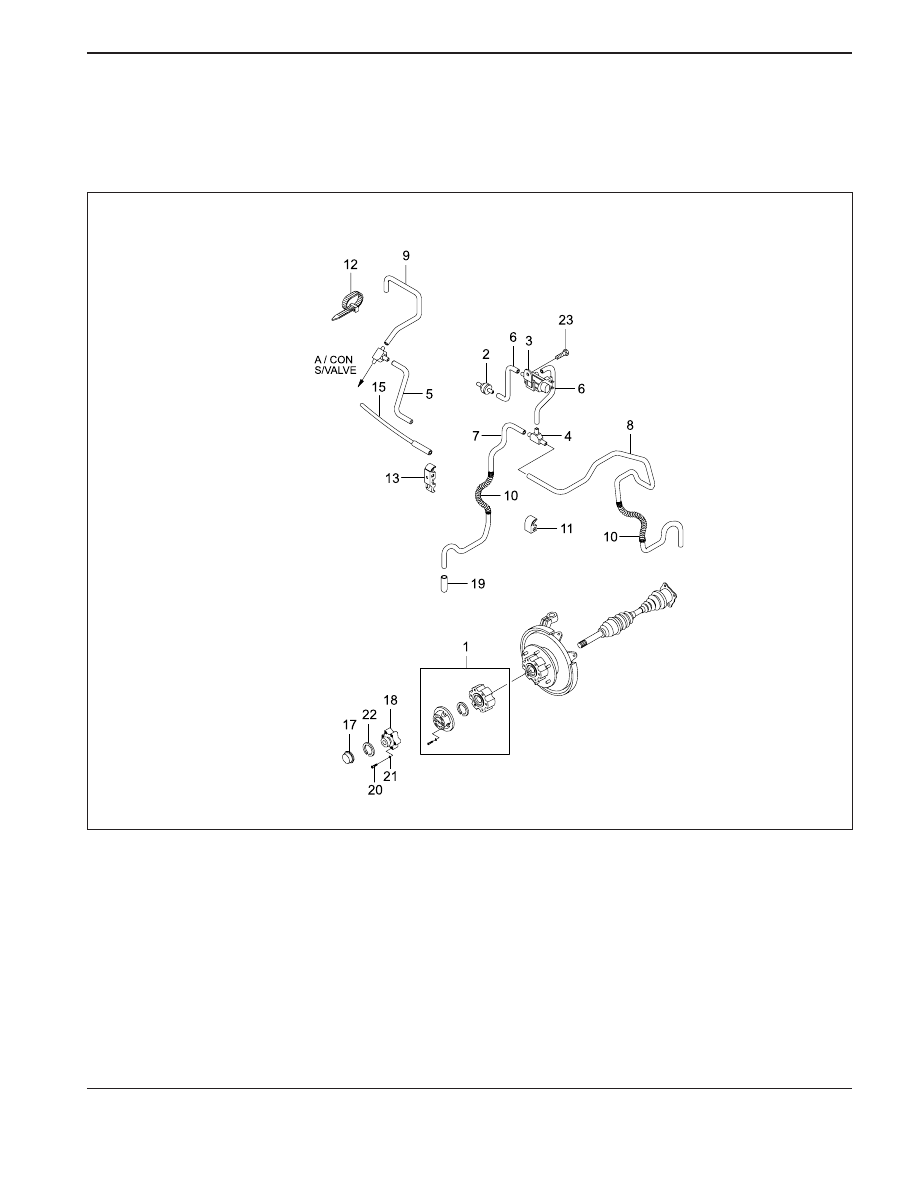

VACUUM LINE

1 Hub A-Auto Vac Locking
2 Valve-Check
3 Valve A-Solenoid
4 Connector
5 House-Vcuum
6 Hose-Vacuum
7 Hose-Vacuum
8 Hose-Vacuum
9 Hose

10 Tube-corruagated
11 Clip
12 Band

KAA3A030

13 Clip
14 Bolt
15 Tube A-Vacuum
16 Clip-L/Hub Hose MTG
17 Cap-Hub Flange FRT
18 Flange-Hub FRT
19 Cap
20 Bolt
21 Washer
22 Ring-Retainer
23 Bolt

SSAMGYONG MY2002

3A-6 FRONT AXLE

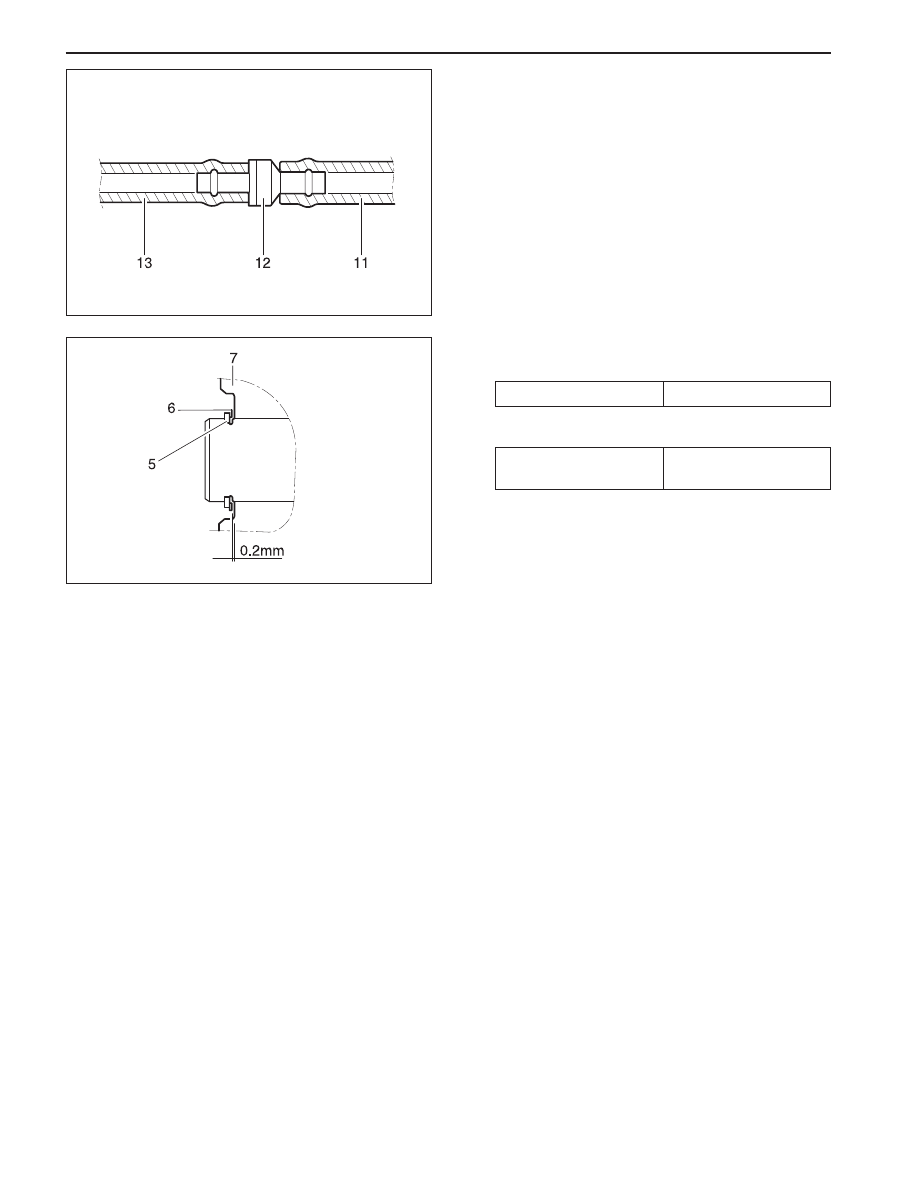

Removal & Installation Procedure

1. B e   c a r e f u l   n o t   t o   c h a n g e   t h e   v a l v e   w h e n

connecting the check valve and each hose.

2. Adjust the clearance between the retainer ring (5)

and locking hub (7) using the shim(6).

Notice: Shim thickness : 0.1, 0.2, 0.3, 0.5, 1.0
mm

3. Tighten the auto locking hub cap bolt to the

specified torque and order.

Tightening Torque

50 - 60 N•m

(37 - 44 lb-ft)

Normal

Max. 0.2 mm

KAA3A040

KAA3A050

Installation Notice

FRONT AXLE 3A-7

SSANGYONG MY2002

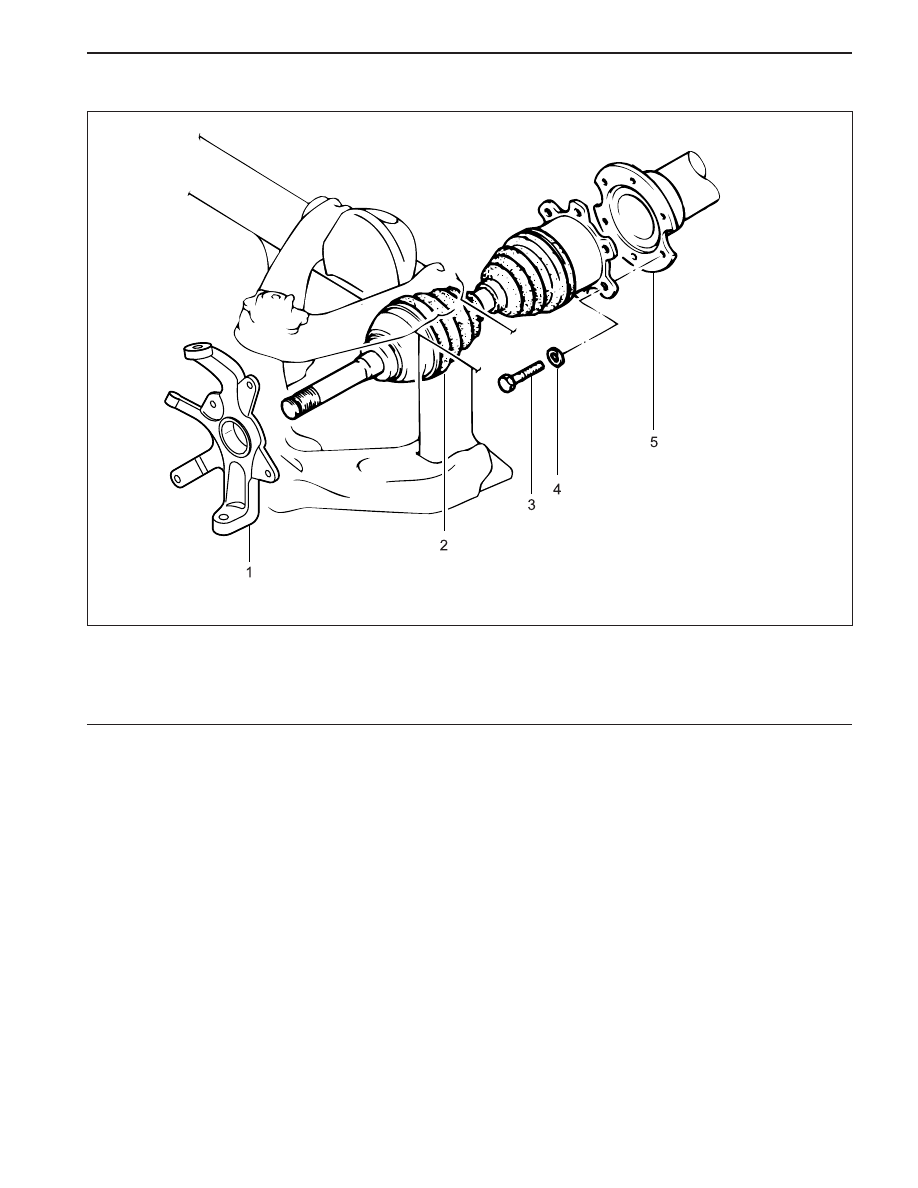

STEERING KNUCKLE AND DRIVE SHAFT

1 Front Axle Inner Shaft
2 Front Axle Drive Shaft
3 Spring Washer

4 Bolt ............................ 45 - 60 N•m (33 - 44 lb-ft)
5 Steering Knuckle

KAA3A060
